Intel Pentium P6300

Intel P6300

Der Intel Pentium P6300 ist ein Einstiegsprozessor für Notebooks. Er taktet mit 2,26 GHz und bietet keinen TurboBoost um sich zu übertakten. Auch der Level 2 Cache ist mit 3 MB nicht sonderlich groß. Im Vergleich zu denm schnelleren Core i3-330M bietet der P6200 kein Hyperthreading und kann dadurch nur 2 Threads gleichzeitig bearbeiten. Auch die AES Funktionen sind beim P6300 deaktiviert. VT-x/VT-d Virtualisierungsfunktionen werden wie beim i3 auch nicht zur Verfügung gestellt.

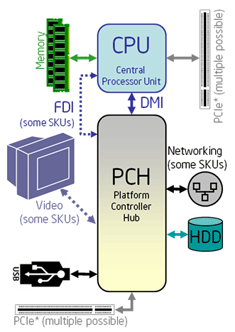

Der Pentium P6300 basiert auf den Arrandale Kern (wie auch i3, i5 und i7 Doppelkern Prozessoren) und besitzt daher einen Speicherkontroller und Grafikkern im selben CPU Package. Diese werden jedoch noch in 45nm gefertigt. Die CPU bereits in 32nm. Die integrierte Intel HD Graphics Grafik taktet mit 500 MHz Basis Takt und kann sich dank TurboBoost auf 667 MHz übertakten.

Die Leistung ist aufgrund der geringen Taktrate etwas beschränkt und durch das fehlende HyperThreading plaziert sich der P6300 auf dem Niveau des langsamer getakteten i3-330M.

SerieIntel Pentium
CodenameArrandale

Serie: Pentium Arrandale

Intel Pentium P6300 « 2.27 GHz2 / 2 cores3 MB L3
Intel Pentium P6200 compare2.13 GHz2 / 2 cores3 MB L3
Intel Pentium P6100 compare2 GHz2 / 2 cores3 MB L3
Intel Pentium P6000 compare1.86 GHz2 / 2 cores3 MB L3
Intel Pentium U5600 compare1.33 GHz2 / 2 cores3 MB L3
Intel Pentium U5400 compare1.2 GHz2 / 2 cores3 MB L3
Taktung2266 MHz
Front Side Bus2500
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3 MB
Anzahl von Kernen / Threads2 / 2
Stromverbrauch (TDP = Thermal Design Power)35 Watt
Transistoren382+177 Millionen
Herstellungstechnologie32 nm
Die Größe81+114 mm2
Max. Temperatur90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit wird unterstützt
Architecturex86
Vorgestellt am06.01.2011
Produktinformationen beim Herstellerark.intel.com
