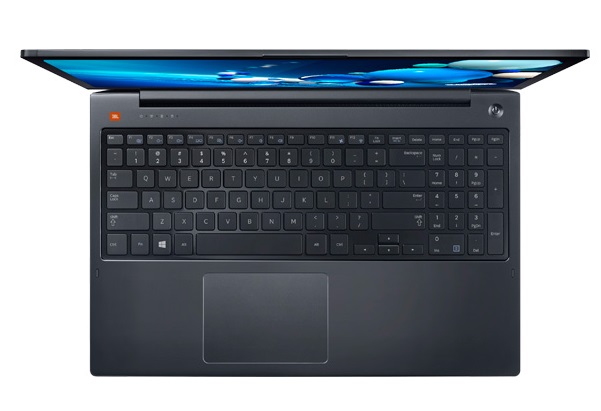

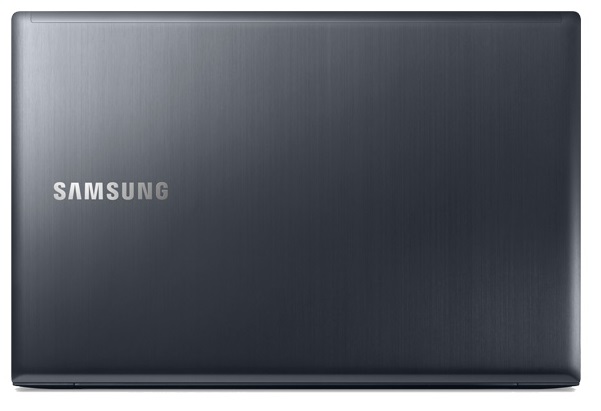

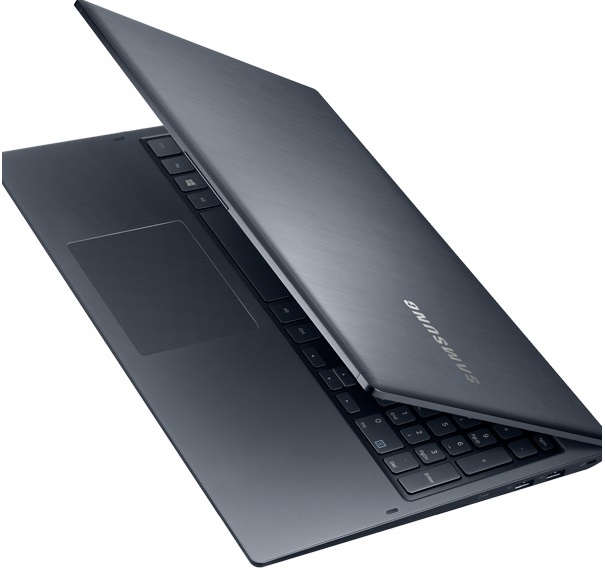

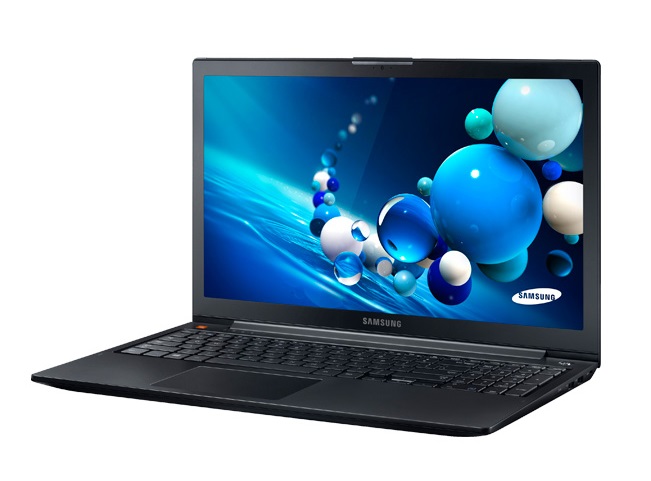

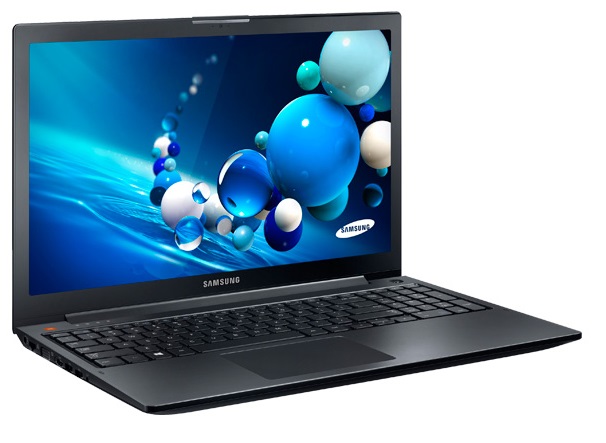

Samsung ATIV 680Z5E-X01US

Ausstattung / Datenblatt

Samsung ATIV 680Z5E-X01US
Samsung ATIV 680Z5E-X01US (ATIV Book 6 Serie)
Prozessor
Intel Core i7-3635QM 4 x 2.4 - 3.4 GHz (Intel Core i7)
Grafikkarte
AMD Radeon HD 8770M - 1024 MB VRAM, Kerntakt: 775 MHz, Speichertakt: 1125 MHz, 384 shader units, 9.3.5.0, AMD switchable graphics
Hauptspeicher
8 GB
, DDR3-1600 (PC3-12800)
Bildschirm
15.60 Zoll 16:9, 1920 x 1080 Pixel, 10-finger, capacitive, AUO9003, LED Full-HD, spiegelnd: ja
Massenspeicher
Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB, 1000 GB
, 5400 U/Min
Soundkarte
Intel Panther Point PCH - High Definition Audio Controller
Anschlüsse

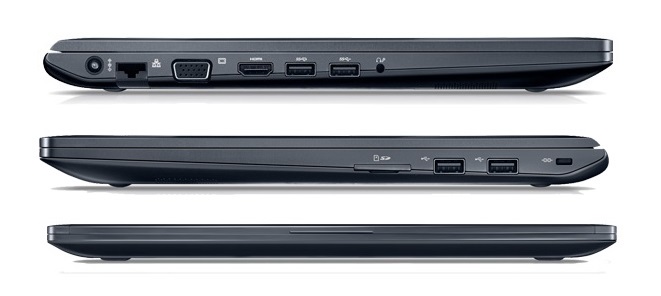

2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Anschlüsse: 1, Card Reader: SD
Netzwerk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Centrino Advanced-N 6235 (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Abmessungen
Höhe x Breite x Tiefe (in mm): 23 x 375 x 250
Akku
57 Wh Lithium-Ion, 3780 mAh, Akkulaufzeit (laut Hersteller): 4.7 h
Betriebssystem
Microsoft Windows 8 64 Bit
Sonstiges
Lautsprecher: JBL Stereo Speakers (2W x 2), Tastatur: chiclet, Tastatur-Beleuchtung: ja, 12 Monate Garantie
Gewicht
2.426 kg, Netzteil: 438 g
Preis
1200 Euro



Preisvergleich

Bewertung: 74% - Befriedigend
Durchschnitt von 5 Bewertungen (aus 6 Tests)
Preis: - %, Leistung: 91%, Ausstattung: 62%, Bildschirm: 83% Mobilität: 78%, Gehäuse: 90%, Ergonomie: 75%, Emissionen: 82%

Testberichte für das Samsung ATIV 680Z5E-X01US

80% Review Samsung ATIV Book 6 Touch 680Z5E-X01US Notebook | Notebookcheck
Full-HD mainstream. The Samsung Ativ Book 6 combines a powerful quad-core Intel Core i7 processor, 8GB of RAM and a dedicated AMD graphics card with a generous 15.6-inch Full-HD touch screen. How well the sleek-looking design performs and how it compares to its competitors is the subject of our review.
70% Samsung ATIV Book 6
Quelle: Comp Reviews Englisch EN→DE Archive.org version
Samsung's ATIV Book 6 may not have the most up to date internals, but it does extremely well compared to the latest generation. It offers nearly the same level of performance and still offers some very good battery life. In fact, one has to wonder what the system could be like if Samsung used a Haswell processor.
Einzeltest, online verfügbar, Kurz, Datum: 13.12.2013
Bewertung: Gesamt: 70%
80% Samsung ATIV Book 6
Quelle: Computer Shopper Englisch EN→DE Archive.org version
These days, $1,199 is a fairly serious price for a midsize laptop that doesn't have an Apple logo on it. Samsung's ATIV Book 6 justifies that price with features like quad-core Intel Core i7 power, discrete graphics, and a gorgeous aluminum design. With its good-looking aluminum chassis and strong showing throughout labs testing, the Samsung ATIV Book 6 is a sleek and versatile 15.6-inch laptop.
Einzeltest, online verfügbar, Lang, Datum: 08.11.2013
Bewertung: Gesamt: 80%
70% Samsung ATIV Book 6
Quelle: Wired Magazine Englisch EN→DE Archive.org version
WIRED Good specs, thoughtful extras. Slim and light considering its screen size. Responsive, crisp touchscreen. TIRED Uncomfortable keyboard layout. Some general bugginess. Old, third-generation CPU.
Einzeltest, online verfügbar, Kurz, Datum: 25.09.2013
Bewertung: Gesamt: 70%
Samsung ATIV Book 6 Notebook Review
Quelle: Hot Hardware Englisch EN→DE Archive.org version
The Samsung ATIV 6 is designed to address all of the needs of mainstream notebook consumers looking for a relatively powerful notebook. With a mid-sized 15.6" panel, decent battery life (for its size), a discrete GPU for occasional gaming sessions, and a peppy CPU, the ATIV 6 can handle just about anything you throw its way.
Einzeltest, online verfügbar, Lang, Datum: 19.09.2013
70% Samsung ATIV Book 6 NP680Z5E-X01US
Quelle: Laptop Mag Englisch EN→DE Archive.org version
The ATIV Book 6 more than meets Samsung's promise of a premium and powerful computing experience. We especially enjoyed its booming JBL speakers and gorgeous, responsive 1080p touch screen. What holds this 15-inch notebook from earning a higher rating is its finicky touchpad; yes, there's a touch screen, but Windows 8 gestures should work more smoothly out of the box.
Einzeltest, online verfügbar, Lang, Datum: 24.07.2013
Bewertung: Gesamt: 70%
Samsung ATIV Book 6 Review
Quelle: Slashgear Englisch EN→DE Archive.org version
From the face of it, the ATIV Book 6 is a pretty ordinary laptop, and while it has some unique features and a great-looking display, I don’t think it has enough to really stand out from the huge horde of laptops currently on the market. Price-wise, you can grab it for around $1,100 (with the Radeon graphics chip), which is a pretty competitive price, especially with the power that it offers. Plus, the full-size keyboard, the large trackpad, and the crisp display offer a great user experience for those folks who consider form and function over hard internal specifications.
Einzeltest, online verfügbar, Kurz, Datum: 04.07.2013

Kommentar

AMD Radeon HD 8770M: GCN basierende Mittelklasse Grafikkarte

Diese Klasse ist noch durchaus fähig neueste Spiele flüssig darzustellen, nur nicht mehr mit allen Details und in hohen Auflösungen. Besonders anspruchsvolle Spiele laufen nur in minimalen Detailstufen, wodurch die grafische Qualität oft deutlich leidet. Diese Klasse ist nur noch für Gelegenheitsspieler empfehlenswert. Der Stromverbrauch von modernen Grafikkarten in dieser Klasse ist dafür geringer und erlaubt auch bessere Akkulaufzeiten.

» Weitere Informationen gibt es in unserem Notebook-Grafikkartenvergleich und der Benchmarkliste.


3635QM: Auf der Ivy Brige Architektur basierender Quad-Core Prozessor mit 2.4-3.4 GHz Taktung, integrierter HD Graphics 4000 Grafikkarte und integriertem Dualchannel DDR3 Speicherkontroller.» Weitere Infos gibt es in unserem Prozessorvergleich Vergleich mobiler Prozessoren und der Prozessoren Benchmarkliste .


15.60":

15 Zoll Display-Varianten sind der Standard und werden für mehr als die Hälfte aller Notebooks verwendet.

Der Grund der Beliebtheit mittelgrosser Displays ist, dass diese Größe einigermaßen augenschonend ist, hohe Auflösungen oftmals erlaubt und damit Detailreichtum am Bildschirm bietet und dennoch nicht allzu viel Strom verbraucht und die Geräte noch halbwegs kompakt sein können - also schlicht der Standard-Kompromiss.

» Prüfen Sie in unserer DPI Liste, welche Displays wie fein aufgelöst sind.


2.426 kg:

Dieser Gewichtsbereich ist typisch für Laptops und der Mittelweg zwischen Portabilität, passabler Bildschirmgröße und Leistung.


Samsung: Die Samsung Group ist der größte südkoreanische Mischkonzern und wurde 1938 gegründet. In der Samsung-Gruppe waren 2014 489.000 Menschen beschäftigt, und sie gehört zu den weltweit größten Unternehmen gemessen an Umsatz und Marktstärke. Der Name Samsung bedeutet im Koreanischen "Drei Sterne" und repräsentiert die drei Söhne des Firmengründers. Das Unternehmen wurde 1938 als Lebensmittelladen gegründet. Mit der 1969 gegründeten Tochter Samsung Electronics nahm Samsung die Fertigung elektrotechnischer Artikel in Angriff, wobei man sich frühzeitig auf Unterhaltungselektronik und Haushaltsgeräte konzentrierte. Weitere Zweige, in denen der Großkonzern tätig ist, sind Maschinenbau, Automobile (Hyundai), Versicherung, Großhandel, Immobilien und Freizeit. Samsung stellt eine breite Palette von elektronischen Produkten her, darunter Smartphones, Fernsehgeräte, Haushaltsgeräte und Halbleiter. Die Galaxy-Smartphone-Reihe des Unternehmens ist eine der beliebtesten der Welt. Samsung ist auch ein wichtiger Akteur in der Halbleiterindustrie und stellt Speicherchips und Prozessoren für viele andere Elektronikhersteller her.


74%: Diese Bewertung ist schlecht. Locker drei Viertel der Modelle werden besser beurteilt. Das ist eher keine Kaufempfehlung. Auch wenn Verbalbewertungen in diesem Bereich gar nicht so schlecht klingen ("genügend" oder "befriedigend"), meist sind es Euphemismen, die eine Klassifikation als unterdurchschnittliches Notebook verschleiern.


» Lesen Sie auch unsere Notebook-Kaufberatung.
