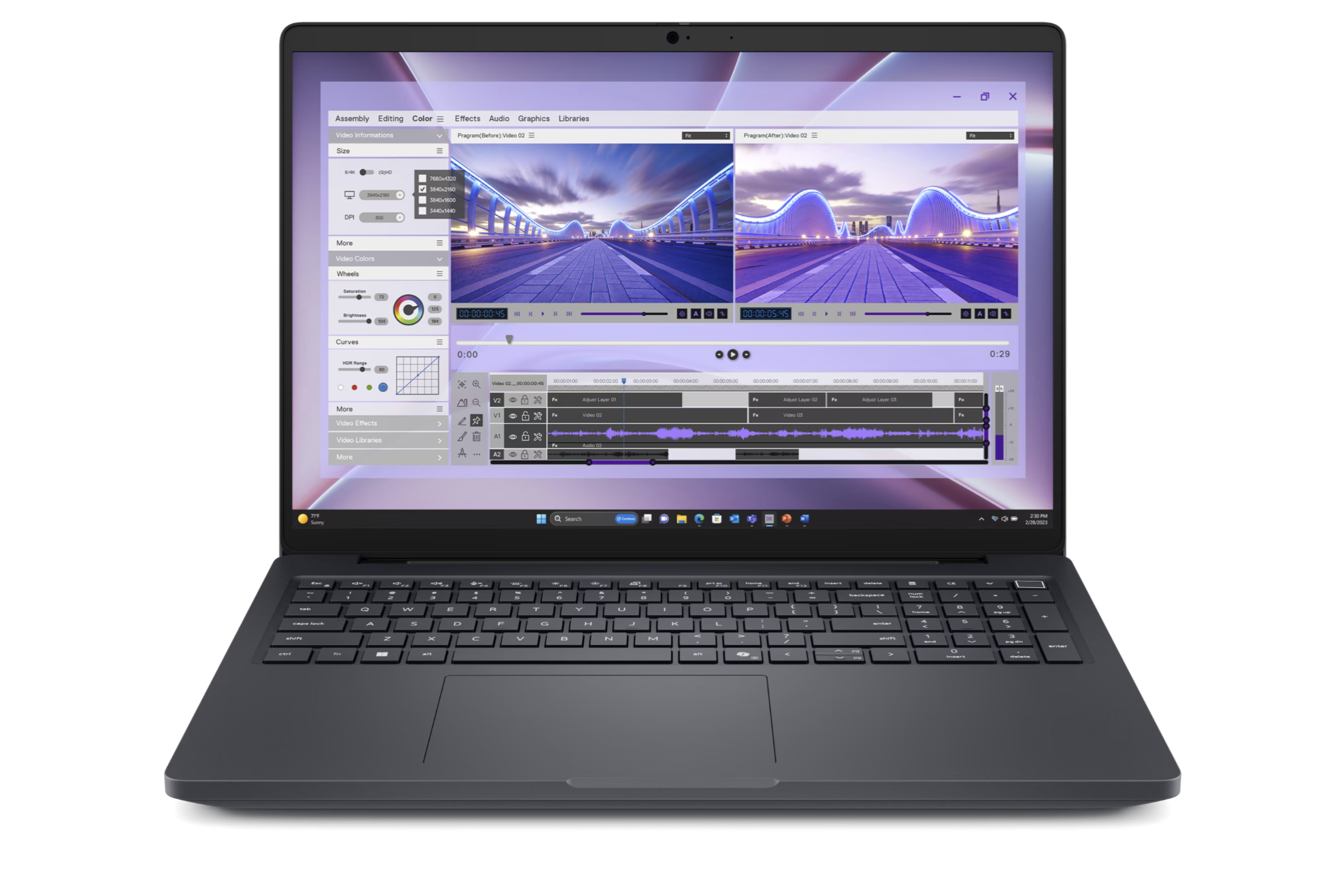

Dell Pro Max 16 Plus

Dell Pro Max 16 Plus
Der Artikel testet das Dell Pro Max 16 Plus, eine voll ausgestattete mobile 16-Zoll-Workstation, die auf Intels Core Ultra 9 285HX CPU und Nvidias RTX Pro 5000 Blackwell GPU basiert. Er bewertet den 4K 120 Hz OLED-Touchscreen, das umfangreiche Anschlüsse und das modulare Design gegen Nachteile wie Gewicht, Akkulaufzeit, Tastaturlayout und den sehr hohen Preis.

Pro

+ schneller, austauschbarer CAMM2 RAM und Grafikkarte
+ tragbares 280-W-USB-C-Netzteil
+ 4K 120 Hz OLED-Touchscreen
+ Thunderbolt 5-Kompatibilität
+ leicht zu reparierender USB-C Ports

Contra

- sehr warme CPU-Temperatur bei Belastung
- hoher Stromverbrauch; begrenzt Akkulaufzeit
- dicker als das Modell der letzten Generation
- kurzlebiger maximaler Turbo Boost
- keine ECC-RAM-Optionen

Das Dell Pro Max 16 Plus ist eine mobile 16-Zoll-Workstation der Spitzenklasse, die den Core Ultra 9 285HX von Intel mit der RTX Pro 5000 Blackwell GPU von Nvidia kombiniert. Zu den herausragenden Merkmalen gehören ein 3840 x 2400 4K OLED 120 Hz Touchscreen, eine modulare DGFF-Grafik und eine ungewöhnlich reichhaltige Auswahl an Anschlüssen mit Thunderbolt 4, zwei Thunderbolt 5, drei DisplayPorts und USB-C-Stromversorgung. Anschlussausstattung ist ähnlich zukunftssicher und verfügt über Intel Wi-Fi 7, Bluetooth 5.4 und 2.5 GbE. Zu den Sicherheits- und Business-Extras gehören SmartCard, Fingerabdruckleser und eine 36-monatige Garantie. Test Bewertungen von 86-90% loben die enorme Leistung und Displayqualität und positionieren es als semi-portables Kraftpaket für professionelle Workloads. Die Rezensenten weisen jedoch auf erhebliche Nachteile hin: ein schweres Gewicht von 2,85 kg Gehäuse, ein bescheidenes Akkulaufzeit trotz eines 96-Wh-Akkus und ein umstrittenes Tastaturlayout, das für einige Benutzer ein Hindernis darstellen könnte. In Kombination mit dem extrem hohen Preis ist das Pro Max 16 Plus am besten für Unternehmen und Profis geeignet, die seine Fähigkeiten voll ausschöpfen und die Investition rechtfertigen können.

Ausstattung / Datenblatt

Dell Pro Max 16 Plus (Pro 16 Serie)
Prozessor
Intel Core Ultra 9 285HX, 8 x 5.5 GHz Intel Lion Cove P-Core, 16 x 4.6 GHz Intel Skymont E-Core, 159 W PL2 / Short Burst, 90 W PL1 / Sustained, Arrow Lake-HX
Grafikkarte
Nvidia RTX PRO 5000 Blackwell Generation Laptop - 24 GB VRAM, Kerntakt: 1807 MHz, Speichertakt: 1750 MHz, 175 W TDP, GDDR7, 581.15, Optimus
RAM
128 GB
, DDR5-6400, CAMM2, SK Hynix
Bildschirm
16.00 Zoll 16:10, 3840 x 2400 Pixel 283 PPI, 10-point capacitive, Samsung 160HC01, OLED, Dell P/N: PT6M8, spiegelnd: ja, HDR, 120 Hz
Mainboard
Intel WM880 (Arrow Lake-HX PCH)
Massenspeicher
SK hynix PCB01 HFS001TFM9X186N
Soundkarte
Intel Arrow Lake-S PCH - ACE (Audio Context Engine)
Anschlüsse
2 USB 3.0 / 3.1 Gen1, 1 Thunderbolt 4, 2 Thunderbolt 5, USB-C Power Delivery (PD), 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Audio Anschlüsse: 3.5 mm combo, Card Reader: SD, 1 SmartCard, 1 Fingerprint Reader
Netzwerk
Intel Ethernet Controller I226-LM (10MBit/s), Intel Wi-Fi 7 BE200 320MHz (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz be = Wi-Fi 7), Bluetooth 5.4
Abmessungen
Höhe x Breite x Tiefe (in mm): 30.9 x 360 x 258.6
Akku
96 Wh Lithium-Ion
Betriebssystem
Microsoft Windows 11 Pro
Kamera
Webcam: 1440p30. RGB+IR
Primary Camera: 8.3 MPix
Sonstiges
Lautsprecher: 2x 2 W, Sterep, Tastatur: Chiclet, Tastatur-Beleuchtung: ja, Dell Command, Optimizer, Pair, SupportAssist, Trusted Device, 36 Monate Garantie
Gewicht
2.845 kg, Netzteil: 755 g
Preis
5000 USD
Geizhals
Preisvergleich
Geizhals Bestpreis 2758.78€ (Historischer Bestpreis: 2640.22€)
Dell Pro Max 16 Plus MB16250, Core Ultra 7 265HX, 32GB RAM, 1TB SSD, RTX PRO 2000 Blackwell, DE (JYVVY)



Preisvergleich

Bewertung: 86.13% - Gut
Durchschnitt von 3 Bewertungen (aus 3 Tests)
Preis: - %, Leistung: 92%, Ausstattung: 71%, Bildschirm: 88% Mobilität: 56%, Gehäuse: 92%, Ergonomie: 89%, Emissionen: 74%

Testberichte für das Dell Pro Max 16 Plus

88.4% Dell Pro Max 16 Plus Test: Eine einzigartige mobile Workstation | Notebookcheck
Der Dell Pro Max 16 Plus ist eine einzigartige Workstation mit DGFF-Karte, CAMM2-RAM, 4K-UHD-120-Hz-OLED-Touchscreen und modularen USB-C-Anschlüssen. Führen die ausgefallenen Funktionen zu einer schnelleren Leistung?
80% The Dell Pro Max 16 Plus is a superb mobile workstation with one major flaw
Quelle: It Pro Englisch EN→DE
By this point in the review, you've already decided if you're going to buy this laptop. Most of the negative points are inherent to the 16-inch workstation form factor – size, weight, battery life – and the only real standout issue for many users that remains is the keyboard. If you're the type of user who needs a numeric keypad, then you'll be more forgiving. If you're not, it may be a deal breaker. It's a shame because there are so many good points to appreciate here. The broad customisability makes for a mobile workstation that can be tailored to suit a wide range of applications, workloads, and IT budgets. It stops frustratingly short of brilliance, but if it ticks the right boxes for your business, the Dell Pro Max 16 Plus may be the semi-portable powerhouse you were looking for.
Einzeltest, online verfügbar, Mittel, Datum: 22.11.2025
Bewertung: Gesamt: 80%
90% Dell Pro Max 16 Plus Review
Quelle: Trusted Reviews Englisch EN→DE
The Dell Pro Max 16 Plus is a very powerful workstation laptop with some immense performance, plus a gorgeous 4K OLED screen and one of the best port selections you’ll find on a laptop at any price. Granted, its battery life isn’t brilliant, and it’s hideously expensive, but if you need the power this laptop can provide, it’s incredible. These business-class workstation laptops are designed for much different applications than more generalist gaming laptops, such as the Medion Erazer Beast 16 X1 Ultimate (RTX 5090) and Alienware 18-Area 51, so it seems a little odd to compare them. Nonetheless, the presence of a Core Ultra 9 285HX and Nvidia Pro RTX 5000 Blackwell makes for some of the most potent performance you’ll find on any laptop, and its 4K OLED screen is fantastic, although not as strong in raw brightness as the tandem OLED panel on the Asus ProArt P16 (4K Lumina Pro OLED).
Einzeltest, online verfügbar, Mittel, Datum: 17.11.2025
Bewertung: Gesamt: 90%
2025 Dell Pro Max 16 Plus REVIEW: Gives a NEW Meaning to FULLY LOADED
Quelle: Andrew Marc David Englisch
Einzeltest, online verfügbar, Sehr Lang, Datum: 08.10.2025

Kommentar

NVIDIA RTX PRO 5000 Blackwell Generation Laptop: High-End-GPU, der zur professionellen Serie von Nvidia gehört. Sie basiert auf der Blackwell Architektur und verfügt über 10.496 CUDA Rechenkerne sowie 24 GB GDDR7 ECC Speicher.

High-End Grafikkarten welche auch neueste und anspruchsvolle 3D-Spiele in hohen Auflösungen und Detailstufen flüssig wiedergeben können. Durch den hohen Stromverbrauch, werden diese GPUs nur in großen und schweren Notebooks mit geringen Akkulaufzeiten angeboten.

» Weitere Informationen gibt es in unserem Notebook-Grafikkartenvergleich und der Benchmarkliste.


Intel Arrow Lake: Available Oct 24, 2024 with hybrid CPU cores and up to 4 graphics cores.


Ultra 9 285HX: Mobile High-End CPU für Gaming Notebooks basierend auf die Arrow Lake Architektur. Bietet 24 Kerne bestehend aus 8 schnellen Performance Kernen mit bis zu 5,5 GHz und 16 kleineren Effizienzkernen mit bis zu 4,6 GHz Taktung. Die CPU kann auf 40 MB L2-Cache und 36 MB L3-Cache zugreifen und ist spezifiziert mit einem TDP von 55 Watt. Der SoC integriert eine kleine dedizierte NPU namens AI Boost mit 13 TOPS (Int8) und unterstützt optional vPro Enterprise.» Weitere Infos gibt es in unserem Prozessorvergleich Vergleich mobiler Prozessoren und der Prozessoren Benchmarkliste .
