HP ZBook Studio G4, Xeon E3-1535M

Ausstattung / Datenblatt

HP ZBook Studio G4, Xeon E3-1535M
HP ZBook Studio G4, Xeon E3-1535M (ZBook Studio Serie)
Prozessor
Intel Xeon E3-1535M v6 4 x 3.1 - 4.2 GHz, Kaby Lake
Grafikkarte
NVIDIA Quadro M1200 - 4 GB VRAM, Kerntakt: 1148 MHz, Speichertakt: 1253 MHz, GDDR5
Hauptspeicher
32 GB
, DDR4-2400, Dual-Channel
Bildschirm
15.60 Zoll 16:9, 3840 x 2160 Pixel 282 PPI, SHP1445, IPS, spiegelnd: nein
Mainboard
Intel CM236 (Skylake PCH-H)
Massenspeicher
512 MB NAND Flash, 0.5 GB
Soundkarte
Intel A171
Anschlüsse

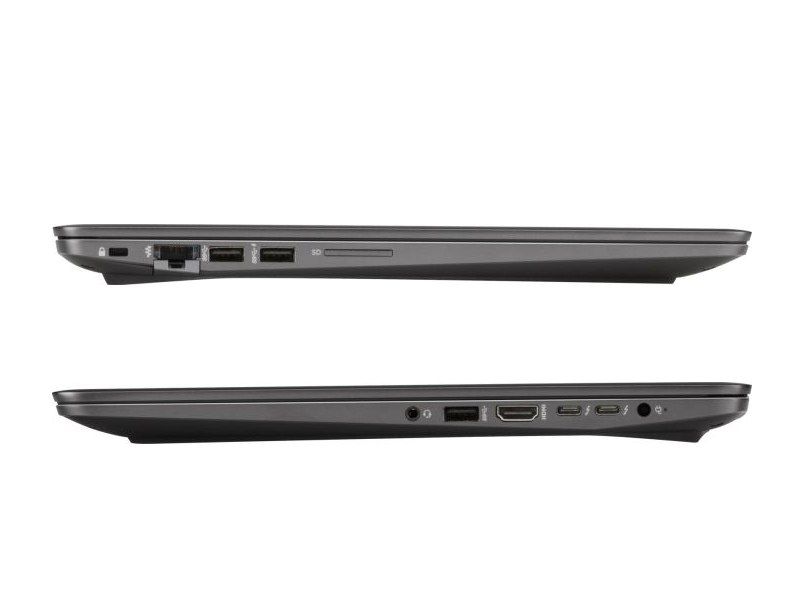

3 USB 3.0 / 3.1 Gen1, 2 Thunderbolt, 1 HDMI, 1 Kensington Lock, Audio Anschlüsse: 3.5mm combo, Card Reader: SD, 1 Fingerprint Reader
Netzwerk
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Abmessungen
Höhe x Breite x Tiefe (in mm): 18 x 375 x 255
Akku
64 Wh Lithium-Ion, 4-cell
Betriebssystem
Microsoft Windows 10 Pro 64 Bit
Kamera
Webcam: HD
Sonstiges
Lautsprecher: Stereo, Tastatur: Chiclet, Tastatur-Beleuchtung: ja, 36 Monate Garantie
Gewicht
2.1 kg
Preis
3000 Euro



Preisvergleich

Bewertung: 78.67% - Gut
Durchschnitt von 3 Bewertungen (aus 3 Tests)

Testberichte für das HP ZBook Studio G4, Xeon E3-1535M

86% HP ZBook Studio G4 Laptop Review
Quelle: Reviewed.com Englisch EN→DE Archive.org version
If you're a demanding power user, the HP ZBook is where the party's at. Between the Intel Xeon 1535M (7th Gen) processor and 32GB of ECC memory, it totally dominated our CPU benchmark. In addition to the powerful internals, the display is really colorful as well. It's also bright enough to easily combat glare and ambient light. Last but not least, the FastCharge feature is a blessing, as it reaches a full charge in a little under an hour. While there's a lot we like, we had a few gripes.
Einzeltest, online verfügbar, Kurz, Datum: 13.02.2018
Bewertung: Gesamt: 86%
70% HP ZBook Studio G4
Quelle: PC Mag Englisch EN→DE Archive.org version
At more than $3,000, the HP ZBook Studio G4 is expensive even for a mobile workstation. Its larger cousin, the HP ZBook 15 G4, offers better computing performance at the same price point, so it's the workstation to buy unless weight is the most important factor. Still, maxing out the processor and memory options on the Studio G4 will result in a top-notch performer, and one that's arguably worth its expense if you need ISV certification and copious computing power in a slim package that can be upgraded with even better components in a few years.
Einzeltest, online verfügbar, Mittel, Datum: 21.09.2017
Bewertung: Gesamt: 70%
80% HP ZBook Studio G4 Review and Ratings
Quelle: Computer Shopper Englisch EN→DE Archive.org version
Mobile workstation customers are arguably the most demanding of all laptop buyers, and certainly the least likely to see the dream of ultrabook slimness, 20-hour battery life, and raging horsepower packed into the same machine. That means the HP ZBook Studio G4 inevitably makes compromises (though not as many, we'd wager, as the dual-core-CPU'd ZBook 14u and 15u, which are aimed more at execs who need to view, but not create, complex models). To put it another way, we rewarded the ZBook 15 G4's speed and expandability with our Editors' Choice; the Studio, at least the non-DreamColor model seen here, falls an inch short.
Einzeltest, online verfügbar, Sehr Lang, Datum: 06.09.2017
Bewertung: Gesamt: 80%

Kommentar

NVIDIA Quadro M1200: Mittelklasse-Workstation Grafikkarte der Maxwell Architektur basierend auf die Maxwell Architektur (GM107) wie die GTX 960M.

Diese Klasse ist noch durchaus fähig neueste Spiele flüssig darzustellen, nur nicht mehr mit allen Details und in hohen Auflösungen. Besonders anspruchsvolle Spiele laufen nur in minimalen Detailstufen, wodurch die grafische Qualität oft deutlich leidet. Diese Klasse ist nur noch für Gelegenheitsspieler empfehlenswert. Der Stromverbrauch von modernen Grafikkarten in dieser Klasse ist dafür geringer und erlaubt auch bessere Akkulaufzeiten.

» Weitere Informationen gibt es in unserem Notebook-Grafikkartenvergleich und der Benchmarkliste.


E3-1535M v6: Auf der Kaby-Lake-Architektur basierender Quad-Core Prozessor für größere Notebooks mit vier CPU Kernen welche mit 3,1 bis 4,2 GHz getaktet werden. Spitzenmodell der Kaby-Lake-H Serie Anfang 2017 und damit auch schnellster mobiler Prozessor zu dieser Zeit. Integriert eine Intel HD Graphics P630 GPU mit 350 - 1100 MHz und wird in 14 nm (verbessert im Vergleich zu Skylake) gefertigt.» Weitere Infos gibt es in unserem Prozessorvergleich Vergleich mobiler Prozessoren und der Prozessoren Benchmarkliste .


15.60":

15 Zoll Display-Varianten sind der Standard und werden für mehr als die Hälfte aller Notebooks verwendet.

Der Grund der Beliebtheit mittelgrosser Displays ist, dass diese Größe einigermaßen augenschonend ist, hohe Auflösungen oftmals erlaubt und damit Detailreichtum am Bildschirm bietet und dennoch nicht allzu viel Strom verbraucht und die Geräte noch halbwegs kompakt sein können - also schlicht der Standard-Kompromiss.

» Prüfen Sie in unserer DPI Liste, welche Displays wie fein aufgelöst sind.


2.1 kg:

In diesem Gewichtsbereich gibt es besonders leichte Laptops, Convertibles und Subnotebooks, die auf gute Portabilität getrimmt sind.


HP: 1939 gegründet, ist das US-Unternehmen ein wichtiger Server und Druckerhersteller und eines der führenden IT-Unternehmen weltweit. Bis 2015 hieß das Unternehmen Hewlett-Packard Company. Nach einer Aufspaltung wurde der Computer-Bereich in HP Inc. umbenannt.

2023 hatte HP einen ungefähren Marktanteil von 22% am weltweiten PC-Absatz und war damit die Nummer 2 nach Lenovo.


78.67%: Weltbewegend ist diese Bewertung nicht. Diese Bewertung muss man eigentlich als unterdurchschnittlich ansehen, denn es gibt etwa ebenso mehr Geräte mit schlechtere Beurteilungen als Besseren. Eine Kaufempfehlung kann man nur mit viel Wohlwollen darin sehen, es sei denn es handelt sich um Websites, die generell streng urteilen.


» Lesen Sie auch unsere Notebook-Kaufberatung.
