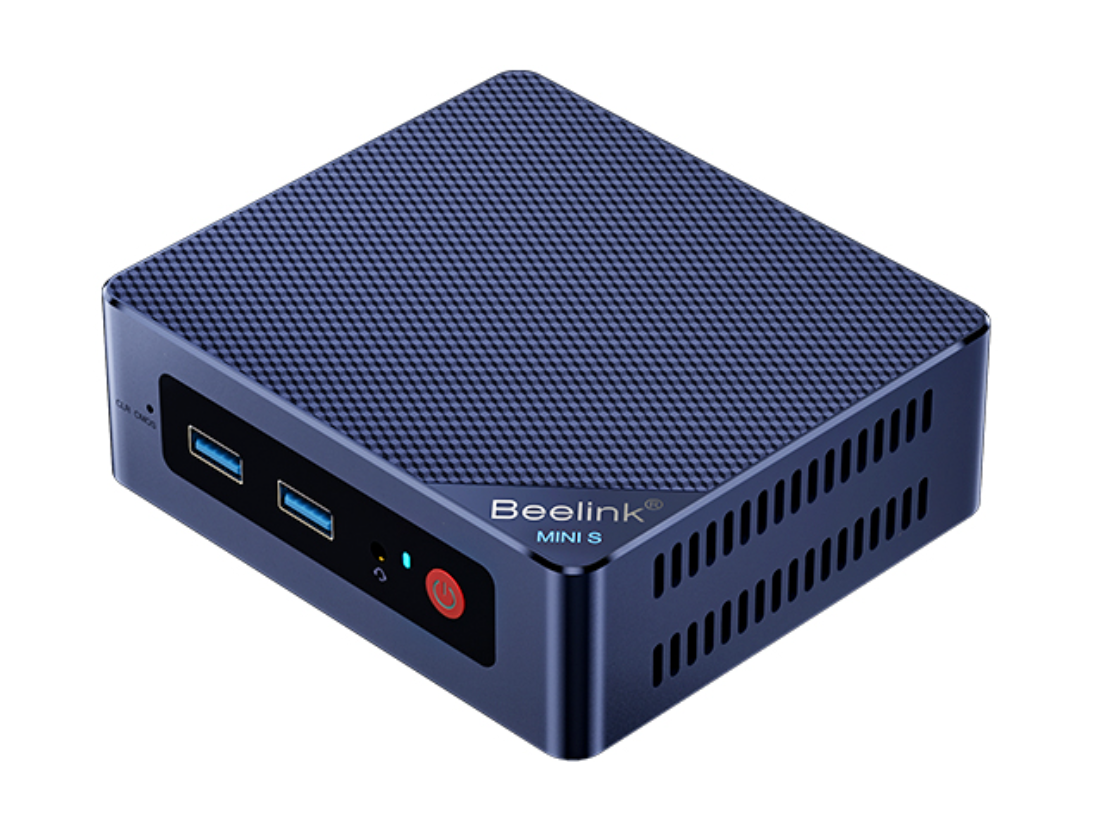

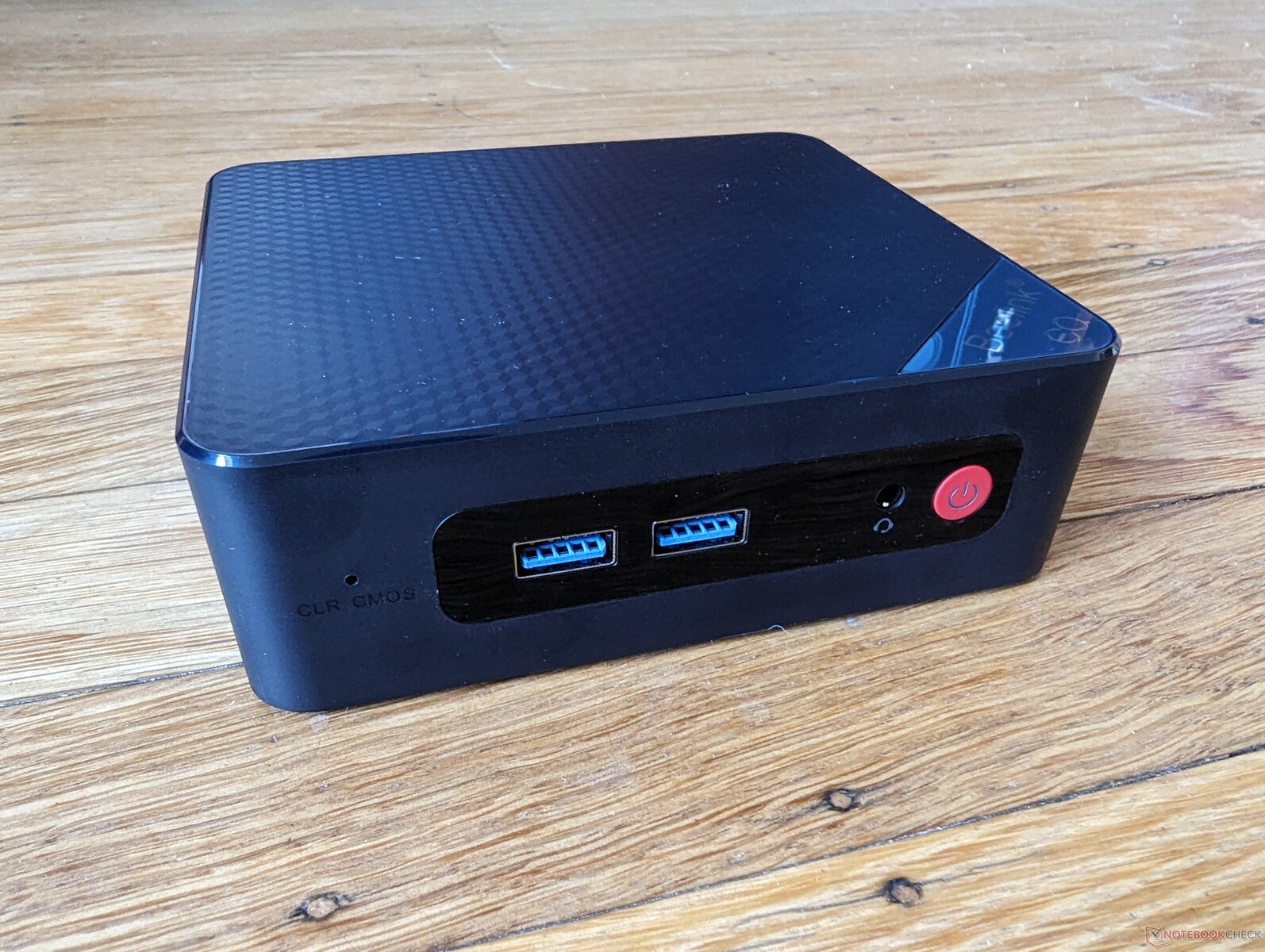

Beelink Mini S12 Pro Mini-PC im Testdebüt mit Intel N100

Der Beelink Mini S12 Pro (oder EQ12) ist ein preiswerter Mini-PC mit niedrigem Stromverbrauch, der für HTPC-Zwecke entwickelt wurde. Er ist eines der wenigen Geräte, die mit einem Intel N100 der 12. Generation ausgestattet sind. Die meisten anderen Mini-PCs werden mit Core-ix-Optionen geliefert.
Unsere Testkonfiguration kommt mit 16 GB Single-Channel-Speicher und 512 GB SSD und ist eine der günstigsten in der Kategorie mit einem 12th-Gen-Prozessor.
Alternativen zum Mini S12 Pro sind Pentium- oder Atom-betriebene Mini-PCs wie der Intel NUC11ATKPE, der Beelink U59 oder das Blackview MP80.
Mehr Beelink-Tests:
Mögliche Konkurrenten im Vergleich
Bew. | Datum | Modell | Gewicht | Dicke | Größe | Auflösung | Preis ab |
---|---|---|---|---|---|---|---|
73.1 % v7 (old) | 10 / 2023 | Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N) | 335 g | 39.1 mm | x | ||
82.8 % v7 (old) | 10 / 2023 | GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs | 396 g | 43.2 mm | x | ||
83.1 % v7 (old) | 08 / 2023 | Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs | 558 g | 37 mm | x | ||
v (old) | Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs | 465 g | 42 mm | x | |||
v (old) | 12 / 2021 | Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU) | 329 g | 42 mm | x | ||
70.9 % v7 (old) | 03 / 2023 | Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU) | 530 g | 36 mm | x |

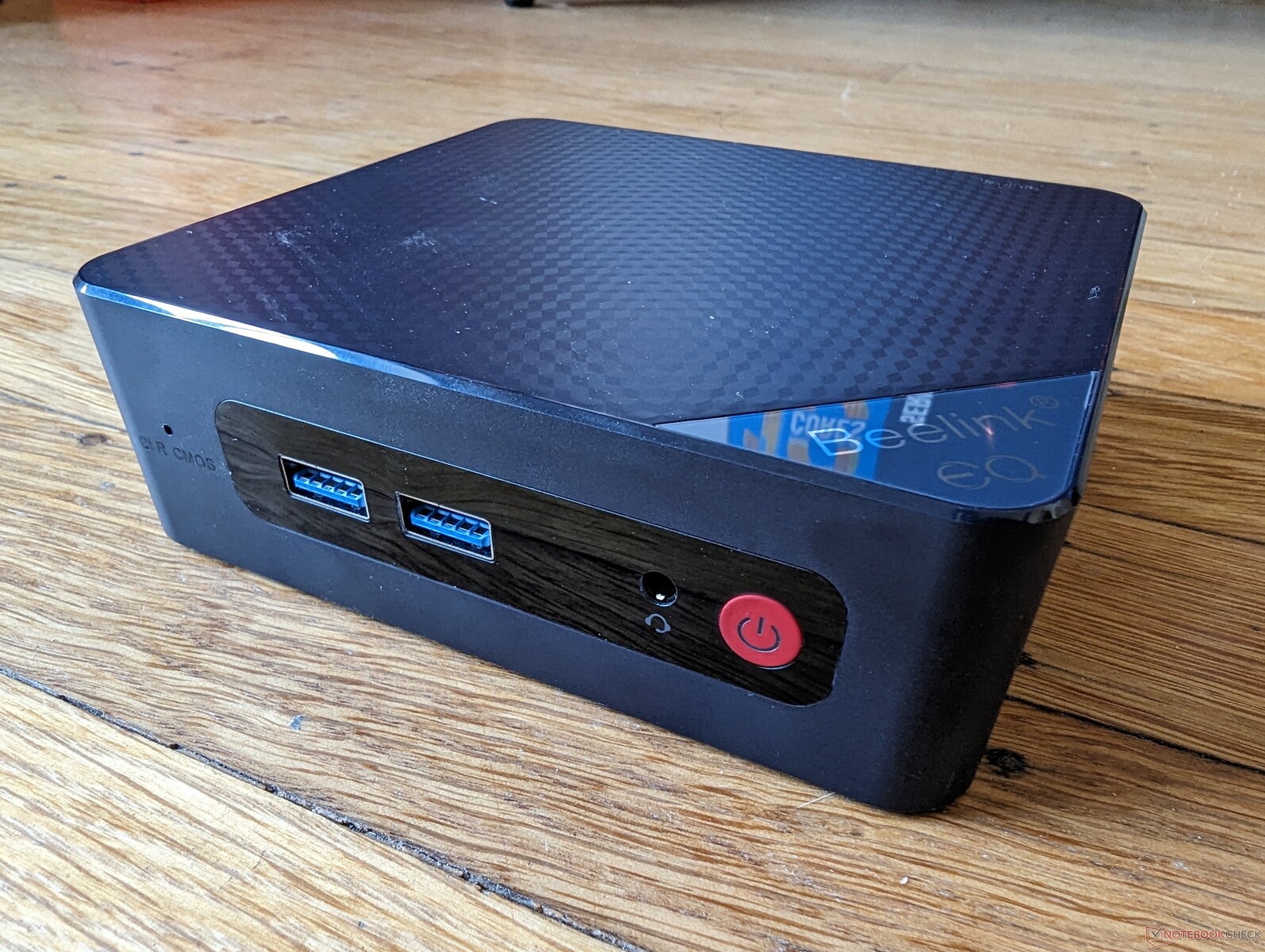

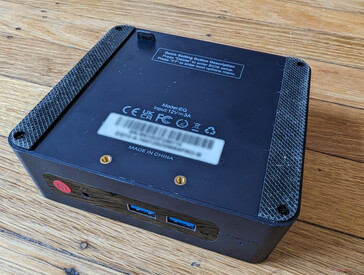

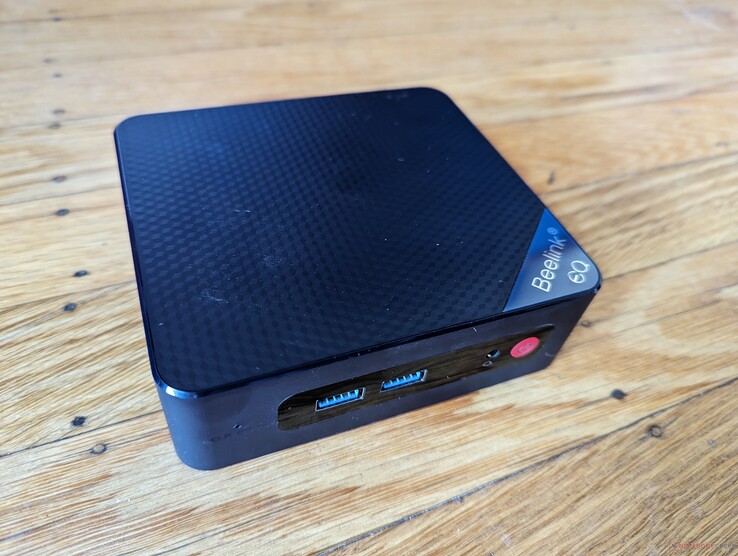

Gehäuse

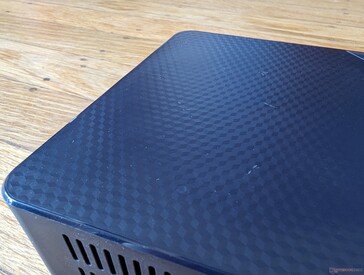

Die Gehäuseoberseite wurde neu gestaltet wurde und weist eine strukturierte, matte Textur auf. Die Abdeckung ist nicht mehr abnehmbar. Beim S12 Pro wird außerdem mehr Kunststoff anstelle von Metall verwendet, was zu einem geringeren Gewicht führt, wie die Vergleichstabelle unten zeigt.

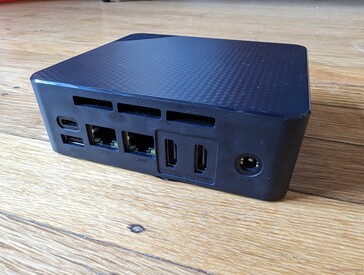

Anschlussausstattung
Die Anschlussmöglichkeiten haben sich gegenüber dem SEi12 leicht verändert. Auf der Rückseite hat der Mini S12 Pro einen USB-A-Anschluss weniger, während der USB-C-Anschluss neu positioniert wurde. Jeder der beiden HDMI Ports unterstützt externe Monitore mit bis zu 4K bei 60 Hz.
Leider lädt der rückseitige USB-C-Anschluss angeschlossene Geräte zu langsam auf und scheint mit externen Monitoren oder Thunderbolt-Geräten nicht kompatibel zu sein. Er ist daher meist nur für Datenübertragungen nützlich.
Kommunikation
Networking | |
iperf3 transmit AX12 | |
Beelink U59 | |
iperf3 receive AX12 | |
Beelink U59 | |
iperf3 transmit AXE11000 | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
Intel NUC11ATKPE, N6005 | |
iperf3 receive AXE11000 | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink Mini S12 Pro | |
Intel NUC11ATKPE, N6005 | |
iperf3 transmit AXE11000 6GHz | |
Intel NUC 13 Pro Desk Edition Kit | |
iperf3 receive AXE11000 6GHz | |
Intel NUC 13 Pro Desk Edition Kit |
Zubehör und Garantie

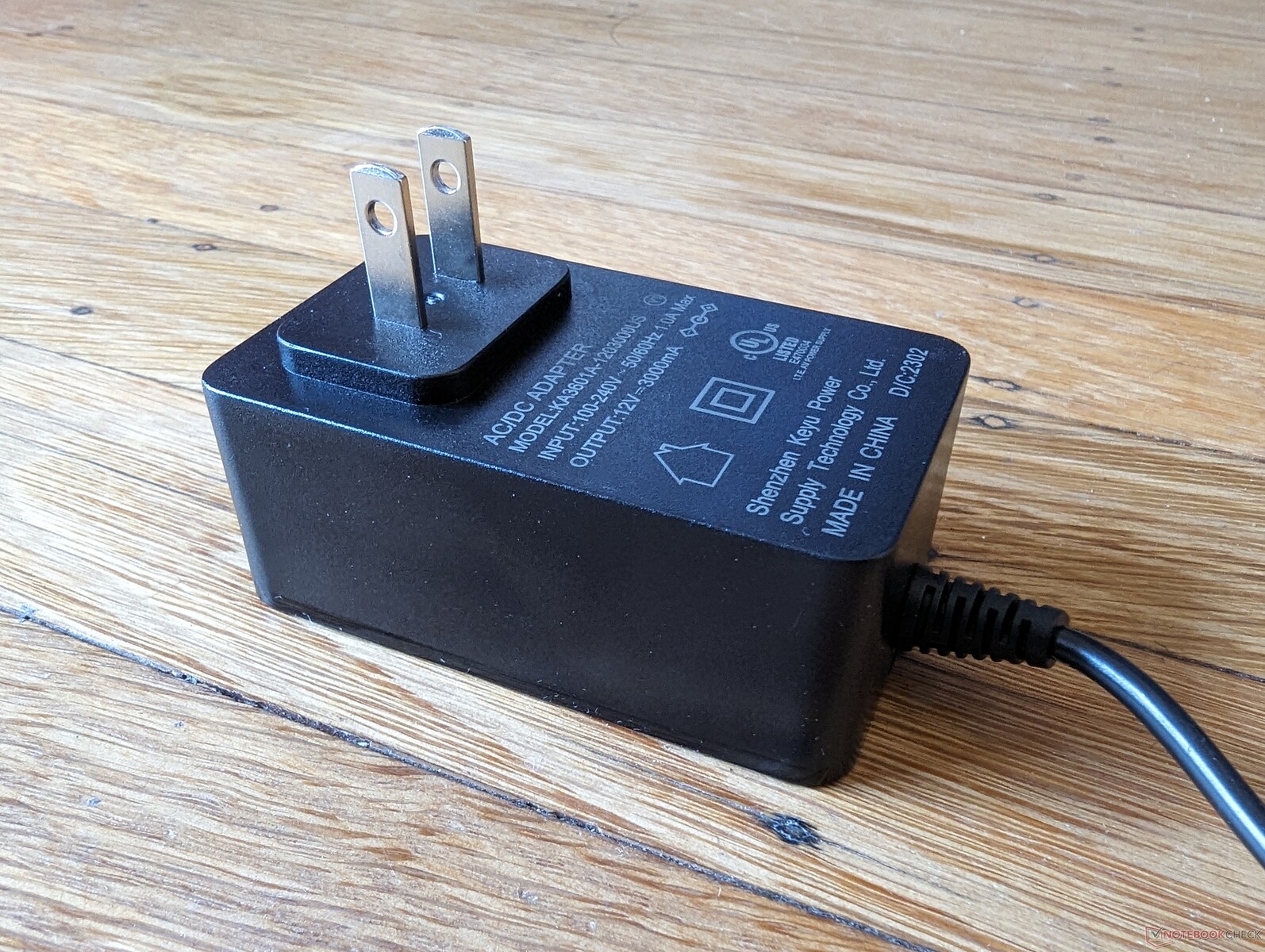

Die Verkaufsverpackung enthält zwei HDMI-Kabel, das Netzteil, eine VESA-Wandhalterung mit Schrauben und das Benutzerhandbuch.
Performance
Testbedingungen
Wir haben Windows im Modus "Performance" eingestellt, bevor wir die folgenden Benchmarks durchgeführt haben. Der Beelink hat keine spezielle Software zur Anpassung von Zusatzfunktionen oder Leistungsprofilen.
Prozessor
Die Gesamtleistung mit dem N100 ist lediglich 5 bis 10 Prozent schneller als die des N95 im Blackview MP80. Die geringe Steigerung ist nicht signifikant genug, um sich bei alltäglicher Belastung bemerkbar zu machen. Nutzer, die von einem Celeron N5095 aufrüsten, werden allerdings eine ordentliche Leistungssteigerung sowohl bei Single- als auch bei Multi-Thread-Anwendungen feststellen.
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 -2! | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 | |
Chuwi LapBook Plus -6! |
Cinebench R23 / Multi Core | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (1577 - 2983, n=8) | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 |
Cinebench R23 / Single Core | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series NPB5 | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 (747 - 942, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 |
Cinebench R20 / CPU (Multi Core) | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Trigkey Speed S | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (590 - 1139, n=8) | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 | |
Chuwi LapBook Plus |
Cinebench R20 / CPU (Single Core) | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series NPB5 | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 (285 - 358, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 | |
Chuwi LapBook Plus |
Cinebench R15 / CPU Multi 64Bit | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UN1245 | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Trigkey Speed S | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (246 - 479, n=8) | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 | |
Chuwi LapBook Plus |
Cinebench R15 / CPU Single 64Bit | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series NPB5 | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 (118.8 - 155, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 | |
Chuwi LapBook Plus |
Blender / v2.79 BMW27 CPU | |
Chuwi LapBook Plus | |
Higole PC Stick-J4125 | |
Intel NUC11ATKC2, N4505 | |
Beelink U59 | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (1017 - 1956, n=8) | |
Blackview MP80 | |
Beelink Mini S12 Pro | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Trigkey Speed S | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UN1245 | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 |
7-Zip 18.03 / 7z b 4 | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UN1245 | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Intel NUC11ATKPE, N6005 | |
Blackview MP80 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (7532 - 13291, n=8) | |
Higole PC Stick-J4125 | |
Intel NUC11ATKC2, N4505 | |
Chuwi LapBook Plus |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series NPB5 | |
Beelink SEi12 Core i5-1235U | |
Trigkey Speed S | |
Minisforum Venus Series UN1245 | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 (3046 - 3958, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 | |
Chuwi LapBook Plus |
Geekbench 5.5 / Multi-Core | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UN1245 | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 (1911 - 2896, n=9) | |
Intel NUC11ATKPE, N6005 | |
Higole PC Stick-J4125 | |
Intel NUC11ATKC2, N4505 |
Geekbench 5.5 / Single-Core | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series NPB5 | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 (915 - 1018, n=9) | |
Intel NUC11ATKPE, N6005 | |
Intel NUC11ATKC2, N4505 | |
Higole PC Stick-J4125 |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Trigkey Speed S | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel Processor N100 (1.72 - 3.49, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Chuwi LapBook Plus | |
Higole PC Stick-J4125 |
LibreOffice / 20 Documents To PDF | |
Higole PC Stick-J4125 | |
Intel NUC11ATKPE, N6005 | |
Intel NUC11ATKC2, N4505 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (67 - 129.6, n=8) | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series UN1245 | |
Trigkey Speed S | |
Minisforum Venus Series NPB5 | |
GMK NucBox K3 Pro |
R Benchmark 2.5 / Overall mean | |
Higole PC Stick-J4125 | |
Intel NUC11ATKC2, N4505 | |
Beelink U59 | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (0.822 - 1.06, n=8) | |
Blackview MP80 | |
Beelink Mini S12 Pro | |
Lenovo IdeaPad 3 14ALC6-82KT0077GE | |
Trigkey Speed S | |
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series NPB5 | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit |
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... kleinere Werte sind besser
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 | |
Beelink Mini S12 Pro |
AIDA64 / FP32 Ray-Trace | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (837 - 2179, n=8) | |
Beelink U59 | |
Beelink Mini S12 Pro |
AIDA64 / FPU Julia | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (4395 - 11392, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / CPU SHA3 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (307 - 797, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / CPU Queen | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (8663 - 22605, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / FPU SinJulia | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (430 - 1120, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / FPU Mandel | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (2217 - 5749, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / CPU AES | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (8421 - 21774, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink Mini S12 Pro |
AIDA64 / CPU ZLib | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (81.7 - 218, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / FP64 Ray-Trace | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (465 - 1169, n=8) | |
Beelink U59 | |
Beelink Mini S12 Pro |
AIDA64 / CPU PhotoWorxx | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100 (5384 - 16824, n=8) | |
Beelink U59 | |
Beelink Mini S12 Pro |
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Beelink Mini S12 Pro | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (2786 - 3229, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 |
PCMark 10 / Essentials | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (6068 - 7482, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 |
PCMark 10 / Productivity | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink Mini S12 Pro | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (4167 - 5062, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 |
PCMark 10 / Digital Content Creation | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Beelink Mini S12 Pro | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (2126 - 2497, n=8) | |
Beelink U59 |
CrossMark / Overall | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (706 - 839, n=7) | |
Intel NUC11ATKPE, N6005 |
CrossMark / Productivity | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (779 - 905, n=7) | |
Intel NUC11ATKPE, N6005 |
CrossMark / Creativity | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Beelink Mini S12 Pro | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (672 - 773, n=7) | |
Intel NUC11ATKPE, N6005 |
CrossMark / Responsiveness | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
Durchschnittliche Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (608 - 856, n=7) | |
Intel NUC11ATKPE, N6005 |
PCMark 10 Score | 3164 Punkte | |
Hilfe |
AIDA64 / Memory Copy | |
GMK NucBox K3 Pro | |
Durchschnitt der Klasse Mini PC (8377 - 89287, n=115, der letzten 2 Jahre) | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (8377 - 31917, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / Memory Read | |
GMK NucBox K3 Pro | |
Durchschnitt der Klasse Mini PC (8974 - 99171, n=115, der letzten 2 Jahre) | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Durchschnittliche Intel Processor N100 (8974 - 32913, n=8) | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Beelink Mini S12 Pro |
AIDA64 / Memory Write | |
GMK NucBox K3 Pro | |
Durchschnitt der Klasse Mini PC (8762 - 98583, n=115, der letzten 2 Jahre) | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 | |
Durchschnittliche Intel Processor N100 (8762 - 36423, n=8) | |
Beelink Mini S12 Pro |
AIDA64 / Memory Latency | |
Beelink Mini S12 Pro | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Durchschnitt der Klasse Mini PC (44.9 - 184.8, n=115, der letzten 2 Jahre) | |
Durchschnittliche Intel Processor N100 (49.5 - 139.9, n=8) | |
Beelink U59 | |
Intel NUC11ATKPE, N6005 |
* ... kleinere Werte sind besser
DPC-Latenzzeit

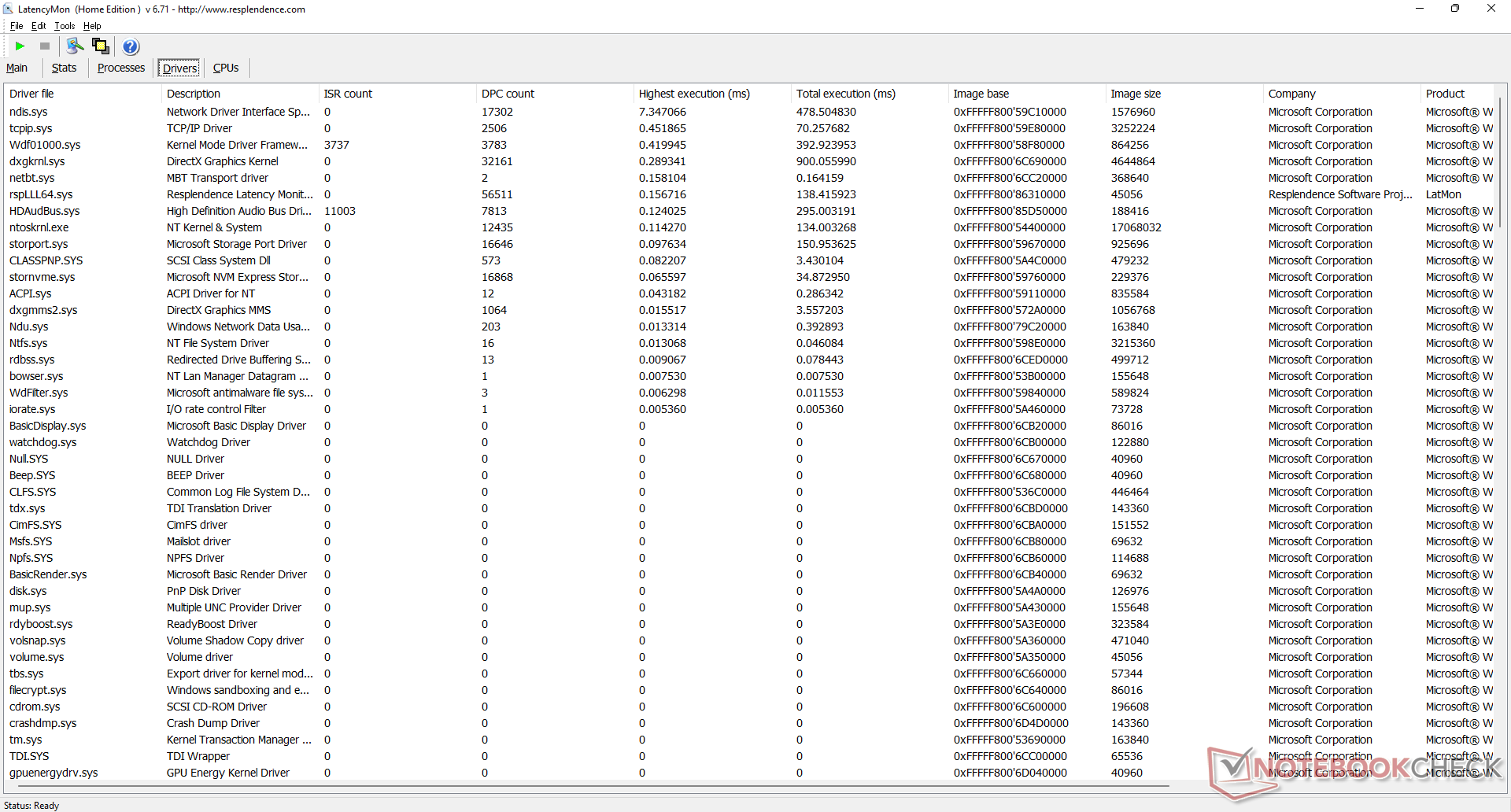

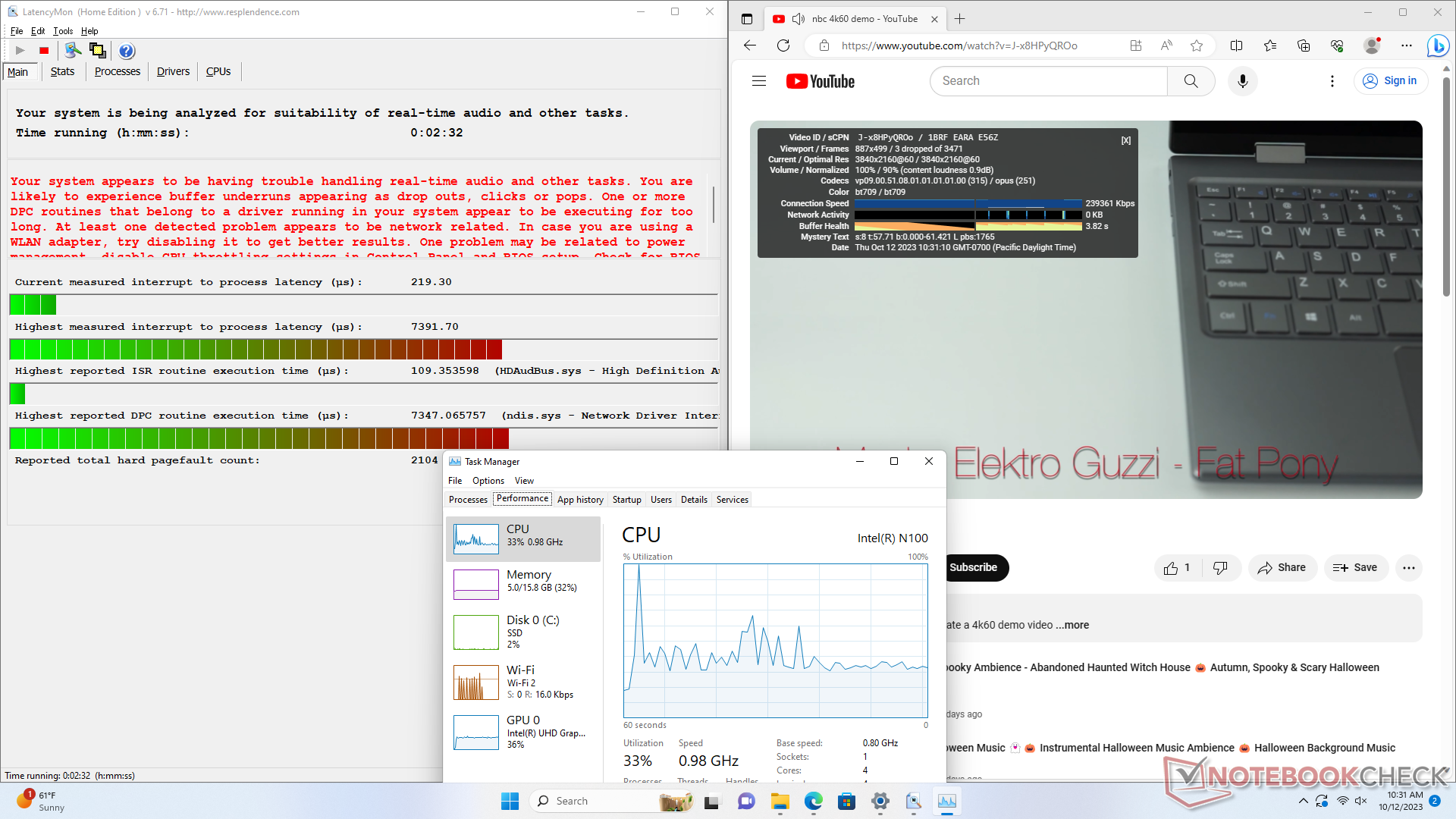

LatencyMon zeigt DPC-Probleme beim Öffnen mehrerer Browser Tabs unserer Homepage. Die 4K-Videowiedergabe bei 60 FPS ist mit 3 Bildaussetzern in einem Zeitraum von einer Minute ebenfalls nicht perfekt. Die Bildaussetzer sind glücklicherweise nicht so stark, dass sie auffallen, aber es sollte überhaupt keine geben, vor allem nicht bei einem HTPC.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Beelink Mini S12 Pro | |
Intel NUC11ATKPE, N6005 | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Beelink U59 |
* ... kleinere Werte sind besser

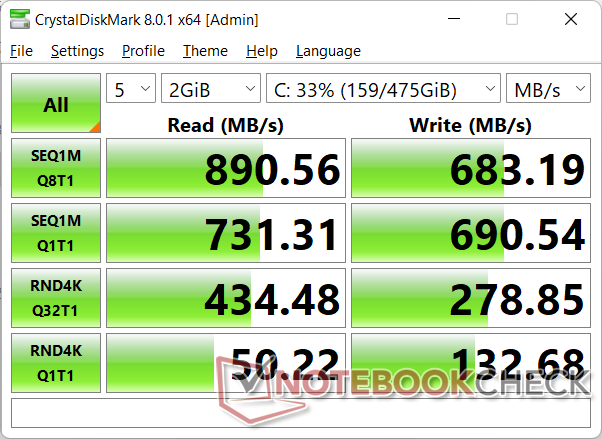

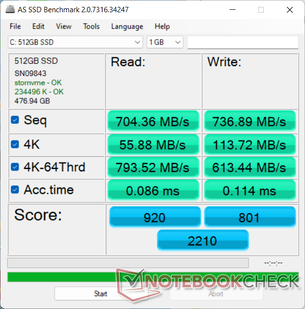

Speichergeräte
Drive Performance Rating - Percent | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
Intel NUC11ATKPE, N6005 | |
Beelink U59 |
* ... kleinere Werte sind besser
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU Performance
Die Grafikleistung ist 76 Prozent langsamer als die der üblichen Iris Xe 96 EUs. In der Tat ist sie kaum schneller als die UHD Graphics 620, die inzwischen fast ein Jahrzehnt alt ist. Wir empfehlen Ihnen Game-Streaming, wenn Sie auf dem Mini S12 Pro Spiele spielen möchten.
Wir vermuten, dass unser integrierter Xe 24EUs viel schneller gewesen wäre, wenn unser Gerät mit Dual-Channel- statt mit Single-Channel-Speicher ausgeliefert worden wäre.
3DMark Performance Rating - Percent | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 | |
Trigkey Speed S | |
GMK NucBox K3 Pro -1! | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UN1245 | |
Intel NUC11ATKPE, N6005 | |
Beelink Mini S12 Pro | |
Minipc Union NiPoGi CK10 - 10810U | |
Durchschnittliche Intel UHD Graphics 24EUs (Alder Lake-N) | |
Blackview MP80 | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 | |
Chuwi LapBook Plus -1! | |
Higole PC Stick-J4125 -1! |

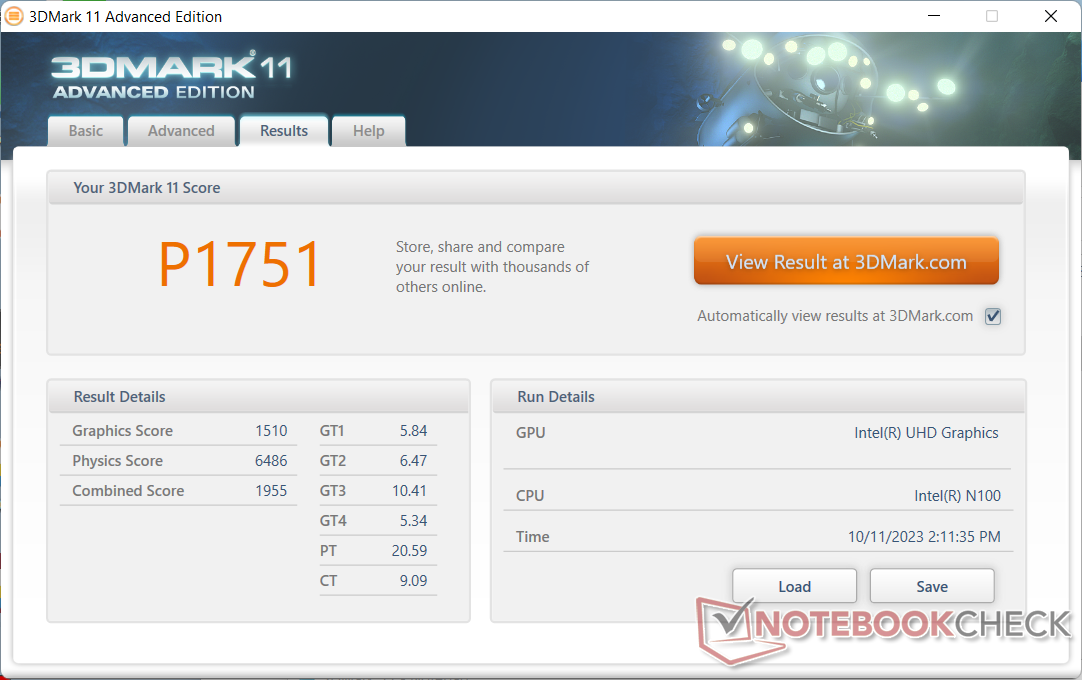

3DMark 11 Performance | 1751 Punkte | |

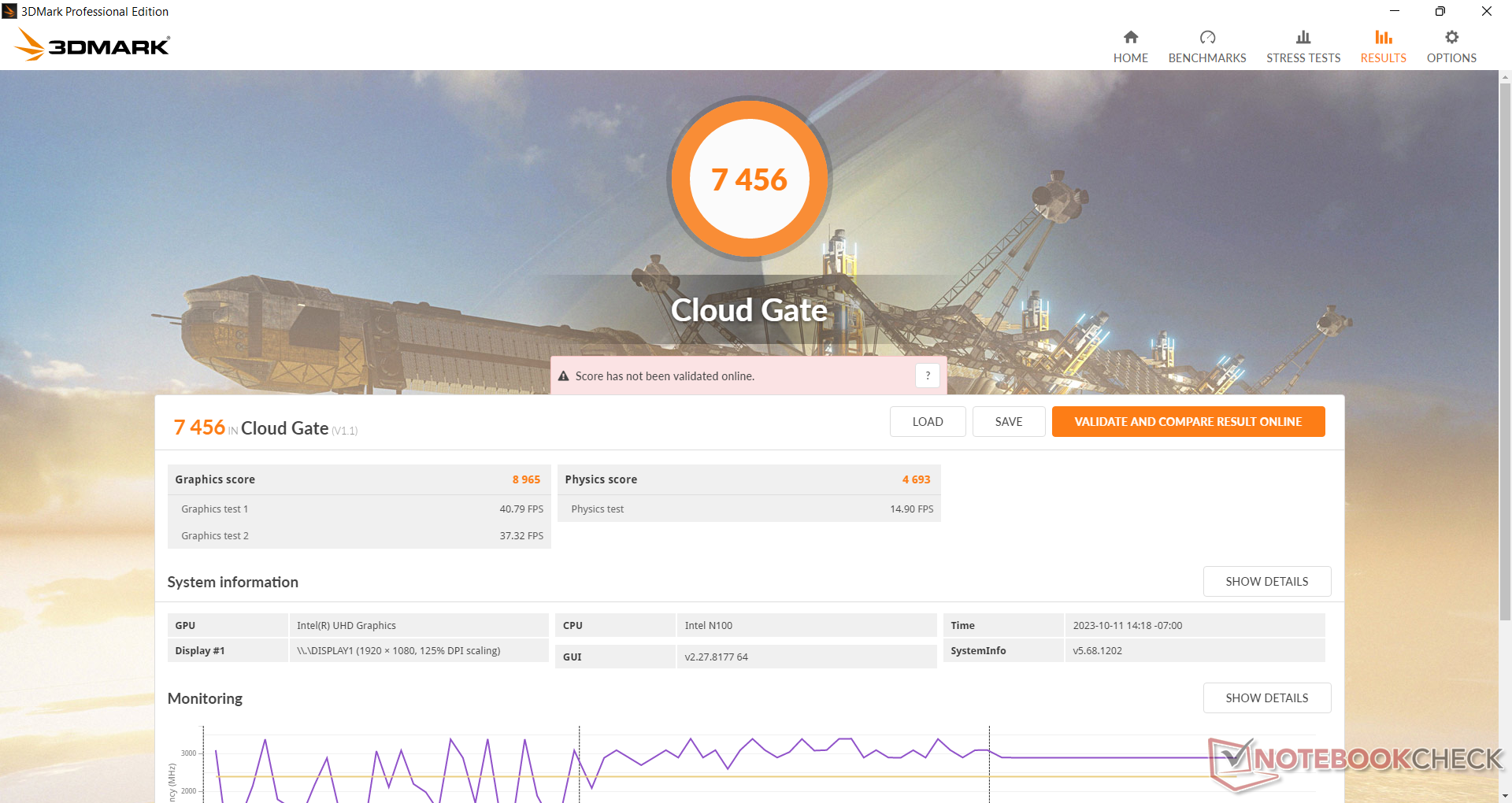

3DMark Cloud Gate Standard Score | 7456 Punkte | |

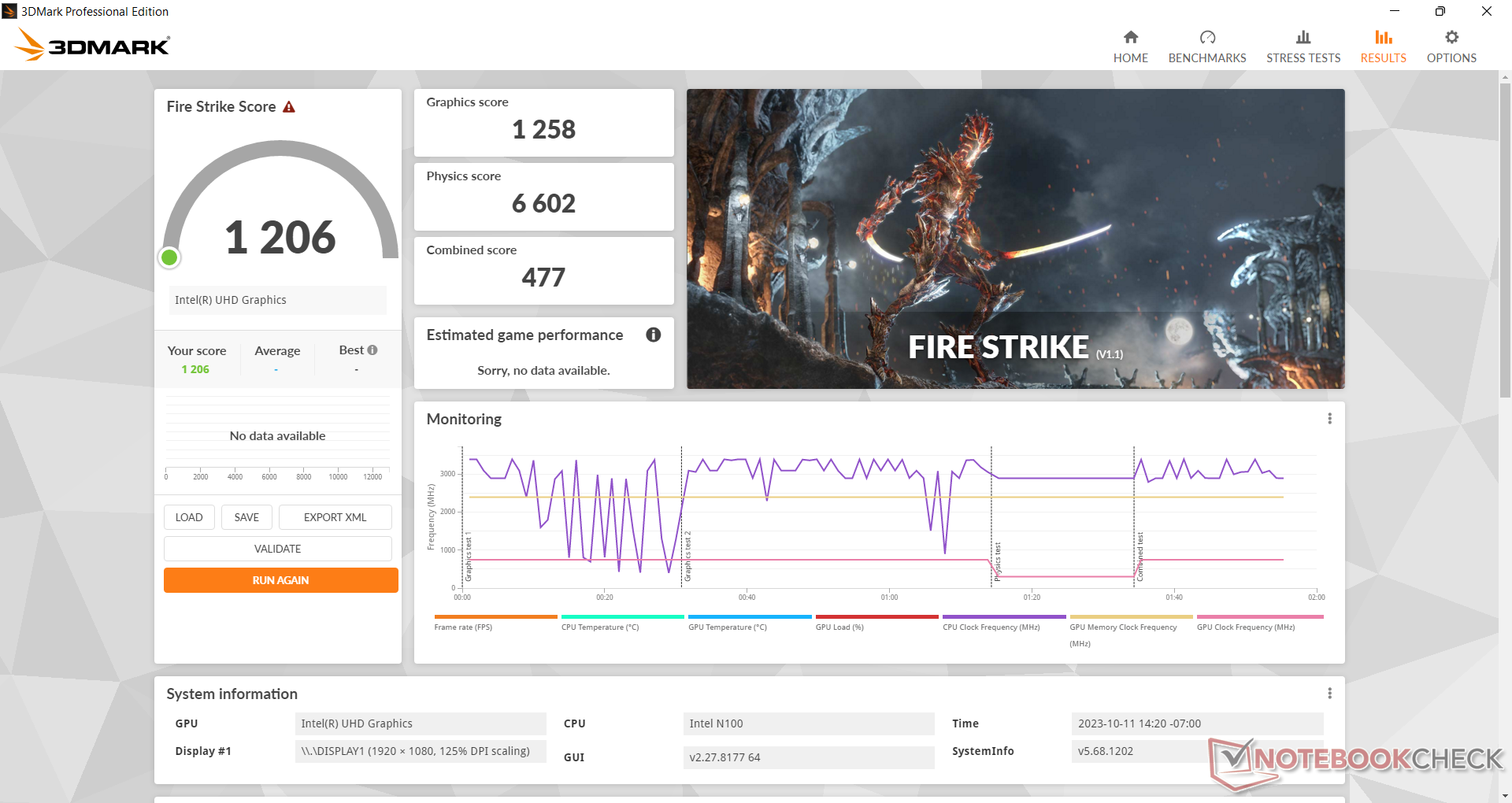

3DMark Fire Strike Score | 1206 Punkte | |

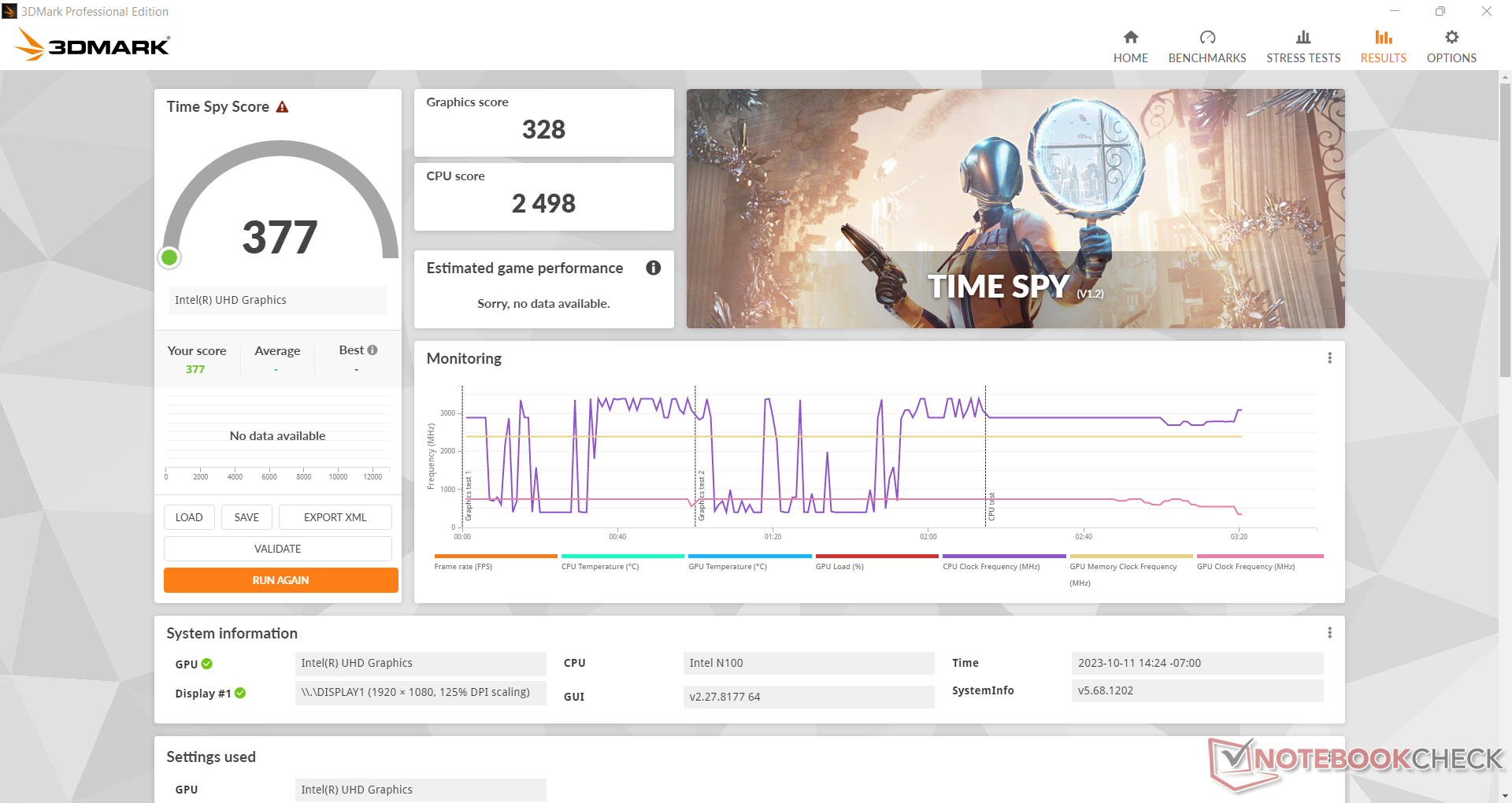

3DMark Time Spy Score | 377 Punkte | |
Hilfe |
Blender - v3.3 Classroom CPU | |
Higole PC Stick-J4125 | |
Intel NUC11ATKC2, N4505 | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel UHD Graphics 24EUs (Alder Lake-N) (1992 - 3964, n=12) | |
Blackview MP80 | |
Beelink Mini S12 Pro | |
Trigkey Speed S | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UN1245 | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 |
* ... kleinere Werte sind besser
Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Trigkey Speed S | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UN1245 | |
Intel NUC11ATKPE, N6005 | |
Durchschnittliche Intel UHD Graphics 24EUs (Alder Lake-N) (12 - 17.8, n=11) | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Beelink U59 | |
Intel NUC11ATKC2, N4505 |
Dota 2 Reborn | |
1280x720 min (0/3) fastest | |
Minisforum Venus Series NPB5 | |
Minisforum Venus Series UN1245 | |
Trigkey Speed S | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Beelink Mini S12 Pro | |
Intel NUC11ATKPE, N6005 | |
Blackview MP80 | |
Durchschnittliche Intel UHD Graphics 24EUs (Alder Lake-N) (44.7 - 80.8, n=13) | |
Beelink U59 | |
Higole PC Stick-J4125 | |
Intel NUC11ATKC2, N4505 | |
1366x768 med (1/3) | |
Minisforum Venus Series NPB5 | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UN1245 | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Trigkey Speed S | |
Beelink Mini S12 Pro | |
Blackview MP80 | |
Durchschnittliche Intel UHD Graphics 24EUs (Alder Lake-N) (27.6 - 52, n=13) | |
Intel NUC11ATKPE, N6005 | |
Intel NUC11ATKC2, N4505 | |
Beelink U59 | |
Higole PC Stick-J4125 |
