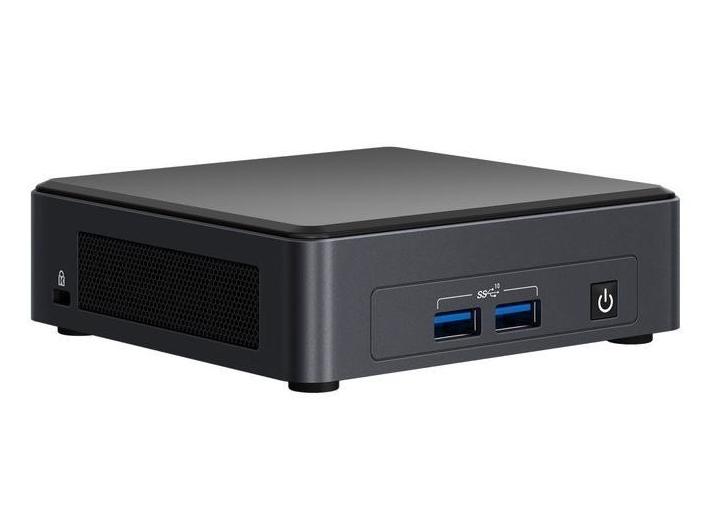

Intel NUC11TNKi5 Pro Mini Tiger Canyon Test: Kleinster Tiger Lake NUC

Tiger Lake lässt die Muskeln spielen. Die 10. Generation von Intel war mit ihrem geteilten Ice-Lake- und Comet-Lake-U-Ansatz nicht immer einfach zu verstehen. Glücklicherweise haben die 11. Generation Tiger Lake und die NUC11-Familie die Serie gestrafft und gleichzeitig die Leistung um einiges gesteigert.
Allen Ngo, 👁 Allen Ngo, Stefanie Voigt (übersetzt von DeepL / Ninh Duy), 🇺🇸 🇮🇹 ...
Jobs
Wir erweitern unser Test-Team und suchen Notebook-Enthusiasten für unsere Redaktion. Details
Links: NUC 11 Performance, rechts: NUC 11 Pro Mini
Links: NUC 11 Performance, rechts: NUC 11 Pro Mini

Die NUC-11-Familie besteht aus drei Modellen: dem NUC 11 Pro Mini (NUC11TNK), dem NUC 11 Performance (NUC11PAQ) und dem GeForce RTX betriebenen NUC 11 Enthusiast (NUC11PHK). Jedes Modell unterscheidet sich optisch von den anderen, wobei das Pro Mini das kleinste der Gruppe ist.

Das Gerät, das wir hier testen, ist der NUC 11 Pro Mini; unser Test des Enthusiast Modells folgt in den nächsten Wochen. Während Core-i3-, Core-i7-, Dual-Channel-RAM- und NVMe-SSD-Optionen verfügbar sind, hat Intel unseren mit der Core-i5-1135G7-CPU, 16-GB-Single-Channel-RAM und einer 512 GB großen M.2-SATA-III-SSD konfiguriert.

Die Konkurrenz zur Intel-NUC-Serie ist im Laufe der Jahre stetig gewachsen. Zu den Alternativen gehören die Zotac ZBox, Beelink SEi10, GMK NucBox 2 und die Lenovo ThinkCentre Nano.

Mehr Intel-NUC-Tests:

, , , , , ,
zu verknüpfen.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

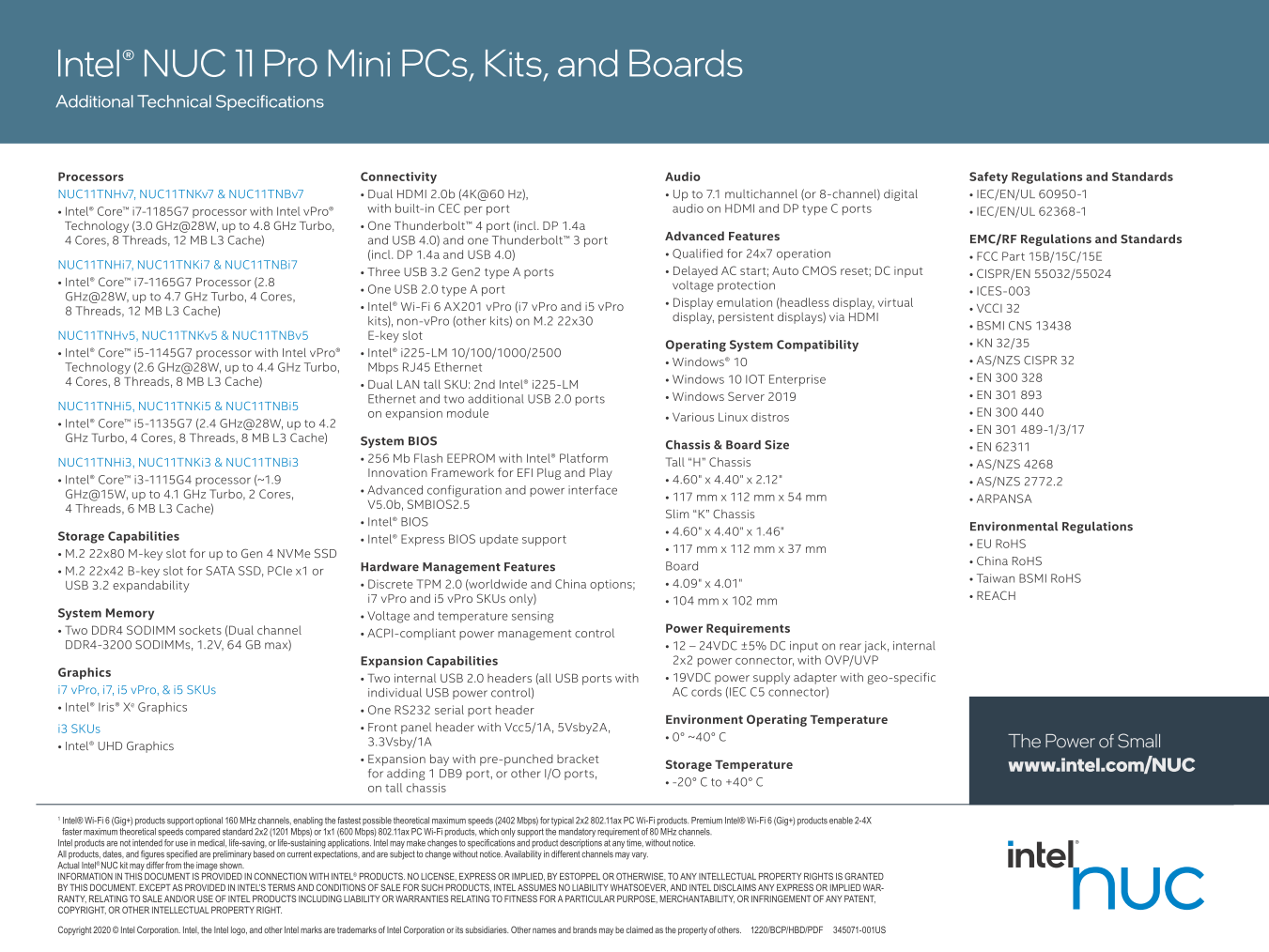

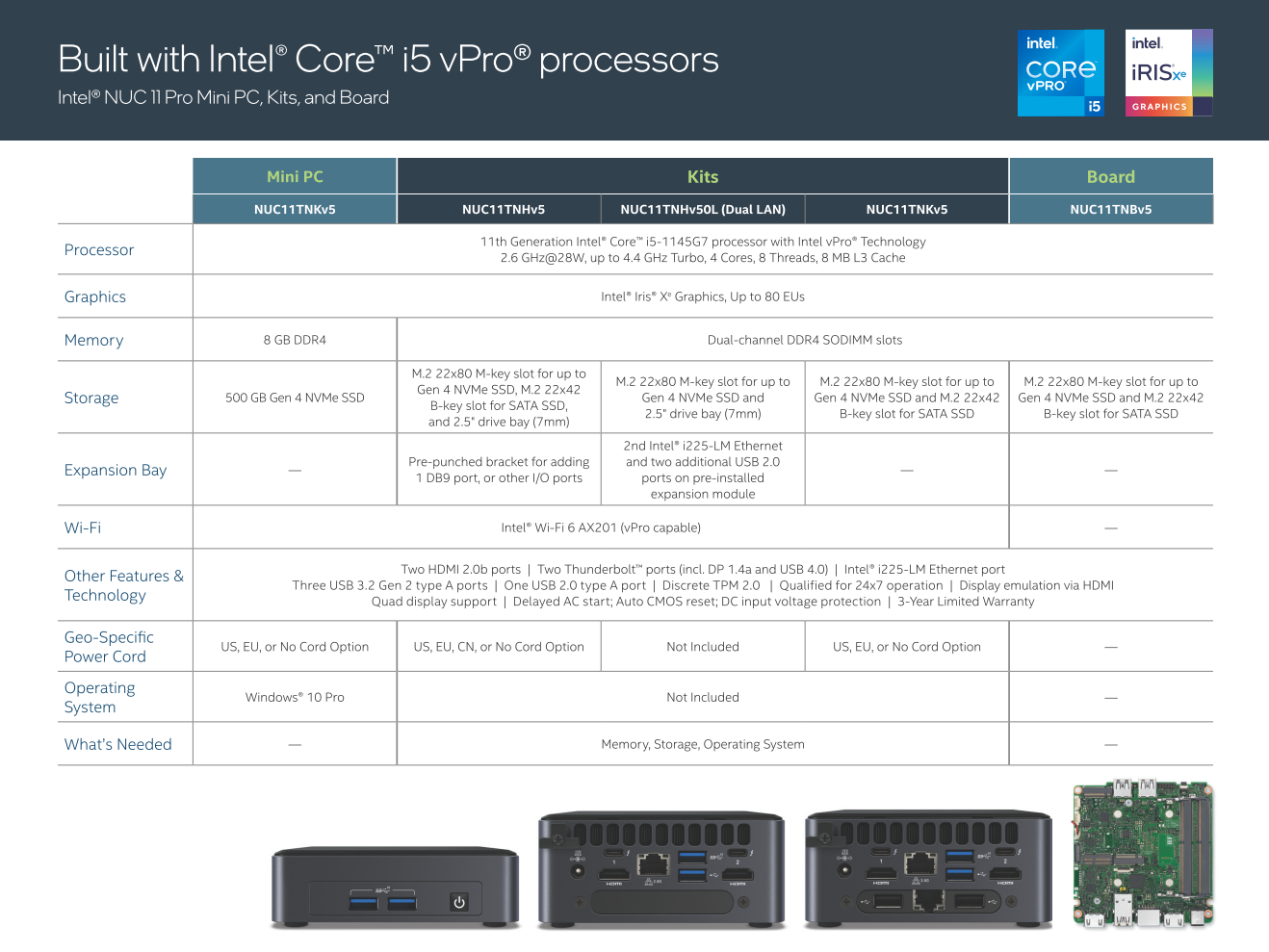

NUC 11 Produktübersicht (Quelle: Intel)
NUC 11 Produktübersicht (Quelle: Intel)

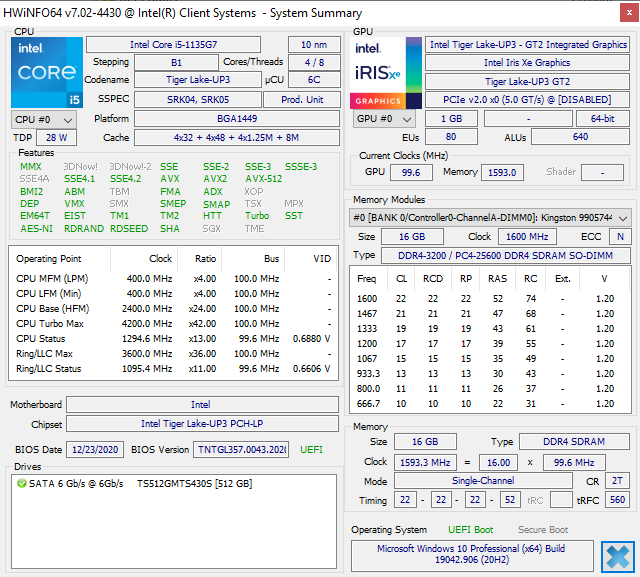

Intel NUC11TNKi5
Prozessor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 64 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake UP3
Grafikkarte

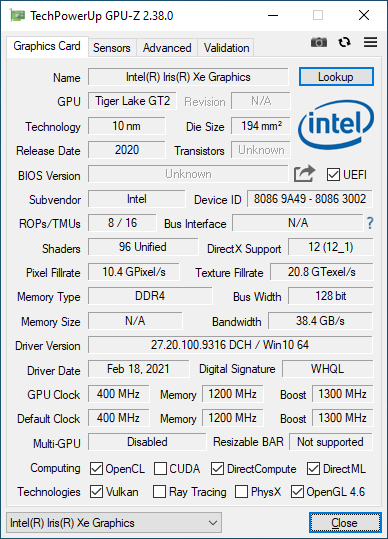

Intel Iris Xe Graphics G7 80EUs, Kerntakt: 1300 MHz, Speichertakt: 1200 MHz, DDR4, 27.20.100.9316

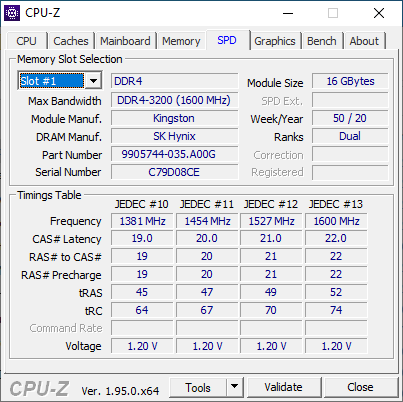

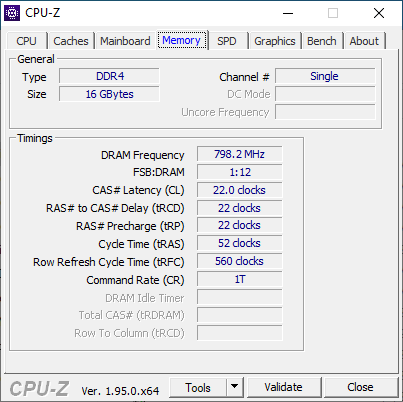

Hauptspeicher
16384 MB
, 1600 MHz, 22-22-22-52, Single-Channel
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Massenspeicher

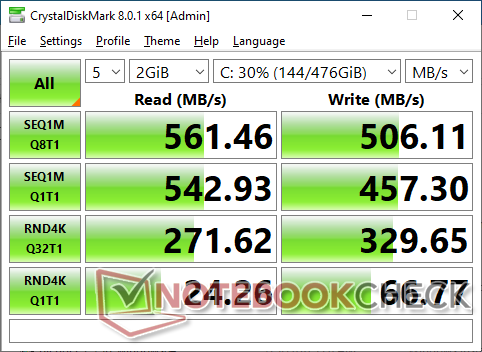

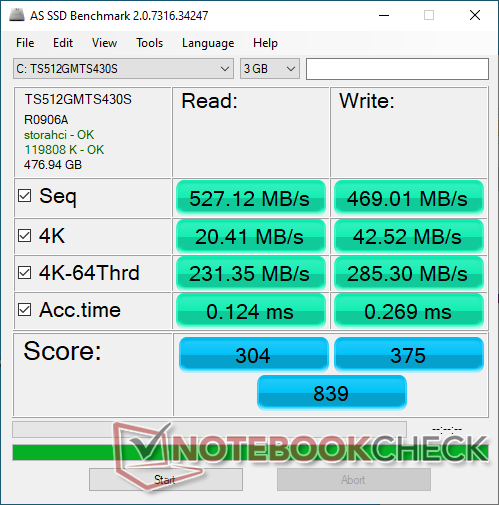

Transcend M.2 SSD 430S TS512GMTS430S, 512 GB
Soundkarte
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Netzwerk
Intel I225-LM Ethernet Controller (10MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6)
Abmessungen
Höhe x Breite x Tiefe (in mm): 37 x 117 x 112
Betriebssystem
Microsoft Windows 10 Pro 64 Bit
Sonstiges
36 Monate Garantie
Gewicht
504 g, Netzteil: 491 g
Hinweis: Der Hersteller kann abweichende Bauteile wie Bildschirme, Laufwerke und Speicherriegel mit ähnlichen Spezifikationen unter dem gleichen Modellnamen einsetzen.



potential competitors in comparison

Bew.
Datum
Modell
Gewicht
Dicke
Größe
Auflösung
Preis ab
04.2021
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx
GMK NucBox 2
i5-8259U, Iris Plus Graphics 655
430 g50 mmx
02.2021
Intel NUC11PAQi7
i7-1165G7, Iris Xe G7 96EUs
647 g56 mmx
02.2020
Intel NUC10i5FNK
i5-10210U, UHD Graphics 620
493 g36 mm0.00"0x0
12.2020
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)
350 g41 mmx
10.2020
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620
472 g51 mmx
, , , , , ,
zu verknüpfen.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


Gehäuse

Länge und Breite sind identisch mit dem NUC 11 Performance, während die Höhe um 19 mm geringer ist. Die obere Kunststoffplatte ist nun matt und leicht aufgeraut, im Gegensatz zu den glatten und glänzenden Platten älterer NUCs, die wahrscheinlich unschöne Fingerabdrücke und Kratzer reduzieren sollen.

Wie bei anderen Intel NUCs ist ein innerer Rollkäfig aus Metall vorhanden, der für eine verbesserte Steifigkeit und Qualität sorgt, allerdings auf Kosten des zusätzlichen Gewichts. Dies ist weiterhin ein Unterscheidungsmerkmal des NUCs im Vergleich zu den meisten anderen Mini-PCs.

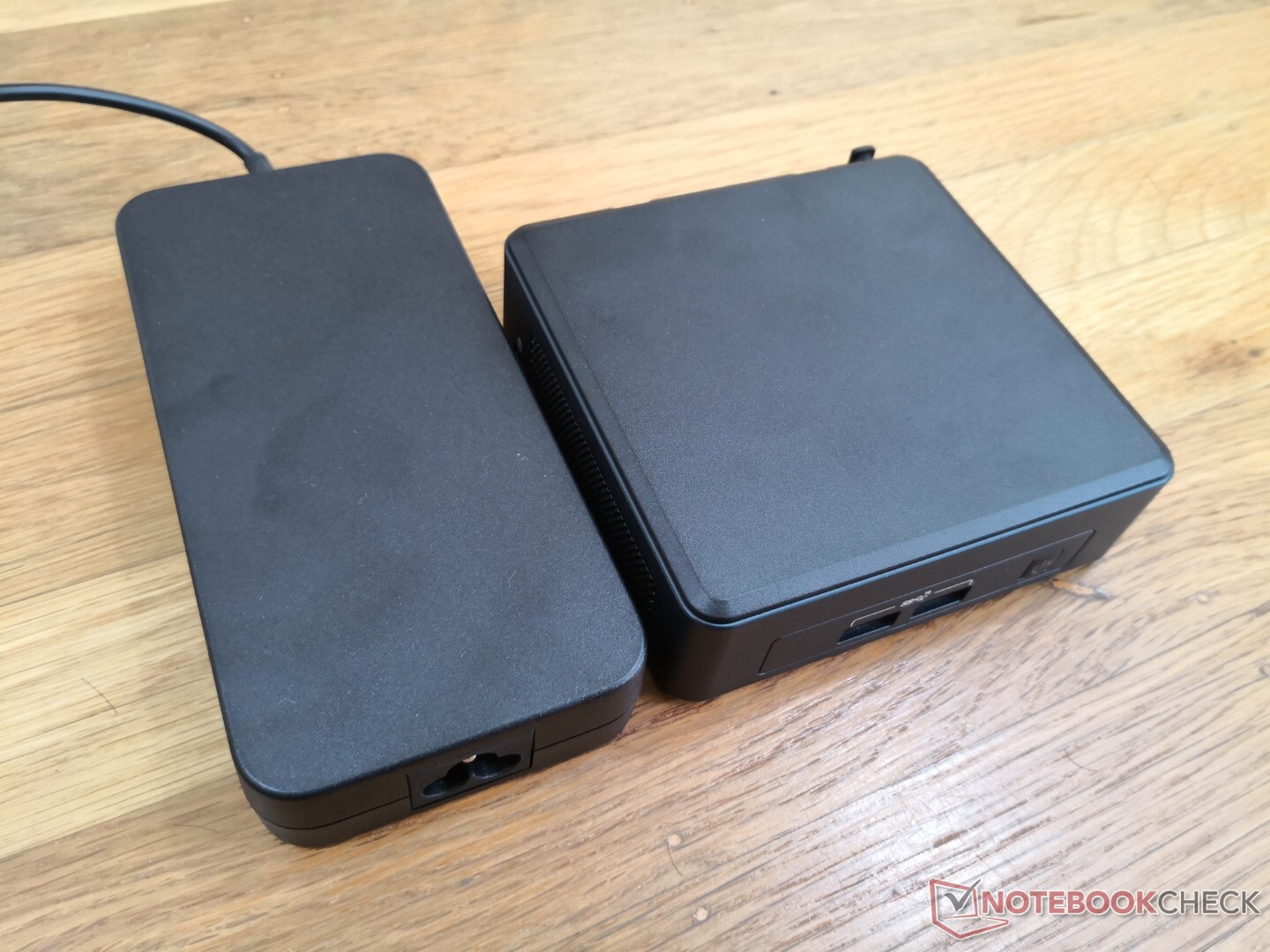

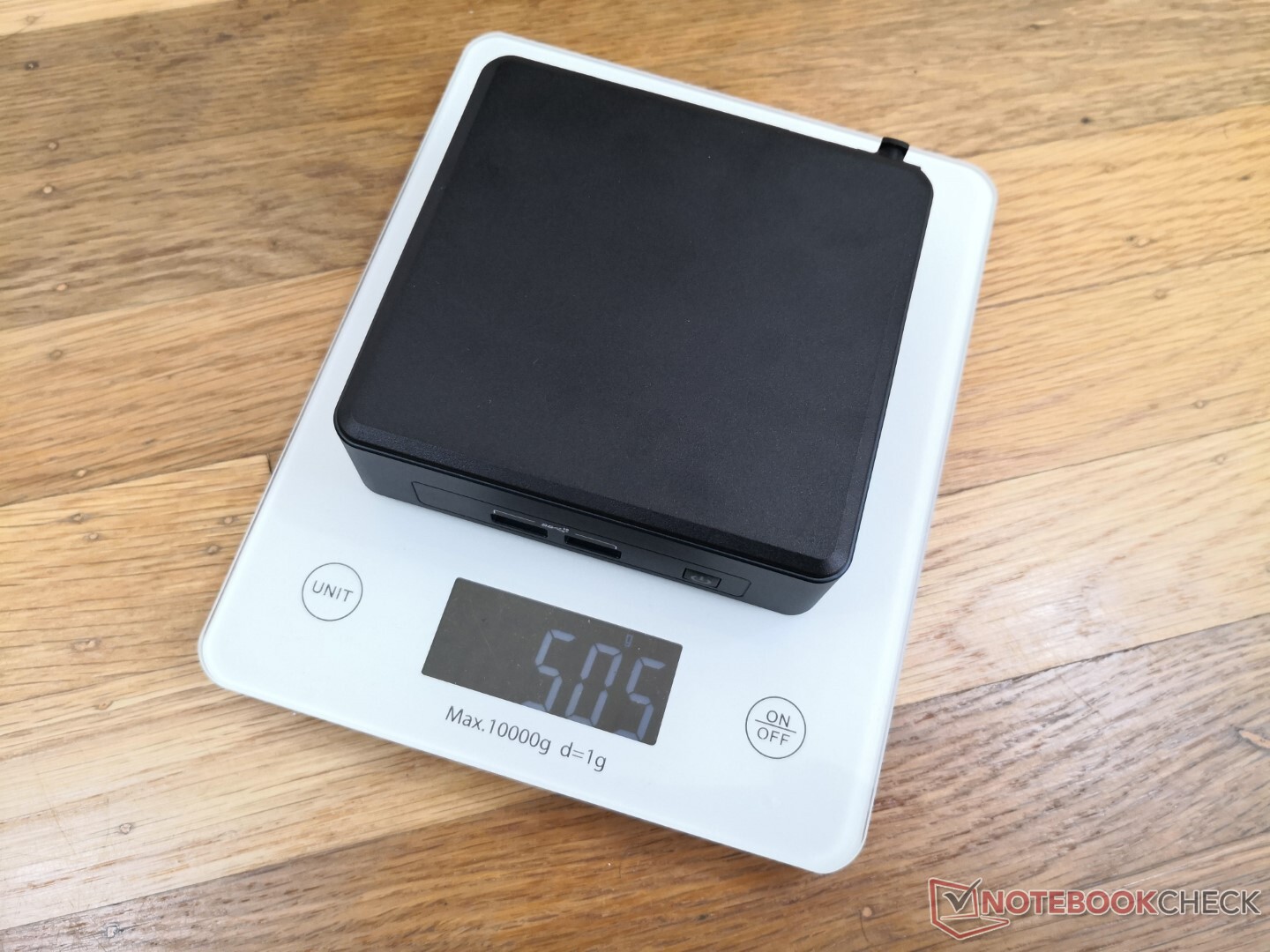

Knapp über 500 g mit installierten RAM-, SSD- und WLAN-Modulen. Die Funktion des kabellosen Lade-Pads ist beim NUC 11 Pro Mini nicht vorhanden
Knapp über 500 g mit installierten RAM-, SSD- und WLAN-Modulen. Die Funktion des kabellosen Lade-Pads ist beim NUC 11 Pro Mini nicht vorhanden

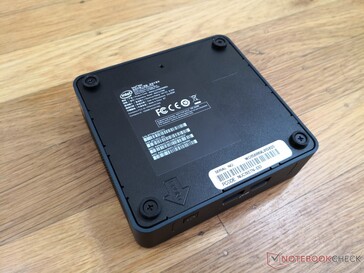

Gummierte Schrauben können ohne Schraubendreher entfernt oder angezogen werden. VESA-Befestigungslöcher sind 90 mm voneinander entfernt
Gummierte Schrauben können ohne Schraubendreher entfernt oder angezogen werden. VESA-Befestigungslöcher sind 90 mm voneinander entfernt

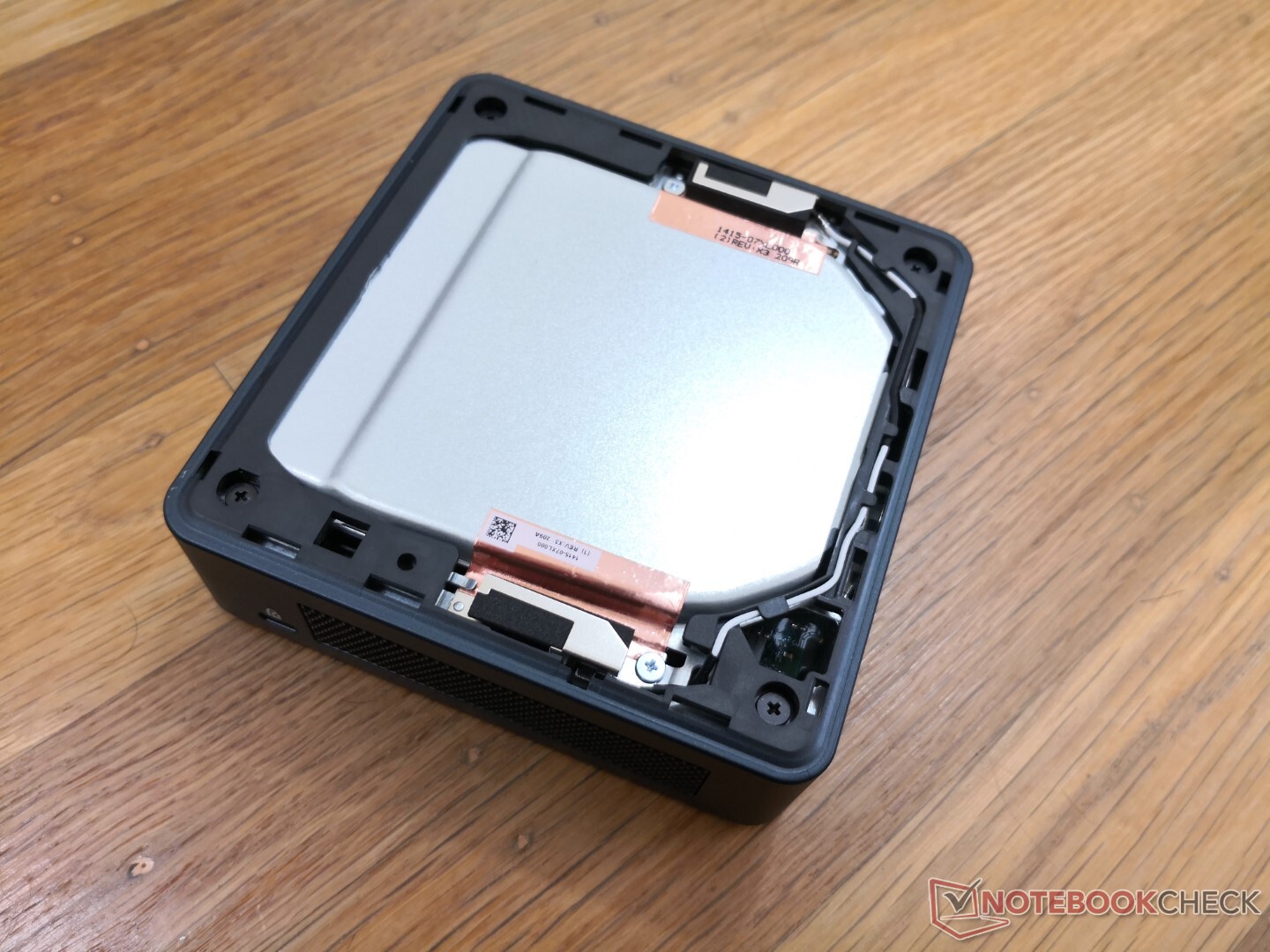

Die obere Kunststoffplatte kann leicht entfernt werden. Es ist jedoch eine zusätzliche Demontage erforderlich, um an den internen Lüfter zu gelangen
Die obere Kunststoffplatte kann leicht entfernt werden. Es ist jedoch eine zusätzliche Demontage erforderlich, um an den internen Lüfter zu gelangen

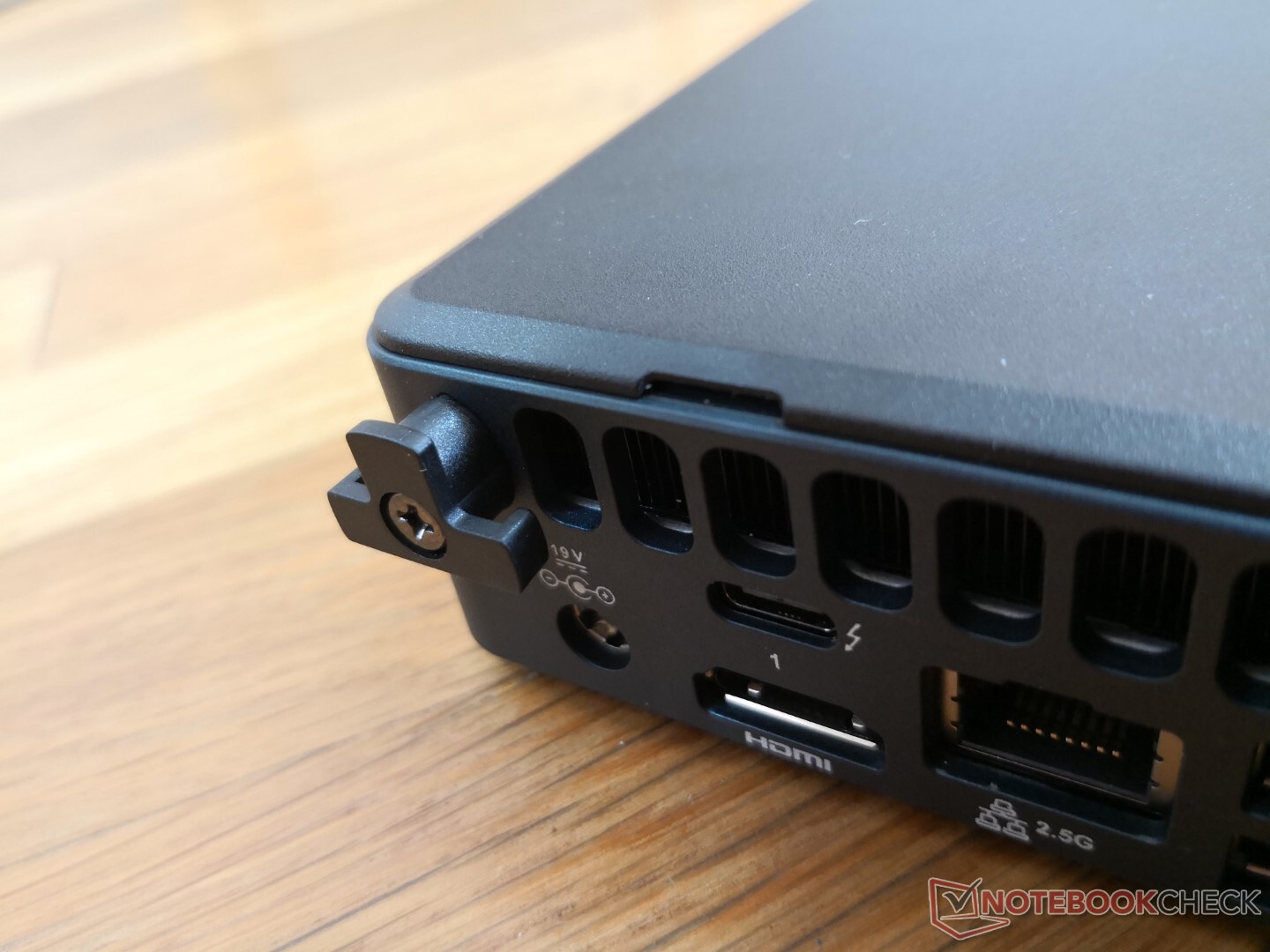

Kabelbefestigung verhindert versehentliches Abschalten
Kabelbefestigung verhindert versehentliches Abschalten
Tiger-Aufdruck auf der Box, um den internen Namen "Tiger Canyon" wiederzugeben
Tiger-Aufdruck auf der Box, um den internen Namen "Tiger Canyon" wiederzugeben
Die Box dient auch als wiederverwendbare Ablage
Die Box dient auch als wiederverwendbare Ablage
128 mm 126 mm 51 mm 472 g125 mm 110 mm 50 mm 430 g117 mm 112 mm 56 mm 647 g124 mm 113 mm 41 mm 350 g117 mm 112 mm 37 mm 504 g117 mm 112 mm 36 mm 493 g

Konnektivität

Fast alle Anschlüsse sind dicht gepackt entlang der Rückseite, einschließlich des einen Thunderbolt-3-Anschlusses und des einen Thunderbolt-4-Anschlusses. Leider kann der NUC nicht über USB-C-Netzteile mit Strom versorgt werden. Daher müssen Besitzer den mitgelieferten proprietären AC-Barrel-Anschluss nutzen.

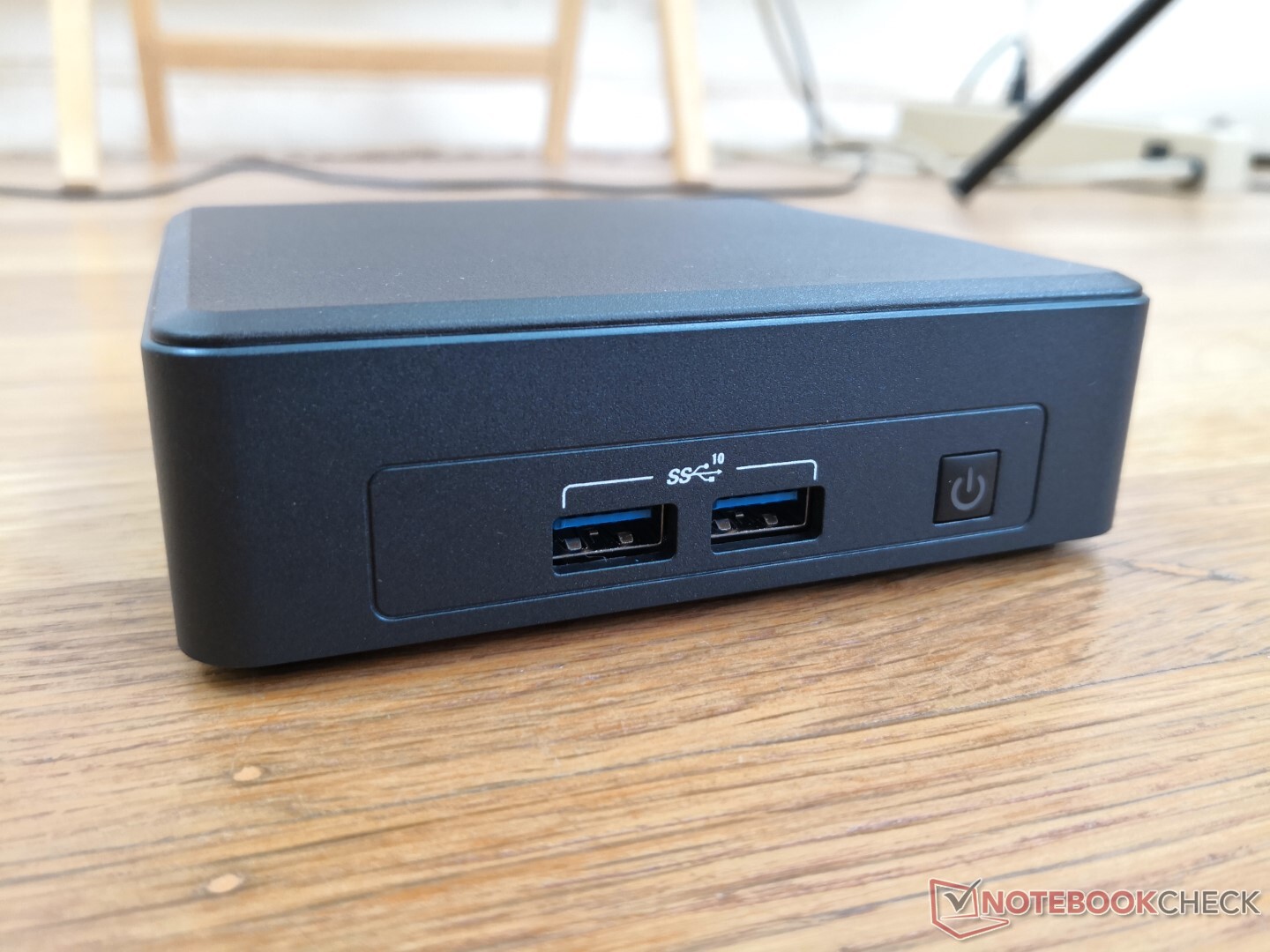

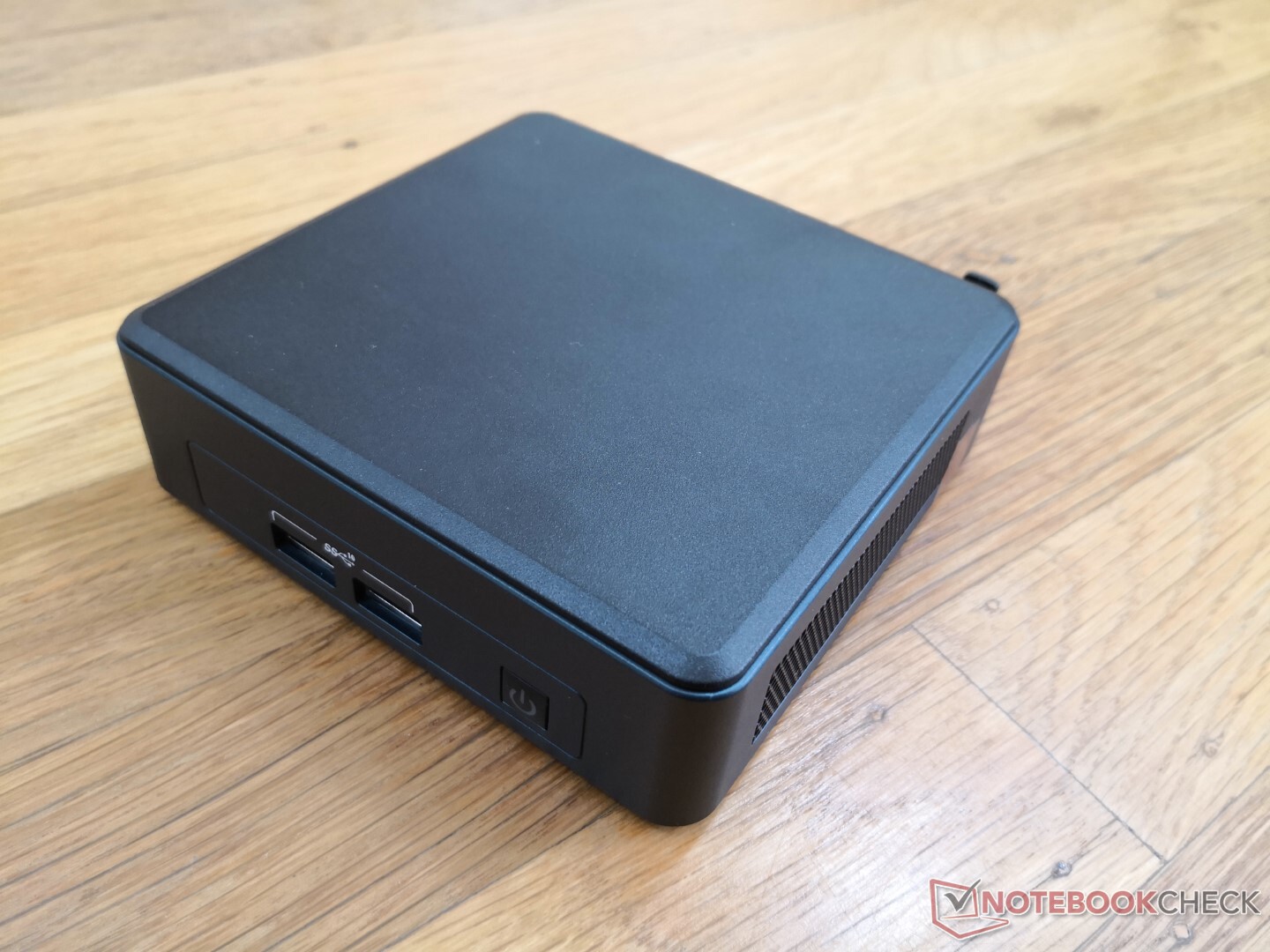

Vorderseite: 2x USB-A 3.2 Gen. 2, Power-Taste
Vorderseite: 2x USB-A 3.2 Gen. 2, Power-Taste

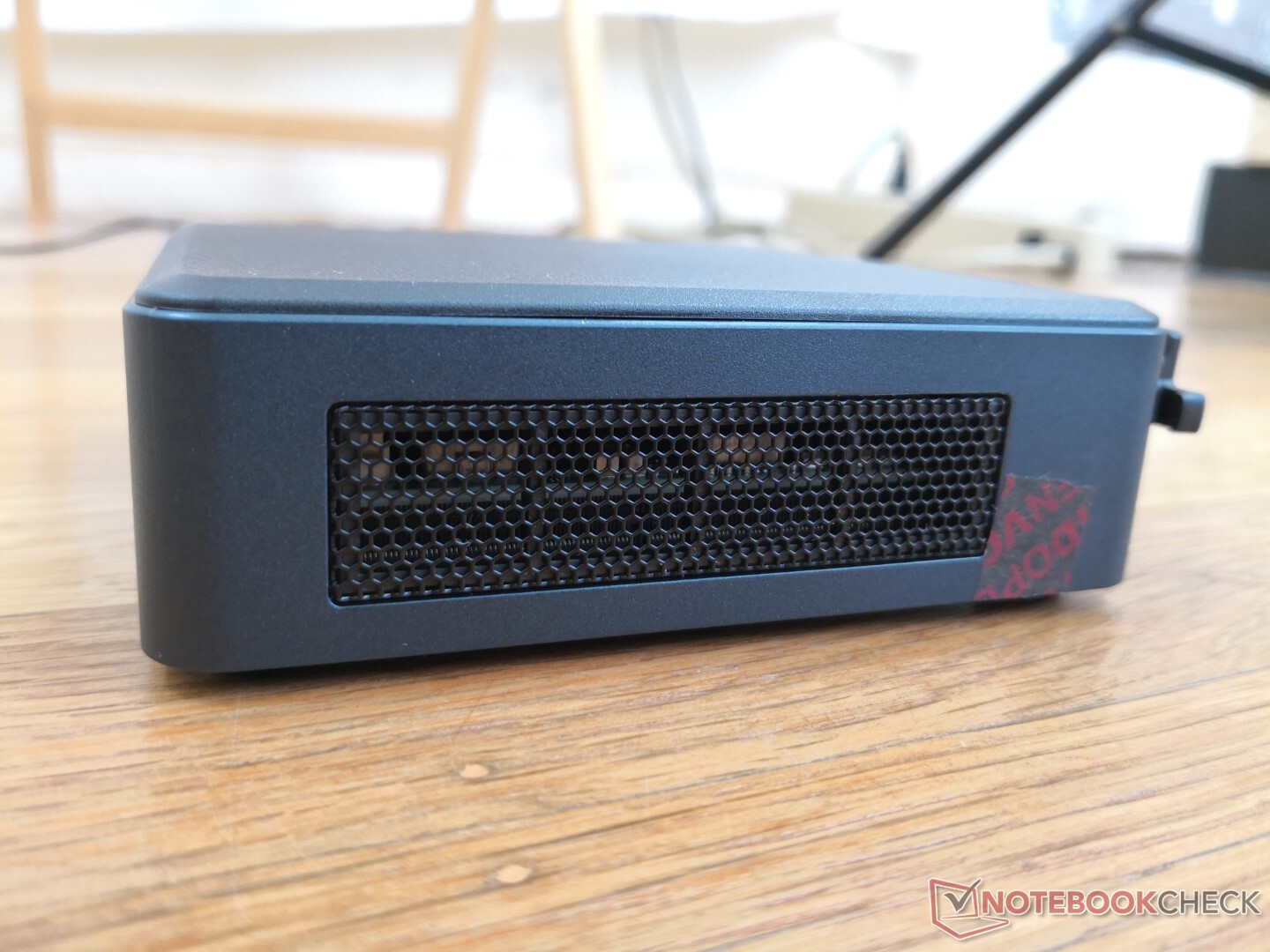

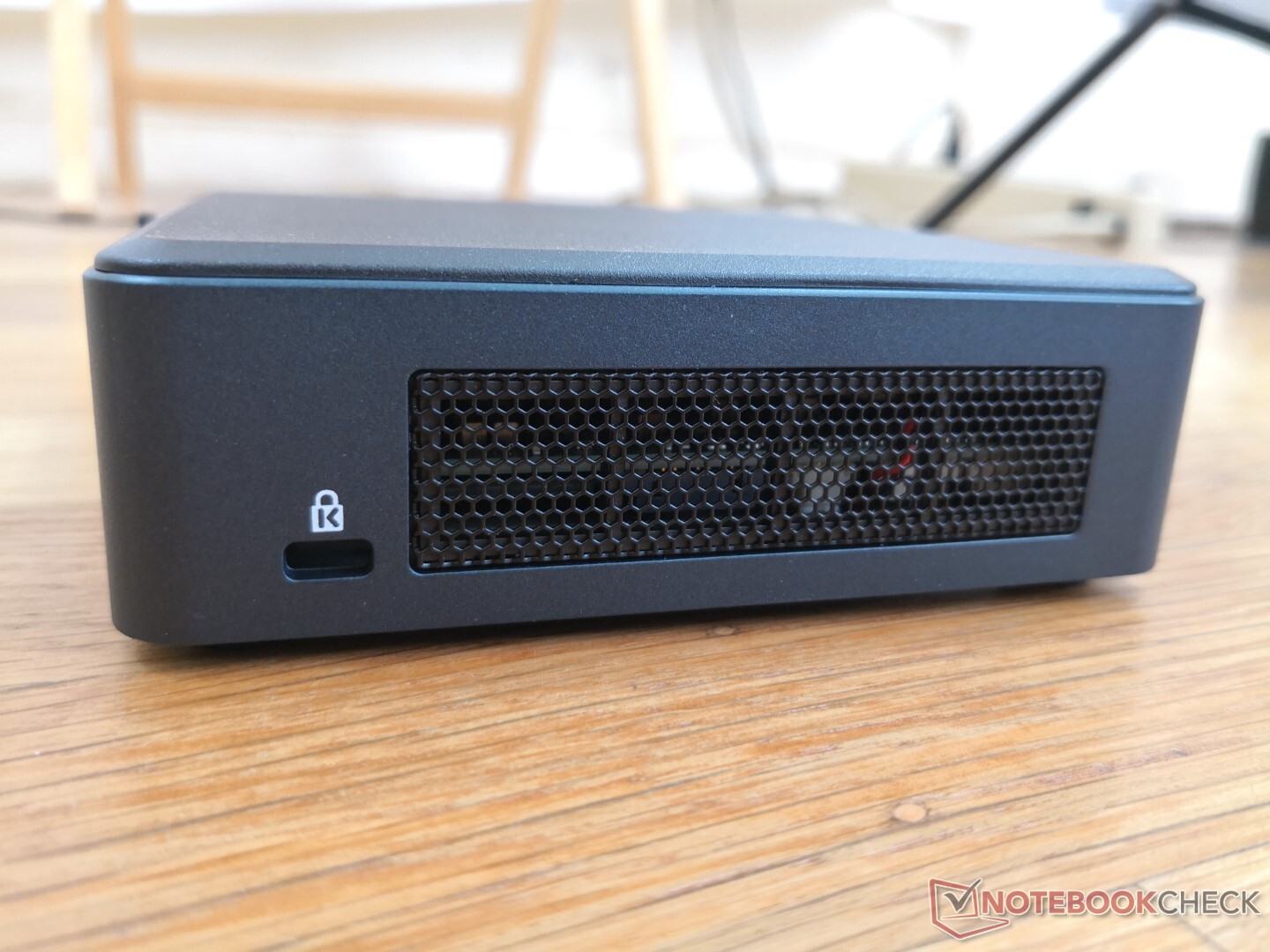

Links: Kensington Lock
Links: Kensington Lock

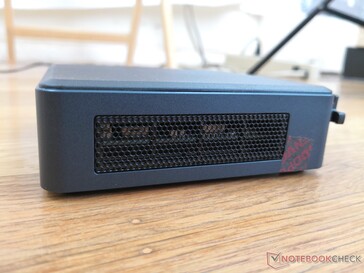

Rechts: Keine Anschlüsse
Rechts: Keine Anschlüsse

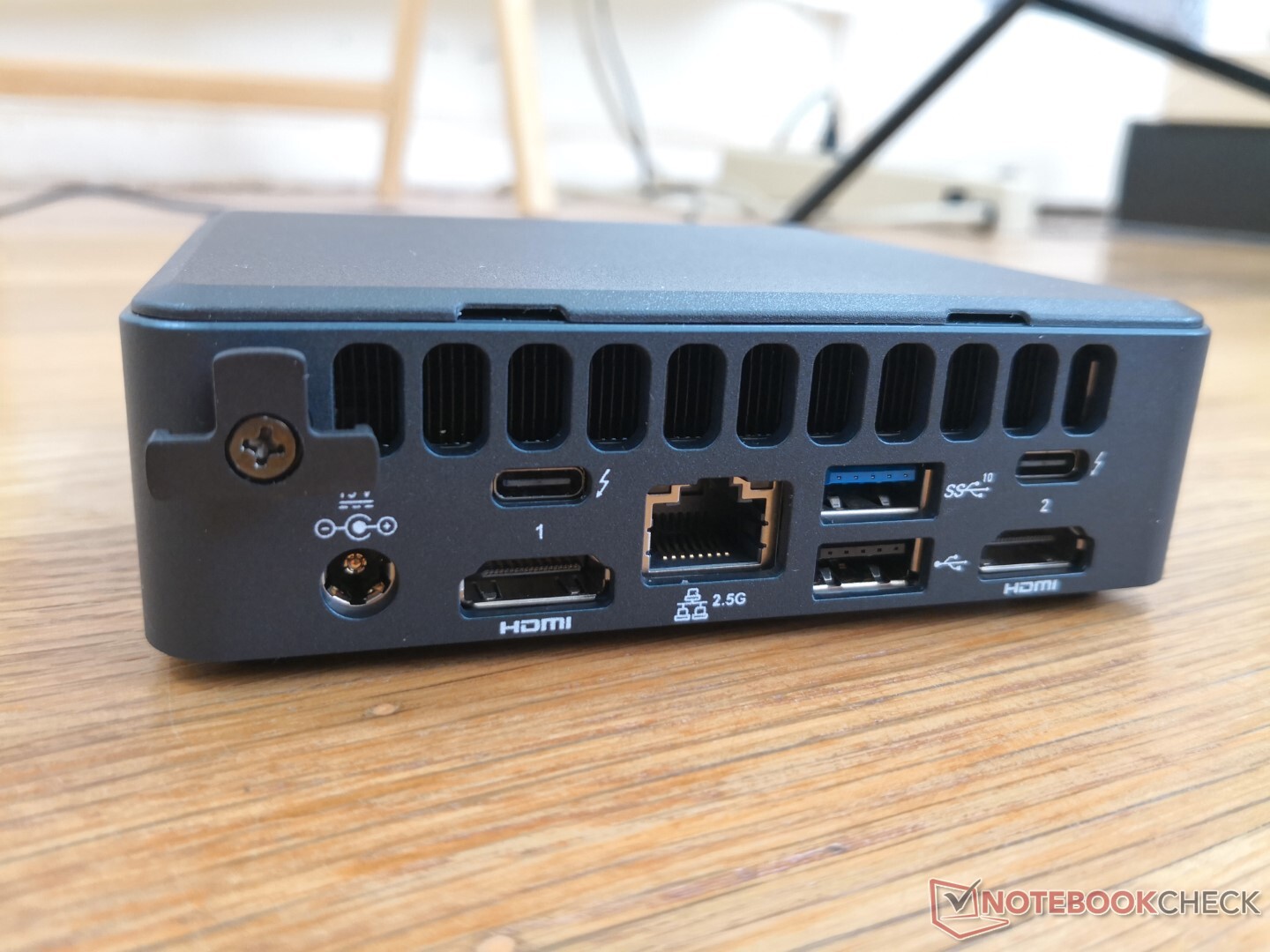

Rückseite: 2x HDMI 2.0b, 2,5 Gbit RJ-45, USB-A 3.2 Gen. 2, USB-A 2.0, 2x USB-C mit Thunderbolt 3, Thunderbolt 4 und DisplayPort
Rückseite: 2x HDMI 2.0b, 2,5 Gbit RJ-45, USB-A 3.2 Gen. 2, USB-A 2.0, 2x USB-C mit Thunderbolt 3, Thunderbolt 4 und DisplayPort

Kommunikation

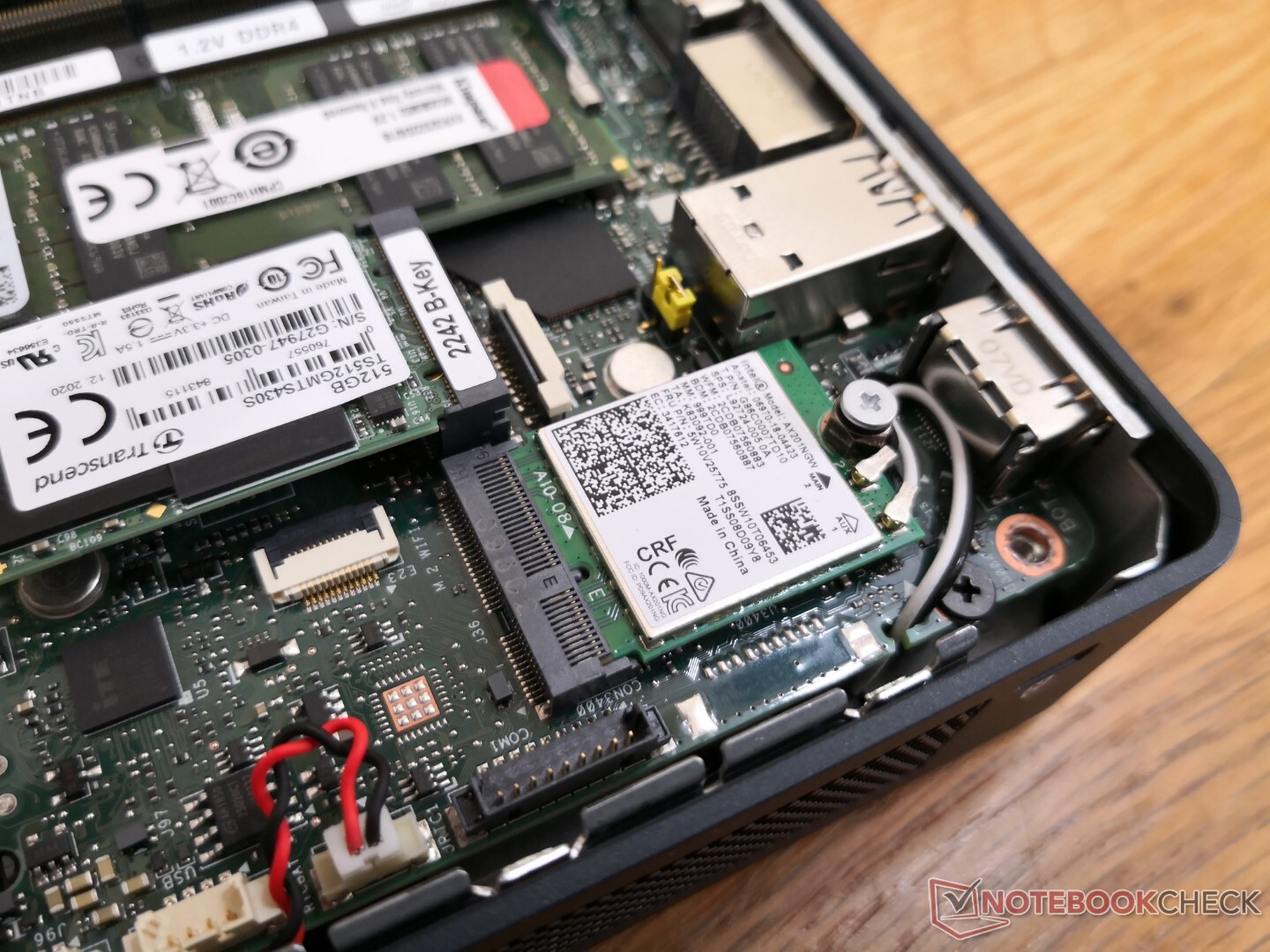

Herausnehmbares Intel AX201 Wi-Fi 6 M.2 WLAN-Modul. Bei der Kopplung mit unserem Netgear RAX200 Router gab es keine Probleme
Herausnehmbares Intel AX201 Wi-Fi 6 M.2 WLAN-Modul. Bei der Kopplung mit unserem Netgear RAX200 Router gab es keine Probleme
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s ∼100%
Beelink SEi10
Intel Wi-Fi 6 AX201
742 (470min - 902max) MBit/s ∼46% -54%
Intel NUC11PAQi7
Intel Wi-Fi 6 AX201
546 (369min - 618max) MBit/s ∼34% -66%
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
385 (299min - 426max) MBit/s ∼24% -76%
iperf3 Client (receive) TCP 1 m 4M x10
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s ∼100%
Beelink SEi10
Intel Wi-Fi 6 AX201
1212 (1060min - 1309max) MBit/s ∼80% -20%
Intel NUC11PAQi7
Intel Wi-Fi 6 AX201
862 (809min - 916max) MBit/s ∼57% -43%
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
625 (346min - 678max) MBit/s ∼41% -59%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650153115201533154915301502144214751471152115421532153514971526154915301535151215051541157115491529154414961523154515311539153115201533154915301502144214751471152115421532153514971526154915301535151215051541157115491529154414961523154515311539164716521654163416391386167716131635165316371639164016301594167516491622162116291637161716351606163716461630161016241616Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1524 (1442-1571)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1626 (1386-1677)

Wartung

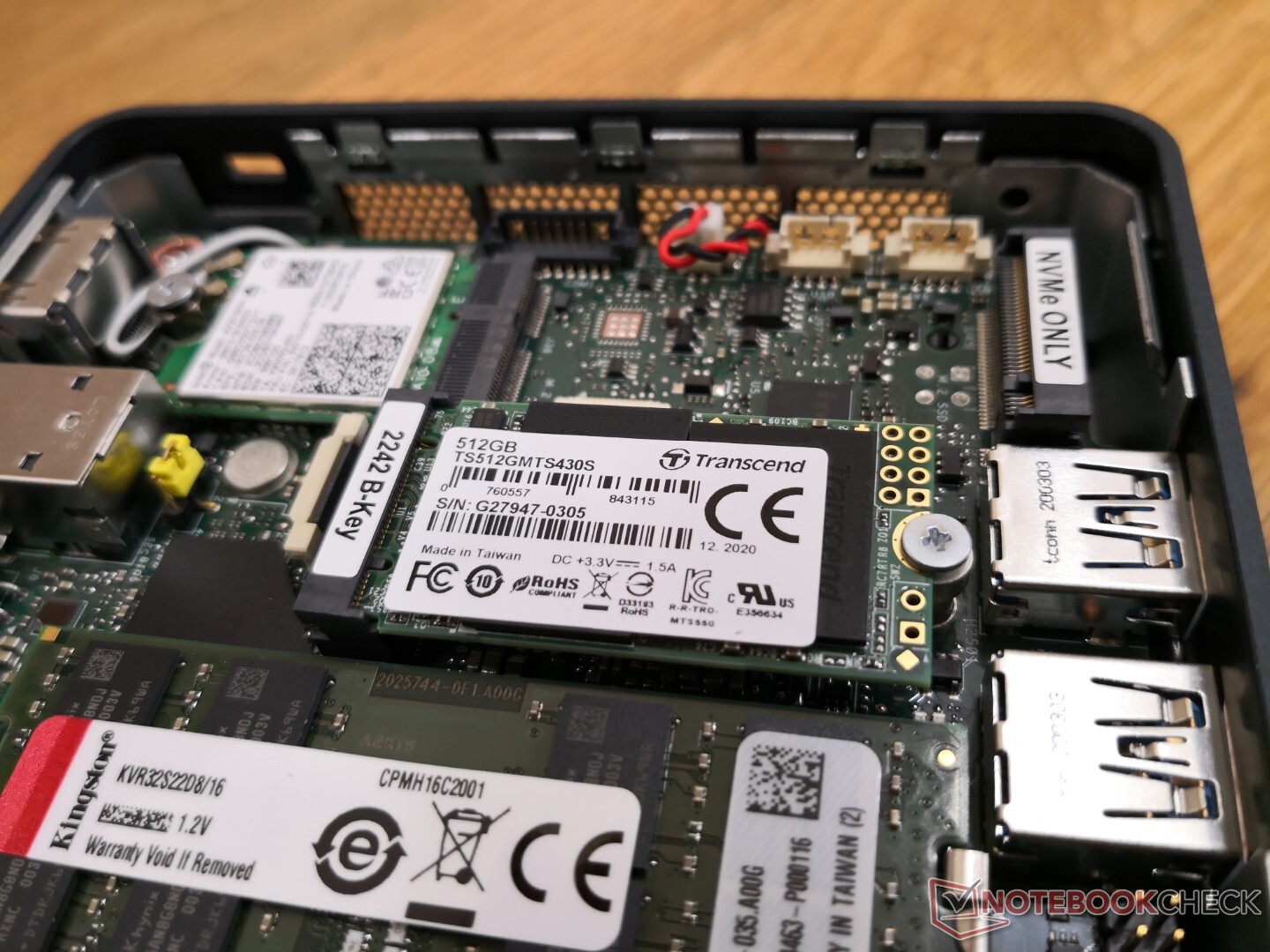

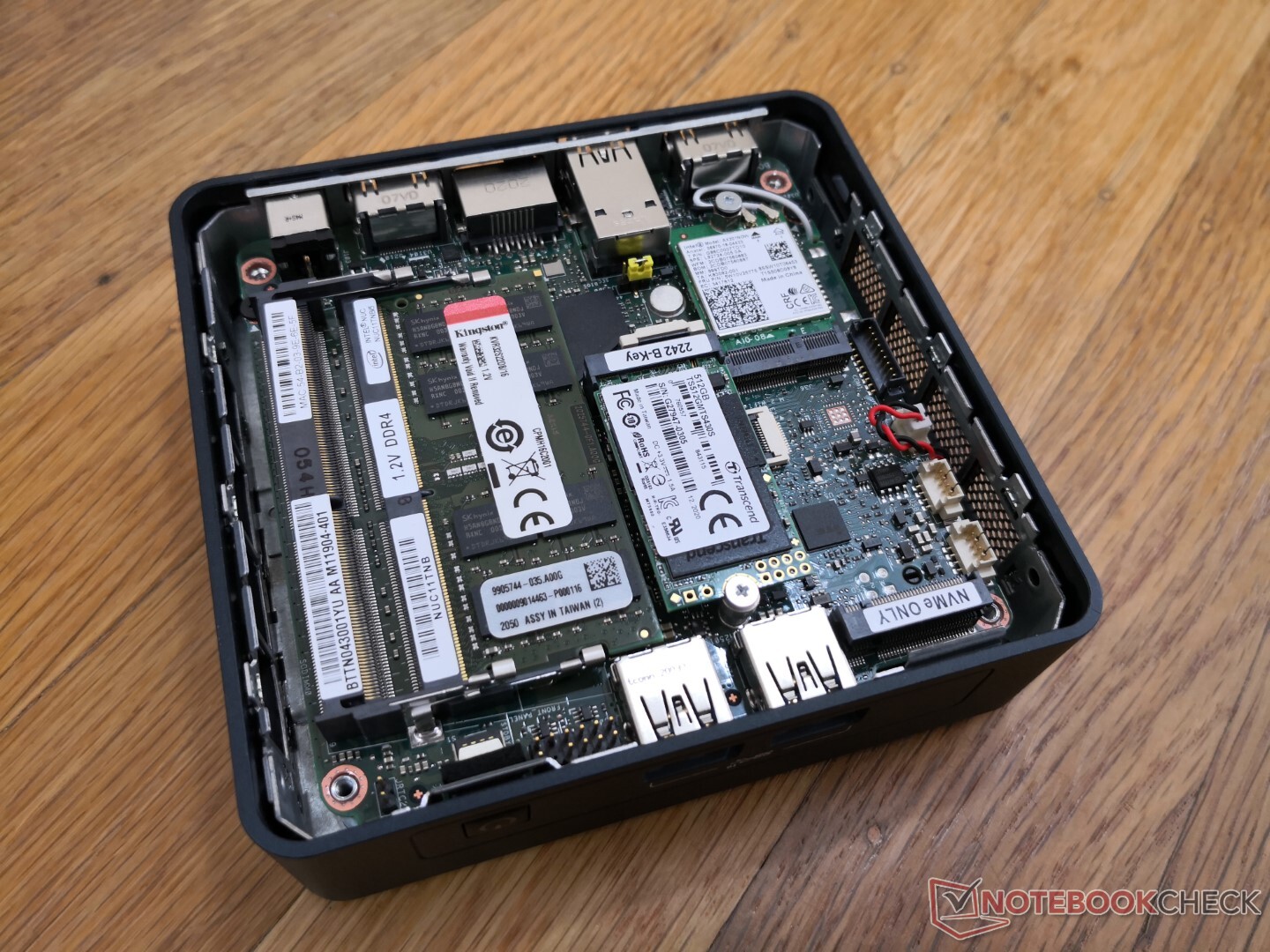

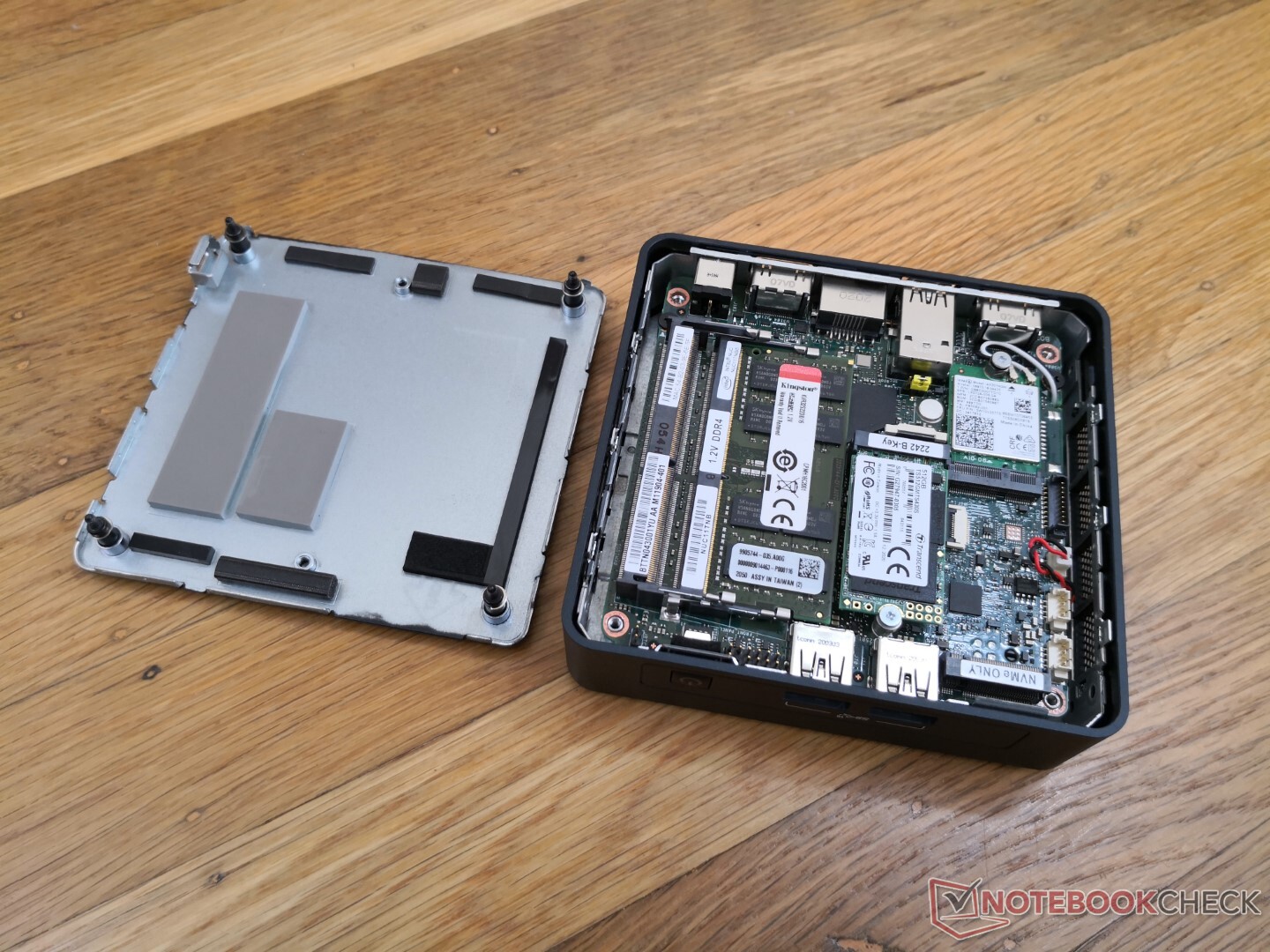

Die Bodenplatte lässt sich leicht abnehmen, um aufrüstbare Komponenten freizulegen: 2x SODIMM, 2x M.2-Speicher (M.2 2242 SATA III, M.2 2280 PCIe 4) und das herausnehmbare WLAN-Modul. Die längere M.2-2280-SSD würde oben auf dem WLAN-Modul sitzen.

Zubehör und Garantie

Die Verkaufsverpackung enthält eine abnehmbare VESA-Halterung und zusätzliche Schrauben. Eine dreijährige eingeschränkte Herstellergarantie gehört zum Standard und ist damit zwei Jahre länger als bei den meisten anderen Mini-PCs.

Performance

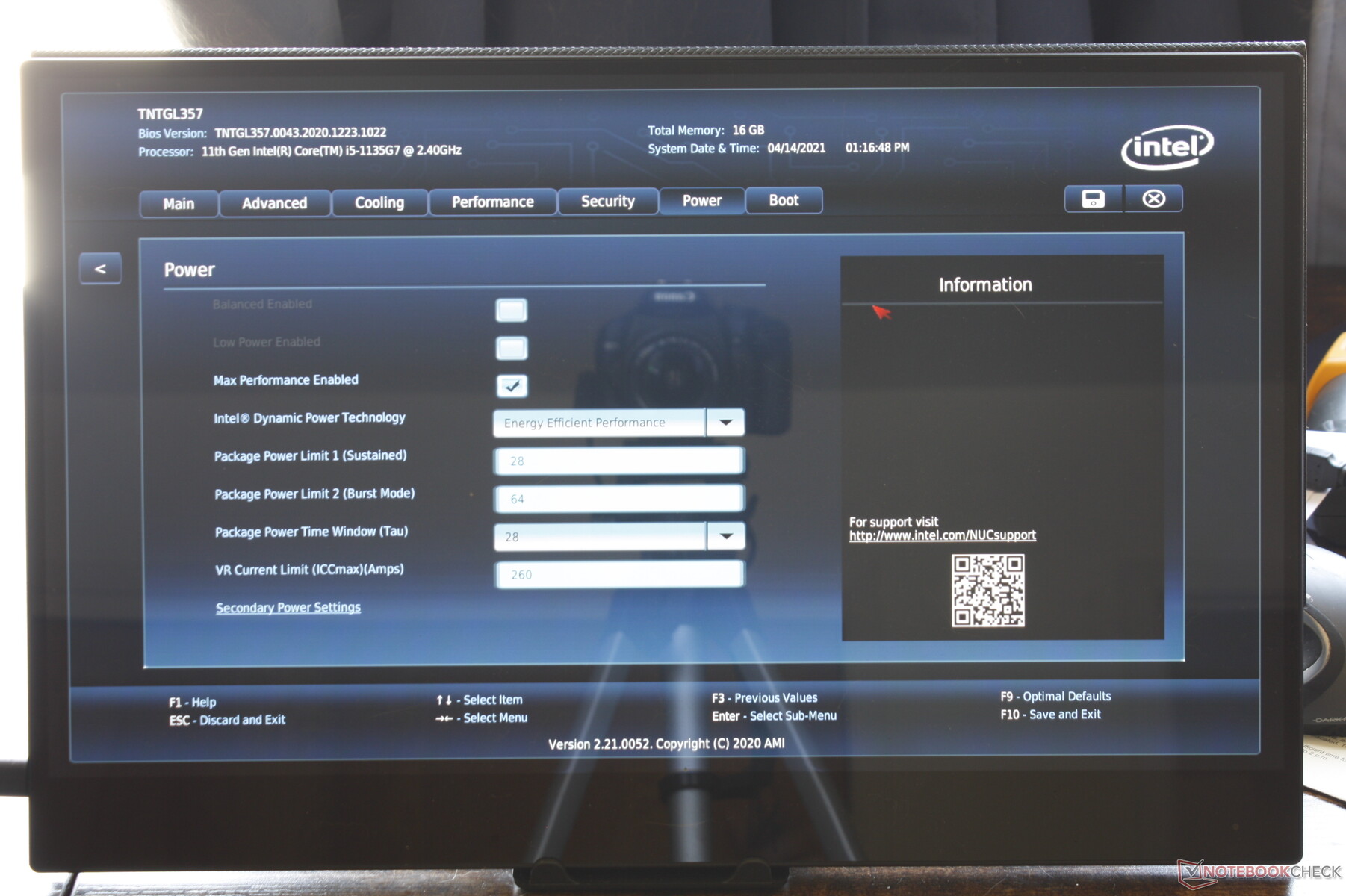

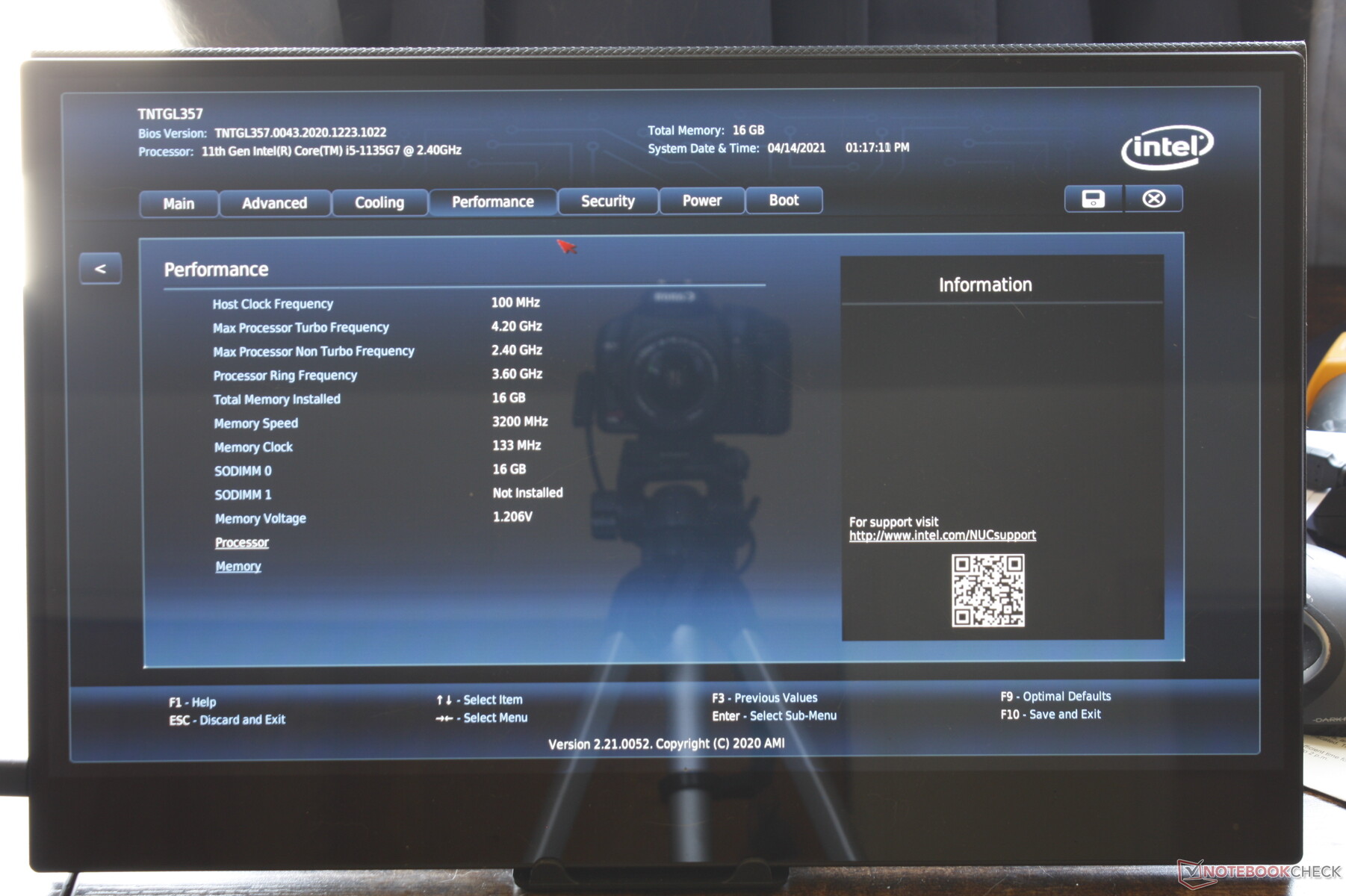

Wie der Name schon sagt, wird jeder Mini-PC der NUC11-Serie von einem Prozessor der 11. Generation Tiger Lake angetrieben - vom Core i3 der U-Serie bis zum Core i7. Intel vPro ist verfügbar für den Core i5-1145G7 und i7-1185G7 während Nicht-vPro-Optionen die üblichen i5-1135G7 und i7-1165G7 sind. Alle kommen mit Iris-Xe-Grafik, außer dem Low-End Core i3-1115G4.

Es gibt keine einzelnen Grafikoptionen. Anwender sollten sich den NUC 11 Enthusiast ansehen, wenn die Grafikleistung von hoher Priorität ist.

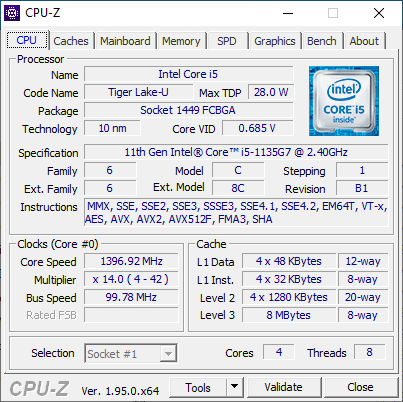

Prozessor

Die CPU-Leistung liegt innerhalb weniger Prozentpunkte der durchschnittlichen Core-i5-1135G7-CPU in unserer Datenbank. Ein Upgrade auf den teureren Core i7-1165G7 kann die Multi-Thread-Leistung um bis zu 25 oder 35 Prozent steigern, basierend auf unseren Beobachtungen mit dem NUC11PAQi7. Es ist erwähnenswert, dass der Core i5-1135G7 in der Lage ist, den einmaligen Core i7-8809G im älteren Hades Canyon NUC8 zu übertreffen.

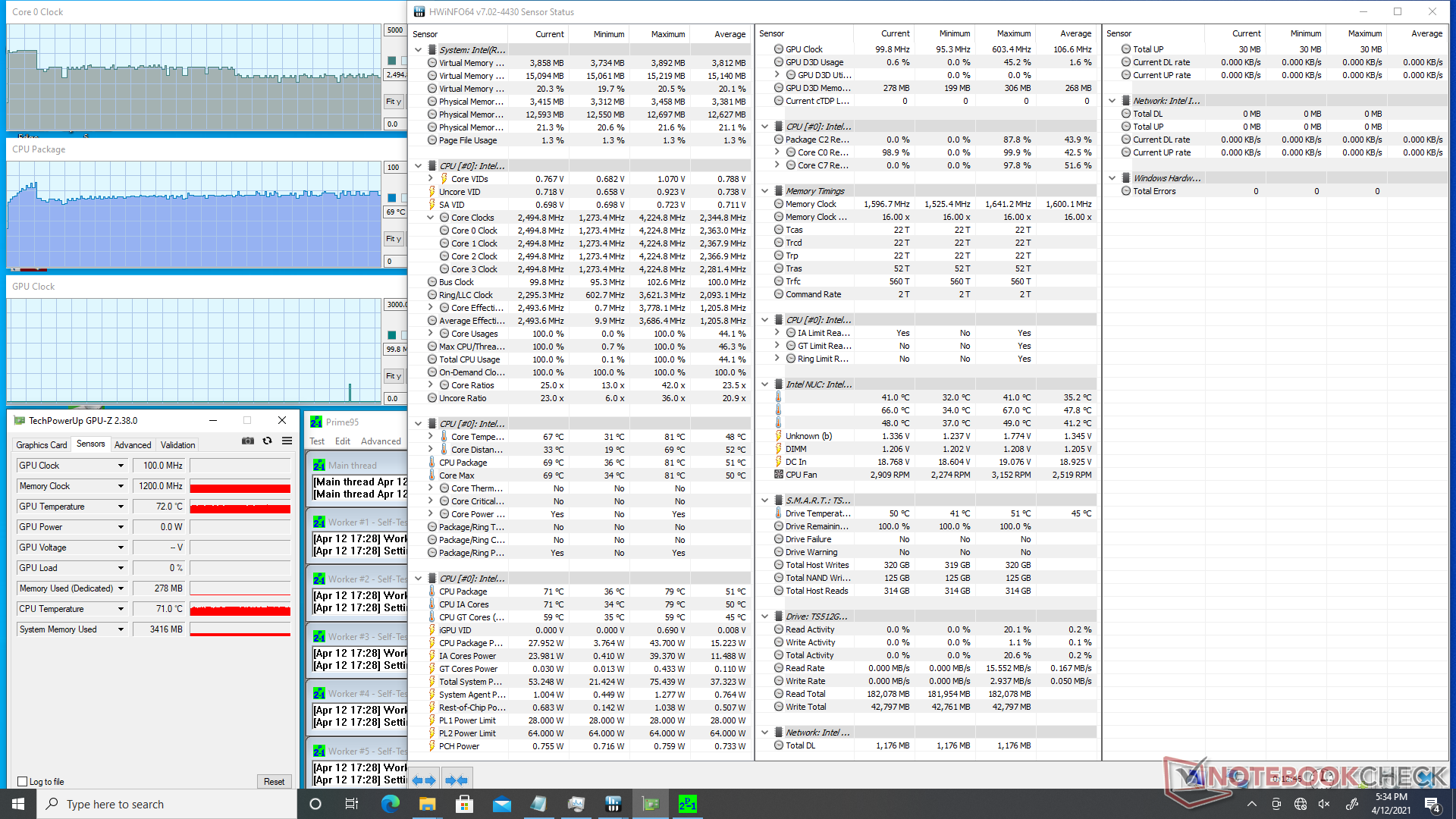

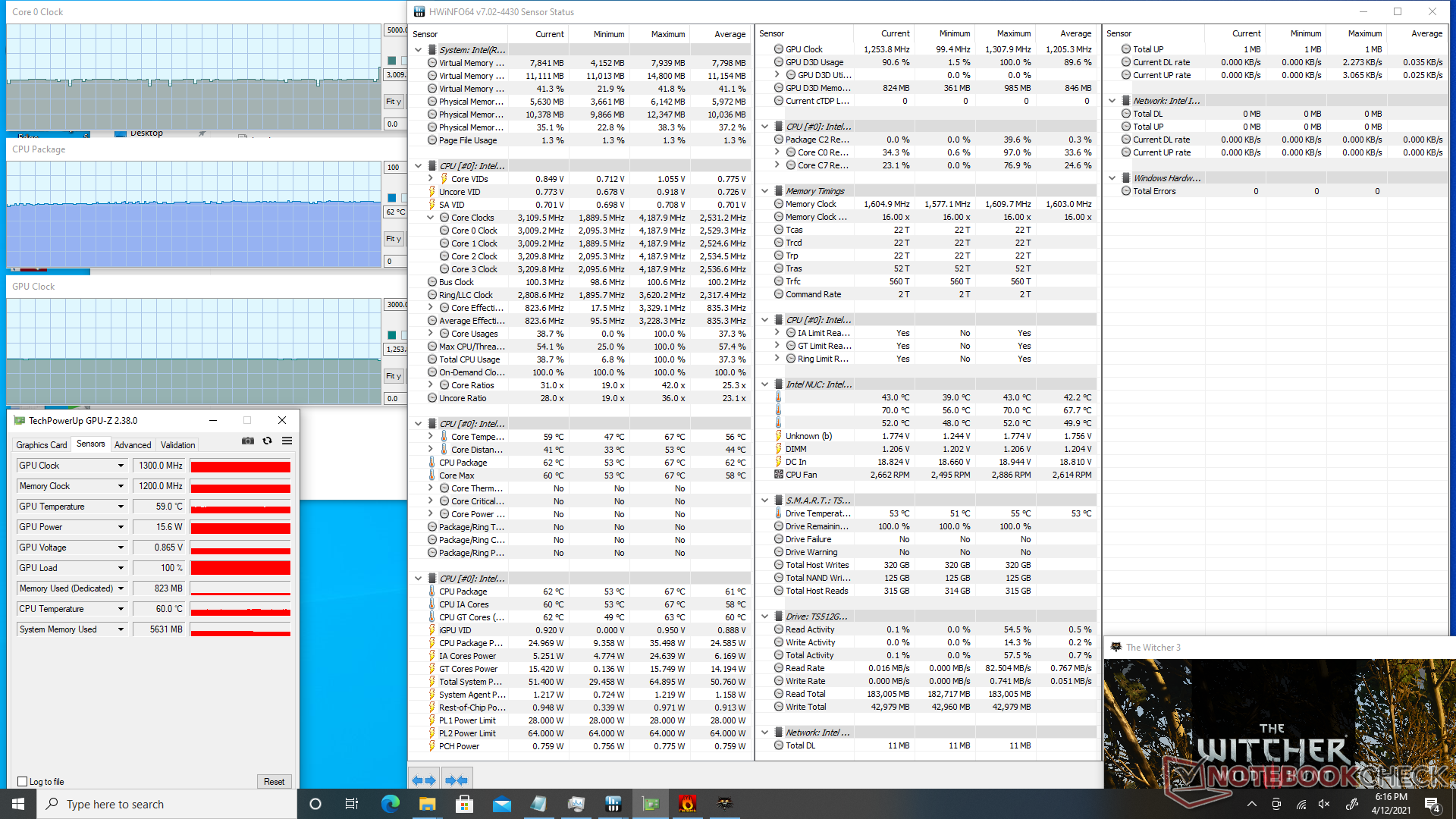

Die Performance-Nachhaltigkeit ist besser als beim Surface Pro 7 Plus, welches mit der exakt gleichen CPU ausgestattet ist. Wenn wir den CineBench R15 xT in einer Schleife laufen lassen, zeigt sich, dass unser NUC11 im Vergleich zum Microsoft Tablet deutlich höhere Scores über die Zeit aufrechterhält.

050100150200250300350400450500550600650700750800850900778.66772.57791.42781.77789.72789.72791.92788.74781.77783.7782.49780.81786.33786.57792.17792.66794.38787.06788.5792.16790.94789.47792.16792.41791.19794.38792.41792.66794.14788.99789.72791.92788.29791.42790.7789791.92786.33792.9791.92791.19788.75792.66790.97789.48788.75791.92791.91790.69790.69852.42647.22651.69653.02654.14650.99651.98651.57650.42650.62651.83651.2654.49651.68651.75651.99652.64653.14652.06652.92652.24649.88650.85652.06652.08869.07819.55818.5816.14815.11818.77815.38811.51816.16817.46814.85815.36819.03815.38818.77820.34814.33813.82813.04815.11817.71814.85817.98817.19815.38784.28770.03769.78598.58603.34599.86574.65500.17483.2481.37476.17479.62481.59479.24479.05477.57477478.66479.9479.56476.94476.49475.61478.6480.22477.71480.25477.36479.84478.66477.56477.3476.09478.3475.43476.33479.81478.63477.53478.83919.27921.89919.86920.11922.85913.99891.54921.13913.03910.93908.43908.08908.12910.27919.77920.98922.89923.28917.24922.85918.67918.67923.77920.28918.74924.06919.41919.94921.04920.77918.97921918.59924.3920.98923.04916.61921.68920.49920.26920.37921.02920.15921.87921.62919.9921.87924.6923.23922.7778.66772.57791.42781.77789.72789.72791.92788.74781.77783.7782.49780.81786.33786.57792.17792.66794.38787.06788.5792.16790.94789.47792.16792.41791.19794.38792.41792.66794.14788.99789.72791.92788.29791.42790.7789791.92786.33792.9791.92791.19788.75792.66790.97789.48788.75791.92791.91790.69790.69852.42647.22651.69653.02654.14650.99651.98651.57650.42650.62651.83651.2654.49651.68651.75651.99652.64653.14652.06652.92652.24649.88650.85652.06652.08869.07819.55818.5816.14815.11818.77815.38811.51816.16817.46814.85815.36819.03815.38818.77820.34814.33813.82813.04815.11817.71814.85817.98817.19815.38784.28770.03769.78598.58603.34599.86574.65500.17483.2481.37476.17479.62481.59479.24479.05477.57477478.66479.9479.56476.94476.49475.61478.6480.22477.71480.25477.36479.84478.66477.56477.3476.09478.3475.43476.33479.81478.63477.53478.83919.27921.89919.86920.11922.85913.99891.54921.13913.03910.93908.43908.08908.12910.27919.77920.98922.89923.28917.24922.85918.67918.67923.77920.28918.74924.06919.41919.94921.04920.77918.97921918.59924.3920.98923.04916.61921.68920.49920.26920.37921.02920.15921.87921.62919.9921.87924.6923.23922.7778.66772.57791.42781.77789.72789.72791.92788.74781.77783.7782.49780.81786.33786.57792.17792.66794.38787.06788.5792.16790.94789.47792.16792.41791.19794.38792.41792.66794.14788.99789.72791.92788.29791.42790.7789791.92786.33792.9791.92791.19788.75792.66790.97789.48788.75791.92791.91790.69790.69852.42647.22651.69653.02654.14650.99651.98651.57650.42650.62651.83651.2654.49651.68651.75651.99652.64653.14652.06652.92652.24649.88650.85652.06652.08869.07819.55818.5816.14815.11818.77815.38811.51816.16817.46814.85815.36819.03815.38818.77820.34814.33813.82813.04815.11817.71814.85817.98817.19815.38784.28770.03769.78598.58603.34599.86574.65500.17483.2481.37476.17479.62481.59479.24479.05477.57477478.66479.9479.56476.94476.49475.61478.6480.22477.71480.25477.36479.84478.66477.56477.3476.09478.3475.43476.33479.81478.63477.53478.83919.27921.89919.86920.11922.85913.99891.54921.13913.03910.93908.43908.08908.12910.27919.77920.98922.89923.28917.24922.85918.67918.67923.77920.28918.74924.06919.41919.94921.04920.77918.97921918.59924.3920.98923.04916.61921.68920.49920.26920.37921.02920.15921.87921.62919.9921.87924.6923.23922.7Tooltip
Intel NUC11TNKi5 Intel Core i5-1135G7; CPU Multi 64Bit: Ø789 (772.57-794.38)
Schenker VIA 14 Late 2020 Intel Core i5-1135G7; CPU Multi 64Bit: Ø660 (647.22-852.42)
Lenovo ThinkBook 14 G2 ITL 20VD008WGE Intel Core i5-1135G7; CPU Multi 64Bit: Ø818 (811.51-869.07)
Microsoft Surface Pro 7 Plus Intel Core i5-1135G7; CPU Multi 64Bit: Ø513 (475.43-784.28)
HP Envy 14-eb0010nr Intel Core i5-1135G7; CPU Multi 64Bit: Ø919 (891.54-924.6)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
3213 Points ∼100% +63%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
2829 Points ∼88% +43%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
2796 Points ∼87% +42%
Intel NUC11PAQi7
Intel Core i7-1165G7
2657 Points ∼83% +35%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
2005 Points ∼62% +2%
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points ∼61%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1830 Points ∼57% -7%
Intel NUC10i5FNK
Intel Core i5-10210U
1820 Points ∼57% -8%
Durchschnittliche Intel Core i5-1135G7
  (979 - 2382, n=36)
1784 Points ∼56% -10%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
1573 Points ∼49% -20%
GMK NucBox 2
Intel Core i5-8259U
1432 Points ∼45% -27%
HP Envy 13-ba0001ng
Intel Core i7-10510U
1237 Points ∼38% -37%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1183 Points ∼37% -40%
Beelink SEi10
Intel Core i3-1005G1
848 Points ∼26% -57%
Cinebench R20 / CPU (Single Core)
Intel NUC11PAQi7
Intel Core i7-1165G7
582 Points ∼100% +16%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
551 Points ∼95% +10%
Durchschnittliche Intel Core i5-1135G7
  (442 - 527, n=36)
507 Points ∼87% +1%
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points ∼86%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
501 Points ∼86% 0%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
474 Points ∼81% -6%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
461 Points ∼79% -8%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
453 Points ∼78% -10%
HP Envy 13-ba0001ng
Intel Core i7-10510U
429 Points ∼74% -15%
Intel NUC10i5FNK
Intel Core i5-10210U
428 Points ∼74% -15%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
418 Points ∼72% -17%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
404 Points ∼69% -20%
Beelink SEi10
Intel Core i3-1005G1
403 Points ∼69% -20%
GMK NucBox 2
Intel Core i5-8259U
382 Points ∼66% -24%
Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
1568 Points ∼100% +97%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
1340 Points ∼85% +69%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
1049 (803.97min - 1049.04max) Points ∼67% +32%
Intel NUC11PAQi7
Intel Core i7-1165G7
986 (962.77min - 985.76max) Points ∼63% +24%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
866 (694.34min - 866.49max) Points ∼55% +9%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points ∼55% +9%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points ∼51%
Intel NUC10i5FNK
Intel Core i5-10210U
790 Points ∼50% -1%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
784 Points ∼50% -1%
Durchschnittliche Intel Core i5-1135G7
  (431 - 925, n=40)
783 Points ∼50% -1%
GMK NucBox 2
Intel Core i5-8259U
615 (608.07min - 614.94max) Points ∼39% -23%
HP Envy 13-ba0001ng
Intel Core i7-10510U
539 (532.18min - 539.24max) Points ∼34% -32%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
522 (504.41min - 521.83max) Points ∼33% -34%
Beelink SEi10
Intel Core i3-1005G1
406.84 (402.55min - 406.84max) Points ∼26% -49%
Cinebench R15 / CPU Single 64Bit
Intel NUC11PAQi7
Intel Core i7-1165G7
230 Points ∼100% +14%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
214 Points ∼93% +6%
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points ∼87%
Durchschnittliche Intel Core i5-1135G7
  (86.2 - 205, n=38)
193 Points ∼84% -4%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
188 Points ∼82% -6%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
182 Points ∼79% -9%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
180 Points ∼78% -10%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points ∼77% -11%
HP Envy 13-ba0001ng
Intel Core i7-10510U
177 Points ∼77% -12%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
176 Points ∼77% -12%
Intel NUC10i5FNK
Intel Core i5-10210U
168 Points ∼73% -16%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
167 Points ∼73% -17%
Beelink SEi10
Intel Core i3-1005G1
158.02 Points ∼69% -21%
GMK NucBox 2
Intel Core i5-8259U
151 Points ∼66% -25%
Blender 2.79 / BMW27 CPU
Beelink SEi10
Intel Core i3-1005G1
1126 Seconds * ∼100% -88%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
892 Seconds * ∼79% -49%
HP Envy 13-ba0001ng
Intel Core i7-10510U
856 Seconds * ∼76% -43%
GMK NucBox 2
Intel Core i5-8259U
755 Seconds * ∼67% -26%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
735 Seconds * ∼65% -23%
Durchschnittliche Intel Core i5-1135G7
  (499 - 1044, n=34)
679 Seconds * ∼60% -13%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
638 Seconds * ∼57% -6%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * ∼53%
Intel NUC10i5FNK
Intel Core i5-10210U
584.9 Seconds * ∼52% +3%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
536.9 Seconds * ∼48% +11%
Intel NUC11PAQi7
Intel Core i7-1165G7
468 Seconds * ∼42% +22%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
447 Seconds * ∼40% +25%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
402 Seconds * ∼36% +33%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
322 Seconds * ∼29% +46%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11PAQi7
Intel Core i7-1165G7
5405 MIPS ∼100% +14%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5091 MIPS ∼94% +7%
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS ∼88%
HP Envy 13-ba0001ng
Intel Core i7-10510U
4722 MIPS ∼87% 0%
Durchschnittliche Intel Core i5-1135G7
  (3924 - 4867, n=36)
4657 MIPS ∼86% -2%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
4436 MIPS ∼82% -6%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
4422 MIPS ∼82% -7%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
4313 MIPS ∼80% -9%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4303 MIPS ∼80% -9%
Intel NUC10i5FNK
Intel Core i5-10210U
4253 MIPS ∼79% -10%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
4247 MIPS ∼79% -10%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
4101 MIPS ∼76% -13%
Beelink SEi10
Intel Core i3-1005G1
4041 MIPS ∼75% -15%
GMK NucBox 2
Intel Core i5-8259U
3951 MIPS ∼73% -17%
7-Zip 18.03 / 7z b 4
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
44804 MIPS ∼100% +92%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
34854 MIPS ∼78% +50%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
31114 MIPS ∼69% +34%
Intel NUC11PAQi7
Intel Core i7-1165G7
27203 MIPS ∼61% +17%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS ∼52%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
22950 MIPS ∼51% -1%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
21828 MIPS ∼49% -6%
Intel NUC10i5FNK
Intel Core i5-10210U
21679 MIPS ∼48% -7%
Durchschnittliche Intel Core i5-1135G7
  (14745 - 24873, n=36)
21155 MIPS ∼47% -9%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
19347 MIPS ∼43% -17%
GMK NucBox 2
Intel Core i5-8259U
18802 MIPS ∼42% -19%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
16971 MIPS ∼38% -27%
HP Envy 13-ba0001ng
Intel Core i7-10510U
16152 MIPS ∼36% -31%
Beelink SEi10
Intel Core i3-1005G1
10536 MIPS ∼24% -55%
Geekbench 5.3 / 64 Bit Single-Core Score
Intel NUC11PAQi7
Intel Core i7-1165G7
1559 Points ∼100% +12%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
1517 Points ∼97% +9%
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points ∼90%
Durchschnittliche Intel Core i5-1135G7
  (1304 - 1428, n=33)
1392 Points ∼89% 0%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
1334 Points ∼86% -4%
HP Envy 13-ba0001ng
Intel Core i7-10510U
1225 Points ∼79% -12%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
1157 Points ∼74% -17%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
1154 Points ∼74% -17%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
1150 Points ∼74% -18%
Beelink SEi10
Intel Core i3-1005G1
1118 Points ∼72% -20%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1111 Points ∼71% -20%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
1105 Points ∼71% -21%
Intel NUC10i5FNK
Intel Core i5-10210U
1099 Points ∼70% -21%
GMK NucBox 2
Intel Core i5-8259U
984 Points ∼63% -30%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
6950 Points ∼100% +51%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
5798 Points ∼83% +26%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
5591 Points ∼80% +22%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5543 Points ∼80% +21%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
5443 Points ∼78% +19%
Intel NUC11PAQi7
Intel Core i7-1165G7
4975 Points ∼72% +8%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
4866 Points ∼70% +6%
Durchschnittliche Intel Core i5-1135G7
  (3475 - 5472, n=33)
4774 Points ∼69% +4%
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points ∼66%
HP Envy 13-ba0001ng
Intel Core i7-10510U
4008 Points ∼58% -13%
Intel NUC10i5FNK
Intel Core i5-10210U
3939 Points ∼57% -14%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
3877 Points ∼56% -16%
GMK NucBox 2
Intel Core i5-8259U
3359 Points ∼48% -27%
Beelink SEi10
Intel Core i3-1005G1
2153 Points ∼31% -53%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
10.768 fps ∼100% +62%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
8.81 fps ∼82% +33%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
8.8 fps ∼82% +33%
Intel NUC11PAQi7
Intel Core i7-1165G7
8.47 fps ∼79% +28%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
7.1 fps ∼66% +7%
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps ∼62%
Intel NUC10i5FNK
Intel Core i5-10210U
6.28 fps ∼58% -5%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
6.09 fps ∼57% -8%
Durchschnittliche Intel Core i5-1135G7
  (3.57 - 7.6, n=33)
5.83 fps ∼54% -12%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
5.77 fps ∼54% -13%
GMK NucBox 2
Intel Core i5-8259U
5.37 fps ∼50% -19%
HP Envy 13-ba0001ng
Intel Core i7-10510U
4.31 fps ∼40% -35%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4.15 fps ∼39% -37%
Beelink SEi10
Intel Core i3-1005G1
3.48 fps ∼32% -48%
LibreOffice / 20 Documents To PDF
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
118 s * ∼100% -130%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
68.8 s * ∼58% -34%
GMK NucBox 2
Intel Core i5-8259U
63.6 s * ∼54% -24%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
57.8 s * ∼49% -13%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
57.2 s * ∼48% -12%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
57 s * ∼48% -11%
HP Envy 13-ba0001ng
Intel Core i7-10510U
55.8 s * ∼47% -9%
Beelink SEi10
Intel Core i3-1005G1
55.8 s * ∼47% -9%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
52.6 s * ∼45% -3%
Durchschnittliche Intel Core i5-1135G7
  (45.6 - 58.8, n=35)
52.3 s * ∼44% -2%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * ∼43%
Intel NUC11PAQi7
Intel Core i7-1165G7
42.2 s * ∼36% +18%
R Benchmark 2.5 / Overall mean
GMK NucBox 2
Intel Core i5-8259U
0.786 sec * ∼100% -26%
Beelink SEi10
Intel Core i3-1005G1
0.763 sec * ∼97% -23%
Intel NUC10i5FNK
Intel Core i5-10210U
0.72 sec * ∼92% -16%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
0.695 sec * ∼88% -12%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7
0.68 sec * ∼87% -9%
HP Envy 13-ba0001ng
Intel Core i7-10510U
0.67 sec * ∼85% -8%
Durchschnittliche Intel Core i5-1135G7
  (0.619 - 0.727, n=34)
0.642 sec * ∼82% -3%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U
0.635 sec * ∼81% -2%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * ∼79%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U
0.613 sec * ∼78% +1%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U
0.611 sec * ∼78% +2%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7
0.587 sec * ∼75% +6%
Intel NUC11PAQi7
Intel Core i7-1165G7
0.553 sec * ∼70% +11%
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... kleinere Werte sind besser

Cinebench R15 CPU Multi 64Bit
794 Points
Cinebench R15 OpenGL 64Bit
79.6 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
201 Points
Hilfe

System Performance

Die PCMark-10-Scores liegen aufgrund der langsameren SSD und Core-i5-CPU durchweg unter denen des NUC11PAQi7
Die PCMark-10-Scores liegen aufgrund der langsameren SSD und Core-i5-CPU durchweg unter denen des NUC11PAQi7

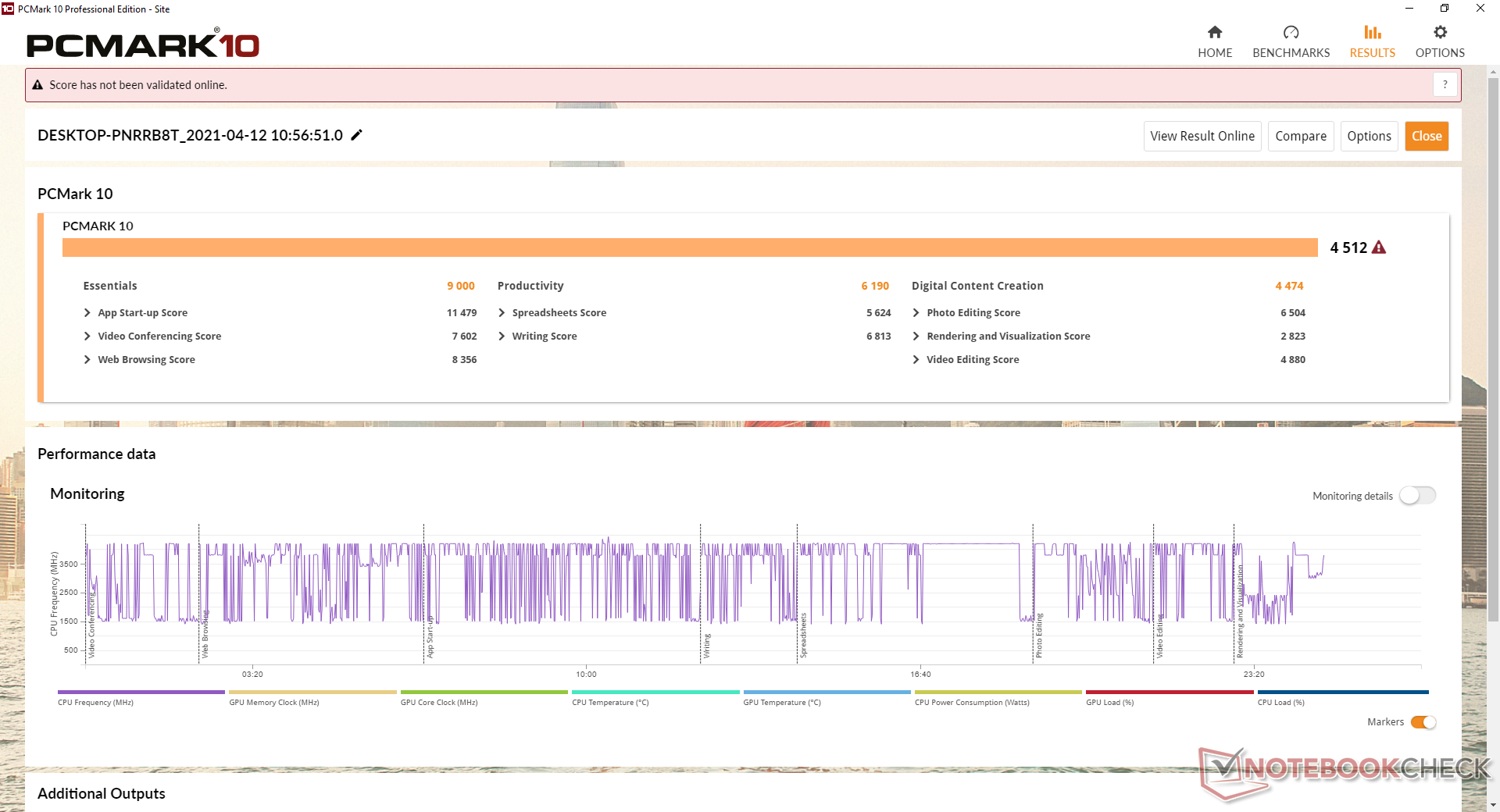

PCMark 10
Score
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
5158 Points ∼59% +14%
Durchschnittliche Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4794, n=31)
4572 Points ∼52% +1%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points ∼51%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
4132 Points ∼47% -8%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
4019 Points ∼46% -11%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3791 Points ∼43% -16%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
3420 Points ∼39% -24%
Essentials
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
10258 Points ∼89% +14%
Durchschnittliche Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9828, n=31)
9364 Points ∼81% +4%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points ∼78%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
8351 Points ∼73% -7%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
8235 Points ∼72% -8%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
7787 Points ∼68% -13%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
7766 Points ∼68% -14%
Productivity
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
7136 Points ∼64% +15%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
6494 Points ∼58% +5%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
6348 Points ∼57% +3%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
6333 Points ∼57% +2%
Durchschnittliche Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5544 - 6504, n=31)
6212 Points ∼56% 0%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points ∼55%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
5353 Points ∼48% -14%
Digital Content Creation
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
5087 Points ∼33% +14%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points ∼29%
Durchschnittliche Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 4928, n=31)
4464 Points ∼29% 0%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
3613 Points ∼23% -19%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
3296 Points ∼21% -26%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3000 Points ∼19% -33%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2614 Points ∼17% -42%
PCMark 8
Home Score Accelerated v2
Durchschnittliche Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3472 - 5032, n=10)
4259 Points ∼68%
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
3954 Points ∼63%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
3526 Points ∼56%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3455 Points ∼55%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2900 Points ∼46%
Work Score Accelerated v2
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
4879 Points ∼69%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
4286 Points ∼60%
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
3074 Points ∼43%
Durchschnittliche Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (2473 - 3214, n=10)
2999 Points ∼42%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2575 Points ∼36%
PCMark 10 Score
4512 Punkte
Hilfe

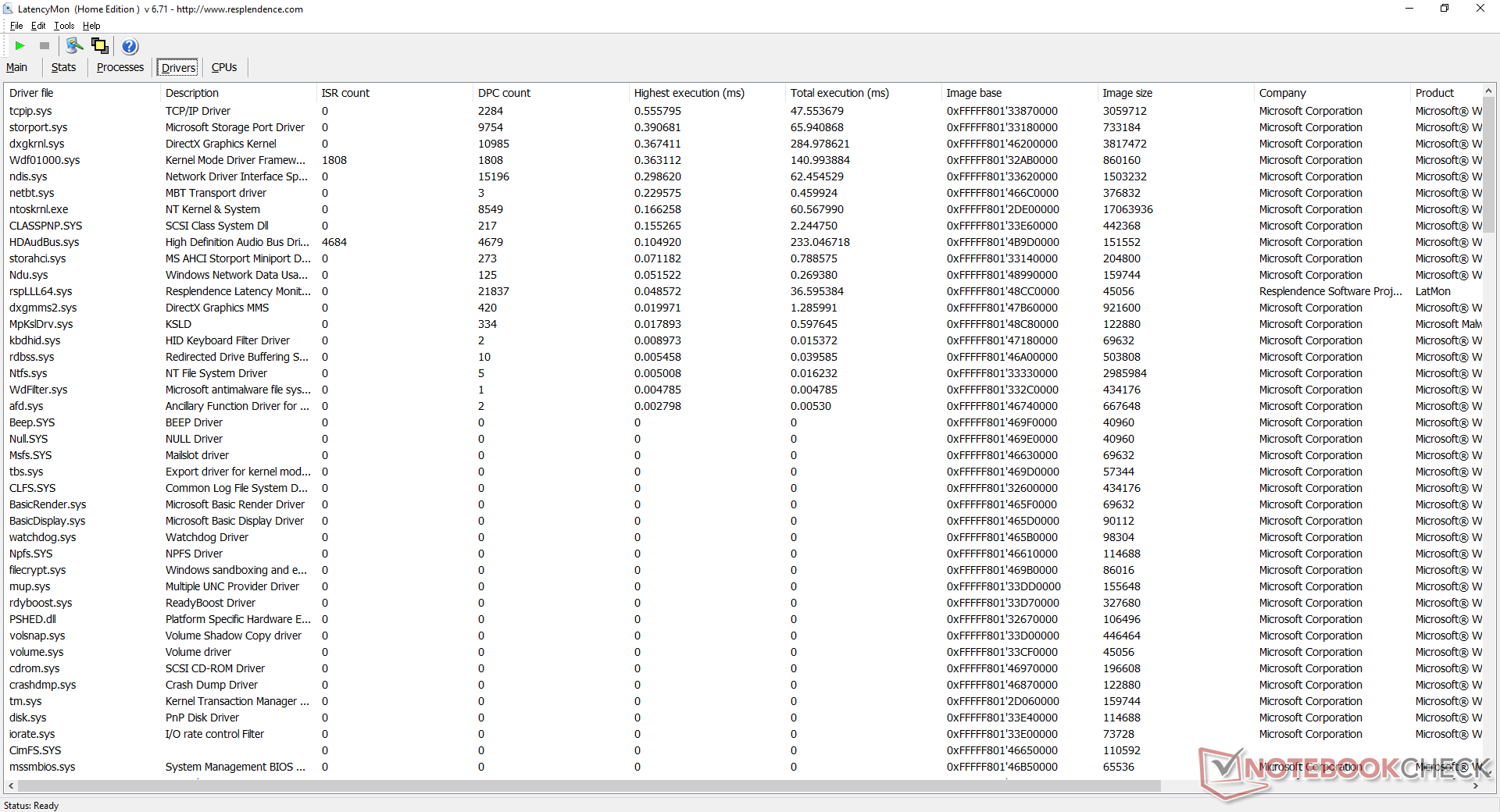

DPC-Latenzzeit

LatencyMon zeigt keine DPC-Latenzprobleme beim Öffnen mehrerer Tabs auf unserer Homepage. Die 4K-Videowiedergabe bei 60 fps läuft während unserer Tests ebenfalls flüssig und ohne Bildaussetzer.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1230.84 μs * ∼100% -135%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
786.3 μs * ∼64% -50%
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
567.6 μs * ∼46% -8%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
524.6 μs * ∼43%

* ... kleinere Werte sind besser

Speichergeräte

Der NUC 11 Pro Mini verfügt mit seinen zwei asymmetrischen M.2-Steckplätzen über eine einzigartige Speicherausstattung. Ein Steckplatz unterstützt nur 2242 SATA-III-SSDs, während der zweite Steckplatz bis zu 2280 PCIe-4.0-Laufwerke unterstützt. Die SATA-III-SSD von Transcend in unserem Gerät kann NVMe-Laufwerken nicht das Wasser reichen, aber Besitzer können auf Wunsch einfach aufrüsten.

CDM 8
CDM 8

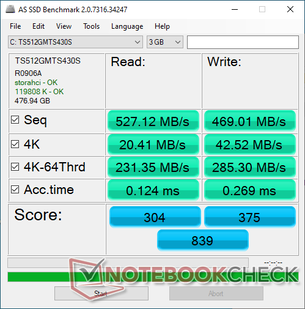

AS SSD
AS SSD
Obwohl es keine 2,5-Zoll-SATA-III-Unterstützung gibt, können Anwender bis zu zwei M.2-SSDs (2242 + 2280) installieren. PCIe-4.0-NVMe-Laufwerke werden unterstützt
Obwohl es keine 2,5-Zoll-SATA-III-Unterstützung gibt, können Anwender bis zu zwei M.2-SSDs (2242 + 2280) installieren. PCIe-4.0-NVMe-Laufwerke werden unterstützt
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
GMK NucBox 2
Netac S930E8/256GPN
Intel NUC11PAQi7
Samsung SSD 980 Pro 500GB MZ-V8P500BW
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
AS SSD
91%
434%
17%
18%
Seq Read
527.12
2069.02
293%
3257.43
518%
1110.96
111%
506.95
-4%
Seq Write
469.01
1202.64
156%
3937.18
739%
323.54
-31%
413.77
-12%
4K Read
20.41
41.66
104%
51.25
151%
33.1
62%
36.75
80%
4K Write
42.52
136.89
222%
75.67
78%
66.16
56%
88.54
108%
4K-64 Read
231.35
366.25
58%
2282.6
887%
357.28
54%
369.37
60%
4K-64 Write
285.3
340.46
19%
2206.27
673%
154.8
-46%
193.74
-32%
Access Time Read *
0.124
0.064
48%
0.056
55%
0.066
47%
0.103
17%
Access Time Write *
0.269
0.347
-29%
0.154
43%
0.616
-129%
0.095
65%
Score Read
304
615
102%
2660
775%
501
65%
457
50%
Score Write
375
598
59%
2676
614%
253
-33%
324
-14%
Score Total
839
1497
78%
6725
702%
983
17%
1023
22%
Copy ISO MB/s
490.93
1185.88
142%
2030.19
314%
1159.86
136%
482.52
-2%
Copy Program MB/s
415.91
428.56
3%
882.95
112%
121.07
-71%
191.93
-54%
Copy Game MB/s
352.32
435.7
24%
1817.3
416%
364.42
3%
248.87
-29%
CrystalDiskMark 5.2 / 6
149%
533%
146%
23%
Write 4K
65.89
178.4
171%
244.6
271%
203
208%
105.9
61%
Read 4K
24.27
60.99
151%
80.39
231%
63.23
161%
39.15
61%
Write Seq
456.4
1040
128%
4094
797%
1114
144%
Read Seq
542.1
1919
254%
4099
656%
1765
226%
Write 4K Q32T1
331.3
417.7
26%
715.3
116%
423.9
28%
320.5
-3%
Read 4K Q32T1
295
325.6
10%
783.4
166%
389.2
32%
342.1
16%
Write Seq Q32T1
506.1
1144
126%
5065
901%
1104
118%
513.7
2%
Read Seq Q32T1
562.2
2379
323%
6884
1124%
1990
254%
554.3
-1%
Write 4K Q8T8
330.8
Read 4K Q8T8
391.8
Durchschnitt gesamt (Programm / Settings)
120% / 112%
484% / 470%
82% / 64%
21% / 20%

* ... kleinere Werte sind besser

Transcend M.2 SSD 430S TS512GMTS430S
CDM 5/6 Read Seq Q32T1: 562.2 MB/s
CDM 5/6 Write Seq Q32T1: 506.1 MB/s
CDM 5/6 Read 4K Q32T1: 295 MB/s
CDM 5/6 Write 4K Q32T1: 331.3 MB/s
CDM 5 Read Seq: 542.1 MB/s
CDM 5 Write Seq: 456.4 MB/s
CDM 5/6 Read 4K: 24.27 MB/s
CDM 5/6 Write 4K: 65.89 MB/s

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0306090120150180210240270300330360390420450480510540481.17550.5560.15560.36560.57560.57560.57560.57560.78560.78560.78560.78560.78560.78560.78560.78560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99560.99561.2561.2561.2561.2561.2561.2561.2561.2561.2561.2561.41561.41561.62Tooltip
: Ø559 (481.17-561.62)

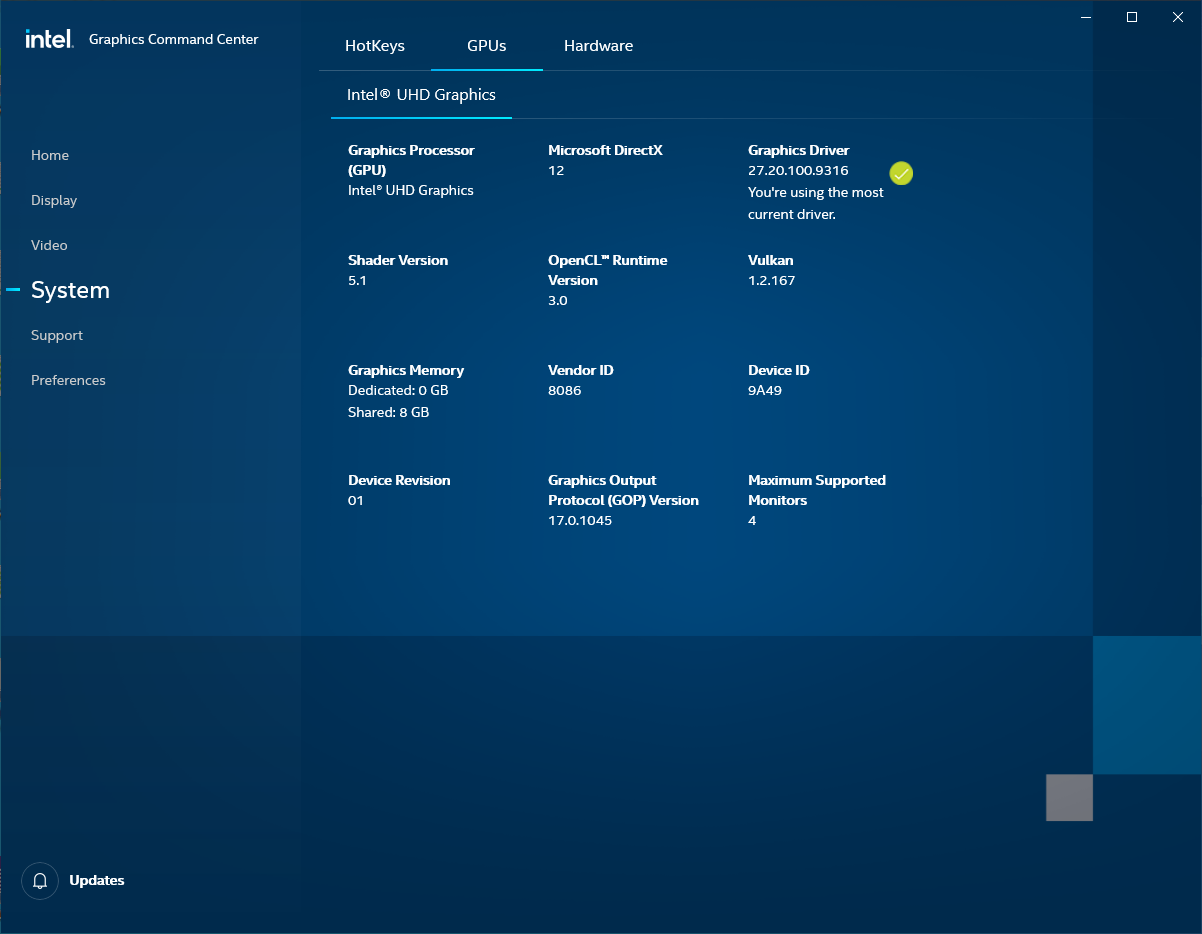

GPU Performance

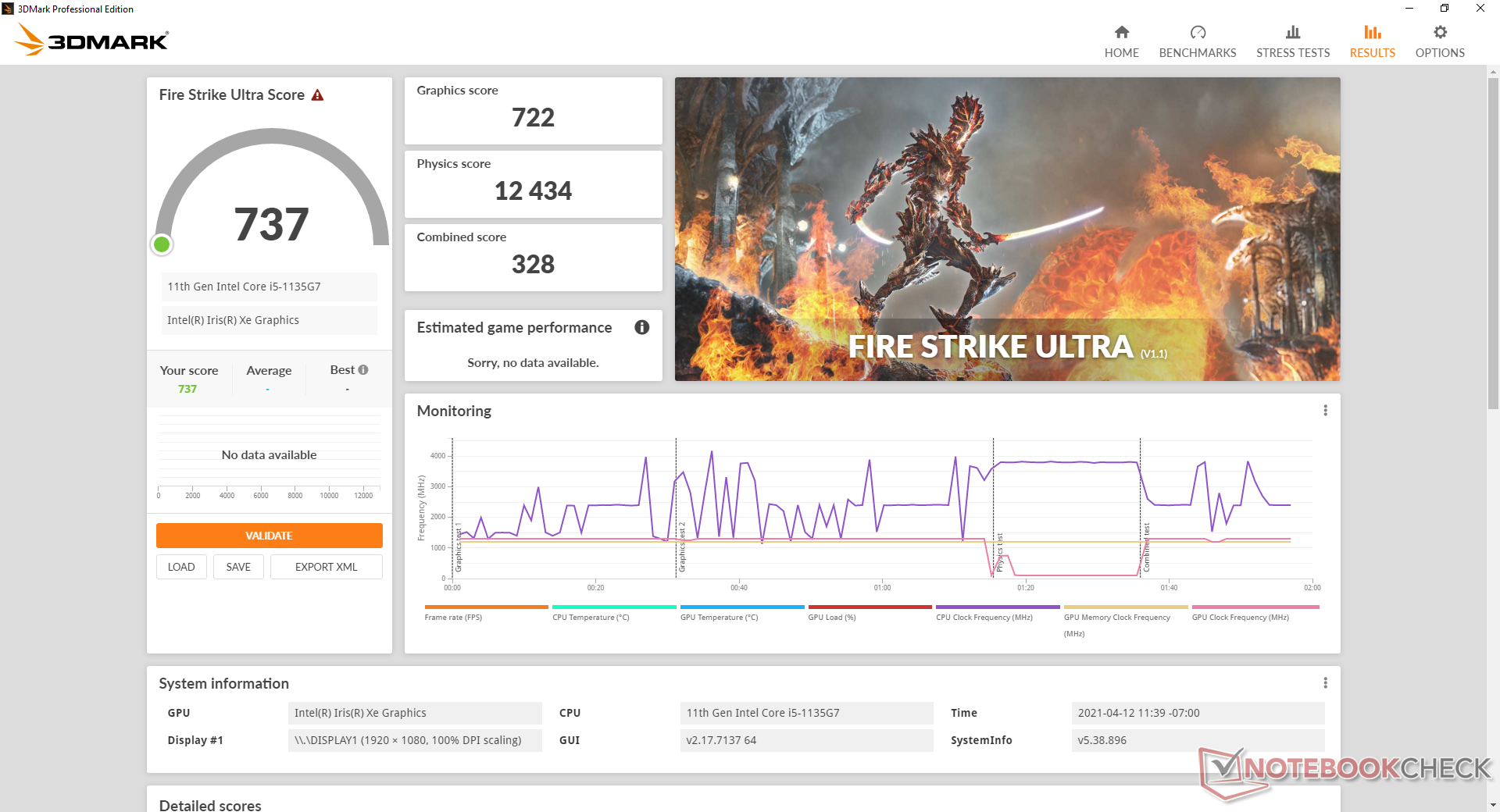

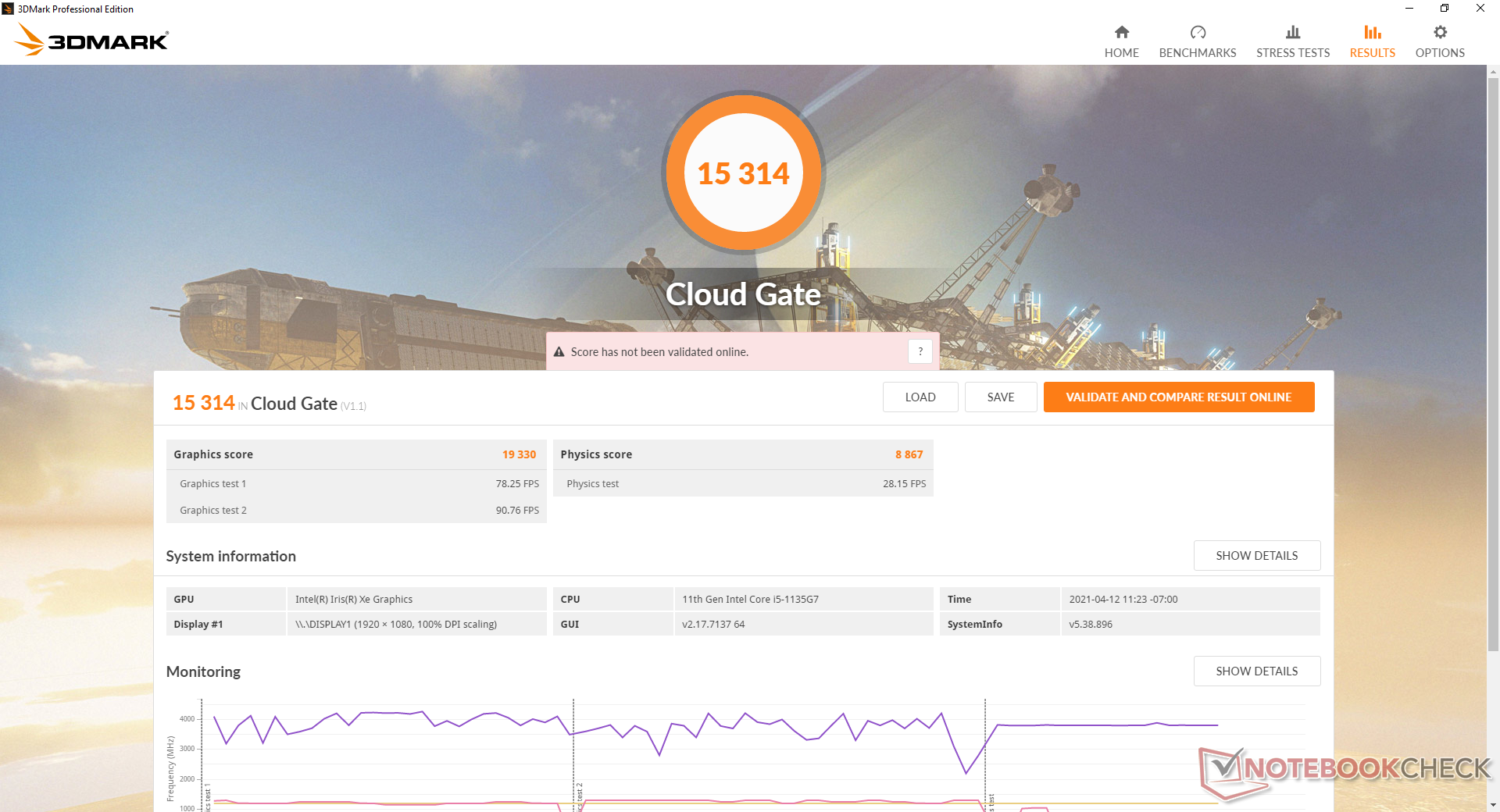

Die 3DMark-Scores sind bei etwa 10 Prozent langsamer als die durchschnittlichen Iris Xe Grafik G7 80EUs in unserer Datenbank, was wahrscheinlich an der Single-Channel-RAM-Ausstattung unseres Vorseriengerätes liegt. Ein Upgrade auf die Core-i7-1165G7-Option mit der schnelleren Iris Xe 96EUs wird die GPU-Leistung um mindestens 30 Prozent steigern.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Time Spy
Time Spy
Fire Strike
Fire Strike
Fire Strike Ultra
Fire Strike Ultra

3DMark

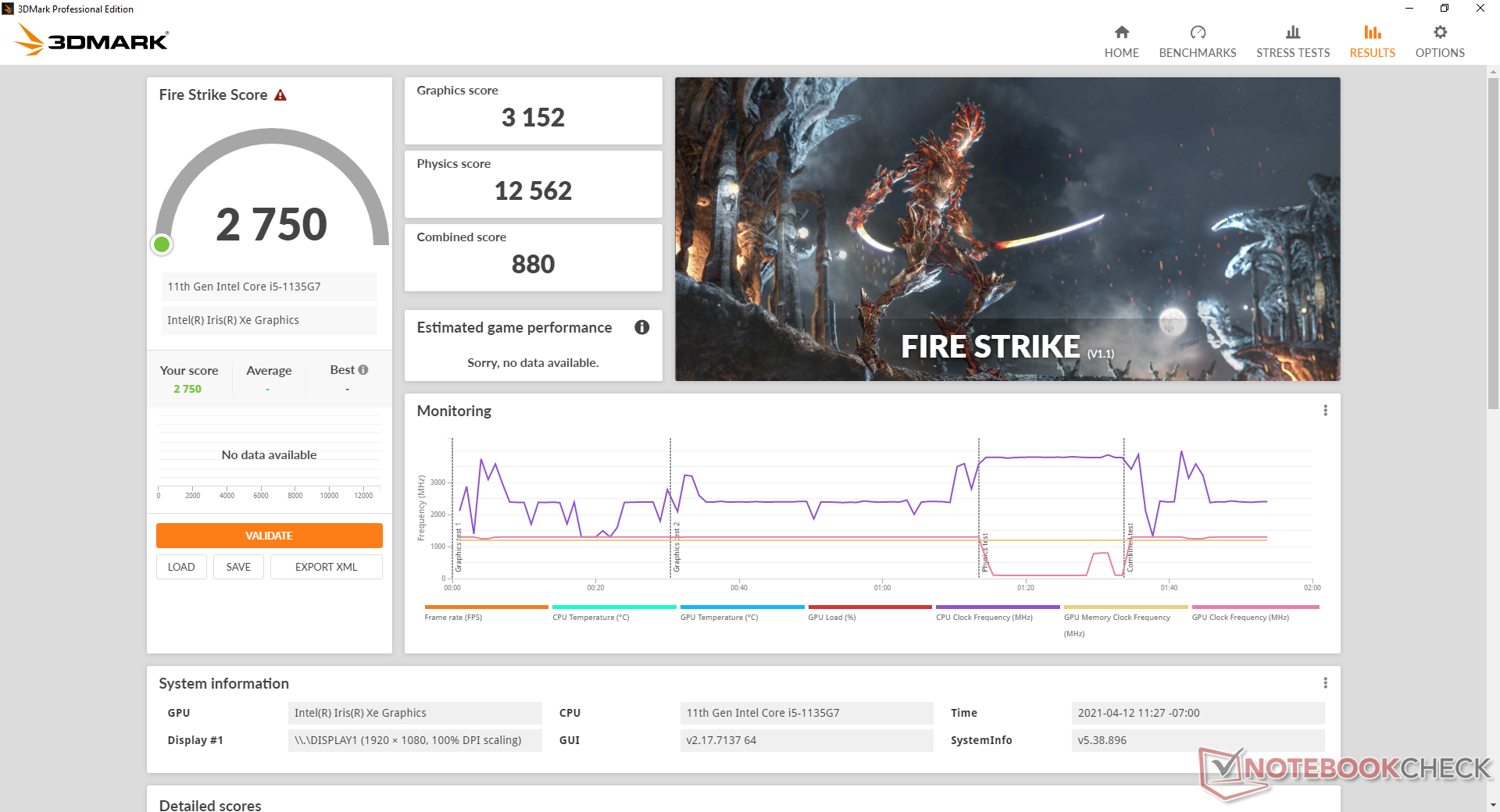

1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10248 Points ∼100% +225%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
5196 Points ∼51% +65%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (3113 - 5909, n=71)
4941 Points ∼48% +57%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
4652 Points ∼45% +48%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, i7-10510U
3999 Points ∼39% +27%
Lenovo Yoga Slim 7-14ARE
AMD Radeon RX Vega 8 (Ryzen 4000), R7 4800U
3938 Points ∼38% +25%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
3724 Points ∼36% +18%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (2087 - 4846, n=31)
3696 Points ∼36% +17%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
3152 Points ∼31%
Asus VivoBook Flip 14 TM420IA
AMD Radeon RX Vega 7, R7 4700U
3036 Points ∼30% -4%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4600U
2793 Points ∼27% -11%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
1914 Points ∼19% -39%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, i5-10210U
1232 Points ∼12% -61%
Intel NUC10i5FNK
Intel UHD Graphics 620, i5-10210U
1202 Points ∼12% -62%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
960 Points ∼9% -70%
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
2908 Points ∼100% +182%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
1512 Points ∼52% +47%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (994 - 1819, n=71)
1464 Points ∼50% +42%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1376 Points ∼47% +33%
Lenovo Yoga Slim 7-14ARE
AMD Radeon RX Vega 8 (Ryzen 4000), R7 4800U
1173 Points ∼40% +14%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
1168 Points ∼40% +13%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (743 - 1408, n=30)
1152 Points ∼40% +12%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, i7-10510U
1139 Points ∼39% +10%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1031 Points ∼35%
Asus VivoBook Flip 14 TM420IA
AMD Radeon RX Vega 7, R7 4700U
903 Points ∼31% -12%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4600U
852 Points ∼29% -17%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
594 Points ∼20% -42%
Intel NUC10i5FNK
Intel UHD Graphics 620, i5-10210U
396 Points ∼14% -62%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
320 Points ∼11% -69%

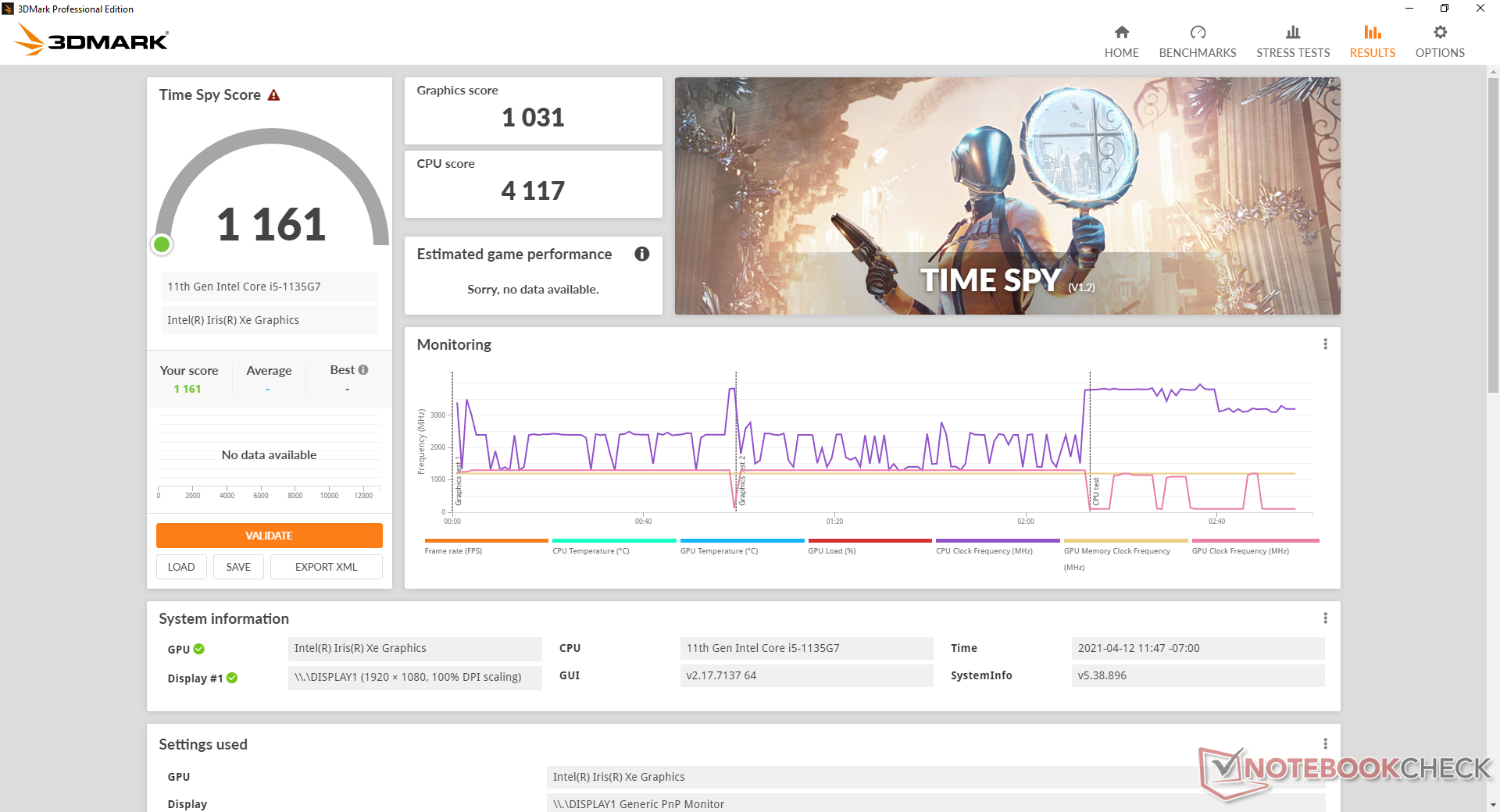

2560x1440 Time Spy Score
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
3096 Points ∼100% +167%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
1667 Points ∼54% +44%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (1121 - 2007, n=69)
1622 Points ∼52% +40%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1537 Points ∼50% +32%
Lenovo Yoga Slim 7-14ARE
AMD Radeon RX Vega 8 (Ryzen 4000), R7 4800U
1338 Points ∼43% +15%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
1316 Points ∼43% +13%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (833 - 1578, n=30)
1287 Points ∼42% +11%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, i7-10510U
1258 Points ∼41% +8%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1161 Points ∼38%
Asus VivoBook Flip 14 TM420IA
AMD Radeon RX Vega 7, R7 4700U
1028 Points ∼33% -11%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4600U
973 Points ∼31% -16%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
676 Points ∼22% -42%
Intel NUC10i5FNK
Intel UHD Graphics 620, i5-10210U
456 Points ∼15% -61%
Intel NUC10i5FNK
Intel UHD Graphics 620, i5-10210U
456 Points ∼15% -61%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
367 Points ∼12% -68%

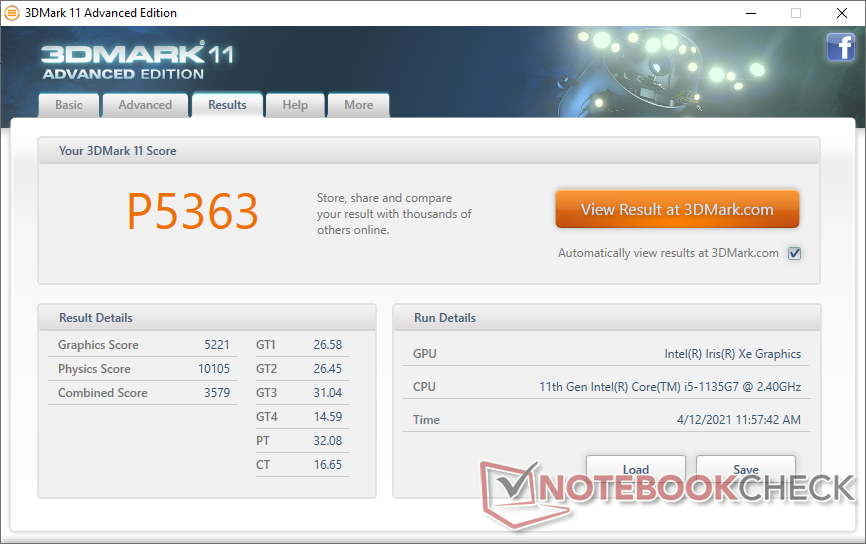

3DMark 11
1280x720 Performance GPU
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
14302 Points ∼100% +174%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
6779 Points ∼47% +30%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (4841 - 7115, n=65)
6443 Points ∼45% +23%
Lenovo Yoga Slim 7-14ARE
AMD Radeon RX Vega 8 (Ryzen 4000), R7 4800U
6085 Points ∼43% +17%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
6027 Points ∼42% +15%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
5926 Points ∼41% +14%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (4013 - 6120, n=30)
5426 Points ∼38% +4%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
5221 Points ∼37%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, i7-10510U
5191 Points ∼36% -1%
Asus VivoBook Flip 14 TM420IA
AMD Radeon RX Vega 7, R7 4700U
4927 Points ∼34% -6%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4600U
4403 Points ∼31% -16%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
2947 Points ∼21% -44%
Intel NUC10i5FNK
Intel UHD Graphics 620, i5-10210U
1853 Points ∼13% -65%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
1684 Points ∼12% -68%
1280x720 Performance Combined
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10391 Points ∼100% +190%
Lenovo Yoga 9 14 ITL 4K
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
6823 Points ∼66% +91%
Microsoft Surface Pro 7 Plus
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
5967 Points ∼57% +67%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (2912 - 7160, n=64)
5407 Points ∼52% +51%
HP Envy 13-ba0001ng
NVIDIA GeForce MX350, i7-10510U
4363 Points ∼42% +22%
Lenovo Yoga Slim 7-14ARE
AMD Radeon RX Vega 8 (Ryzen 4000), R7 4800U
4323 Points ∼42% +21%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (2055 - 5967, n=30)
4269 Points ∼41% +19%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
4111 Points ∼40% +15%
Asus VivoBook Flip 14 TM420IA
AMD Radeon RX Vega 7, R7 4700U
3601 Points ∼35% +1%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
3579 Points ∼34%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4600U
3555 Points ∼34% -1%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
2495 Points ∼24% -30%
Intel NUC10i5FNK
Intel UHD Graphics 620, i5-10210U
1665 Points ∼16% -53%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
1252 Points ∼12% -65%
3DMark 11 Performance
5363 Punkte
3DMark Cloud Gate Standard Score
15314 Punkte
3DMark Fire Strike Score
2750 Punkte
3DMark Time Spy Score
1161 Punkte
Hilfe
Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
81.8 fps ∼100% +205%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (23.8 - 56.5, n=47)
38.8 fps ∼47% +45%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
37.5 fps ∼46% +40%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (18.4 - 39.7, n=25)
31 fps ∼38% +16%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30.3 fps ∼37% +13%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
30.2 fps ∼37% +13%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
29.4 fps ∼36% +10%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
26.8 fps ∼33%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
17.3 fps ∼21% -35%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
16.9 fps ∼21% -37%
1920x1080 Standard Quality
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
41.2 fps ∼100% +201%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (12.2 - 27.6, n=48)
21.1 fps ∼51% +54%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
18.8 fps ∼46% +37%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (9.89 - 22, n=23)
16.9 fps ∼41% +23%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
15.6 fps ∼38% +14%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
15.2 fps ∼37% +11%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
15.1 fps ∼37% +10%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
13.7 fps ∼33%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
9.07 fps ∼22% -34%
1920x1080 High Quality
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
20.4 fps ∼100% +94%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (12.1 - 27.6, n=46)
16.2 fps ∼79% +54%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (7.06 - 22, n=21)
14.3 fps ∼70% +36%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
12.7 fps ∼62% +21%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
12 fps ∼59% +14%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
10.5 fps ∼51%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
9.86 fps ∼48% -6%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
8.65 fps ∼42% -18%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
6.04 fps ∼30% -42%
Dota 2 Reborn
1280x720 min (0/3) fastest
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
127 (103.6min) fps ∼100% +72%
HP Envy 13-ba0001ng
Intel Core i7-10510U, NVIDIA GeForce MX350
119.1 (97.3min) fps ∼94% +61%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
100 (77.1min) fps ∼79% +36%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
98 (79.8min) fps ∼77% +33%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
97.1 (87.3min) fps ∼76% +32%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
95 (80min) fps ∼75% +29%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
93.9 (83.7min) fps ∼74% +27%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (36 - 148, n=70)
85 fps ∼67% +15%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
80.4 (44.8min) fps ∼63% +9%
Intel NUC10i5FNK
Intel Core i5-10210U, Intel UHD Graphics 620
78.8 (70min) fps ∼62% +7%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
78.8 (48.8min) fps ∼62% +7%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (66.2 - 99, n=32)
78.2 fps ∼62% +6%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
77.2 (51.3min) fps ∼61% +5%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
76.8 (42.2min) fps ∼60% +4%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
75.6 (46.7min) fps ∼60% +2%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
73.8 (47.9min) fps ∼58%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, Intel UHD Graphics 620
73.7 (66min) fps ∼58% 0%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
61.2 (55min) fps ∼48% -17%
1366x768 med (1/3)
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
119 (95.8min) fps ∼100% +113%
HP Envy 13-ba0001ng
Intel Core i7-10510U, NVIDIA GeForce MX350
106.2 (90.7min) fps ∼89% +90%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
82.3 (74.1min) fps ∼69% +47%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
76.9 (66min) fps ∼65% +37%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
70.3 (61.6min) fps ∼59% +26%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
68 (58.9min) fps ∼57% +21%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (31.6 - 107, n=70)
67.2 fps ∼56% +20%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
66 (54.7min) fps ∼55% +18%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
61.8 (46.8min) fps ∼52% +10%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
60.5 (36min) fps ∼51% +8%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.9 (48.1min) fps ∼50% +7%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (34 - 78.1, n=32)
56.8 fps ∼48% +1%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
56.2 (40min) fps ∼47% 0%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
56 (40.8min) fps ∼47%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
53.5 (33.4min) fps ∼45% -4%
Intel NUC10i5FNK
Intel Core i5-10210U, Intel UHD Graphics 620
48.9 (44.1min) fps ∼41% -13%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, Intel UHD Graphics 620
43.3 (38.6min) fps ∼36% -23%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
25 (20.7min) fps ∼21% -55%
1920x1080 high (2/3)
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
108 (87.1min) fps ∼100% +216%
HP Envy 13-ba0001ng
Intel Core i7-10510U, NVIDIA GeForce MX350
64.1 (42.6min) fps ∼59% +87%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
56 (50.6min) fps ∼52% +64%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (31.3 - 88.1, n=70)
47.1 fps ∼44% +38%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
45.4 (40.8min) fps ∼42% +33%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
44.5 (36.7min) fps ∼41% +30%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
41.2 (28.9min) fps ∼38% +20%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.7 (27.5min) fps ∼36% +13%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
37.7 (26.8min) fps ∼35% +10%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (22.8 - 49.8, n=32)
37.4 fps ∼35% +9%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
36.6 (26.1min) fps ∼34% +7%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
34.7 (31.6min) fps ∼32% +1%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
34.6 (24.4min) fps ∼32% +1%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
34.2 (20min) fps ∼32%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
31.9 (29.3min) fps ∼30% -7%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, Intel UHD Graphics 620
21.1 (19.8min) fps ∼20% -38%
Intel NUC10i5FNK
Intel Core i5-10210U, Intel UHD Graphics 620
20.4 (19.1min) fps ∼19% -40%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
15.3 (12.4min) fps ∼14% -55%
1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
94.6 (82.1min) fps ∼100% +201%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
52.5 (47.3min) fps ∼55% +67%
HP Envy 13-ba0001ng
Intel Core i7-10510U, NVIDIA GeForce MX350
52.3 (33.8min) fps ∼55% +67%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (29.7 - 78.5, n=70)
44 fps ∼47% +40%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
42.3 (38.6min) fps ∼45% +35%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
41.5 (32.7min) fps ∼44% +32%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
40.1 (27.6min) fps ∼42% +28%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
36.8 (25.5min) fps ∼39% +17%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (21.8 - 48, n=33)
35.4 fps ∼37% +13%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
35 (25.8min) fps ∼37% +11%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
34.4 (24.3min) fps ∼36% +10%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
32.4 (22.6min) fps ∼34% +3%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
31.4 (18.2min) fps ∼33%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
30.4 (27.6min) fps ∼32% -3%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
27.7 (25.5min) fps ∼29% -12%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, Intel UHD Graphics 620
18.8 (17.6min) fps ∼20% -40%
Intel NUC10i5FNK
Intel Core i5-10210U, Intel UHD Graphics 620
18.1 (17.1min) fps ∼19% -42%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
14.2 (11.7min) fps ∼15% -55%
X-Plane 11.11
1280x720 low (fps_test=1)
HP Envy 13-ba0001ng
Intel Core i7-10510U, NVIDIA GeForce MX350
62.5 fps ∼100% +68%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
61.8 fps ∼99% +67%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
54.3 fps ∼87% +46%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
42.7 fps ∼68% +15%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
42.3 fps ∼68% +14%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
40.6 fps ∼65% +9%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
40.4 fps ∼65% +9%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.7 fps ∼62% +4%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (15.8 - 88.4, n=73)
37.6 fps ∼60% +1%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.4 fps ∼60% +1%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.3 fps ∼60% +1%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.1 fps ∼59%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (18.6 - 57, n=32)
36.3 fps ∼58% -2%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
32.6 fps ∼52% -12%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
25.3 fps ∼40% -32%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, Intel UHD Graphics 620
11.6 fps ∼19% -69%
Intel NUC10i5FNK
Intel Core i5-10210U, Intel UHD Graphics 620
10.7 fps ∼17% -71%
1920x1080 med (fps_test=2)
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
52.8 fps ∼100% +93%
HP Envy 13-ba0001ng
Intel Core i7-10510U, NVIDIA GeForce MX350
51 fps ∼97% +87%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
41.1 fps ∼78% +51%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.2 fps ∼70% +36%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
35.1 fps ∼66% +29%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (17.9 - 69.5, n=74)
34.9 fps ∼66% +28%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
34.5 fps ∼65% +26%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.7 fps ∼62% +20%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
32.5 fps ∼62% +19%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (20.5 - 40.5, n=33)
30.7 fps ∼58% +12%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
30.5 fps ∼58% +12%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
29.9 fps ∼57% +10%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
27.3 fps ∼52%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
23.3 fps ∼44% -15%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
18 fps ∼34% -34%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, Intel UHD Graphics 620
9 fps ∼17% -67%
Intel NUC10i5FNK
Intel Core i5-10210U, Intel UHD Graphics 620
8.95 fps ∼17% -67%
1920x1080 high (fps_test=3)
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G, AMD Radeon RX Vega M GH
45.5 fps ∼100% +56%
HP Envy 13-ba0001ng
Intel Core i7-10510U, NVIDIA GeForce MX350
41.3 fps ∼91% +42%
Lenovo Yoga 9 14 ITL 4K
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
35 fps ∼77% +20%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (17.3 - 59.8, n=74)
31.1 fps ∼68% +7%
Lenovo Yoga Slim 7-14ARE
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000)
30.5 fps ∼67% +5%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
29.1 fps ∼64%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
28.8 fps ∼63% -1%
Lenovo ThinkBook 14 G2 ITL 20VD008WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
28.7 fps ∼63% -1%
Asus VivoBook Flip 14 TM420IA
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
28.6 fps ∼63% -2%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
28.3 fps ∼62% -3%
Microsoft Surface Pro 7 Plus
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
27.7 fps ∼61% -5%
Lenovo IdeaPad S540-13ARE-82DL000YGE
AMD Ryzen 5 4600U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
27.5 fps ∼60% -5%
Durchschnittliche Intel Iris Xe Graphics G7 80EUs
  (18.7 - 35.5, n=33)
27.5 fps ∼60% -5%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
19.8 fps ∼44% -32%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
15.9 fps ∼35% -45%
Intel NUC10i5FNK
Intel Core i5-10210U, Intel UHD Graphics 620
8.77 fps ∼19% -70%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, Intel UHD Graphics 620
8.76 fps ∼19% -70%
05101520253035404550556065
