Minisforum EliteMini TH50: Kompakter Desktop-PC für den Office-Alltag im Test

Mehr als ein reiner Office-PC! Der Systemhersteller Minisforum bietet mit dem kompakten EliteMini TH50 einen grundsoliden Arbeits-PC auf Intel-Basis an. Dank Thunderbolt erweitert sich das Einsatzspektrum aber deutlich. Was der kleine Rechenknecht zu bieten hat, erfahren Sie in diesem Review.
CPU-Z
CPU-Z

Als Systemhersteller ist Minisforum vielen inzwischen ein Begriff, auch wenn der chinesische Hersteller hierzulande noch nicht sehr weit verbreitet ist. Die Angebotspalette reicht von IOT-Mini-PCs über Office-Geräte bis hin zu kompakten Gaming-Computern. Einige Systeme der EliteMini-Serie konnten wir schon kennenlernen. Als Basis diente allerdings bislang eine APU aus dem Hause AMD. Der EliteMini TH50 setzt aber auf ein Intel Tiger Lake SoC und bietet damit noch mehr Nutzungsmöglichkeiten.

Der Intel Core i5-11320H ist ein solides SoC und bietet eine solide Basis. Rekorde werden mit diesem Prozessor allerdings nicht gebrochen, doch für den geplanten Einsatzzweck sollte die Leistung ausreichen. Ausgestattet mit 16-GB-DDR4-RAM und einer 512 GB SSD haben wir von Minisforum das Topmodell zur Verfügung gestellt bekommen. Hierfür verlangt der Hersteller 669 US-Dollar. Auch den EliteMini TH50 kann man als Barebone-Version ohne SSD bekommen. Mit 629 US-Dollar ist die Ersparnis allerdings relativ gering. Dabei sollte auch bedacht werden, dass beim Kauf ohne Massenspeicher auch keine Windows-Lizenz mitgeliefert wird. Des Weiteren sind beim EliteMini TH50 immer 16-GB-RAM verbaut, da dieser fest auf der Platine verlötet ist.

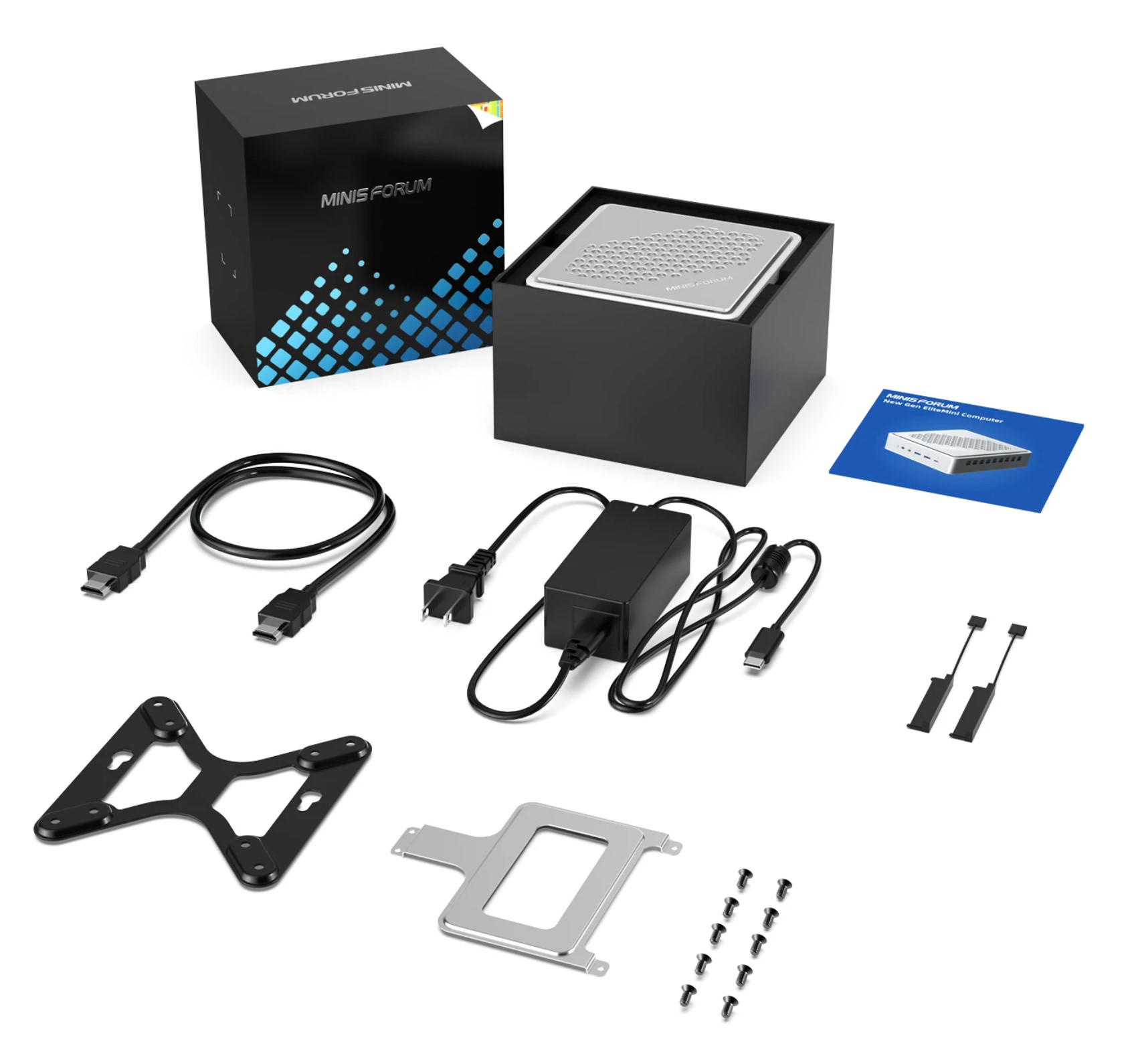

Geliefert wird der Minisforum EliteMini TH50 in einem stabilen Karton mit passendem Zubehör, um das System in Betrieb nehmen zu können. Das Netzteil ist kompakt und bietet 65-Watt über USB-C. Weiterhin gibt es im Lieferumfang noch eine Halteplatte für die Befestigung an einem Display (Vesa-Mount). Intern lässt sich das Gerät noch mit zwei zusätzlichen 2,5-Zoll-Massenspeicher bestücken.

Minisforum EliteMini TH50
Prozessor
Intel Core i5-11320H 4 x 3.2 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35
Grafikkarte
Hauptspeicher
16 GB
, DDR4-3200, fest verlötet
Mainboard
Intel Tiger Lake-UP3 PCH-LP

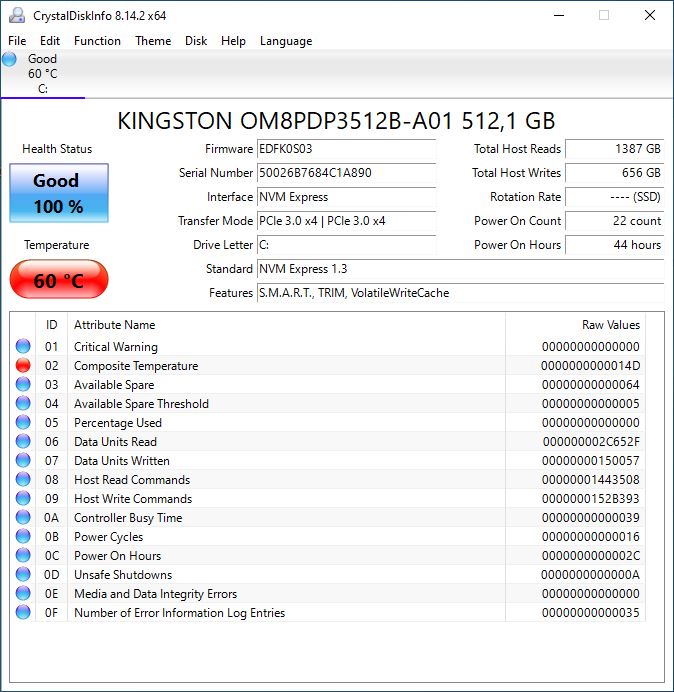

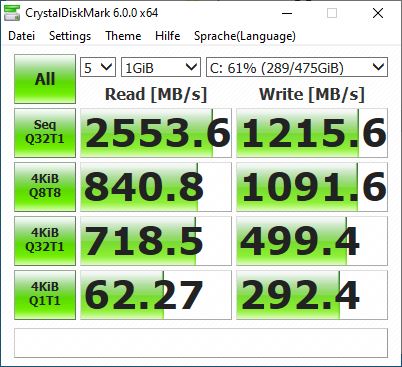

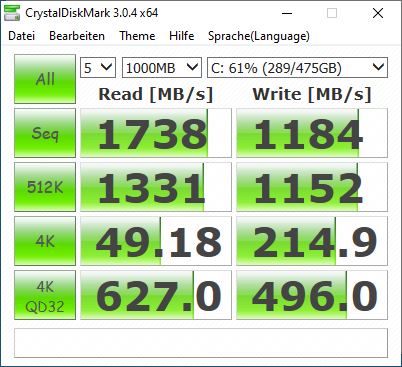

Massenspeicher
Kingston OM8PDP3512B-AI1, 512 GB
, M.2-2280 NVMe, 450 GB verfügbar
Anschlüsse
2 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Anschlüsse: 3.5mm Audio Jack
Netzwerk
MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5
Abmessungen

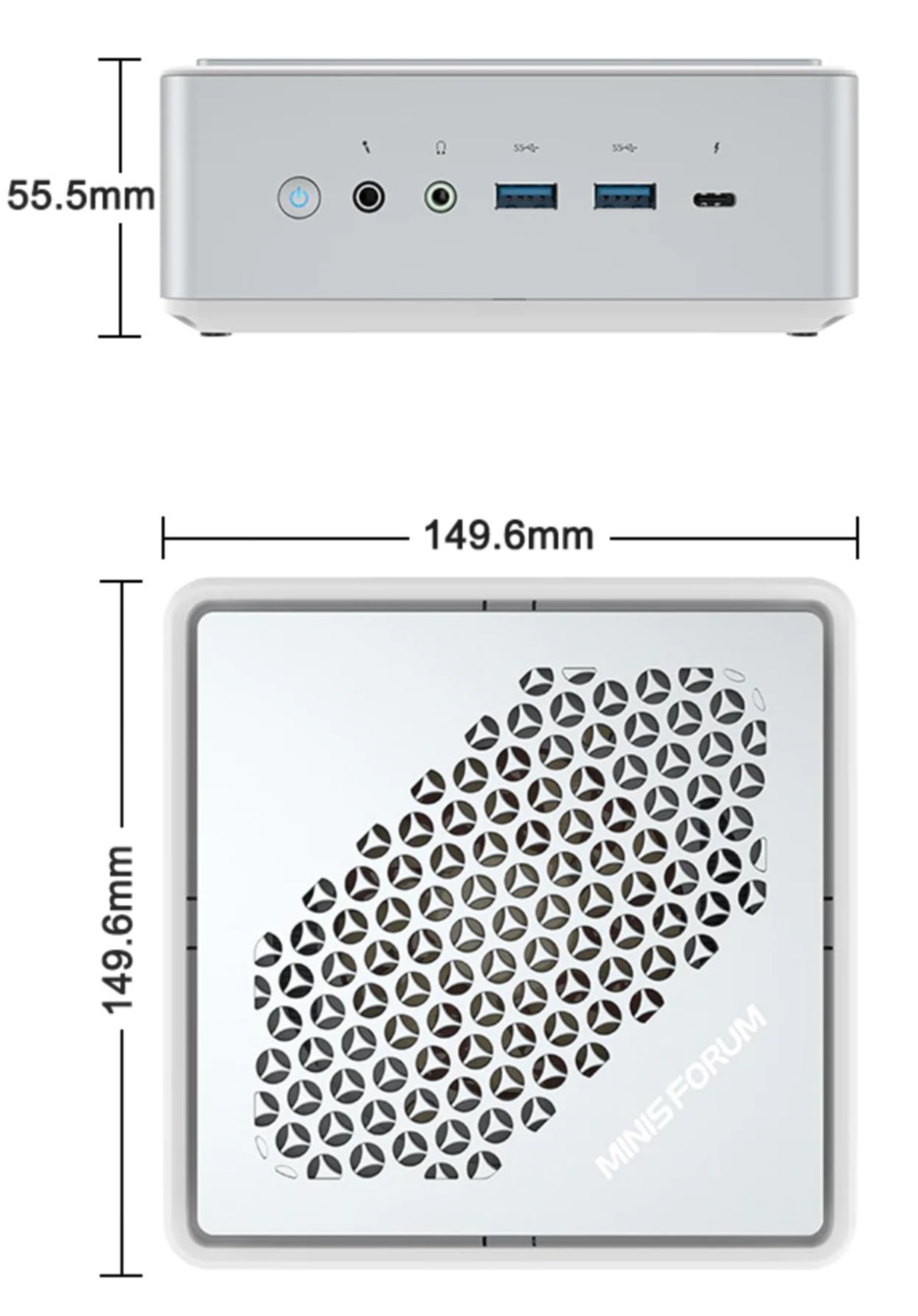

Höhe x Breite x Tiefe (in mm): 55.5 x 149.6 x 149.6
Betriebssystem
Microsoft Windows 10 Pro 64 Bit
Sonstiges
65-Watt-Netzteil
Gewicht
763 g, Netzteil: 277 g
Preis
0 599
Hinweis: Der Hersteller kann abweichende Bauteile wie Bildschirme, Laufwerke und Speicherriegel mit ähnlichen Spezifikationen unter dem gleichen Modellnamen einsetzen.



Gehäuse & Ausstattung

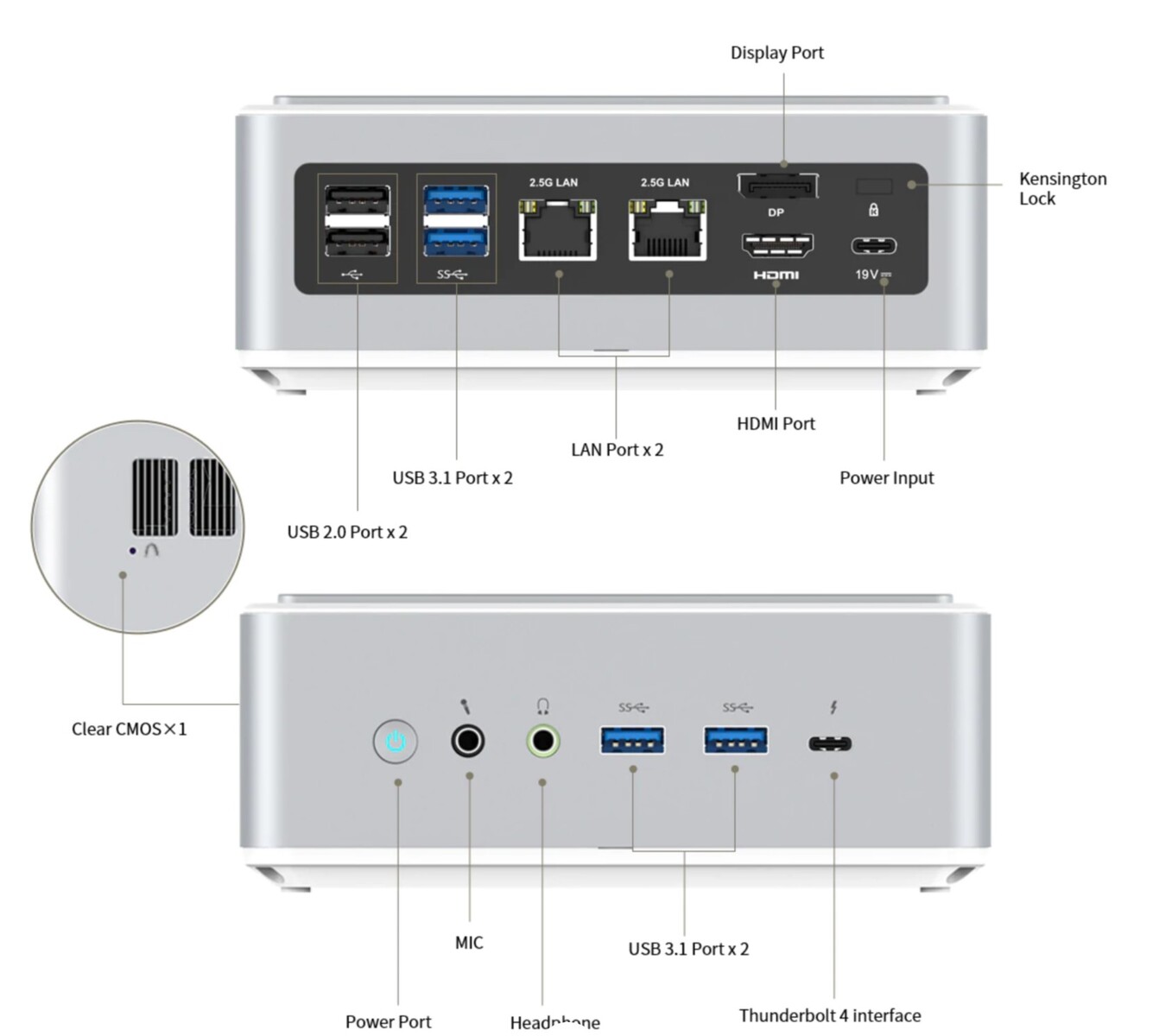

Externe Schnittstellen (Quelle: Minisforum)
Externe Schnittstellen (Quelle: Minisforum)

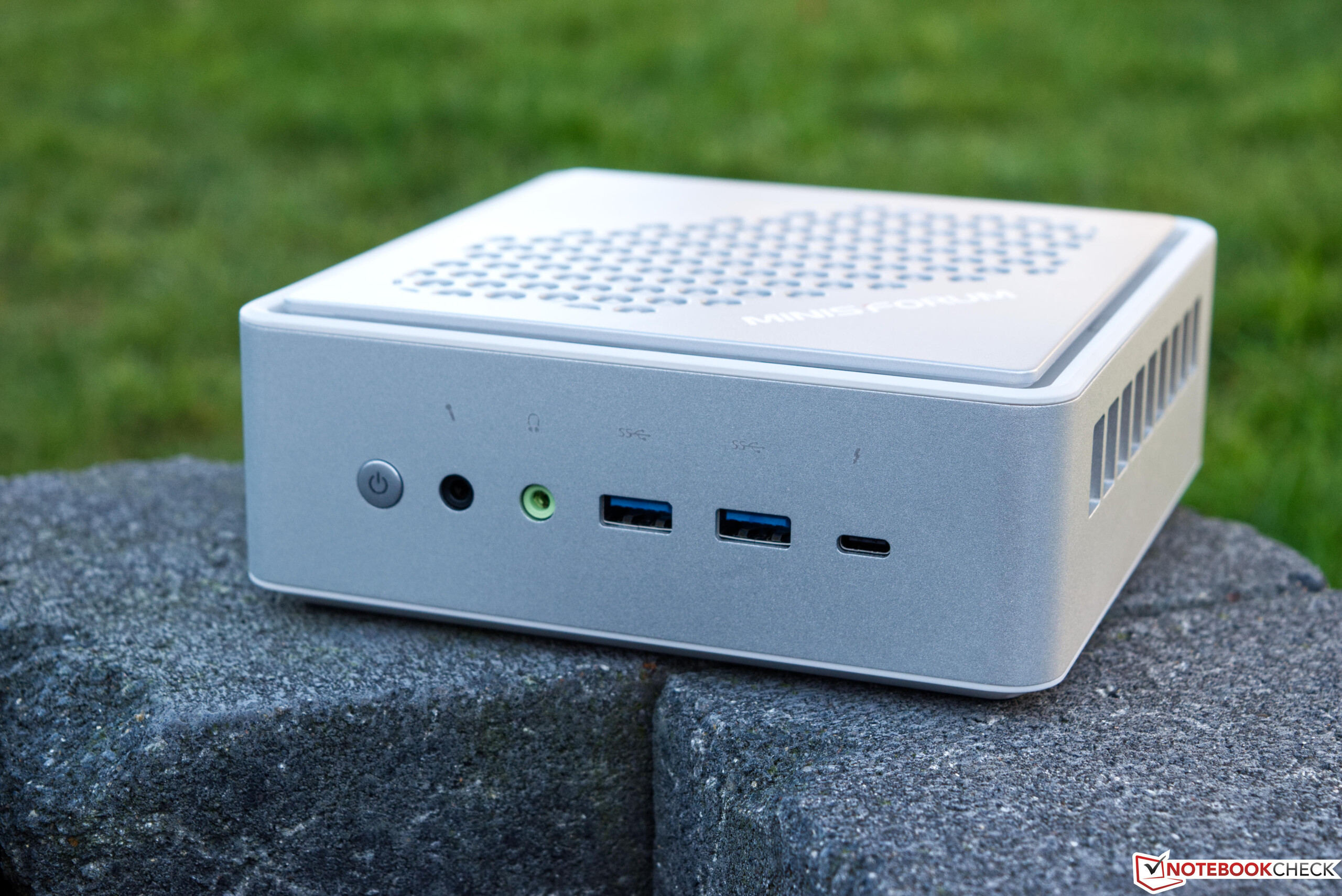

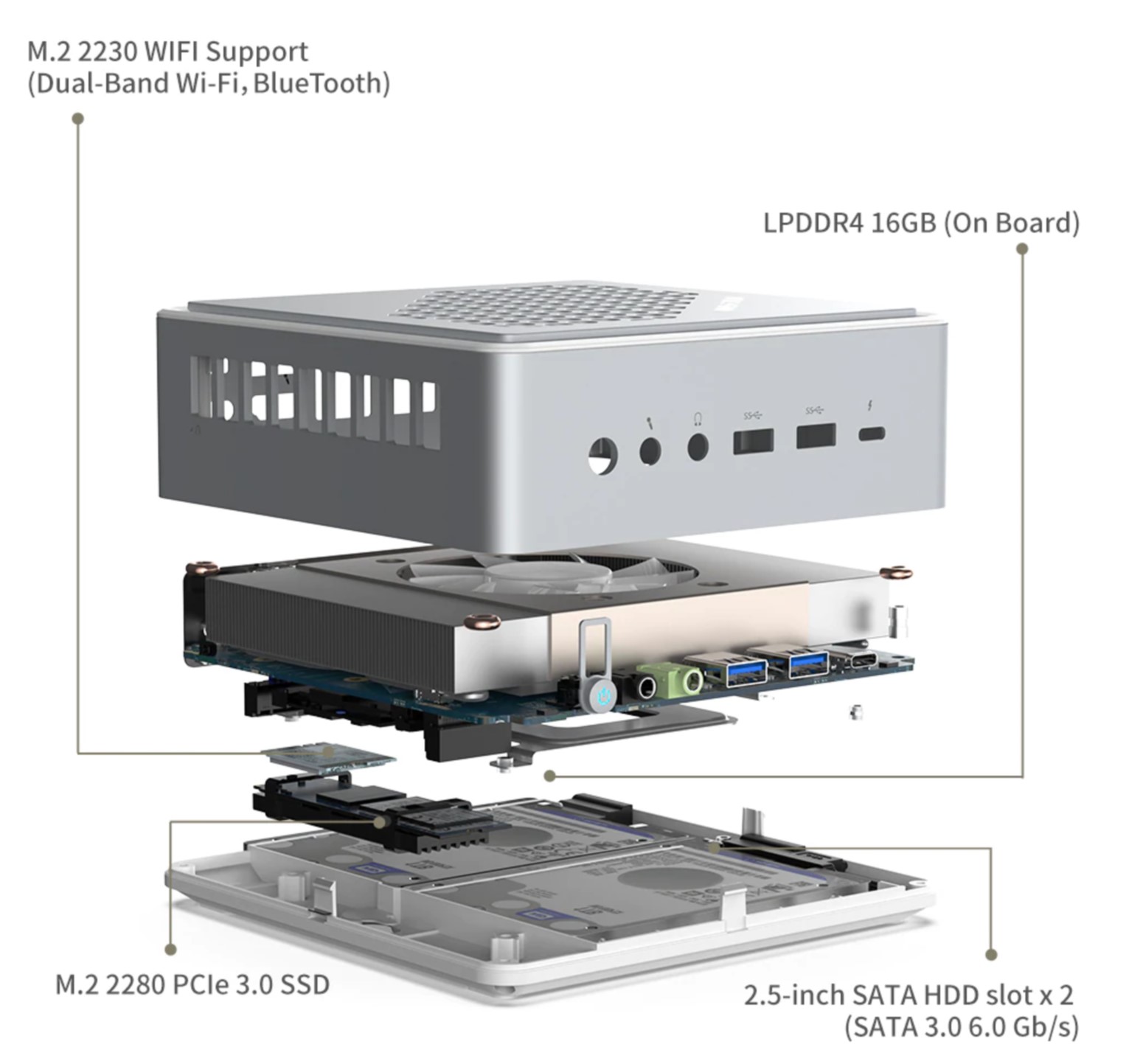

Der Aufbau des Minisforum EliteMini TH50 ähnelt dem Minisforum Elitemini HM90 sehr stark. Das Gehäuse besteht aus einem Aluminiumkörper, der dem System eine gute Stabilität gibt. Die Ober- und Unterseite besteht aus Kunststoff, welches farblich gut zur Aluminiumbase passt. Farblich muss einem das Spiel aus Silber und weiß schon gefallen, denn alternativen gibt es nicht. Markante optische Highlights bietet das System nicht. Das muss es aber auch nicht, denn vielmehr steht die Funktionalität im Vordergrund. Hier allen voran die Kühlung. Diese konnte schon beim EliteMini HM90 überzeugen. Das Prinzip ist gleich geblieben. An der Oberseite wird Frischluft angesaugt und über den Kühler seitlich aus dem Gehäuse geleitet.

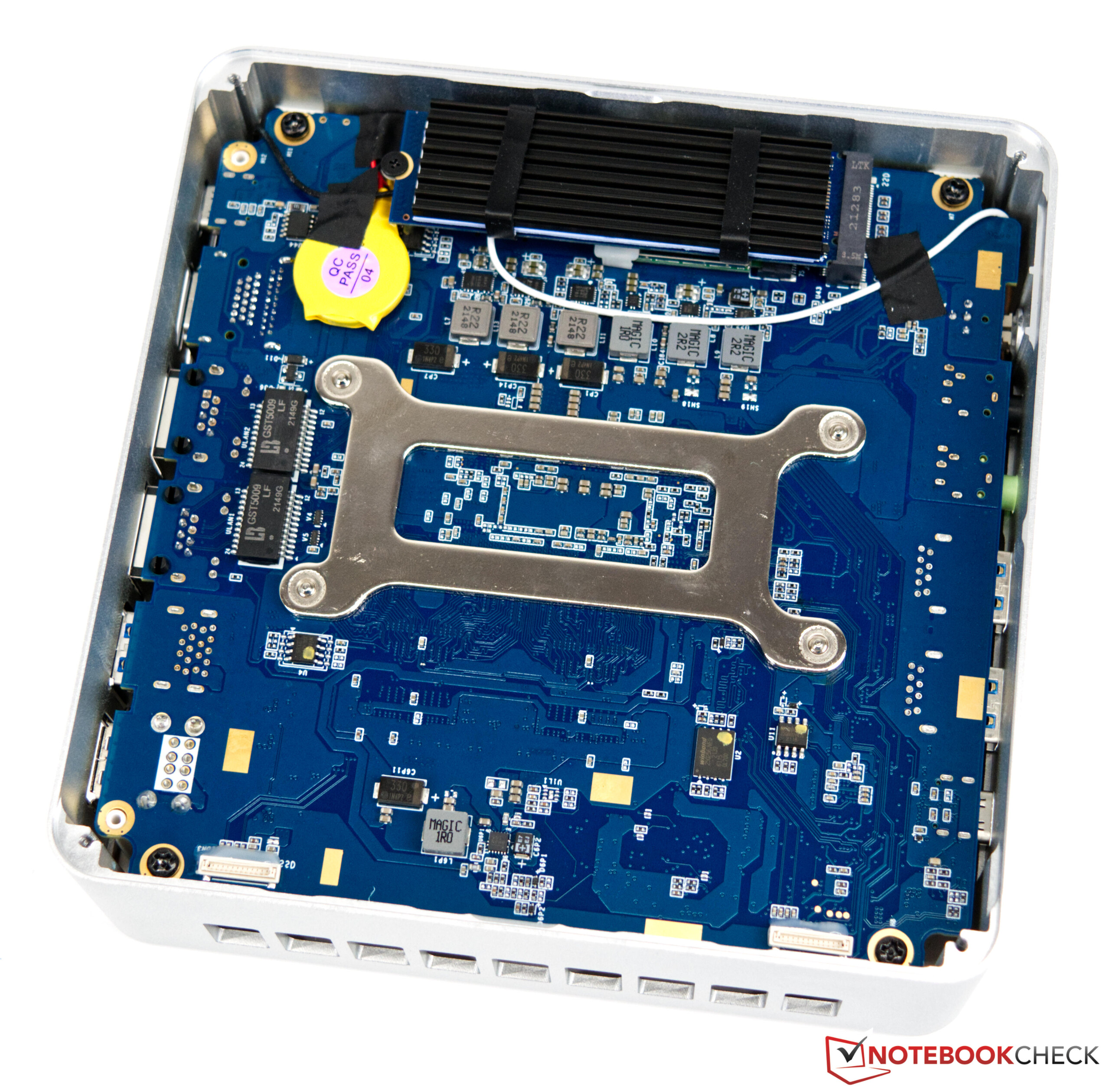

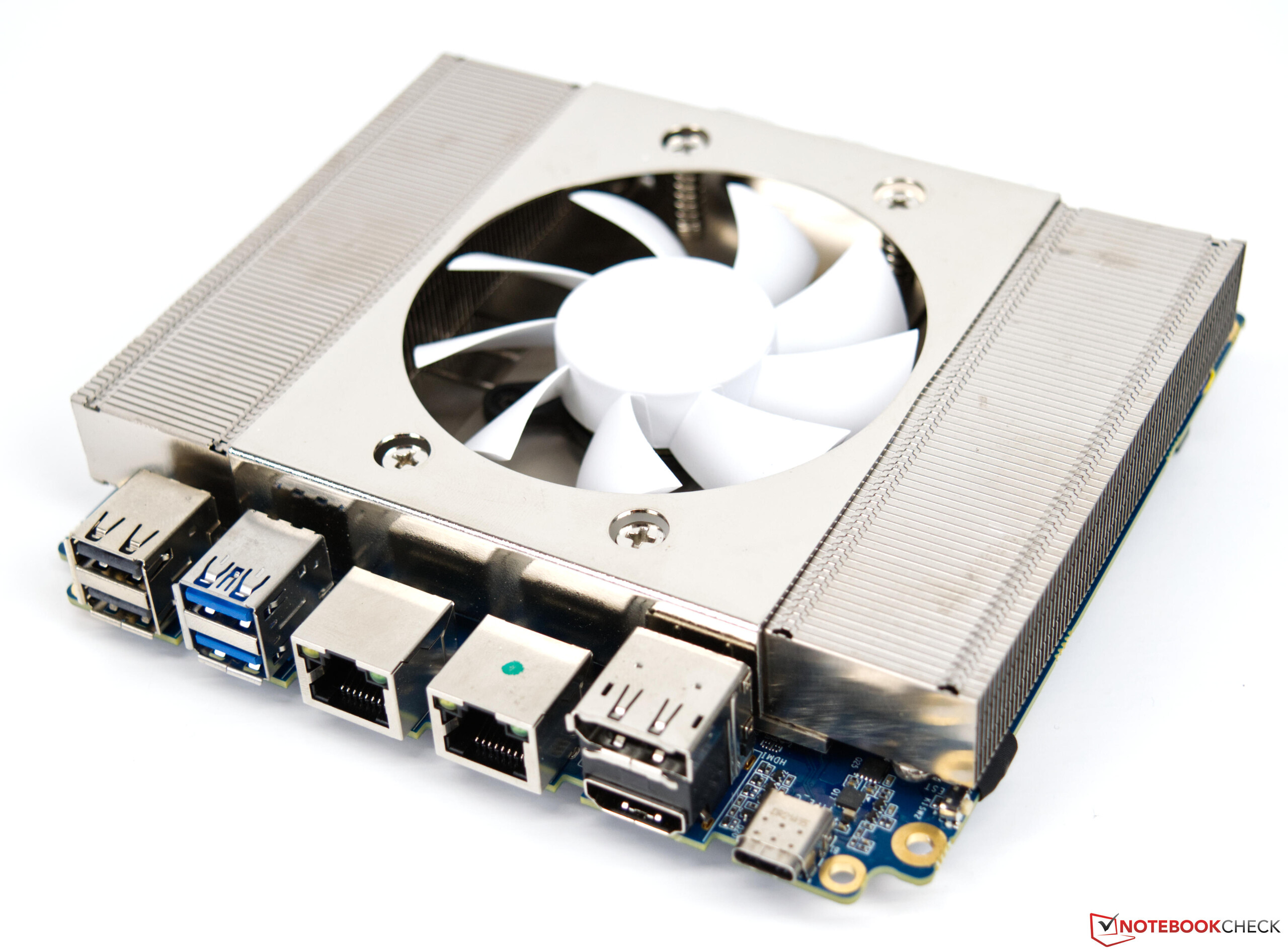

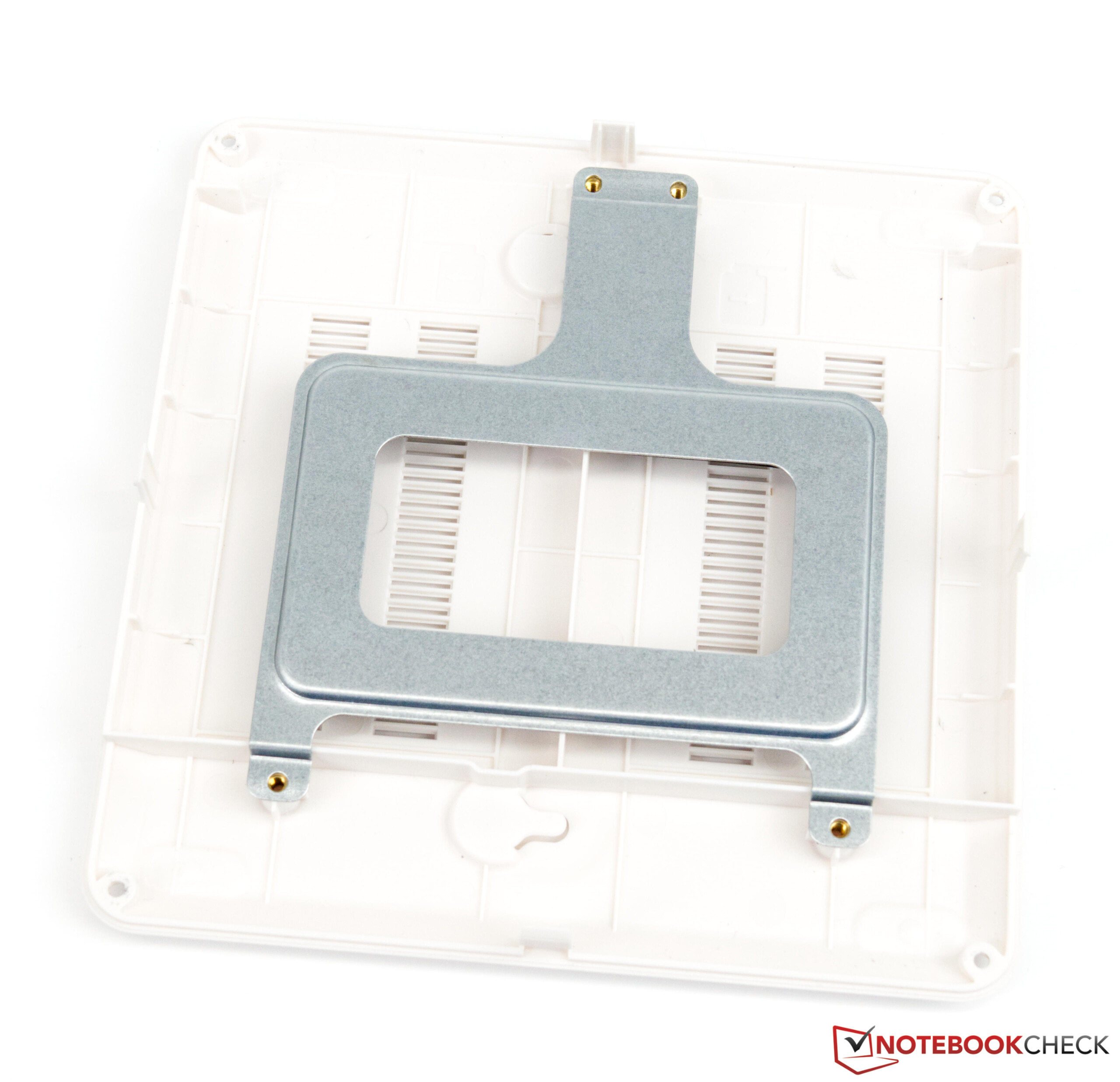

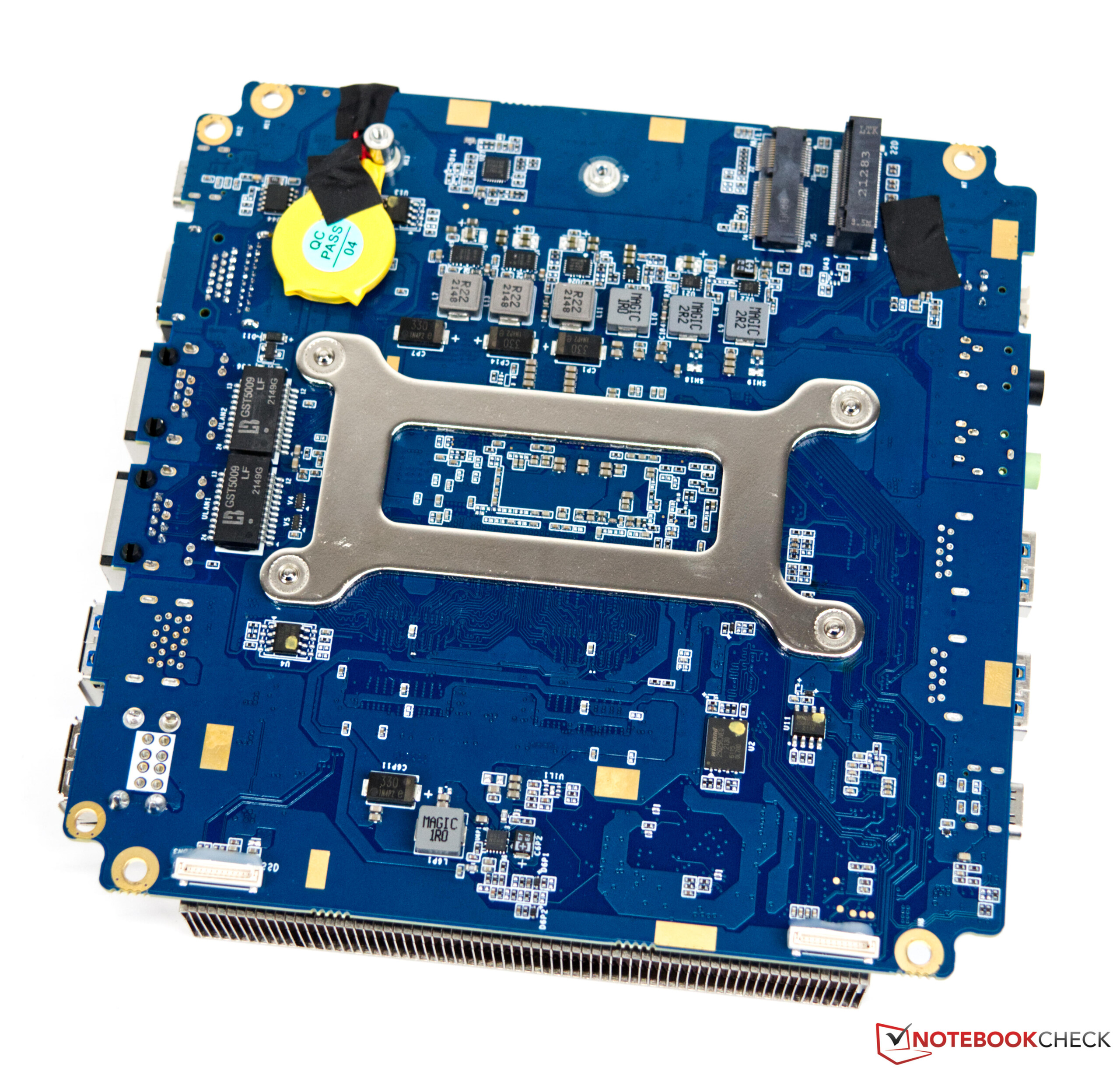

Öffnen lässt sich das Gerät über die Unterseite problemlos. Vier Schrauben fixieren die Bodenplatte an dem Gehäuse. Viel zu sehen gibt es darunter aber nicht. Das WLAN-Modul sowie die SSD lassen sich tauschen. Zusätzlich können in dem Gerät auch noch zwei weitere 2,5-Zoll-Datenträger verstaut werden. Diese werden direkt in der Bodenplatte fixiert und mit kurzen Kabeln mit der Platine verbunden.

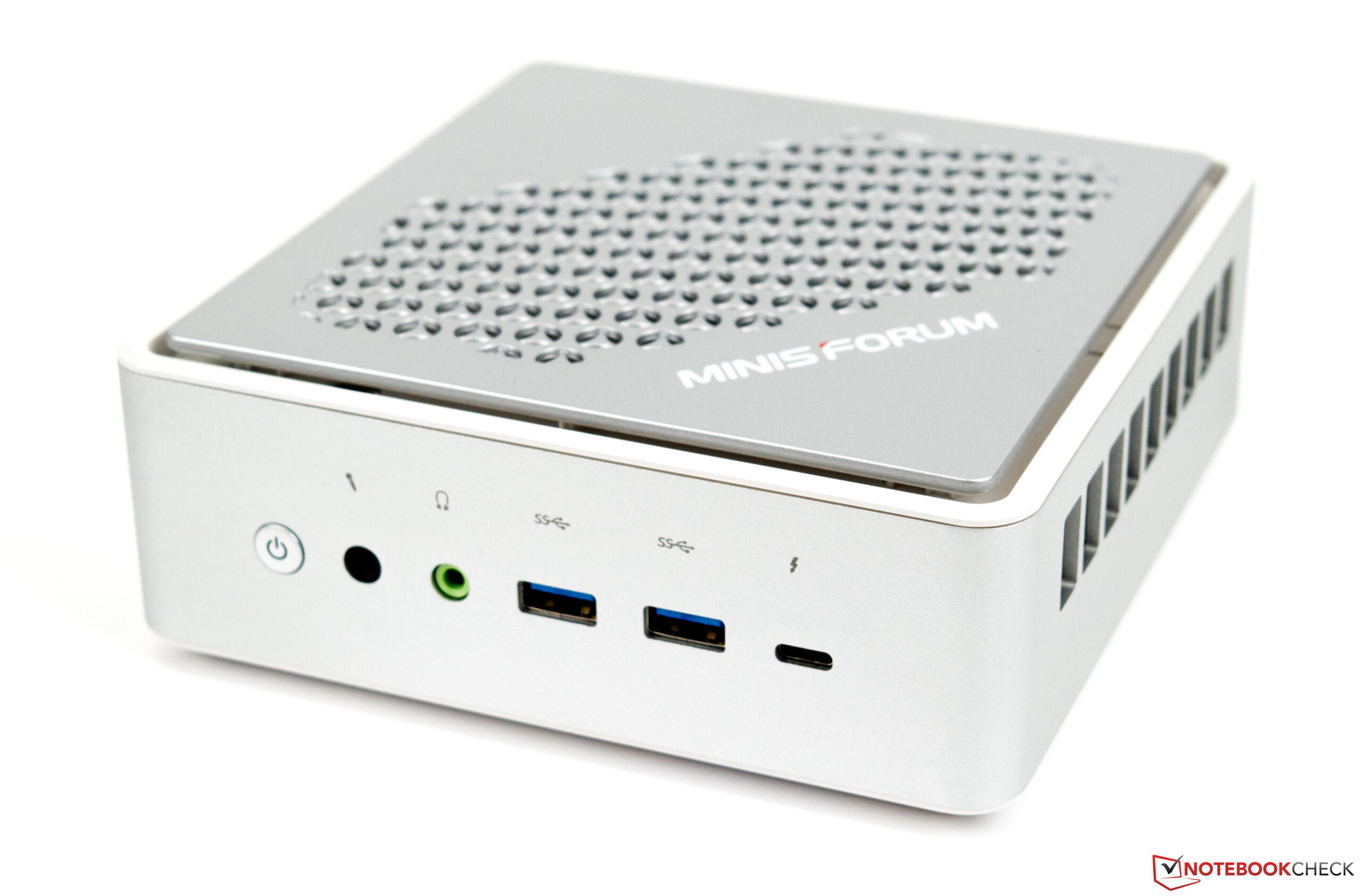

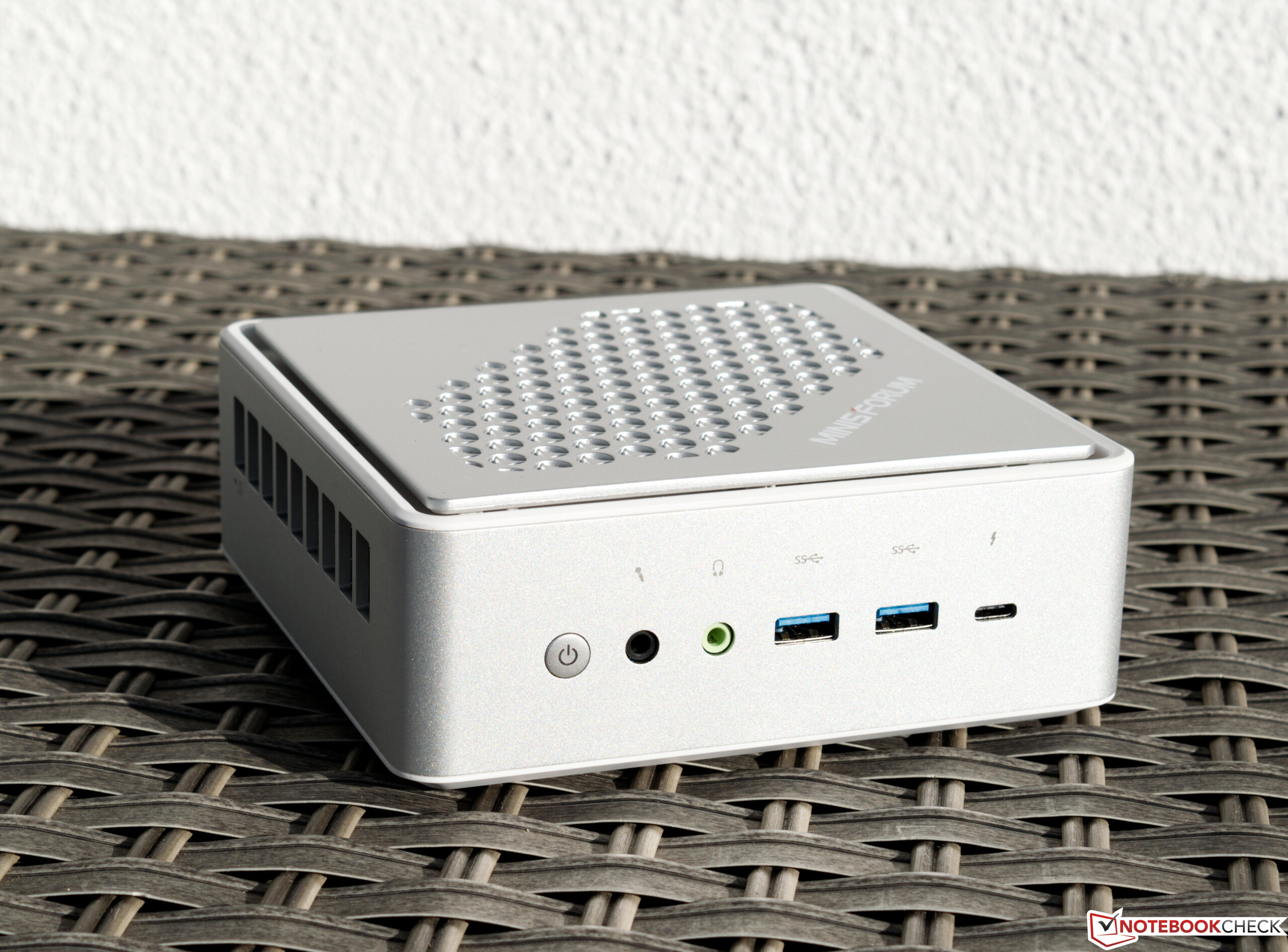

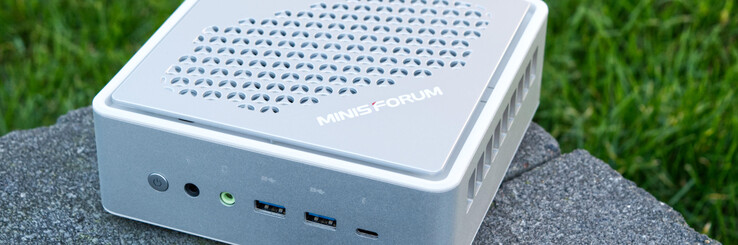

Bei den externen Anschlüssen bietet der EliteMini HM50 viele Möglichkeiten für Zusatzgeräte. Insgesamt sechs USB-A-Schnittstellen sind mehr als ausreichend. Außerdem gibt es Thunderbolt 4 Support, was den Einsatz von externen Docking-Lösungen ermöglicht. Hier gibt es eine breite Palette an Möglichkeiten, um die Konnektivität des EliteMini TH50 zu erweitern. Wir haben auch eine externe GPU-Lösung getestet, um zu schauen, welche Gaming-Leistung mit dem kleinen System zu erwarten ist. Überdies gibt es gleich zwei 2,5G Ethernet-Ports sowie jeweils einmal HDMI und DisplayPort. Wer auch den Thunderbolt-Port für die Bildausgabe verwendet, kann mit dem EliteMini TH50 bis zu drei Displays gleichzeitig ansteuern.

Wichtiger Hinweis:

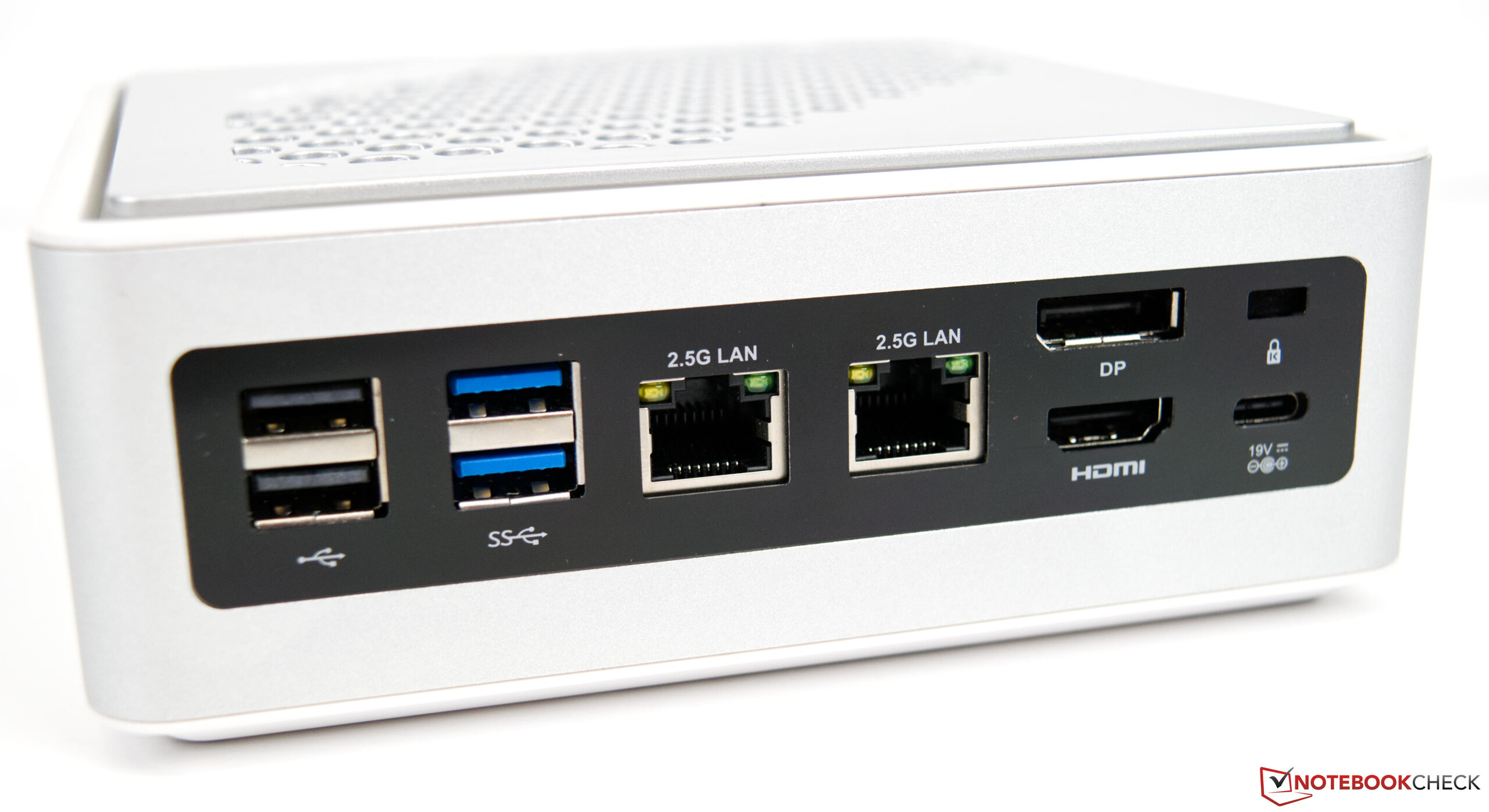

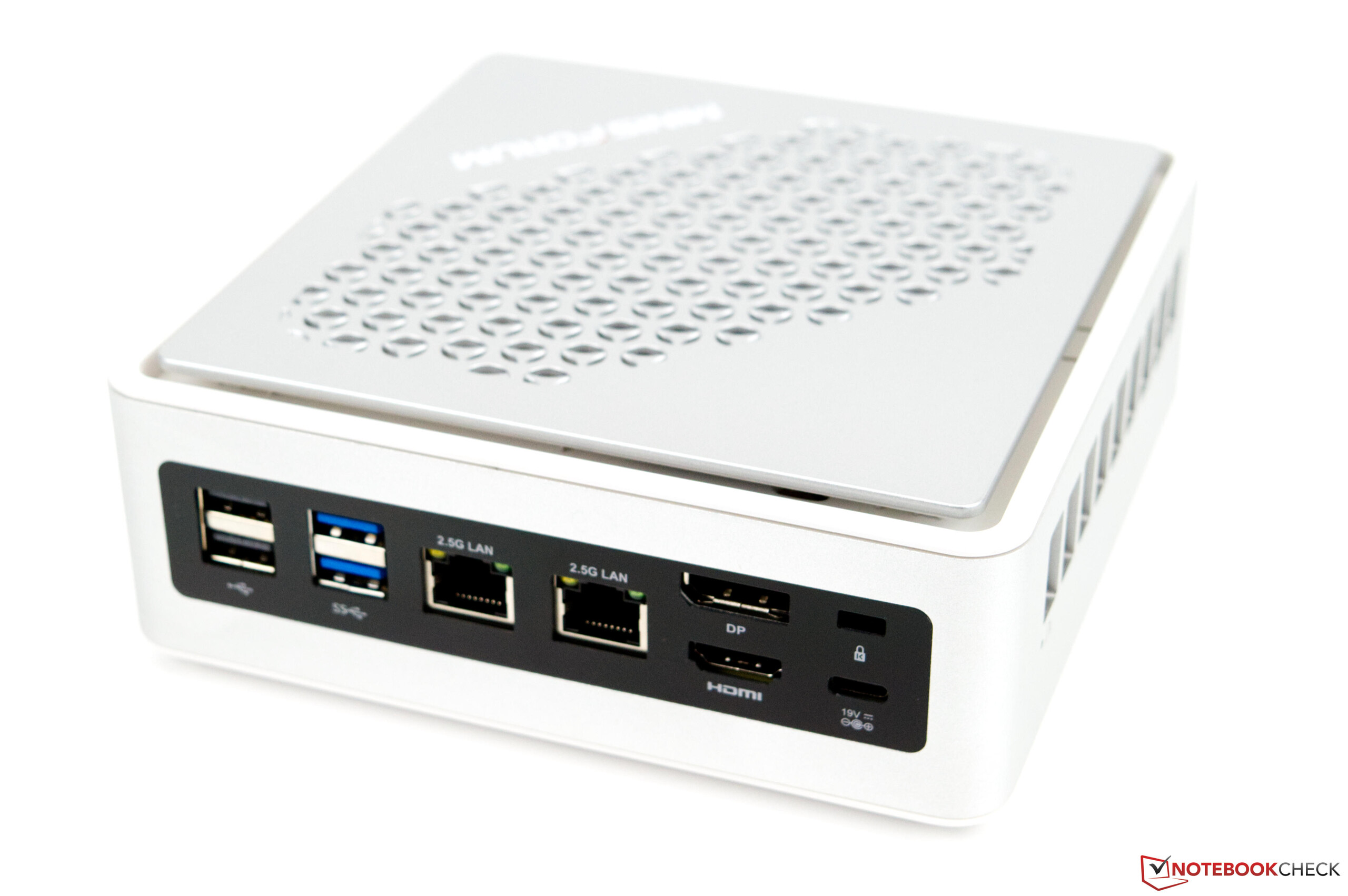

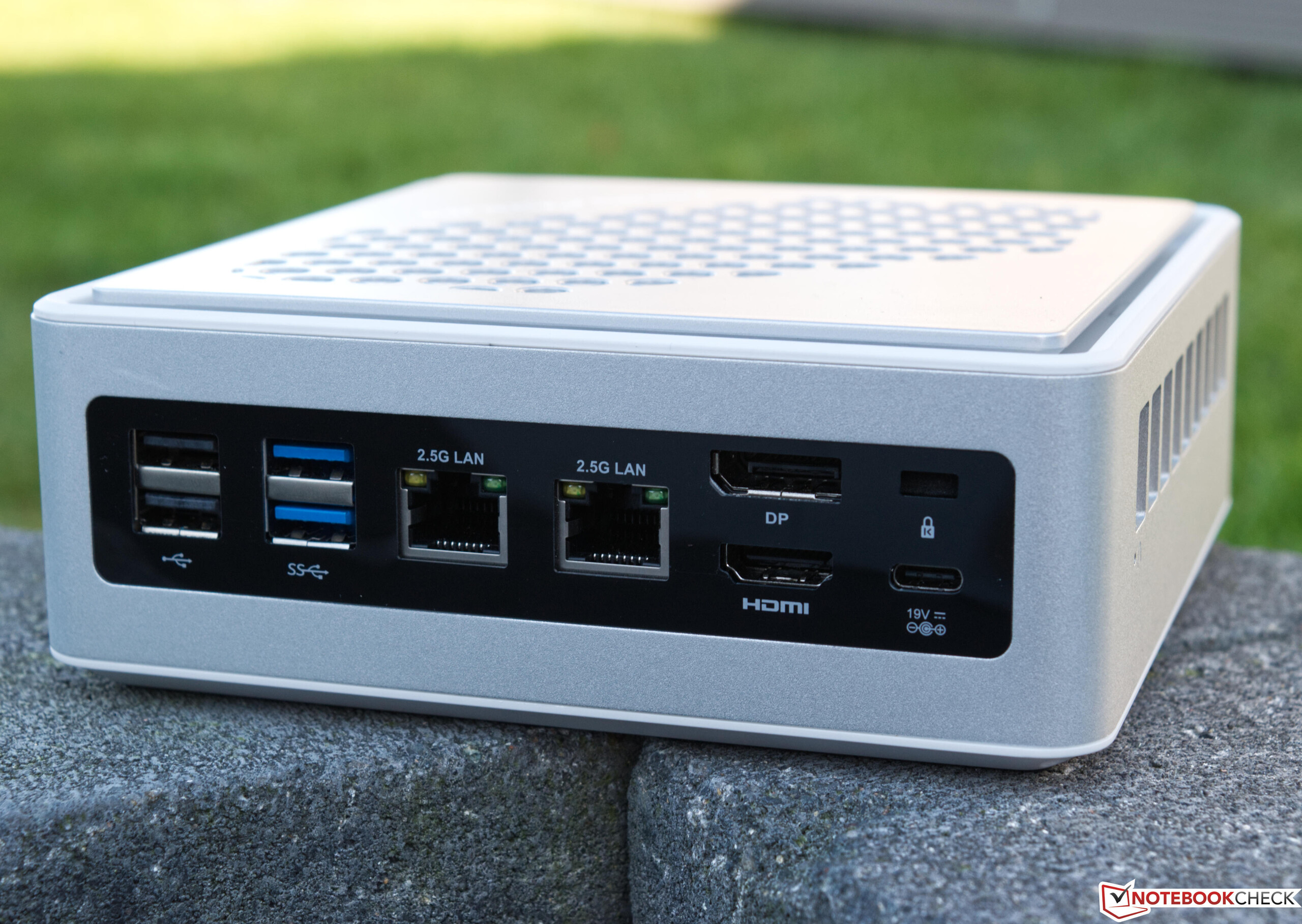

Rückseitig gibt es einen USB-C-Anschluss, welcher für das Netzteil vorgesehen ist. Minisforum weist ausdrücklich darauf hin, das Netzteil nicht an den Thunderbolt-4-Port anzuschließen. Nach Rücksprache mit dem Hersteller wurde bestätigt, dass durch falsches Anschließen des Netzteils in weiterer Folge das System nicht hochfährt und das Mainboard einen irreparablen Schaden nimmt.

Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50 - WLAN-Karte
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50

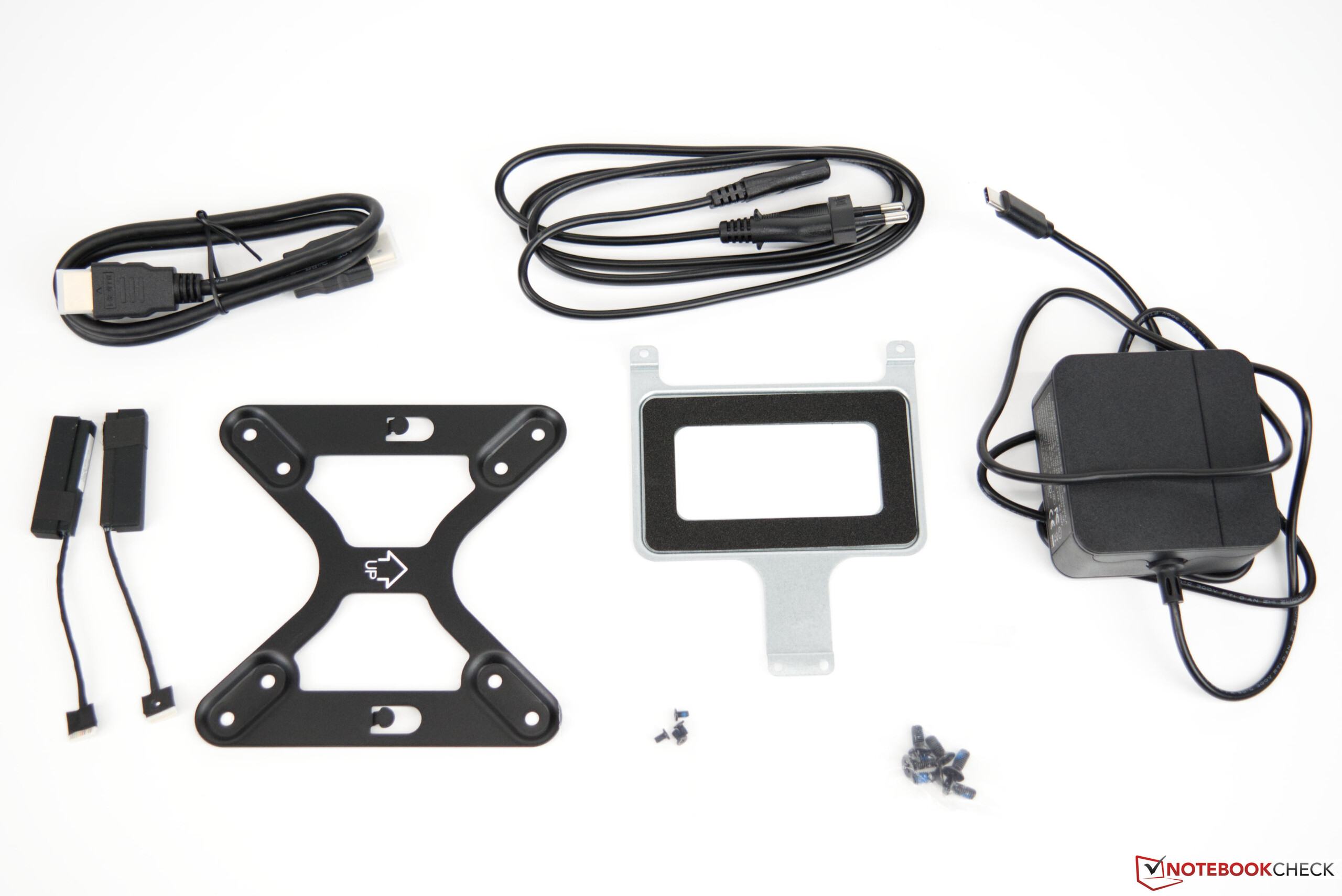

Minisforum EliteMini TH50 - Zubehör
Minisforum EliteMini TH50

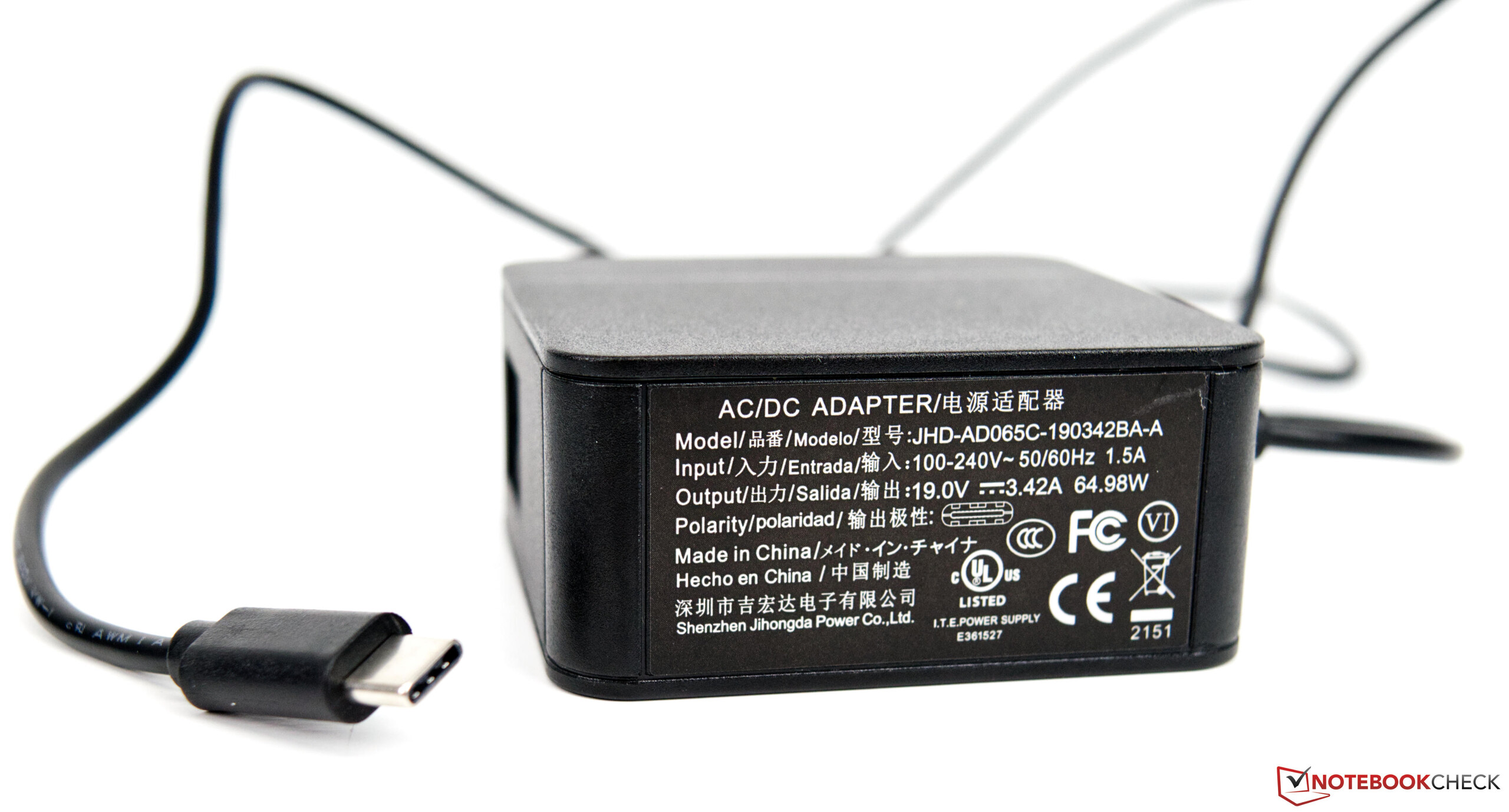

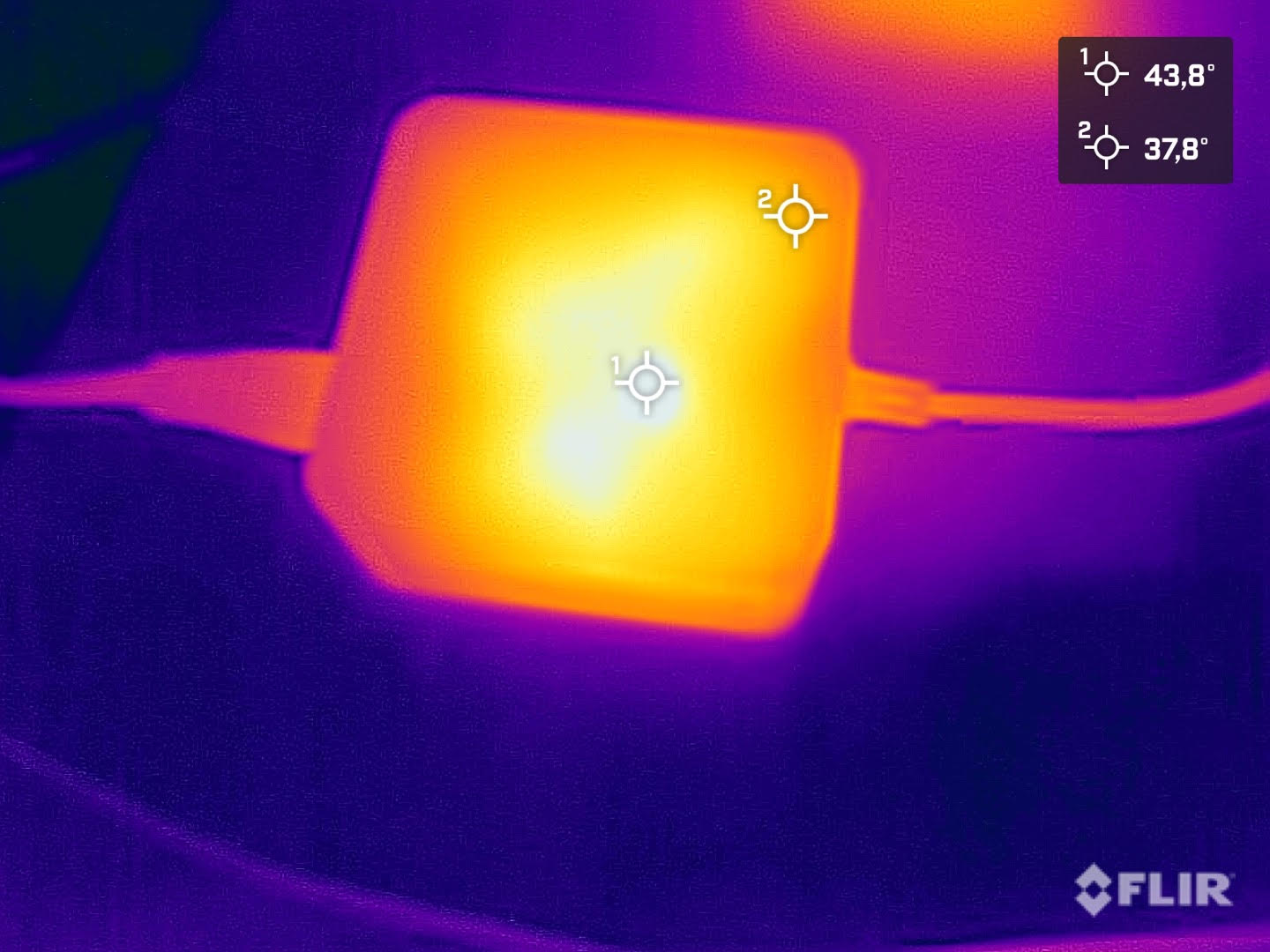

Minisforum EliteMini TH50 - Netzteil

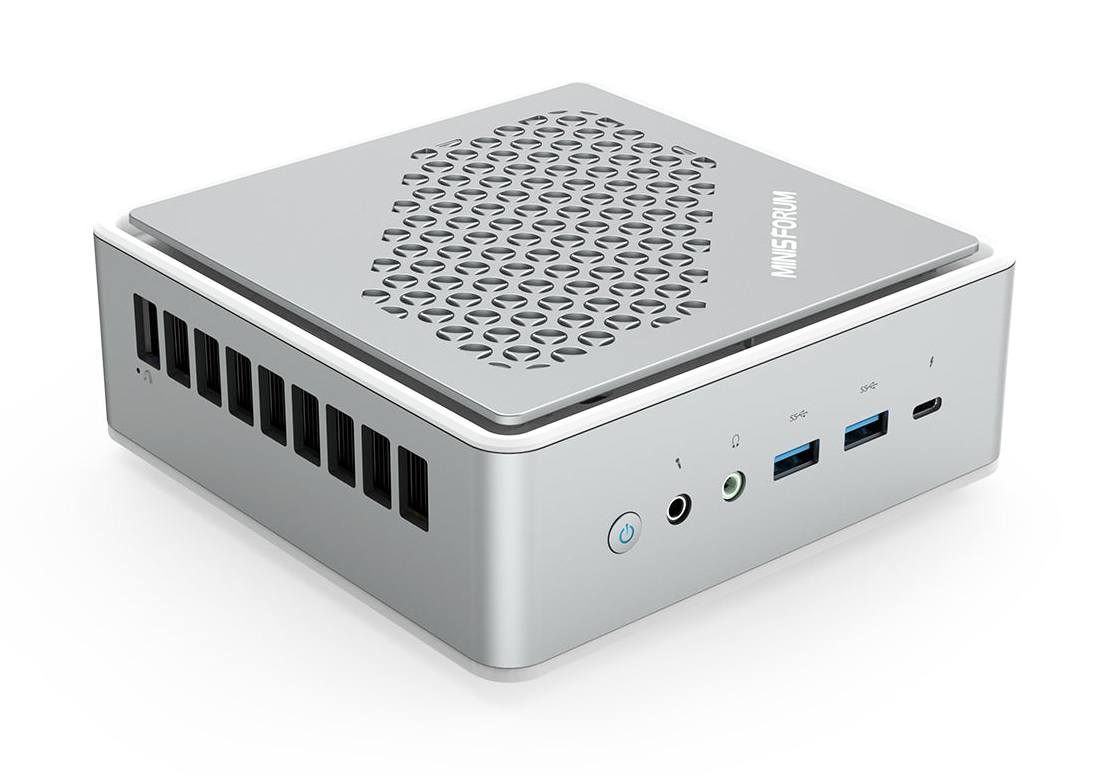

Minisforum EliteMini TH50 (Quelle: Minisforum)
Minisforum EliteMini TH50 (Quelle: Minisforum)
Minisforum EliteMini TH50 (Quelle: Minisforum)
Minisforum EliteMini TH50 (Quelle: Minisforum)
Minisforum EliteMini TH50 (Quelle: Minisforum)

Leistung - Genügend Reserven

Beim Minisforum EliteMini TH50 kommt der Intel Core i5-11320H zum Einsatz. Diesem SoC stehen immer 16-GB-DDR4-RAM zur Seite und bieten somit eine gute Grundlage für jegliche Anwendungen. Die schnelle NVMe-SSD bietet in unserer Ausstattung 512 GB Speicherplatz und sollte auch für die meisten Anwender ausreichend sein. Alternativ kann man den EliteMini TH50 aber auch mit einer 256 GB SSD bekommen. Das geringe Einsparpotenzial macht diese Bestückung aber obsolet.

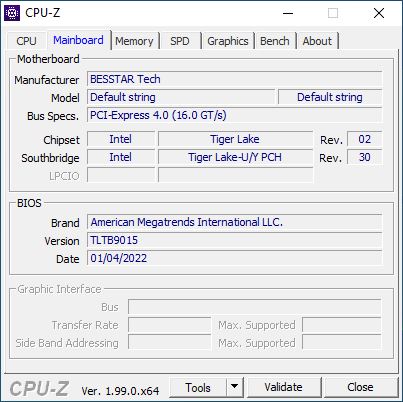

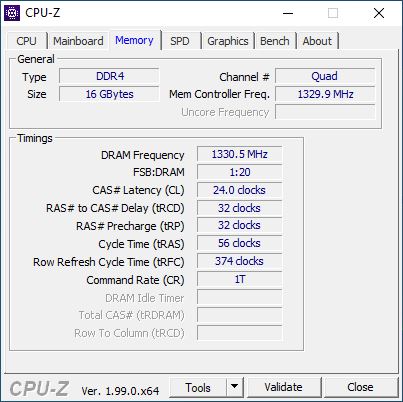

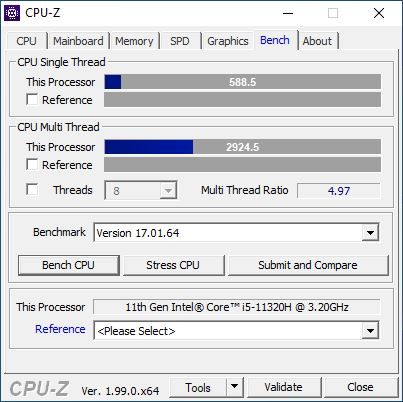

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

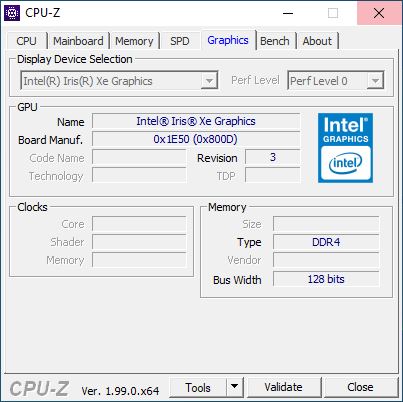

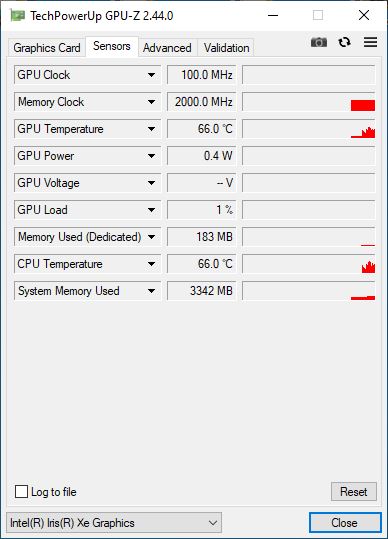

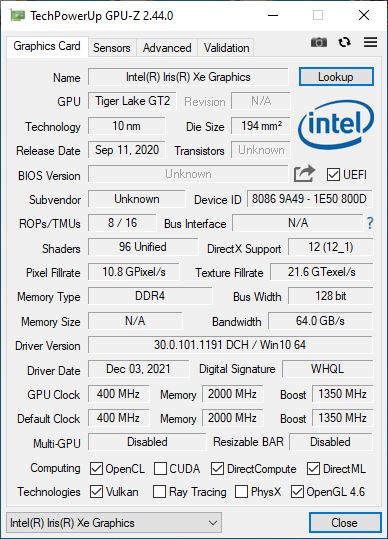

GPU-Z
GPU-Z

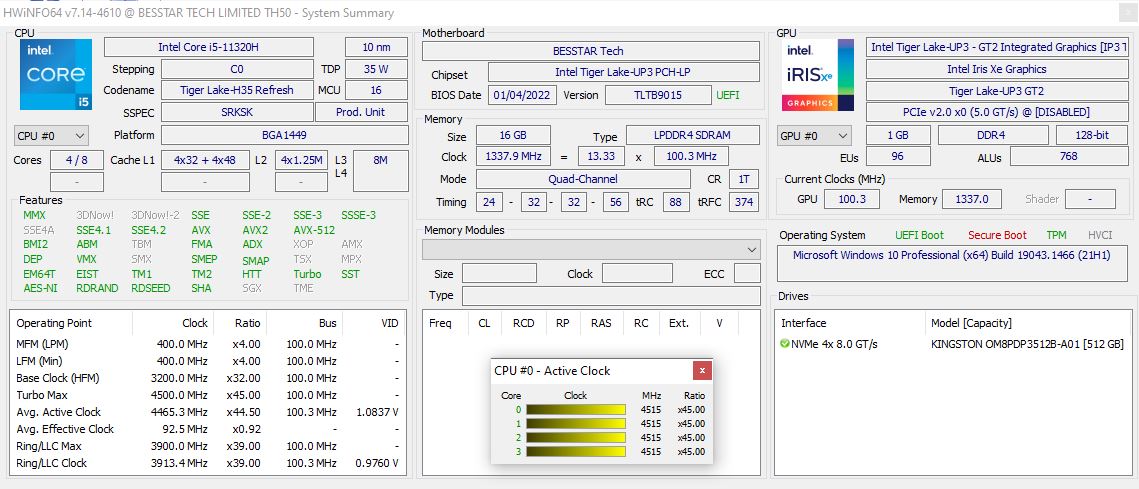

HWiNFO

Prozessor

Das Intel Core i5-11320H gehört zur Tiger-Lake-Serie und stammt aus dem Notebook-Bereich. Das sparsame SoC bietet 4 native Rechenkerne und 8 Threads bei einer TDP von 35 Watt. Durchaus positiv ist die Single-Core-Performance, die oftmals nur wenige Prozente schlechter ist als bei der Konkurrenz mit den deutlich schnelleren SoCs. Bei den Multi-Thread-Benchmarks muss der EliteMini TH50 aber die Kontrahenten mit 6- und 8 Kernen ziehen lassen. Dennoch schlägt sich unser Testsample gut und duelliert sich meistens mit dem Intel NUC10i7FNH

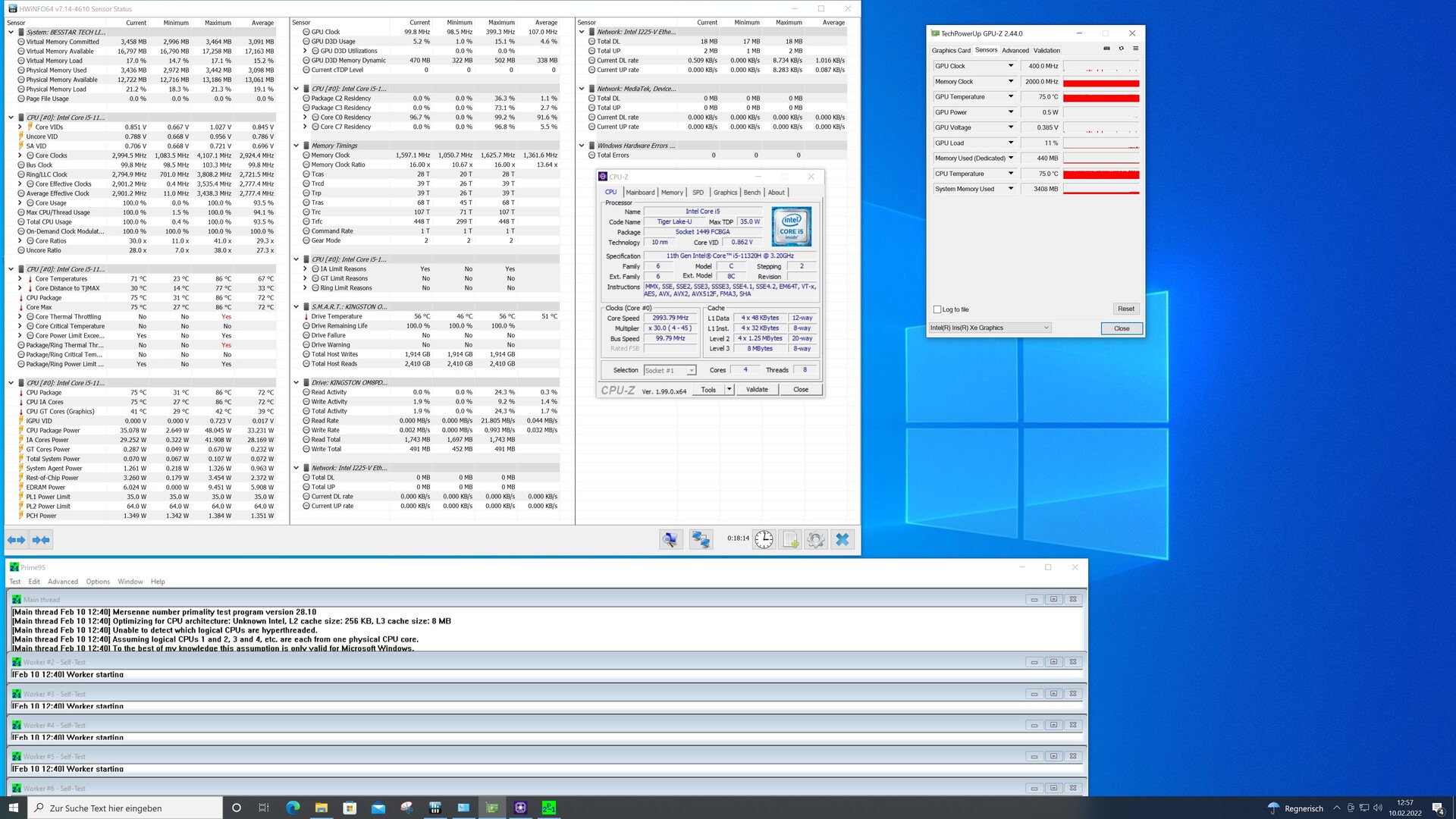

Der Intel Core i5-11320H ist mit 35 Watt Leistungsaufnahme spezifiziert. Dennoch konnten wir unter Last kurzfristig eine Leistungsaufnahme des SoC von bis zu 48 Watt dokumentieren. Dieses ist aber nur von kurzer Dauer, welches auf den Turbo des SoC zurückzuführen ist. Im BIOS des Minisforum EliteMini TH50 lässt sich leider keine weitere Anpassung des Power-Limits einstellen. Dies war bei den AMD basierten Systemen der Fall gewesen. Eine ähnliche Option hätten wir auch bei dem EliteMini TH50 erwartet.

Für weitere Vergleiche und Benchmarks verweisen wir hier auf unsere CPU-Vergleichstabelle.

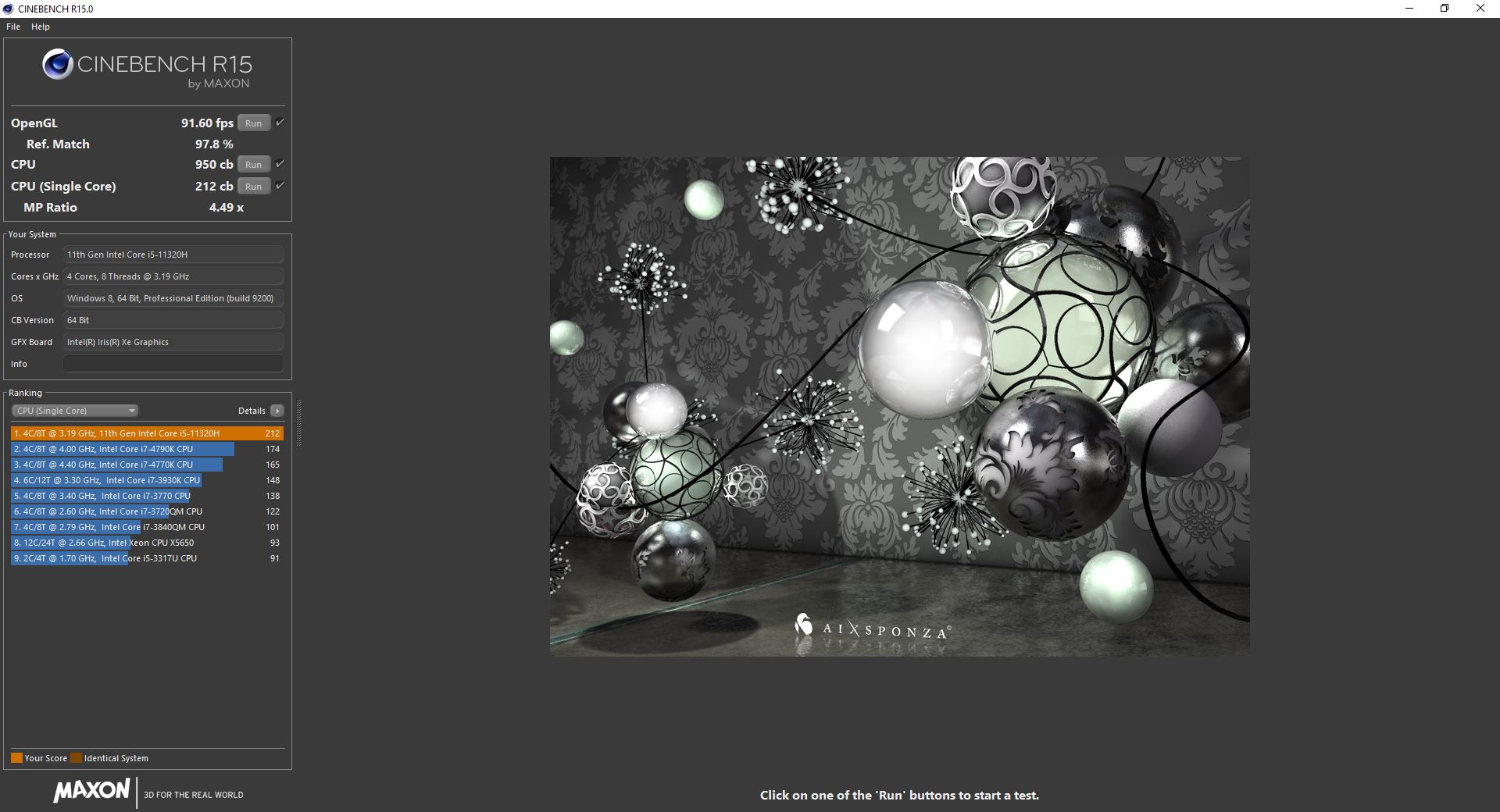

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
242 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
240 Points +13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
215 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
212 Points
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
196 Points -8%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
194 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
194 Points -8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
168 Points -21%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
162 Points -24%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
123 Points -42%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
117 Points -45%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
108 Points -49%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
84 Points -60%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
77 Points -64%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2224 Points +134%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1967 Points +107%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1919 (1862.02min - 1893.4max) Points +102%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1607 Points +69%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1455 Points +53%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1067 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
950 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
790 Points -17%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
319 Points -66%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
316 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
298 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
261 Points -73%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
248 Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
220 Points -77%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
211 (209.9min - 211.39max) Points -78%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
582 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
567 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
560 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
505 Points -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
504 Points -10%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
480 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
428 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
401 Points -28%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
266 Points -52%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
200 Points -64%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
171 Points -69%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5185 Points +124%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4585 Points +98%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4495 Points +94%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
3357 Points +45%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2319 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2303 Points -1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1820 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
743 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
720 Points -69%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
556 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
491 Points -79%

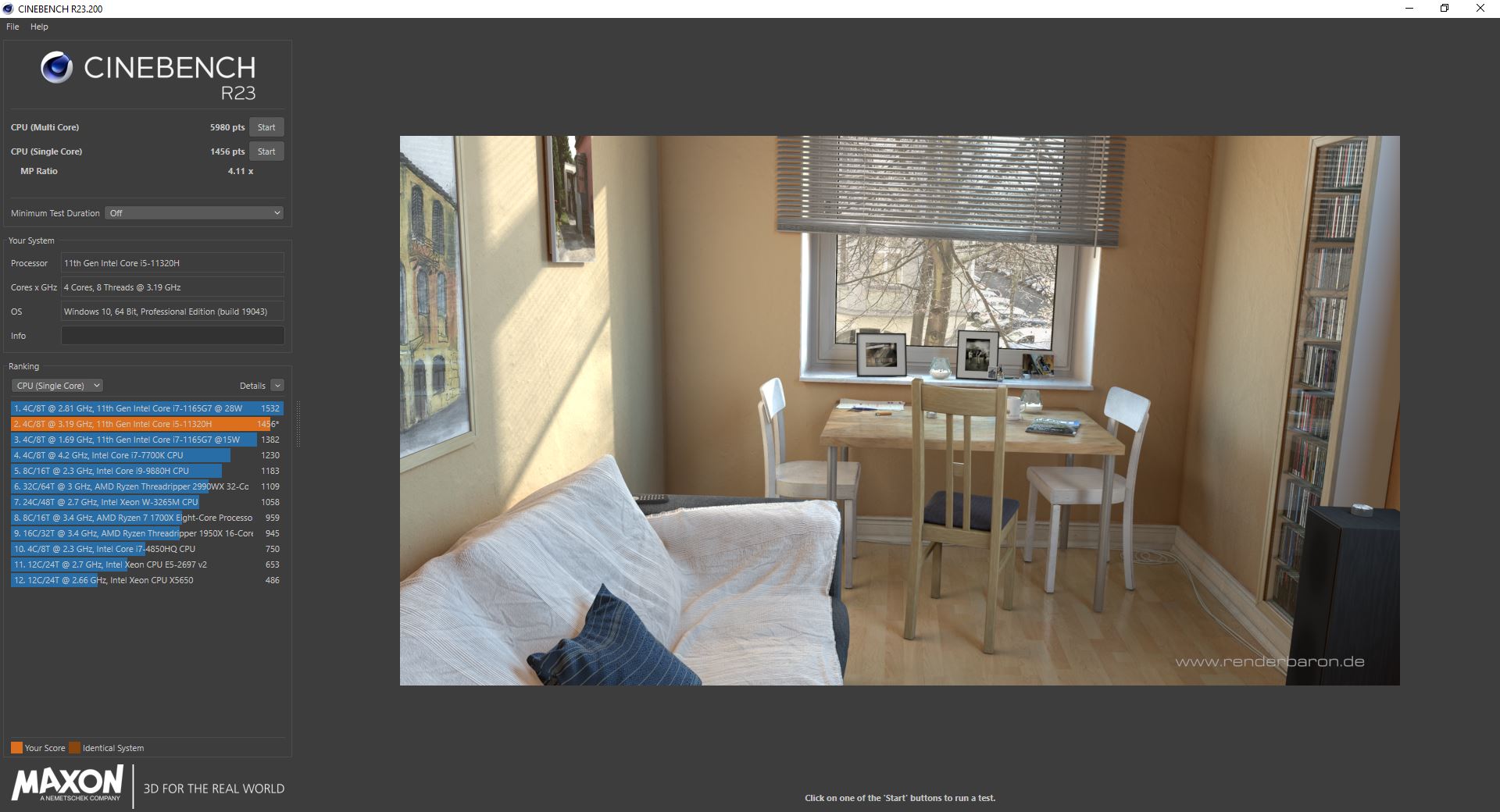

Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1499 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1479 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1456 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1298 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1234 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1031 Points -29%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
696 Points -52%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
660 Points -55%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
411 Points -72%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13430 Points +125%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11792 Points +97%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11440 Points +91%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
8532 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5980 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1910 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1833 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1529 (1521.41min - 1529.3max) Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
834 (768.67min - 833.537max) Points -86%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.86 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.8 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2.51 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
2.4 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
2.26 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.24 Points -11%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.19 Points -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1.91 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.87 Points -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.47 Points -41%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.33 Points -47%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.28 Points -49%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.92 Points -63%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25.6 Points +137%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.03 Points +114%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 Points +104%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
18.04 Points +67%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
16.7 Points +55%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
10.89 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
10.78 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
8.66 Points -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
4.14 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
3.59 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
3.26 Points -70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3.09 Points -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
2.86 Points -73%
Blender - v2.79 BMW27 CPU
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2379 Seconds * -361%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1805 Seconds * -250%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
585 Seconds * -13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
516 Seconds *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
468.3 Seconds * +9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
317.4 Seconds * +38%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
315.4 Seconds * +39%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
265 Seconds * +49%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
247.3 Seconds * +52%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
229.3 Seconds * +56%
wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
732 s * -282%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
620 s * -224%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
615 s * -221%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
566 s * -196%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
558 s * -192%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
543 s * -184%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
217.8 s * -14%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
191.4 s *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
177.4 s * +7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
120.2 s * +37%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
119.5 s * +38%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
106.7 s * +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
91.6 s * +52%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
82.9 s * +57%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
23.1 s * -292%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
19.5 s * -231%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
18 s * -205%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
17.62 s * -199%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
17.37 s * -195%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
17.09 s * -190%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.78 s * -15%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5.895 s *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5.103 s * +13%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4.4 s * +25%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
3.788 s * +36%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.308 s * +44%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
3.257 s * +45%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.194 s * +46%
X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
128 (122min - 128max) fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
112 (112min - 112max) fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
111 (111min - 112max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
92.8 (89.1min - 100max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
84.8 (84.6min - 105max) fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
60.5 (60.4min - 73.5max) fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
49.35 (49.1min - 51.6max) fps
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21.6 (21.5min - 22.1max) fps
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
20.55 (20.4min - 20.7max) fps
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
19.3 fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
16.75 (16.7min - 16.9max) fps
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.46 fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
13.75 fps
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276.5 (274min - 278max) fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
271.5 (259min - 276max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
237.5 (236min - 239max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
236 (235min - 257max) fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
215 (213min - 217max) fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
206 (204min - 208max) fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
184.5 (184min - 186max) fps
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
106.5 (106min - 109max) fps
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
105 fps
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
102 (100min - 118max) fps
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
88.5 fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
78.9 (77.1min - 81.7max) fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
74 fps
TrueCrypt
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +129%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +129%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1.1 GB/s +110%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.1 GB/s +110%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1 GB/s +90%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.57 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.525 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.48 GB/s -9%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.23 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.21 GB/s -60%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.182 GB/s -65%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.166 GB/s -68%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.142 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.133 GB/s -75%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +118%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +118%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1.8 GB/s +96%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1.7 GB/s +85%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.6 GB/s +74%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.919 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.79 GB/s -14%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.403 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.346 GB/s -62%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.283 GB/s -69%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.266 GB/s -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.245 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.199 GB/s -78%
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 GB/s +77%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10.3 GB/s +69%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10.1 GB/s +66%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +21%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.1 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.7 GB/s -23%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
4.6 GB/s -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.6 GB/s -57%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.9 GB/s -69%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.9 GB/s -69%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.7 GB/s -72%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.5 GB/s -75%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1.3 GB/s -79%
Geekbench 4.4
64 Bit Multi-Core Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32434 Points +47%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
32174 Points +46%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31724 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
29385 Points +33%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28402 Points +29%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
22969 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
22045 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
13949 Points -37%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
5468 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
5399 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
5066 Points -77%
64 Bit Single-Core Score
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6434 Points +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6365 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6238 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
5969 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
5726 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5287 Points -15%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5271 Points -16%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
3680 Points -41%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2613 Points -58%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2555 Points -59%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1922 Points -69%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.9 fps +102%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.5 fps +84%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 fps +64%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
11.6 fps +48%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.4 fps +45%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
7.95 fps +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
7.86 fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.28 fps -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.65 fps -79%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.48 fps -81%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0 fps -100%
3DMark 11 - 1280x720 Performance Physics
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16783 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16422 Points +41%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
15497 Points +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13940 Points +20%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12199 Points +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
11662 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
11443 Points -2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
7679 Points -34%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
4420 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
3863 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
3765 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3659 Points -69%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
3072 Points -74%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2794 Points -76%
LibreOffice - 20 Documents To PDF
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
143 s * -194%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
92.9 s * -91%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
66 s * -36%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
59.5 s * -22%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 s * -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.3 s * -1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
48.7 s *
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
45.23 s * +7%

* ... kleinere Werte sind besser

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23

Cinebench-R15-Multi-Schleife

Beim Lasttest mit der Cinebench-R15-Multi-Schleife kann der Minisforum EliteMini TH50 den Intel Core i5-11320H gut im Zaum halten. Nach dem ersten Durchlauf reduziert sich die Leistung leicht und bleibt dann weitestgehend stabil. Mit durchschnittlich 896 Punkten liegt unser Testsample nur knapp hinter dem Intel NUC10i7FNH mit 6 Kernen und 12 Threads.

0801602403204004805606407208008809601040112012001280136014401520Tooltip
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)
Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)
Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)
Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

System Performance und Rendertests

Bei den synthetischen Benchmarks duelliert sich unser Minisforum EliteMini TH50 wieder einmal mit dem Intel NUC10i7FNH. Aufgund der schnelleren SoCs der anderen Vergleichsgeräte ist eine bessere Platzierung hier nicht möglich. Dennoch schlägt sich der EliteMini TH50 gut und der Rückstand auf den EliteMini HM90 ist nicht sehr hoch. Die gemessenen Latenzen unter Last und bei der Wiedergabe von 4K-Videomaterial sind sehr gut und es gibt keine Aussetzer. Die Intel Iris Xe Graphics G7 iGPU wird bei der Wiedergabe zu ca. 26 Prozent ausgelastet. Auch nach dem Start von Prime 95 erhöhen sich die Latenzen nicht sonderlich.

Was mit einem externen GPU-Dock und der verwendeten Nvidia GeForce RTX 3060 zu erwarten ist kann man hier schon einmal eindrucksvoll sehen, wenn man sich die Ergebnisse von LuxMark und ComputeMark anschaut. Bei den SPECviewprf-Benchmarks kann das volle Potenzial der externen Grafikkarte nicht umgesetzt werden.

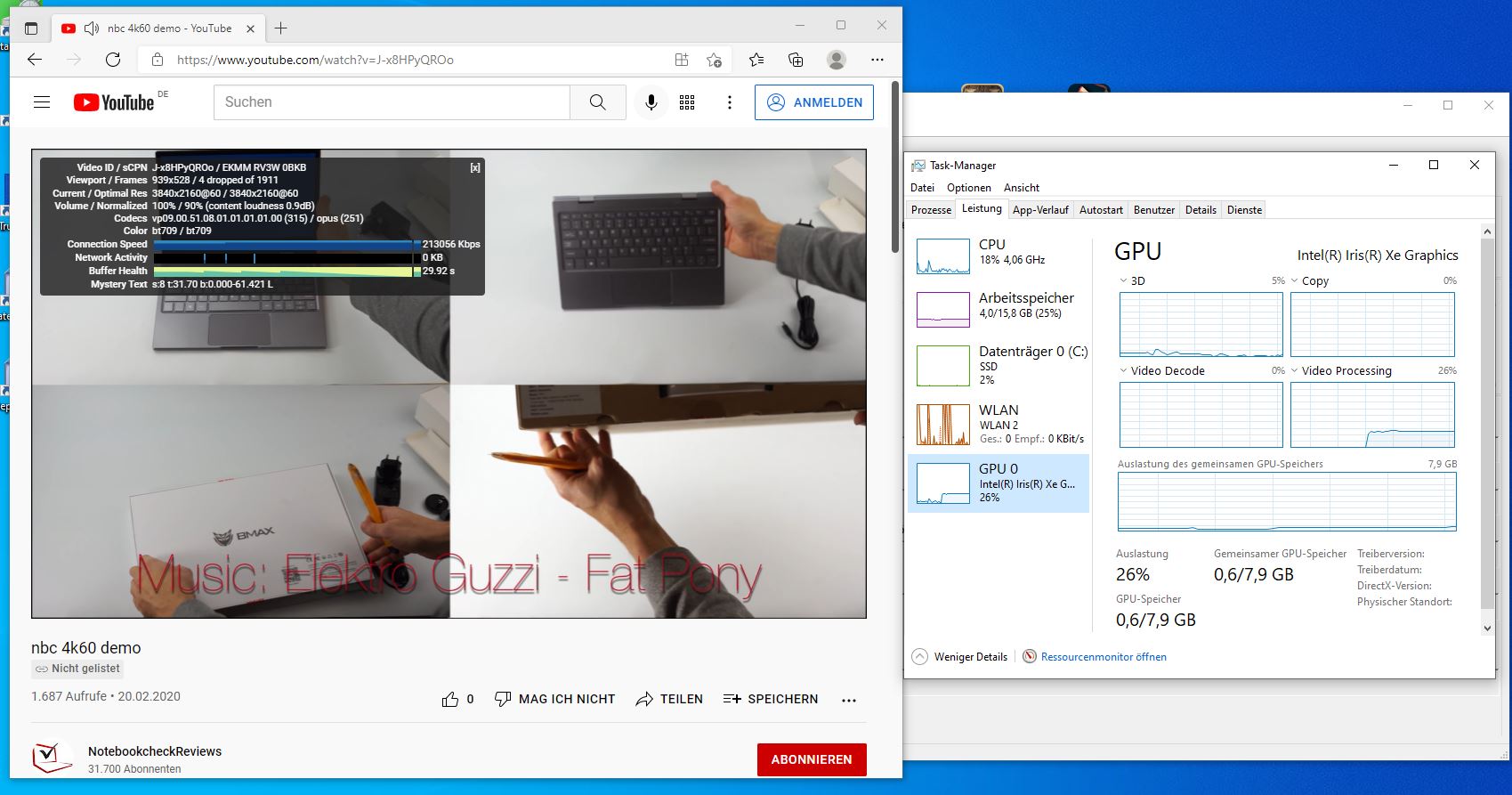

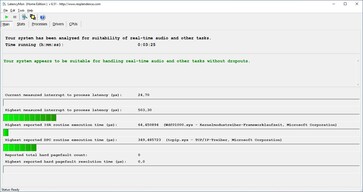

Maximale Latenz beim Öffnen mehrerer Browser-Tabs und beim Abspielen von 4K-Videomaterial.
Maximale Latenz beim Öffnen mehrerer Browser-Tabs und beim Abspielen von 4K-Videomaterial.
Maximale Latenz nach zehn Sekunden Prime95
Maximale Latenz nach zehn Sekunden Prime95
PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
6939 Points +35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points +27%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
6499 Points +27%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points +23%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
5697 Points +11%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5565 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5130 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
4418 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4019 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2958 Points -42%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points -50%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2391 Points -53%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1806 Points -65%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10196 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9856 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
8581 Points +26%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8277 Points +21%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
8136 Points +19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
7447 Points +9%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
6876 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6832 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6494 Points -5%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5397 Points -21%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
4084 Points -40%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3854 Points -44%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2928 Points -57%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10797 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10321 Points +8%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10087 Points +6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
9846 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
9556 Points
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
9059 Points -5%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9026 Points -6%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
9013 Points -6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
8235 Points -14%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
6210 Points -35%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
5446 Points -43%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
5419 Points -43%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
4693 Points -51%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10161 Points +81%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9785 Points +74%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7105 Points +27%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
6808 Points +21%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6794 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6262 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5615 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
3777 Points -33%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
3296 Points -41%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2139 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2097 Points -63%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1677 Points -70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1165 Points -79%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3767 μs * -978%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * -654%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * -365%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1581 μs * -352%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -216%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -216%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
349.5 μs *
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
82.3 fps +121%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64.5 fps +73%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
61.8 fps +66%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
59.2 fps +59%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.3 fps +32%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
47.8 fps +28%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
37.3 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
28.71 fps -23%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
26.2 fps -30%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
23.86 fps -36%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.55 fps -56%
1900x1060 Siemens NX (snx-02)
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.1 fps +513%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.1 fps +484%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps +377%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
12 fps +249%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9.08 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
7.39 fps +115%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3.44 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.98 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.67 fps -22%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2.6 fps -24%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
2.48 fps -28%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
72.6 fps +295%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.4 fps -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.3 fps -28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
8.8 fps -52%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
8.35 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.81 fps -63%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
5.56 fps -70%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
49 fps +341%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
40.14 fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
24.9 fps +124%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.8 fps +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.2 fps +10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
11.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.91 fps -74%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2.7 fps -76%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.62 fps -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.61 fps -85%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
200 fps +410%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
171 fps +336%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
66 fps +68%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
39.2 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.8 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31 fps -21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.6 fps -32%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
17 fps -57%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.71 fps -60%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
13.02 fps -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
3.33 fps -92%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
13.1 fps +2947%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.49 fps +2572%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
8.21 fps +1809%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.19 fps +409%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.52 fps +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.5 fps +16%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.43 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.28 fps -35%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.23 fps -47%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.09 fps -79%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.08 fps -81%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
61.5 fps +635%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
52.2 fps +524%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
45.4 fps +442%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.2 fps +344%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.9 fps +329%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.9 fps +257%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
14.42 fps +72%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.93 fps +54%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
10.8 fps +29%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
9.89 fps +18%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
8.37 fps
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
117 fps +215%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
78.3 fps +111%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
63.1 fps +70%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.2 fps +11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
37.1 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32.7 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
16.55 fps -55%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
15.5 fps -58%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
14.12 fps -62%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
11.3 fps -70%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +449%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
180.8 fps +366%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
98 fps +153%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43.7 fps +13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
38.8 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.4 fps -4%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.22 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.92 fps -67%
SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
114 fps +129%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
85.4 fps +72%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
73.2 fps +47%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.7 fps +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
69.6 fps +40%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
57.4 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
49.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
37.6 fps -24%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
31.48 fps -37%
Siemens NX (snx-03)
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.2 fps +517%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.3 fps +486%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.6 fps +378%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
21.9 fps +254%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16.33 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
13.4 fps +116%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.19 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5.37 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.8 fps -22%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
72.9 fps +296%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.3 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.1 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.5 fps -27%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
8.34 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.81 fps -63%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
78.3 fps +498%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
56.4 fps +331%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
44.9 fps +243%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.2 fps +62%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.2 fps +47%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps +25%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
13.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.23 fps -83%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.12 fps -84%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
367 fps +834%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
281 fps +615%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
141 fps +259%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48.6 fps +24%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
39.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.9 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.1 fps -11%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
22.97 fps -42%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
18.97 fps -52%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
28.2 fps +675%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
21.83 fps +500%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
13.1 fps +260%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6.93 fps +90%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3.64 fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1.42 fps -61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.88 fps -76%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.82 fps -77%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.73 fps -80%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
241 fps +605%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
183.8 fps +437%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
111 fps +225%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 fps +47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
44.9 fps +31%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps +10%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
34.2 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
18.88 fps -45%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
16.77 fps -51%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
171 fps +223%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
113.7 fps +115%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
92.9 fps +76%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
59.3 fps +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
52.9 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
52.2 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
46.4 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
23.37 fps -56%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
19.97 fps -62%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +453%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
178.6 fps +364%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
97.7 fps +154%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
42.9 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
38.5 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.8 fps -2%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.01 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.71 fps -67%
ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
20018 Points +486%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +2%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3414 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1476 Points -57%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1134 Points -67%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
964 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
964 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
959 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
696 Points -80%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
631 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
337 Points -90%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
2016 Points +559%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
306 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -23%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
128 Points -58%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
128 Points -58%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
86 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
86 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
86 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
67 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
54 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
44 Points -86%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
1958 Points +571%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
292 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points -7%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -21%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
126 Points -57%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
105 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
105 Points -64%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
103 Points -65%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
83 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
82 Points -72%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
63 Points -78%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
42 Points -86%
1024x600 Normal, Mandel Vector
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
4163 Points +446%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points +68%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points +40%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
763 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
250 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
211 Points -72%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
189 Points -75%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
189 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
186 Points -76%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
147 Points -81%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
140 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
79 Points -90%
1024x600 Normal, Mandel Scalar
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
4367 Points +412%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points +31%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points +13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
853 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
428 Points -50%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
262 Points -69%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
226 Points -74%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
223 Points -74%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
223 Points -74%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
137 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
135 Points -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
54 Points -94%
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
7514 Points +526%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points 0%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1200 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -16%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
543 Points -55%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
430 Points -64%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
379 Points -68%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
362 Points -70%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
362 Points -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
272 Points -77%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
230 Points -81%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
118 Points -90%
LuxMark v2.0 64Bit
Room GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
1647 Samples/s +138%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
693 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s -21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -35%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
306 Samples/s -56%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
291 Samples/s -58%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
291 Samples/s -58%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
188 Samples/s -73%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
163 Samples/s -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
146 Samples/s -79%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
109 Samples/s -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
76 Samples/s -89%
Sala GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
6513 Samples/s +181%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2320 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s -45%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -60%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -60%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
736 Samples/s -68%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
736 Samples/s -68%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
702 Samples/s -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
404 Samples/s -83%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
397 Samples/s -83%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
379 Samples/s -84%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
266 Samples/s -89%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
129 Samples/s -94%

* ... kleinere Werte sind besser

Massenspeicher

512-GB-Kingston-SSD
512-GB-Kingston-SSD

Unser Testsystem ist mit einer 512 GB großen NVMe SSD ausgestattet, was auch das Topmodell des EliteMini TH50 entspricht. Ab Werk gibt es keine größerer SSD, was aber nicht bedeutet, dass man diese selbst austauschen kann. Dennoch sollten die 512 GB Speicherplatz reichen. Immerhin stehen dem Nutzer abzüglich der Windows Installation noch 450 GB zur Verfügung.

Die hier verbaute SSD nutzt den M.2-2280-Steckplatz und bietet dank NVMe sehr hohe Transferraten. Sehr gut gefällt uns der 4K-Lesewert mit über 60 MB/s. Alternativ kann man in der Bodenplatte noch zwei Massenspeicher im 2,5-Zoll-Format installieren. Alle nötigen Halterungen, Schrauben und Anschlusskabel befinden sich im Lieferumfang.

AS SSD
AS SSD
CDM3
CDM3
CDM5
CDM5
CDM6
CDM6
CDI
CDI

Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8

012024036048060072084096010801200132014401560168018001920204021602280Tooltip
Minisforum EliteMini TH50: Ø1905 (1097.76-2359.4)

Grafikkarte

Als integrierte Grafikeinheit des Intel Core i5-11320H dient die Intel Iris Xe Graphics G7 mit 96EUs. Im Großen und Ganzen spiegelt die hier an den Tag gelegte Leistung genau das wider, was man von dieser iGPU erwarten kann. Verglichen mit AMDs Radeon RX Vega 8 kann die Intel iGPU aber sehr gut mithalten und sich oftmals sogar davor platzieren.

Auch hier haben wir die GPU-Leitung mithilfe des Razer Core X und einer Nvidia GeForce RTX 3060 ermittelt und gute Ergebnisse erzielen können. Erstaunlicherweise waren die Werte besser als bei dem Zotac Magnus One mit verbauter Nvidia GeForce RTX 3070

Weitere Benchmarks zu der Intel Iris Xe Graphics G7 finden Sie hier.

3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
40950 Points +528%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
28828 Points +342%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
24369 Points +274%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6518 Points
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (2867 - 7471, n=193)
6342 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points -3%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (3459 - 7591, n=53)
5920 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5567 Points -15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1983 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1853 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points -80%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points -91%
3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
441161 Points +635%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
326331 Points +444%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
286573 Points +378%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points +185%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (96941 - 231980, n=18)
154016 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points +118%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
100414 Points +67%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (35195 - 214326, n=39)
90880 Points +51%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
79747 Points +33%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
60011 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
58199 Points -3%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points -32%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points -57%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points -64%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
376770 Points +646%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
289413 Points +473%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
284001 Points +462%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points +141%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (84227 - 147236, n=14)
111810 Points +121%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points +102%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
84227 Points +67%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (35612 - 144112, n=25)
70045 Points +39%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
50500 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
48446 Points -4%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points -19%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
40532 Points -20%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points -48%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points -59%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points -72%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
30090 Points +536%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
20775 Points +339%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
18711 Points +296%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (2286 - 6143, n=206)
4903 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
4730 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points -20%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1694 - 5041, n=53)
3677 Points -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3414 Points -28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points -69%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1418 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1202 Points -75%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points -78%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points -81%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points -91%
Unigine Heaven 4.0
Extreme Preset DX11
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
196.4 fps +743%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
141.3 fps +506%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
23.3 fps
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (17.7 - 27.5, n=16)
23.3 fps 0%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.4 fps -8%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (15.4 - 24.4, n=9)
19.9 fps -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.4 fps -34%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2.4 fps -90%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.4 fps -90%
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
187.5 fps +708%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
132.9 fps +473%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
23.2 fps
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (17.3 - 26.3, n=16)
22.8 fps -2%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.6 fps -16%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (13.5 - 22.8, n=8)
18.8 fps -19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.2 fps -30%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.5 fps -42%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2.2 fps -91%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.2 fps -91%
Unigine Valley 1.0
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
140.2 fps +782%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
99.6 fps +526%
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (11.7 - 21.1, n=14)
16.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
15.9 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.8 fps -19%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (8.8 - 14.7, n=8)
12.1 fps -24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.7 fps -33%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8.8 fps -45%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
6.3 fps -60%
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
157.5 fps +957%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
112.8 fps +657%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
14.9 fps
Durchschnittliche Intel Iris Xe Graphics G7 96EUs
  (11.3 - 17.2, n=14)
14.8 fps -1%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.2 fps -5%
Durchschnittliche AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (10 - 16.4, n=8)
13.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.6 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10 fps -33%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
6.5 fps -56%
3DMark 05 Standard
36918 Punkte
3DMark 06 Standard Score
27809 Punkte
3DMark Vantage P Result
22253 Punkte
3DMark 11 Performance
6905 Punkte
3DMark Ice Storm Standard Score
61362 Punkte
3DMark Cloud Gate Standard Score
17814 Punkte
3DMark Fire Strike Score
4340 Punkte
3DMark Fire Strike Extreme Score
2149 Punkte
3DMark Time Spy Score
1777 Punkte
Hilfe

Gaming Performance

Minisforum bewirbt den EliteMini TH50 nicht explizit als Gaming-PC. Dennoch finden sich auf der Homepage einige Werte, die die Spieleleistung verdeutlichen sollen. Wer sich den EliteMini TH50 sollte bedenken, dass die verbaute Intel Iris Xe Graphics G7 nur eine einfache iGPU ist. Die Performance ist mit der iGPu des AMD Ryzen 9 5900HX vergleichbar, wenn wir uns an dieser Stelle einmal nur auf die Spieleleistung beziehen.

Mit der Thunderbolt-Option stehen dem Anwender nun aber weiter Möglichkeiten zur Verfügung, die 3D-Performance mit Hilfe externer GPU-Docks zu verbessern. Wir haben hier den EliteMini TH50 einmal mit dem Razer Core X, betückt mit einer Nvidia GeForce RTX 3060, verbunden und geschaut, was in Sachen Spieleleistung zu erwarten ist. Klar ist, dass die Leistung nicht mit einem herkömmlichen Desktop-System vergleichbar ist. Bei den getesteten Spielen lag die Leistung etwa 40 Prozent unterhalb unseres Testsystems (Basis: AMD Ryzen 9 5900X), welches wir für unsere Grafikkarten Tests nutzen. Der Nutzen gegenüber der iGPU ist aber dennoch sehr deutlich. Alle getesteten Spiele sind auch mit dem Intel Core i5-11320H in Verbindung mit unserem Razer Core X und der Nvidia GeForce RTX 3060 flüssig spielbar. Dasist ein deutlicher Mehrwert gegenüber den AMD basierten Mini-PCs, die bislang noch ohne Thunderbolt auskommen müssen. In naher Zukunft könnte das aber Geschichte sein, denn die neuen AMD APUs sollen zukünftig auch die moderne Schnittstelle nutzen können.

Performance Rating - Percent
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
97.5 pt
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060 -1!
96 pt
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
69 pt
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.8 pt
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
20.3 pt
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 pt
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
111 (4.48min, 76.9P1 - 235max) fps +988%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1 - 206max) fps +920%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
77.1 (6.65min, 50P1 - 157max) fps +656%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.2 (7.37min, 10.8P1 - 37.9max) fps +49%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12 (3.91min, 8.93P1 - 33.5max) fps +18%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
10.2 (4.22min, 6.37P1 - 90.8max) fps
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
63.3 (22.3min, 40.7P0.1, 51.3P1 - 358max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
52.4 (36.2min, 37.9P0.1, 42.8P1 - 115max) fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.4 (14min, 14.2P0.1, 14.7P1 - 22.5max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
15.5 (6.52min, 7.57P0.1, 9.58P1 - 59max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 (8.07min, 10.9P0.1, 12P1 - 59.1max) fps -7%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
159.7 (126.4min) fps +191%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
147.1 (126min) fps +168%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
110.5 (94.3min) fps +102%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
62.8 (57.5min) fps +15%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
54.8 (47.9min) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.9 (43.8min) fps -9%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
88.6 fps +282%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
88.6 fps +282%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
70.8 fps +205%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
23.2 fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16 fps -31%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.6 fps -41%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
112 fps +416%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
105 fps +384%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
73.4 fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
40.1 fps +85%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37 fps +71%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
21.7 fps
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
132 (109min - 150max) fps +428%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
122 (93min - 151max) fps +388%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
88 (67min - 116max) fps +252%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25 (23min - 32max) fps 0%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
25 (22min - 29max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (17min - 23max) fps -24%
Far Cry New Dawn - 1920x1080 Ultra Preset
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
112 (83min - 146max) fps +348%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
102 (72min - 145max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
73 (52min - 111max) fps +192%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
25 (18min - 31max) fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24 (19min - 30max) fps -4%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (14min - 24max) fps -24%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1 - 215max) fps +521%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
153 (43.4min, 116P1 - 214max) fps +517%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
114 (56min, 73.9P1 - 191max) fps +360%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27.6 (21.9min, 22.5P1 - 39max) fps +11%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
24.8 (8min, 8.72P1 - 317max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.9 (18.2min, 19.2P1 - 34.3max) fps -4%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
59.8 (30.99min - 119.9max) fps +416%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
55.1 (32.45min - 87.42max) fps +375%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
37.8 (17.54min - 83.29max) fps +226%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13 (7.31min - 18.99max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
11.6 (6.55min - 19.58max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 (5.78min - 15.68max) fps -7%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
100 fps +777%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
78.5 fps +589%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
58.5 fps +413%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.8 fps +21%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
11.4 fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.3 fps -1%
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
142 (114min - 171max) fps +509%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
142 (114min - 171max) fps +509%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
87.8 (55min - 111max) fps +277%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28.4 (21min - 36max) fps +22%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.3 (18min - 30max) fps +4%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
23.3 (16min - 29max) fps
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
104 (88min, 88P1 - 117max) fps +288%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1 - 107max) fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
75.1 (52min, 54P1 - 85max) fps +180%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27 (22min, 22P1 - 31max) fps +1%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
26.8 (22min, 22P1 - 30max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 (17min, 17P1 - 25max) fps -18%

Legende


Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1

Intel Beast Canyon NUC Intel Core i9-11900KB, NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB

Inno3D GeForce RTX 3060 Twin X2 AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3060, Corsair MP600

Minisforum EliteMini TH50 (RTX 3060 via TB) Intel Core i5-11320H, NVIDIA GeForce RTX 3060,

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB

Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
min. mittel hoch max.
GTA V (2015) 99.2 85.3 26 10.2
The Witcher 3 (2015) 89.8 56.5 29.5 15.5
Dota 2 Reborn (2015) 125.3 90 60.5 54.8
Final Fantasy XV Benchmark (2018) 43.2 23.2 23.2
X-Plane 11.11 (2018) 27.3 25.5 21.7
Far Cry 5 (2018) 55 29 27 25
Strange Brigade (2018) 87.5 37.3 30.5 24.8
Far Cry New Dawn (2019) 48 29 27 25
Metro Exodus (2019) 40.4 20.6 14.8 11.6
Borderlands 3 (2019) 51.7 24.3 15.1 11.4
F1 2020 (2020) 93.1 47.7 36.4 23.3
F1 2021 (2021) 105 50.3 40.1 26.8
God of War (2022) 21 18.8 15.2 10.1
Dying Light 2 (2022) 16.8 13.8 11.7
GRID Legends (2022) 66.4 45.4 36.6 26.9
Elden Ring (2022) 45.5 41.5 33.6 27.9
Cyberpunk 2077 1.6 (2022) 17.8 15.4 12.2 10.1
Elex 2 (2022) 20.4 18.3 16.3 14.6
min. mittel hoch max.
GTA V (2015) 166 160 135 77.1
The Witcher 3 (2015) 219 133 80 52.4
Dota 2 Reborn (2015) 135.5 117.1 113.2 110.5
Final Fantasy XV Benchmark (2018) 137 102 70.8
X-Plane 11.11 (2018) 95.8 88 73.4
Far Cry 5 (2018) 118 98 95 88
Strange Brigade (2018) 170 130 121 114
Far Cry New Dawn (2019) 100 86 80 73
Metro Exodus (2019) 110 66.9 50 37.8
Borderlands 3 (2019) 112 94.2 73.4 58.5
F1 2020 (2020) 180 111 111 87.8
F1 2021 (2021) 184 163 128 75.1

Emissionen & Energie

Temperatur

Minisforum setzt beim EliteMini TH50 genauso wie beim EliteMini HM90 auf einen Axiallüfter, der von oben die kalte Lust ansaugt und nach unten auf den Kühlkörper presst, sodass die warme Luft seitlich aus dem Gehäuse entweichen kann. Das Prinzip ist durchdacht und funktioniert sehr gut. Bei voller Last haben wir beim Intel Core i5-11320H maximal 86 °C erreicht. Somit rangiert das SoC deutlich im grünen Bereich. Da der Stresstest hier ein extremes Szenario darstellt ist im Normalbetrieb mit deutlich geringeren Temperaturen zu rechnen. Einen negativen Einfluss hatte die Dauerbelastung jedoch nicht. Das Ergebnis des 3DMark11-Benchmarks liegt im Vergleich zum Kaltstart auf gleichem Niveau und schwankt nur im Bereich der Messtoleranzen um wenige Punkte.

Stresstest: Prime95 solo
Stresstest: Prime95 solo
Stresstest: FurMark solo
Stresstest: FurMark solo
Stresstest: FurMark+Prime95
Stresstest: FurMark+Prime95
Wärmeentwicklung beim Stresstest
Wärmeentwicklung beim Stresstest
Wärmeentwicklung beim Stresstest
Wärmeentwicklung beim Stresstest
Wärmeentwicklung beim Stresstest (Netzteil)
Wärmeentwicklung beim Stresstest (Netzteil)

Geräuschemissionen

Aufgrund der durchdachten Kühlkonstruktion ist auch die gemessene Geräuschbelastung unter Last moderat. Im Leerlauf arbeitet das Gerät fast lautlos und auch unter Last pendelt sich die Lüfterlautstärke bei knapp 32,5 dB(A) ein. Dennoch ist ein deutliches Auftouren zu Beginn wahrnehmbar. Hier haben wir knapp 41 dB(A) gemessen, die aber nur von sehr kurzer Dauer sind.

Geräuschemissionen (Umgebung)
Geräuschemissionen (Umgebung)
Geräuschemissionen (Leerlauf)
Geräuschemissionen (Leerlauf)
Geräuschemissionen (Stresstest: FurMark+Prime95)
Geräuschemissionen (Stresstest: FurMark+Prime95)

Lautstärkediagramm

Idle
30.8 / 32.1 / 32.9 dB(A)
Last
33.9 / 41.4 dB(A)
  red to green bar


30 dB
leise
40 dB(A)
deutlich hörbar
50 dB(A)
störend

min: dark, med: mid, max: light   Earthworks M23R, Arta (aus 15 cm gemessen)   Umgebungsgeräusche: 30.2 dB(A)
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
Geräuschentwicklung
-1%
6%
aus / Umgebung *
30.2
30.1
-0%
30.8
-2%
Idle min *
30.8
Idle avg *
32.1
33.15
-3%
31.6
2%
Idle max *
32.9
Last avg *
33.9
Last max *
41.4
41.63
-1%
33.4
19%

* ... kleinere Werte sind besser

Energieaufnahme

Beim Energiebedarf macht der Minisforum EliteMini TH50 eine sehr gute Figur. Aufgrund des sparsamen SoC ist das System auch unter Last mit durchschnittlich 52,7 Watt recht sparsam. Kurzfristig muss das Netzteil aber bis zu 72 Watt kompensieren. Werden aber noch zwei zusätzlichen Datenträger eingebaut, könnte es für das Netzteil langsam eng werden. Hier hätten wir uns lieber ein Netzteil mit bis zu 90 Watt Leistung gewünscht.

Energieverbrauch ausgeschaltet
Energieverbrauch ausgeschaltet
Energieverbrauch im Leerlauf
Energieverbrauch im Leerlauf
Energieverbrauch beim Stresstest (Prime95)
Energieverbrauch beim Stresstest (Prime95)
Energieverbrauch beim Stresstest (FurMark)
Energieverbrauch beim Stresstest (FurMark)
Energieverbrauch beim Stresstest (FurMark und Prime95)
Energieverbrauch beim Stresstest (FurMark und Prime95)
Energieverbrauch beim Spielen (The Witcher 3 Ultra Preset)
Energieverbrauch beim Spielen (The Witcher 3 Ultra Preset)
Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
326.2 (316min - 333max) Watt * -1991%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
251.9 (242min - 270max) Watt * -1515%
Morefine S500+
58.3 (53.2min, 55.8P1 - 69.7max) Watt * -274%
Minisforum EliteMini HX90 (Idle: 6.3 W)
56.2 (52.1min, 53.3P1 - 79.8max) Watt * -260%
Minisforum HM90 (Idle: 9.8 W)
47.47 (44min - 78max) Watt * -204%
Intel NUC10i7FNH (Idle: 8.4 W)
46.6 (45min - 68max) Watt * -199%
Intel NUC10i5FNK (Idle: 15.7 W)
37.8 (35min - 63max) Watt * -142%
MSI Cubi 5 10M (Idle: 8 W)
25.17 (25min - 26max) Watt * -61%
Minisforum EliteMini TH50
15.6 (15min, 15.1P1 - 19.6max) Watt *
Prime95 V2810 Stress (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
116.3 (110min - 238max) Watt * -121%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
109.4 (107min - 151max) Watt * -108%
Minisforum EliteMini HX90 (Idle: 6.3 W)
86.9 (77.4min, 79.5P1 - 109max) Watt * -65%
Minisforum HM90 (Idle: 9.8 W)
73.2 (71min - 76max) Watt * -39%
Morefine S500+
72.4 (69.4min, 71P1 - 75.6max) Watt * -37%
Intel NUC10i7FNH (Idle: 8.4 W)
60 (52min - 86max) Watt * -14%
Intel NUC10i5FNK (Idle: 15.7 W)
58.5 (56min - 69max) Watt * -11%
Minisforum EliteMini TH50
52.7 (45.8min, 49.6P1 - 72.1max) Watt *
MSI Cubi 5 10M (Idle: 8 W)
46.72 (40min - 66max) Watt * +11%
AC6-M Mini-PC
17.4 (15.8min, 16.8P1 - 18max) Watt * +67%

* ... kleinere Werte sind besser

Pro

+ gute Systemleistung
+ stabiles Gehäuse
+ kompakte Abmessungen
+ viele USB-Schnittstellen
+ Thunderbolt 4 Support
+ bis zu drei Massenspeicher möglich

Contra

- kein SD-Kartenleser

Fazit - Tolle Leistung mit guter Anschlussfielfalt

Minisforum EliteMini TH50 im Test, zur Verfügung gestellt von Minisforum
Minisforum EliteMini TH50 im Test, zur Verfügung gestellt von Minisforum
Minisforum EliteMini TH50 im Test, zur Verfügung gestellt von Minisforum

Beim Minisforum EliteMini TH50 handelt es sich um einen sehr kompakten Mini-PC mit einer tollen Leistung für ein breites Anwendungsspektrum. Mit dem Intel Core i5-11320H bietet der EliteMini TH50 eine solide Leistung, welche aufgrund der guten Single-Core-Leistung einen positiven Eindruck hinterlässt. Mit seinen 4-Kernen kann das SoC aber auch bei Multi-Thread-Anwendungen gut mithalten und duelliert sich über weite Strecken oftmals, mit dem Intel NUC10i7FNH welcher mit einem 6-Kern-SoC bestückt ist. Zusammen mit den 16 GB Arbeitsspeicher und der 512 GB SSD bekommt man in der Topausstattung ein tolles Gerät. Zudem sammelt der EliteMini TH50 mit der modernen Anschlussvielfalt Pluspunkte. Allen voran dürfte die Thunderbolt-Option für die meisten Anwender den meisten Mehrwert bieten.

Der Minisforum EliteMini TH50 ist sehr guter Allround-PC, der nicht nur für einfache Office-Aufgaben gemacht ist.

Im Großen und Ganzen überzeugt der EliteMini TH50 mit einer stabilen Leistung. Auch in puncto 3D-Performance konnte durch die Intel Iris Xe Graphics G7 ein großer Schritt nach vorn gemacht werden. Hier wird die Leistung der AMD Radeon RX Vega 8 übertroffen. Somit eignet sich der EliteMini TH50 auch eingeschränkt zum Spielen. Mit der Thunderbolt-Schnittstelle lässt sich die 3D-Performance mit einem externen GPU-Dock erweitern, womit der EliteMini TH50 sogar zu einem vollwertigen Gaming-PC verwandelt.

Die Farbkombination aus Silber und Weis ist Ansichtssache aber und muss einem schon zusagen. Alternative Gehäusefarben gibt es seitens Minisforum für den EliteMini TH50 nicht. Die Verarbeitung ist gut und die Erweiterbarkeit mit zusätzlichen Datenträgern ist schnell erledigt. Für mindestens 629 US-Dollar kann der EliteMini TH50 direkt bei Minisforum erworben werden. Für unser Testsystem muss man aber mit 669 US-Dollar rechnen. Als Kaufempfehlung würden wir auf unsere Testausstattung verweisen, denn eine Windows-Lizenz ist nur bei den Konfigurationen mit Datenträger inkludiert.

static version load dynamic
Die Kommentare zum Artikel werden geladen
Diesen Artikel kommentieren / Antworten
Teilen Sie diesen Artikel, um uns zu unterstützen. Jeder Link hilft!
> Notebook Test, Laptop Test und News > Tests > Sonstige Tests > Minisforum EliteMini TH50: Kompakter Desktop-PC für den Office-Alltag im Test
Autor: Sebastian Bade, 17.02.2022 (Update: 24.11.2022)
