Intel Core i7-640UM

Intel 640UM

Der Intel Core i7-640UM ist ein zwei-Kern Prozessor für sehr kleine und leichte Notebooks und taktet dank Turbo mit 1.2 - 2.26 GHz. Das U im Namen steht für Ultra Low Voltage und bezeichnet den geringen Stromverbrauch der CPU (sie wird mit einer geringen Spannung betrieben). Die zwei Kerne basiert auf die Nehalem (Westmere) Mikro-Architektur und können dank Hyperthreading 4 Threads gleichzeitig abarbeiten.

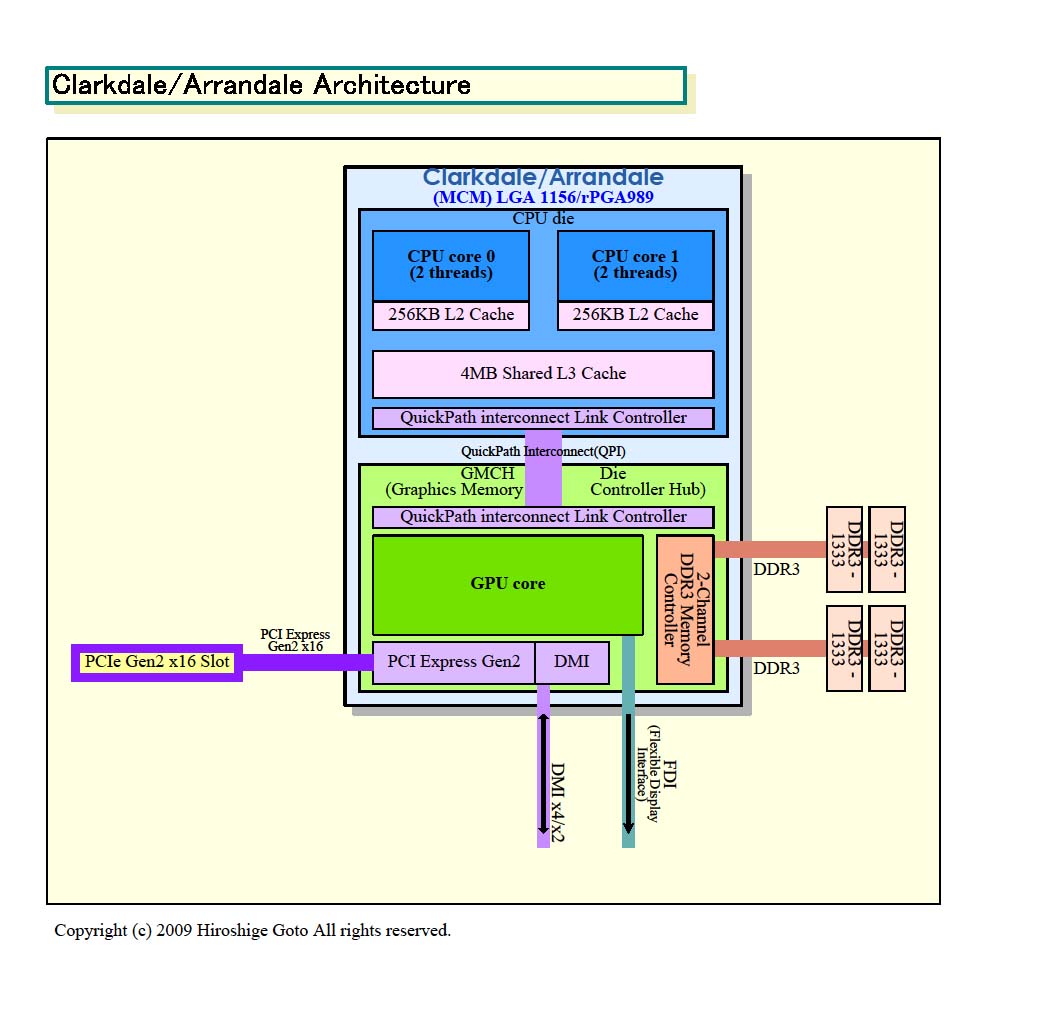

Eine Besonderheit der neuen Dual-Core CPUs von Intel ist die Integration des Speichercontrollers und einer integrierten Grafikkarte (GMA HD) in das Package. Die CPU wird bereits in 32nm hergestellt, der Die für den Speichercontroller und die Grafikkarte jedoch noch in 45nm.

Im Vergleich zu den anderen Dual Core Core i7 CPUs, bieten die U Modelle nur Anschluss für DDR3 800.

Erster Performance Test des Desktop Core i3 530 (2.93 GHz ohne Turbo) bescheinigt eine teilweise spürbar bessere Performance der neuen Architektur im Vergleich zu einem Core 2 Duo E8400 (3.0 GHz) [pconline.com.cn]. Dadurch sollte der Core i7-640UM im Schnitt schneller als ein Core 2 Duo SL9300 (1.6 GHz) sein. Je nachdem wie gut das Kühlungssystem des Subnotebooks ist, kann auch der Turbo oft greifen und dadurch die Geschwindigkeit noch deutlich erhöhen.

Die 32-nm-Prozessorkerne der Westmere-Generation verarbeiten auch einige neue Befehle, die AES-Verschlüsselung beschleunigen sollen.

Die integrierte Intel Graphics Media Accelerator HD (GMA HD) Grafikkarte wird mit 500 MHz getaktet werden (ev. auch mit Turbo Boost) und schneller sein als die alte GMA 4500MHD. Eine GeForce 9400M (ION) wird jedoch noch minimal schneller bleiben (mit besserem Treibersupport für Spiele).

Der Stromverbrauch ist mit einem TDP von 17 Watt zwar relativ hoch für einen ULV Prozessor, jedoch ist darin die integrierte Grafikkarte und auch der Speichercontroller enthalten (vormals im Chipsatz welcher selbst 12 Watt benötigte). Dadurch ist der Stromverbrauch des ganzen Systems relativ gering. Durch den Turbo Mode wird der TDP unter Last jedoch (öfter) ausgereizt, wodurch der Stromverbrauch höher ausfallen kann als bei ähnlich spezifizierten Core 2 Duo Modellen.

SerieIntel Core i7
CodenameArrandale

Serie: Core i7 Arrandale

Intel Core i7-640M compare2.8 - 3.46 GHz2 / 4 cores4 MB L3
Intel Core i7-620M compare2.66 - 3.33 GHz2 / 4 cores4 MB L3
Intel Core i7-660LM compare2.27 - 3.07 GHz2 / 4 cores4 MB L3
Intel Core i7-640LM compare2.13 - 2.93 GHz2 / 4 cores4 MB L3
Intel Core i7-620LM compare2 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-680UM compare1.47 - 2.53 GHz2 / 4 cores4 MB L3
Intel Core i7-660UM compare1.33 - 2.4 GHz2 / 4 cores4 MB L3
Intel Core i7-640UM « 1.2 - 2.27 GHz2 / 4 cores4 MB L3
Intel Core i7-620UM compare1.06 - 2.13 GHz2 / 4 cores4 MB L3
Taktung1200 - 2266 MHz
Front Side Bus2500
Level 2 Cache512 KB
Level 3 Cache4 MB
Anzahl von Kernen / Threads2 / 4
Stromverbrauch (TDP = Thermal Design Power)18 Watt
Transistoren382+177 Millionen
Herstellungstechnologie32 nm
Die Größe81+114 mm2
Max. Temperatur105 °C
SocketBGA1288
FeaturesTurbo Boost (2.26 GHz max), Hyper Threading, Enhanced Speedstep, integrierte GMA HD 166-500MHz,
64 Bit64 Bit wird unterstützt
Architecturex86
Anfangspreis$305 U.S.
Vorgestellt am04.01.2010
Produktinformationen beim Herstellerark.intel.com
