Test MSI Radeon RX 470 Gaming X 4 GB

Klaus Hinum, 04.08.2016

Abgespeckte RX 480 Die neue Polaris-Architektur von AMD feierte vor gut zwei Monaten mit dem Topmodell Radeon RX 480 ihr Debüt. Nun folgt mit der Radeon RX 470 der kleinere Ableger. Unser Test soll verdeutlichen, wo die Karte leistungstechnisch einzuordnen ist.

Laut AMD ist die breite Masse der Gamer nicht gewillt mehr als 300 USD für eine neue Grafikkarte auszugeben. Und genau hier setzt AMD mit ihren Grafikkarten basierend auf 3D-Transistoren (14 nm FinFET bei Global Foundries) an. Nach dem Start der Radeon RX 480 basierend auf dem Polaris 10 Chip folgt nun die Radeon RX 470, welche auch mit einem Polaris 10 Chip ausgestattet ist. Allerdings drosselt AMD die Leistung etwas, sodass die Radeon RX 470 nun auf 2048 Shader kommt. An der Taktfrequenz der GPU wurde ebenfalls geschraubt. Somit taktet AMD die Grafikkarte mit 926 MHz. Die TDP sinkt im Vergleich zur Radeon RX 480 um 30 Watt auf nunmehr 120 Watt und würde sich theoretisch auch für Notebooks eignen.

Spezifikationen Radeon RX 480 Radeon RX 470 Radeon RX 460
Chip Polaris 10 XT Polaris 10 Pro Polaris 11 Pro
Shader / Compute Units 2304/36 2048/32 896/14
Texture Units 144 128 64
GPU Base Clock 1120 MHz 926 MHz 1090 MHz
GPU Boost Clock 1266 MHz 1206 MHz (1242 MHz MSI) 1200 MHz
L2 Cache 2 MB 2 MB 1 MB
TFLOPS >5 >4 >2
Memory Bus 256 Bit 256 Bit 128 Bit
Memory Bandwidth 256 GB/s 211 GB/s 112 GB/s
Memory Size 8 GB 4GB / 8GB 2GB / 4GB
Power (Watt) 150 (1x6-Pin) 120 (1x6-Pin) <75 (keinen)

Polaris

Polaris ist AMDs erste Architektur die im 14 nm FinFET Verfahren gefertigt wird. Es ist die 4. Generation der GCN (Graphics Core Next) Architektur und bietet folgende Verbesserungen laut AMD:

  • Verbesserte Geometrieverarbeitung
  • Verbesserte Shader Effizienz (bis zu 15% pro CU bei RX 480 vs. R9 290)
  • LiquidVR API Unterstützung mit "Variable Resolution Rendering"
  • Verbesserter Speicherkontroller und Delta Color Compression (DCC) mit voller 2/4/8:1 Unterstützung
  • Verdoppelter Level 2 Cache
  • Shader Instruction Pre-Fetch und verbessertes Buffering
  • Verbessertes Async Compute
  • AMD TrueAudio Next (per Shader berechnet)

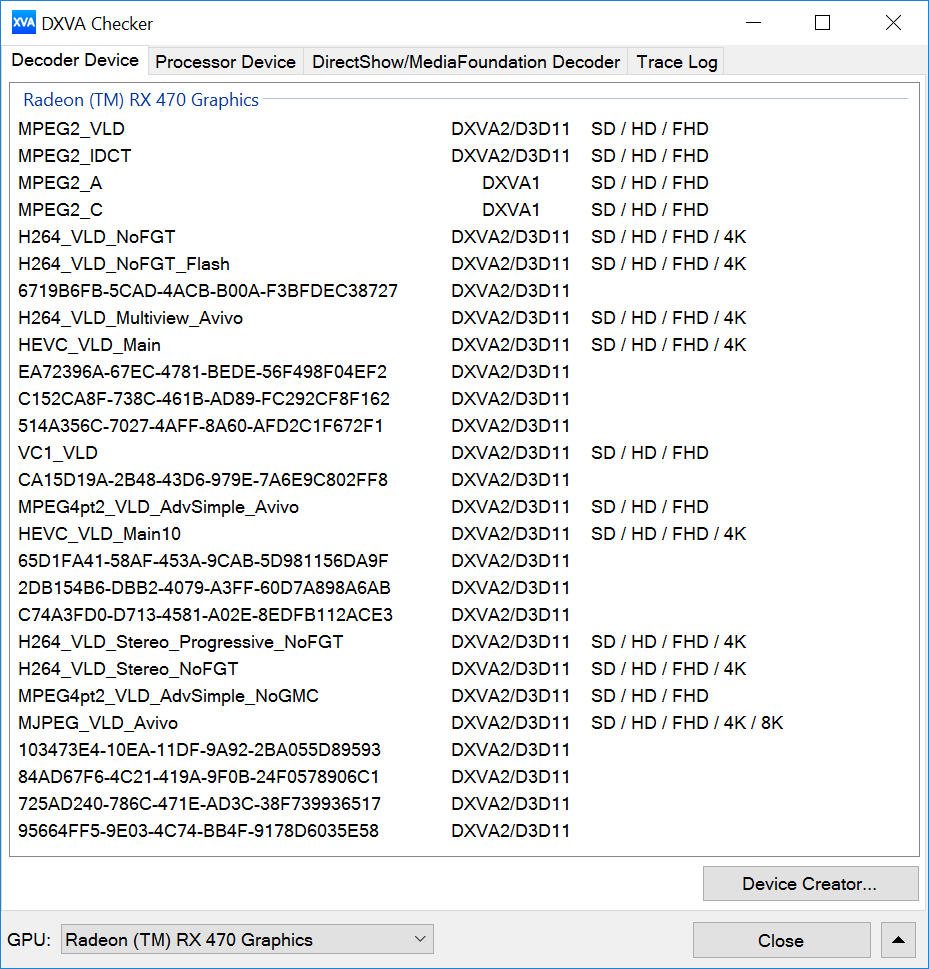

  • H.265 Main 10 Decode und 4K60 HEVC Encode

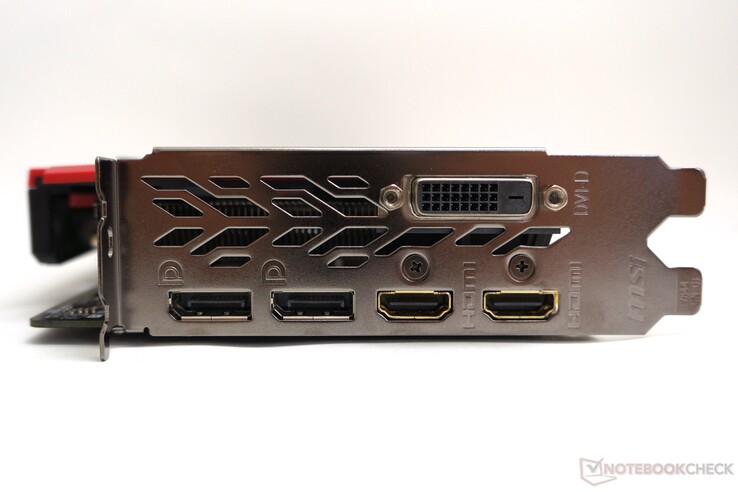

  • HDMI 2.0b, DisplayPort 1.3 HBR (5K60 mit einem einzelnen Kabel) / 1.4 HDR mit HDCP 2,2
  • HDR Display Unterstützung

Diese Verbesserungen sollen zu einer bis zu 2,8x verbesserten Performance pro Watt führen (RX 470 vs R9 270X).

Unser Testsystem für die folgenden Benchmarks setzt sich aus folgenden Komponenten zusammen:

Intel Core i7-4790K (unübertaktet), 16 GB DDR3, Asus ZU97-Deluxe, Asus PB287Q 4K Monitor, Intel SSD 530 (240 GB, System), OCZ Trion 100 SSD (480 GB, Benchmarks), Windows 10 64 Bit mit allen Updates Mitte Juni. Als Treiber verwendeten wir den Vorabtreiber 16.8.1 der für die Presse vor Launch zur Verfügung gestellt wurde.

Synthetische Benchmarks

Beginnen wir unsere Performance-Betrachtung zunächst mit einem Blick auf die synthetischen Benchmarks von Futuremark und Unigine. Je nach Test ordnet sich die Radeon RX 470 hier zwischen 1 und 10 Prozent hinter der Radeon RX 480 ein und ist dem größeren Schwestermodell somit näher auf den Fersen, als es die technischen Daten vermuten lassen. Dies dürfte zum einen auf den leichten Mehrtakt unseres RX 470 Custom-Modells zurückzuführen sein, zum anderen konnte die Polaris-Architektur seit dem Launch der RX 480 aber auch durch neuere Treiber zulegen. Prinzipiell sehen wir die Differenz zwischen beiden Ablegern eher im zweistelligen Prozentbereich.

Im Konkurrenzvergleich kann sich die RX 470 mit der beliebten Maxwell-Karte GeForce GTX 970 messen und diese vor allem im 3DMark 11 klar hinter sich lassen. Unigine Heaven und Valley liegen dagegen eher dem Nvidia-Modell, sodass es insgesamt auf einen Leistungsgleichstand hinausläuft. Die aktuelle GeForce GTX 1060 platziert sich 16 Prozent vor der RX 470, tritt jedoch auch zu einem merklich höheren Preispunkt an.

Performance Rating
NVIDIA GeForce GTX 1080 (Desktop)
100 pt ∼100%
NVIDIA GeForce GTX 1070 (Desktop)
88.9 pt ∼89%
NVIDIA GeForce GTX 980 Ti
80.3 pt ∼80%
AMD Radeon R9 Fury
64.9 pt ∼65%
NVIDIA GeForce GTX 980
61.7 pt ∼62%
NVIDIA GeForce GTX 1060 (Desktop)
60.7 pt ∼61%
NVIDIA GeForce GTX 980 (Laptop)
58.8 pt ∼59%
AMD Radeon R9 390X
58 pt ∼58%
AMD Radeon R9 290X
57.5 pt ∼58%
NVIDIA GeForce GTX 970
55.7 pt ∼56%
AMD Radeon RX 480 (Desktop)
54.6 pt ∼55%
AMD Radeon RX 470 (Desktop)
52.3 pt ∼52%
AMD Radeon RX 460 (Desktop)
25.9 pt ∼26%
AMD Radeon R7 370
25.6 pt ∼26%
3DMark
3840x2160 Fire Strike Ultra Graphics
NVIDIA GeForce GTX 1080 (Desktop)
4841 Points ∼100% +82%
NVIDIA GeForce GTX 1070 (Desktop)
4500 Points ∼93% +69%
NVIDIA GeForce GTX 980 Ti
3918 Points ∼81% +47%
AMD Radeon R9 Fury
3552 Points ∼73% +34%
NVIDIA GeForce GTX 980
3033 Points ∼63% +14%
NVIDIA GeForce GTX 980 (Laptop)
2977 Points ∼61% +12%
NVIDIA GeForce GTX 1060 (Desktop)
2893 Points ∼60% +9%
NVIDIA GeForce GTX 970
2717 Points ∼56% +2%
AMD Radeon RX 480 (Desktop)
2687 Points ∼56% +1%
AMD Radeon R9 290X
2675 Points ∼55% +1%
AMD Radeon RX 470 (Desktop)
2657 Points ∼55%
AMD Radeon R7 370
512 Points ∼11% -81%
1920x1080 Fire Strike Graphics
NVIDIA GeForce GTX 1080 (Desktop)
20268 Points ∼100% +71%
NVIDIA GeForce GTX 1070 (Desktop)
18408 Points ∼91% +55%
NVIDIA GeForce GTX 980 Ti
16961 Points ∼84% +43%
AMD Radeon R9 Fury
14580 Points ∼72% +23%
NVIDIA GeForce GTX 980
13286 Points ∼66% +12%
NVIDIA GeForce GTX 1060 (Desktop)
12984 Points ∼64% +9%
NVIDIA GeForce GTX 980 (Laptop)
12691 Points ∼63% +7%
AMD Radeon R9 390X
12389 Points ∼61% +4%
AMD Radeon RX 480 (Desktop)
12186 Points ∼60% +3%
AMD Radeon R9 290X
11998 Points ∼59% +1%
NVIDIA GeForce GTX 970
11954 Points ∼59% +1%
AMD Radeon RX 470 (Desktop)
11869 Points ∼59%
AMD Radeon R7 370
5979 Points ∼29% -50%
AMD Radeon RX 460 (Desktop)
5701 Points ∼28% -52%
1280x720 Sky Diver Graphics
NVIDIA GeForce GTX 1080 (Desktop)
71735 Points ∼100%
NVIDIA GeForce GTX 1070 (Desktop)
61307 Points ∼85%
NVIDIA GeForce GTX 980 Ti
55369 Points ∼77%
AMD Radeon R9 Fury
44731 Points ∼62%
NVIDIA GeForce GTX 1060 (Desktop)
41799 Points ∼58%
NVIDIA GeForce GTX 980 (Laptop)
40152 Points ∼56%
NVIDIA GeForce GTX 970
38656 Points ∼54%
AMD Radeon RX 480 (Desktop)
37734 Points ∼53%
AMD Radeon R7 370
19248 Points ∼27%
1280x720 Cloud Gate Standard Graphics
NVIDIA GeForce GTX 1080 (Desktop)
129042 Points ∼100% +94%
NVIDIA GeForce GTX 1070 (Desktop)
108238 Points ∼84% +63%
NVIDIA GeForce GTX 980 Ti
98958 Points ∼77% +49%
NVIDIA GeForce GTX 1060 (Desktop)
80879 Points ∼63% +22%
AMD Radeon R9 Fury
80439 Points ∼62% +21%
NVIDIA GeForce GTX 980 (Laptop)
75213 Points ∼58% +13%
AMD Radeon R9 390X
74351 Points ∼58% +12%
AMD Radeon RX 480 (Desktop)
72213 Points ∼56% +9%
NVIDIA GeForce GTX 970
71472 Points ∼55% +8%
AMD Radeon RX 470 (Desktop)
66398 Points ∼51%
AMD Radeon R7 370
38182 Points ∼30% -42%
AMD Radeon RX 460 (Desktop)
34892 Points ∼27% -47%
3DMark 11 - 1280x720 Performance GPU
NVIDIA GeForce GTX 1080 (Desktop)
29443 Points ∼100% +66%
NVIDIA GeForce GTX 1070 (Desktop)
26098 Points ∼89% +47%
NVIDIA GeForce GTX 980 Ti
23057 Points ∼78% +30%
AMD Radeon R9 390X
17944 Points ∼61% +1%
AMD Radeon RX 480 (Desktop)
17919 Points ∼61% +1%
AMD Radeon RX 470 (Desktop)
17738 Points ∼60%
NVIDIA GeForce GTX 980
17697 Points ∼60% 0%
AMD Radeon R9 Fury
17543 Points ∼60% -1%
NVIDIA GeForce GTX 1060 (Desktop)
17401 Points ∼59% -2%
NVIDIA GeForce GTX 980 (Laptop)
17050 Points ∼58% -4%
AMD Radeon R9 290X
16355 Points ∼56% -8%
NVIDIA GeForce GTX 970
16033 Points ∼54% -10%
AMD Radeon R7 370
8607 Points ∼29% -51%
AMD Radeon RX 460 (Desktop)
8597 Points ∼29% -52%
Unigine Heaven 4.0 - Extreme Preset DX11
NVIDIA GeForce GTX 1080 (Desktop)
137.7 fps ∼100% +125%
NVIDIA GeForce GTX 1070 (Desktop)
125 fps ∼91% +105%
NVIDIA GeForce GTX 980 Ti
110 fps ∼80% +80%
NVIDIA GeForce GTX 1060 (Desktop)
82.7 fps ∼60% +35%
NVIDIA GeForce GTX 980
80.5 fps ∼58% +32%
NVIDIA GeForce GTX 980 (Laptop)
78.1 fps ∼57% +28%
AMD Radeon R9 Fury
77.1 fps ∼56% +26%
AMD Radeon R9 390X
72.2 fps ∼52% +18%
AMD Radeon RX 480 (Desktop)
66 fps ∼48% +8%
AMD Radeon RX 470 (Desktop)
61.1 fps ∼44%
AMD Radeon R7 370
33.5 fps ∼24% -45%
AMD Radeon RX 460 (Desktop)
31.2 fps ∼23% -49%
Unigine Valley 1.0 - 1920x1080 Extreme HD DirectX AA:x8
NVIDIA GeForce GTX 1080 (Desktop)
106.9 fps ∼100% +126%
NVIDIA GeForce GTX 1070 (Desktop)
95.8 fps ∼90% +103%
NVIDIA GeForce GTX 980 Ti
91.1 fps ∼85% +93%
AMD Radeon R9 Fury
73.5 fps ∼69% +56%
AMD Radeon R9 290X
64.2 fps ∼60% +36%
NVIDIA GeForce GTX 970
59.1 fps ∼55% +25%
AMD Radeon RX 480 (Desktop)
52.3 fps ∼49% +11%
AMD Radeon RX 470 (Desktop)
47.2 fps ∼44%
AMD Radeon R7 370
31 fps ∼29% -34%
AMD Radeon RX 460 (Desktop)
23.9 (min: 13.1, max: 44.3) fps ∼22% -49%

Legende


MSI RX 470 Gaming X 4GB Intel Core i7-4790K, AMD Radeon RX 470 (Desktop), Intel SSD 530 Series SSDSC2BW240A

Nvidia GeForce GTX 1080 Founders Edition Intel Core i7-4790K, NVIDIA GeForce GTX 1080 (Desktop), Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

XFX Radeon R9 390X DD Black Edition Intel Xeon E3-1230 v3, AMD Radeon R9 390X,

XFX Radeon R9 Fury Pro Intel Core i7-4790K, AMD Radeon R9 Fury, Intel SSD 530 Series SSDSC2BW240A

Sapphire Radeon R9 290X Tri-X OC Intel Core i7-4790K, AMD Radeon R9 290X, Intel SSD 530 Series SSDSC2BW240A

Asus Strix GTX 980 Ti Desktop PC Intel Core i7-4790K, NVIDIA GeForce GTX 980 Ti, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Desktop PC Intel Core i7-6700K, NVIDIA GeForce GTX 980,

Notebookcheck Desktop PC Intel Core i7-6700K, NVIDIA GeForce GTX 980, Crucial MX100 256 GB

Schenker XMG U716 Intel Core i7-6700, NVIDIA GeForce GTX 980 (Laptop), Samsung SM951 MZHPV512HDGL m.2 PCI-e

AMD Radeon RX 480 8 GB Reference Intel Core i7-4790K, AMD Radeon RX 480 (Desktop), Intel SSD 530 Series SSDSC2BW240A

MSI Gaming Z GeForce GTX 970 Desktop PC Intel Core i7-4790K, NVIDIA GeForce GTX 970, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC Intel Core i7-4790K, NVIDIA GeForce GTX 1070 (Desktop), Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Nvidia GeForce GTX 1060 Founders Edition 6 GB Intel Core i7-6700K, NVIDIA GeForce GTX 1060 (Desktop),

Mobile GTX 1060 pre-sample , NVIDIA GeForce GTX 1060 (Laptop),

MSI Gaming R7 370 2GB Intel Core i7-4790K, AMD Radeon R7 370, Intel SSD 530 Series SSDSC2BW240A

XFX RX-460P4DFG5 Double Dissipation 4 GB Intel Core i7-4790K, AMD Radeon RX 460 (Desktop), Intel SSD 530 Series SSDSC2BW240A

Spiele-Benchmarks

In unseren Spiele-Benchmarks muss die RX 470 gegenüber der Nvidia-Konkurrenz etwas zurückstecken, schlägt sich jedoch auch hier äußerst beachtlich für ihre Preisklasse. Unser taktgesteigertes MSI-Modell ordnet sich nur knapp hinter der älteren, deutlich energiehungrigeren Radeon R9 290X sowie der GeForce GTX 970 ein und fällt gegenüber der Referenzversion der RX 480 weniger als 10 Prozent zurück. Das reicht, um praktisch alle aktuellen Spiele des Jahres 2016 in FullHD-Auflösung und höchsten Details flüssig auf den Bildschirm zu zaubern – einige Titel wie Dirt Rally können Anwender sogar in WQHD (2.560 x 1.440 Pixel) oder UHD (3.840 x 2.160 Pixel) zocken. Generell bleibt jedoch festzuhalten, dass Besitzer solch hochauflösenderer Monitore bei AMD besser auf die kommende High-End-Serie "Vega" warten sollten, sofern stets die maximalen Einstellungen aktiviert werden sollen.

Die kaum schnellere RX 480 hat mit den RX-470-Modellen ab knapp über 200 Euro eine starke hausinterne Konkurrenz bekommen – vor allem dann, wenn man sich mit der derzeit fast immer ausreichenden 4-GB-Variante zufrieden gibt.

Weitere Spielebenchmarks finden Sie am Ende dieses Artikels. Diese werden ständig gepflegt und erweitert.

Performance Rating
AMD Radeon R9 Fury
95.5 pt ∼96%
NVIDIA GeForce GTX 980 (Laptop)
93.4 pt ∼93%
NVIDIA GeForce GTX 1060 (Desktop)
89.8 pt ∼90%
NVIDIA GeForce GTX 980
88.5 pt ∼89%
AMD Radeon R9 390X
85.9 pt ∼86%
NVIDIA GeForce GTX 970
84.3 pt ∼84%
AMD Radeon RX 480 (Desktop)
83 pt ∼83%
AMD Radeon R9 290X
79.8 pt ∼80%
AMD Radeon RX 470 (Desktop)
77.5 pt ∼78%
AMD Radeon R9 280X
60.4 pt ∼60%
AMD Radeon R9 380
56.5 pt ∼57%
NVIDIA GeForce GTX 960
54.9 pt ∼55%
AMD Radeon RX 460 (Desktop)
39.9 pt ∼40%
AMD Radeon R7 370
37.5 pt ∼38%
Mirror's Edge Catalyst
3840x2160 High Preset AF:16x
AMD Radeon R9 Fury
31.5 (min: 23, max: 35) fps ∼100% +33%
AMD Radeon R9 290X
28.6 (min: 26, max: 31) fps ∼91% +21%
NVIDIA GeForce GTX 980
28.3 (min: 26) fps ∼90% +19%
NVIDIA GeForce GTX 1060 (Desktop)
27.6 fps ∼88% +16%
NVIDIA GeForce GTX 970
26.1 (min: 24, max: 28) fps ∼83% +10%
AMD Radeon RX 480 (Desktop)
25.4 (min: 23, max: 27) fps ∼81% +7%
AMD Radeon RX 470 (Desktop)
23.7 (min: 21, max: 26) fps ∼75%
NVIDIA GeForce GTX 960
17.1 fps ∼54% -28%
AMD Radeon RX 460 (Desktop)
12.1 (min: 11, max: 13) fps ∼38% -49%
AMD Radeon R7 370
9 (min: 8, max: 11) fps ∼29% -62%
1920x1080 Ultra Preset AF:16x
AMD Radeon R9 Fury
81.3 (min: 74, max: 86) fps ∼100% +25%
NVIDIA GeForce GTX 1060 (Desktop)
78.3 fps ∼96% +20%
NVIDIA GeForce GTX 980
76.4 (min: 69) fps ∼94% +17%
NVIDIA GeForce GTX 970
72 fps ∼89% +10%
AMD Radeon RX 480 (Desktop)
70.3 (min: 66, max: 75) fps ∼86% +8%
AMD Radeon R9 290X
65.9 (min: 53, max: 73) fps ∼81% +1%
AMD Radeon RX 470 (Desktop)
65.2 (min: 55, max: 72) fps ∼80%
NVIDIA GeForce GTX 960
50 fps ∼62% -23%
AMD Radeon RX 460 (Desktop)
34.2 (min: 29, max: 38) fps ∼42% -48%
AMD Radeon R7 370
33.4 (min: 31, max: 37) fps ∼41% -49%
Overwatch
3840x2160 High (Render Scale 100 %) AA:SM AF:4x
AMD Radeon R9 Fury
77 (min: 64, max: 91) fps ∼100% +42%
AMD Radeon R9 290X
65.4 (min: 55, max: 76) fps ∼85% +20%
NVIDIA GeForce GTX 980
62.3 (min: 53) fps ∼81% +15%
NVIDIA GeForce GTX 1060 (Desktop)
61.1 fps ∼79% +12%
NVIDIA GeForce GTX 970
58.2 (min: 50, max: 68) fps ∼76% +7%
AMD Radeon RX 480 (Desktop)
57 fps ∼74% +5%
AMD Radeon RX 470 (Desktop)
54.4 (min: 44, max: 66) fps ∼71%
AMD Radeon R9 280X
47.4 (min: 39, max: 57) fps ∼62% -13%
NVIDIA GeForce GTX 960
38.6 fps ∼50% -29%
AMD Radeon R7 370
31.5 (min: 26, max: 38) fps ∼41% -42%
AMD Radeon RX 460 (Desktop)
26.5 (min: 21, max: 32) fps ∼34% -51%
1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
AMD Radeon RX 480 (Desktop)
139 fps ∼100% +48%
AMD Radeon R9 Fury
121 (min: 94, max: 147) fps ∼87% +29%
NVIDIA GeForce GTX 980
117 (min: 97) fps ∼84% +24%
NVIDIA GeForce GTX 1060 (Desktop)
116 fps ∼83% +23%
NVIDIA GeForce GTX 970
107 fps ∼77% +14%
AMD Radeon R9 290X
97 (min: 78, max: 117) fps ∼70% +3%
AMD Radeon RX 470 (Desktop)
94 (min: 77, max: 113) fps ∼68%
AMD Radeon R9 280X
73 (min: 59, max: 88) fps ∼53% -22%
NVIDIA GeForce GTX 960
66.9 fps ∼48% -29%
AMD Radeon R7 370
47.6 (min: 40, max: 56) fps ∼34% -49%
AMD Radeon RX 460 (Desktop)
46.3 (min: 39, max: 53) fps ∼33% -51%
Doom
3840x2160 High Preset AA:FX
AMD Radeon R9 Fury
38.2 (min: 33, max: 51) fps ∼100% +29%
NVIDIA GeForce GTX 980
34.4 (min: 30) fps ∼90% +16%
NVIDIA GeForce GTX 970
34.3 (min: 30, max: 44) fps ∼90% +15%
NVIDIA GeForce GTX 1060 (Desktop)
34.2 fps ∼90% +15%
AMD Radeon RX 480 (Desktop)
30 (min: 25, max: 39) fps ∼79% +1%
AMD Radeon RX 470 (Desktop)
29.7 (min: 26, max: 37) fps ∼78%
NVIDIA GeForce GTX 960
21.6 fps ∼57% -27%
AMD Radeon RX 460 (Desktop)
14.7 (min: 12, max: 20) fps ∼38% -51%
AMD Radeon R7 370
12.9 (min: 10, max: 19) fps ∼34% -57%
1920x1080 Ultra Preset AA:SM
NVIDIA GeForce GTX 1060 (Desktop)
99.7 fps ∼100% +25%
NVIDIA GeForce GTX 980
97.5 (min: 82) fps ∼98% +22%
NVIDIA GeForce GTX 970
96 (min: 81, max: 122) fps ∼96% +20%
AMD Radeon R9 Fury
83 (min: 67, max: 125) fps ∼83% +4%
AMD Radeon RX 480 (Desktop)
80 (min: 68, max: 109) fps ∼80% 0%
AMD Radeon RX 470 (Desktop)
80 (min: 68, max: 109) fps ∼80%
NVIDIA GeForce GTX 960
68 fps ∼68% -15%
AMD Radeon RX 460 (Desktop)
43.4 (min: 37, max: 58) fps ∼44% -46%
AMD Radeon R7 370
27.5 (min: 20, max: 43) fps ∼28% -66%
Need for Speed 2016
3840x2160 High / On AA:FX
AMD Radeon R9 Fury
40.3 (min: 34, max: 48) fps ∼100%
NVIDIA GeForce GTX 980
34 (min: 27) fps ∼84%
NVIDIA GeForce GTX 1060 (Desktop)
33.9 fps ∼84%
AMD Radeon R9 290X
32.5 (min: 27, max: 40) fps ∼81%
AMD Radeon RX 480 (Desktop)
31.6 (min: 26, max: 38) fps ∼78%
NVIDIA GeForce GTX 970
31 (min: 23, max: 39) fps ∼77%
AMD Radeon R9 280X
26.6 (min: 22, max: 32) fps ∼66%
NVIDIA GeForce GTX 960
21.4 fps ∼53%
AMD Radeon RX 460 (Desktop)
15.3 (min: 12, max: 18) fps ∼38%
AMD Radeon R7 370
11.3 (min: 9, max: 15) fps ∼28%
1920x1080 Ultra / On AA:T
NVIDIA GeForce GTX 1060 (Desktop)
77.4 fps ∼100%
NVIDIA GeForce GTX 980
74.6 (min: 55) fps ∼96%
NVIDIA GeForce GTX 970
70 (min: 53, max: 81) fps ∼90%
AMD Radeon RX 480 (Desktop)
68.4 (min: 48, max: 84) fps ∼88%
AMD Radeon R9 Fury
68.3 (min: 42, max: 87) fps ∼88%
AMD Radeon R9 290X
61 (min: 43, max: 81) fps ∼79%
NVIDIA GeForce GTX 960
51.6 fps ∼67%
AMD Radeon R9 280X
51 (min: 39, max: 59) fps ∼66%
AMD Radeon RX 460 (Desktop)
38.2 (min: 30, max: 46) fps ∼49%
AMD Radeon R7 370
37.7 (min: 29, max: 46) fps ∼49%
Hitman 2016
3840x2160 High / On AA:FX AF:8x
AMD Radeon R9 Fury
38.9 (min: 26, max: 46) fps ∼100% +46%
AMD Radeon R9 Fury
37.7 (min: 26, max: 46) fps ∼97% +41%
AMD Radeon R9 290X
32.5 (min: 26, max: 38) fps ∼84% +22%
AMD Radeon RX 480 (Desktop)
29.1 (min: 23, max: 34) fps ∼75% +9%
AMD Radeon RX 480 (Desktop)
28.1 (min: 22, max: 33) fps ∼72% +5%
AMD Radeon RX 470 (Desktop)
26.7 (min: 21, max: 31) fps ∼69%
NVIDIA GeForce GTX 980
26.2 (min: 19) fps ∼67% -2%
NVIDIA GeForce GTX 1060 (Desktop)
25.6 fps ∼66% -4%
NVIDIA GeForce GTX 1060 (Desktop)
25.4 fps ∼65% -5%
NVIDIA GeForce GTX 970
23 fps ∼59% -14%
NVIDIA GeForce GTX 960
18.7 fps ∼48% -30%
AMD Radeon RX 460 (Desktop)
13.4 (min: 11, max: 16) fps ∼34% -50%
1920x1080 Ultra / On AA:SM AF:16x
AMD Radeon RX 480 (Desktop)
61.5 (min: 35, max: 77) fps ∼100% +11%
AMD Radeon RX 480 (Desktop)
58.7 (min: 44, max: 72) fps ∼95% +6%
AMD Radeon R9 Fury
61 (min: 45, max: 86) fps ∼99% +10%
AMD Radeon R9 Fury
59.2 (min: 48, max: 62) fps ∼96% +6%
AMD Radeon R9 290X
58 (min: 43, max: 71) fps ∼94% +4%
NVIDIA GeForce GTX 980
57.8 (min: 41) fps ∼94% +4%
AMD Radeon RX 470 (Desktop)
55.6 (min: 41, max: 68) fps ∼90%
NVIDIA GeForce GTX 1060 (Desktop)
55.3 fps ∼90% -1%
NVIDIA GeForce GTX 1060 (Desktop)
54.4 fps ∼88% -2%
NVIDIA GeForce GTX 970
52 fps ∼85% -6%
AMD Radeon R9 280X
41 (min: 27, max: 54) fps ∼67% -26%
NVIDIA GeForce GTX 960
36 fps ∼59% -35%
AMD Radeon RX 460 (Desktop)
29.6 (min: 22, max: 36) fps ∼48% -47%
The Division
3840x2160 High Preset AF:8x
AMD Radeon R9 Fury
34.5 (min: 19, max: 51) fps ∼100% +27%
AMD Radeon R9 290X
29.9 (min: 13, max: 41) fps ∼87% +10%
AMD Radeon RX 480 (Desktop)
28.4 (min: 12, max: 38) fps ∼82% +4%
NVIDIA GeForce GTX 1060 (Desktop)
28.2 fps ∼82% +4%
NVIDIA GeForce GTX 980
27.7 (min: 10) fps ∼80% +2%
AMD Radeon RX 470 (Desktop)
27.2 (min: 12, max: 36) fps ∼79%
NVIDIA GeForce GTX 970
27 fps ∼78% -1%
AMD Radeon R9 280X
22.5 (min: 9, max: 31) fps ∼65% -17%
NVIDIA GeForce GTX 960
16.6 fps ∼48% -39%
AMD Radeon R7 370
13.8 (min: 5, max: 19) fps ∼40% -49%
AMD Radeon RX 460 (Desktop)
12.8 (min: 5, max: 18) fps ∼37% -53%
1920x1080 Ultra Preset AF:16x
AMD Radeon R9 Fury
61 (min: 37, max: 93) fps ∼100% +14%
NVIDIA GeForce GTX 1060 (Desktop)
59.6 fps ∼98% +12%
NVIDIA GeForce GTX 980
57.7 (min: 32) fps ∼95% +8%
AMD Radeon RX 480 (Desktop)
57.5 (min: 39, max: 77) fps ∼94% +8%
NVIDIA GeForce GTX 970
55 fps ∼90% +3%
AMD Radeon RX 470 (Desktop)
53.3 (min: 32, max: 76) fps ∼87%
AMD Radeon R9 290X
50.7 (min: 32, max: 73) fps ∼83% -5%
AMD Radeon R9 280X
39.7 (min: 27, max: 65) fps ∼65% -26%
NVIDIA GeForce GTX 960
33.9 fps ∼56% -36%
AMD Radeon R7 370
28.3 (min: 18, max: 43) fps ∼46% -47%
AMD Radeon RX 460 (Desktop)
27.9 (min: 16, max: 39) fps ∼46% -48%
Far Cry Primal
3840x2160 High Preset AA:SM
AMD Radeon R9 Fury
37 (min: 33, max: 42) fps ∼100% +42%
NVIDIA GeForce GTX 980
29 (min: 27) fps ∼78% +12%
AMD Radeon RX 480 (Desktop)
28 (min: 26, max: 31) fps ∼76% +8%
NVIDIA GeForce GTX 1060 (Desktop)
28 fps ∼76% +8%
NVIDIA GeForce GTX 970
27 (min: 25, max: 30) fps ∼73% +4%
AMD Radeon RX 470 (Desktop)
26 (min: 25, max: 29) fps ∼70%
NVIDIA GeForce GTX 960
16 fps ∼43% -38%
AMD Radeon R7 370
13 (min: 9, max: 16) fps ∼35% -50%
AMD Radeon RX 460 (Desktop)
13 (min: 12, max: 15) fps ∼35% -50%
1920x1080 Ultra Preset AA:SM
AMD Radeon R9 Fury
68 (min: 52, max: 83) fps ∼100% +26%
NVIDIA GeForce GTX 1060 (Desktop)
67 fps ∼99% +24%
NVIDIA GeForce GTX 980
63 (min: 49) fps ∼93% +17%
AMD Radeon RX 480 (Desktop)
59 (min: 47, max: 76) fps ∼87% +9%
NVIDIA GeForce GTX 970
57 (min: 46, max: 73) fps ∼84% +6%
AMD Radeon RX 470 (Desktop)
54 (min: 43, max: 67) fps ∼79%
NVIDIA GeForce GTX 960
37 fps ∼54% -31%
AMD Radeon R7 370
33 (min: 23, max: 40) fps ∼49% -39%
AMD Radeon RX 460 (Desktop)
29 (min: 24, max: 38) fps ∼43% -46%
XCOM 2
3840x2160 High Preset AA:FX AF:8x
AMD Radeon R9 Fury
22 (min: 19, max: 24) fps ∼100% +50%
NVIDIA GeForce GTX 980
18.7 (min: 17) fps ∼85% +27%
NVIDIA GeForce GTX 1060 (Desktop)
17.8 fps ∼81% +21%
AMD Radeon RX 480 (Desktop)
16.3 (min: 15, max: 18) fps ∼74% +11%
NVIDIA GeForce GTX 970
15.9 (min: 14, max: 18) fps ∼72% +8%
AMD Radeon RX 470 (Desktop)
14.7 (min: 13, max: 16) fps ∼67%
1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
AMD Radeon R9 Fury
34.3 (min: 29, max: 38) fps ∼100% +40%
NVIDIA GeForce GTX 980
31.3 (min: 28) fps ∼91% +28%
NVIDIA GeForce GTX 1060 (Desktop)
30.9 fps ∼90% +26%
NVIDIA GeForce GTX 970
27.3 (min: 24, max: 30) fps ∼80% +11%
AMD Radeon RX 480 (Desktop)
26.9 (min: 25, max: 29) fps ∼78% +10%
AMD Radeon RX 470 (Desktop)
24.5 (min: 21, max: 27) fps ∼71%
NVIDIA GeForce GTX 960
16.7 fps ∼49% -32%
AMD Radeon R7 370
11.9 (min: 10, max: 14) fps ∼35% -51%
Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x
AMD Radeon R9 Fury
32.4 (min: 29, max: 37) fps ∼100% +28%
NVIDIA GeForce GTX 1060 (Desktop)
29.3 fps ∼90% +16%
NVIDIA GeForce GTX 1060 (Desktop)
27 fps ∼83% +7%
NVIDIA GeForce GTX 980
27.9 (min: 25) fps ∼86% +10%
AMD Radeon R9 290X
27.2 (min: 23, max: 31) fps ∼84% +8%
AMD Radeon RX 480 (Desktop)
26.7 (min: 22, max: 30) fps ∼82% +6%
AMD Radeon RX 480 (Desktop)
24.5 (min: 21, max: 28) fps ∼76% -3%
NVIDIA GeForce GTX 970
25.3 (min: 22, max: 30) fps ∼78% 0%
AMD Radeon RX 470 (Desktop)
25.3 (min: 22, max: 28) fps ∼78%
AMD Radeon R9 280X
21.1 (min: 19, max: 24) fps ∼65% -17%
NVIDIA GeForce GTX 960
17 fps ∼52% -33%
AMD Radeon R7 370
13.3 (min: 11, max: 15) fps ∼41% -47%
AMD Radeon RX 460 (Desktop)
12.9 (min: 11, max: 15) fps ∼40% -49%
1920x1080 Very High Preset AA:FX AF:16x
NVIDIA GeForce GTX 980
71.3 (min: 64) fps ∼100% +31%
NVIDIA GeForce GTX 1060 (Desktop)
66.9 fps ∼94% +23%
NVIDIA GeForce GTX 1060 (Desktop)
66.5 fps ∼93% +22%
NVIDIA GeForce GTX 970
60.2 (min: 54, max: 67) fps ∼84% +11%
AMD Radeon R9 Fury
57 (min: 46, max: 66) fps ∼80% +5%
AMD Radeon RX 480 (Desktop)
57 (min: 49, max: 65) fps ∼80% +5%
AMD Radeon RX 470 (Desktop)
54.3 (min: 49, max: 59) fps ∼76%
AMD Radeon R9 290X
50.5 (min: 47, max: 55) fps ∼71% -7%
AMD Radeon R9 280X
39.4 (min: 36, max: 43) fps ∼55% -27%
NVIDIA GeForce GTX 960
36.1 fps ∼51% -34%
AMD Radeon RX 460 (Desktop)
27.9 (min: 24, max: 31) fps ∼39% -49%
AMD Radeon R7 370
27.3 (min: 24, max: 30) fps ∼38% -50%
Just Cause 3
3840x2160 High / On AA:FX AF:8x
NVIDIA GeForce GTX 980
36.6 (min: 33) fps ∼100% +15%
AMD Radeon R9 Fury
36.3 (min: 33, max: 41) fps ∼99% +15%
NVIDIA GeForce GTX 1060 (Desktop)
36.1 fps ∼99% +14%
NVIDIA GeForce GTX 970
33.5 (min: 27, max: 36) fps ∼92% +6%
AMD Radeon RX 480 (Desktop)
32.6 (min: 26, max: 37) fps ∼89% +3%
AMD Radeon RX 470 (Desktop)
31.7 (min: 25, max: 35) fps ∼87%
AMD Radeon R9 390X
31.2 fps ∼85% -2%
NVIDIA GeForce GTX 960
21.6 fps ∼59% -32%
AMD Radeon R7 370
14.7 (min: 12, max: 17) fps ∼40% -54%
1920x1080 Very High / On AA:SM AF:16x
NVIDIA GeForce GTX 1060 (Desktop)
85.6 fps ∼100% +8%
NVIDIA GeForce GTX 980
84.2 (min: 75) fps ∼98% +7%
AMD Radeon RX 480 (Desktop)
82 (min: 72, max: 96) fps ∼96% +4%
NVIDIA GeForce GTX 970
80 (min: 72, max: 90) fps ∼93% +1%
AMD Radeon RX 470 (Desktop)
79 (min: 66, max: 89) fps ∼92%
AMD Radeon R9 Fury
59 (min: 47, max: 73) fps ∼69% -25%
NVIDIA GeForce GTX 960
52.6 fps ∼61% -33%
AMD Radeon R9 390X
48.6 fps ∼57% -38%
AMD Radeon R7 370
41.3 (min: 36, max: 48) fps ∼48% -48%
Rainbow Six Siege
3840x2160 High Preset AA:T AF:4x
AMD Radeon R9 Fury
62 (min: 47, max: 76) fps ∼100% +93%
AMD Radeon R9 390X
54 fps ∼87% +68%
NVIDIA GeForce GTX 980
50.1 (min: 35) fps ∼81% +56%
AMD Radeon RX 480 (Desktop)
48.4 (min: 38, max: 59) fps ∼78% +50%
NVIDIA GeForce GTX 1060 (Desktop)
47.7 fps ∼77% +48%
NVIDIA GeForce GTX 970
44.8 fps ∼72% +39%
AMD Radeon RX 470 (Desktop)
32.2 (min: 23, max: 39) fps ∼52%
NVIDIA GeForce GTX 960
27.2 fps ∼44% -16%
AMD Radeon R7 370
23.7 (min: 18, max: 28) fps ∼38% -26%
AMD Radeon RX 460 (Desktop)
22.9 (min: 19, max: 26) fps ∼37% -29%
1920x1080 Ultra Preset AA:T AF:16x
NVIDIA GeForce GTX 1060 (Desktop)
130 fps ∼100% +8%
AMD Radeon RX 480 (Desktop)
127 (min: 86, max: 188) fps ∼98% +6%
NVIDIA GeForce GTX 970
120 fps ∼92% 0%
AMD Radeon RX 470 (Desktop)
120 (min: 77, max: 204) fps ∼92%
AMD Radeon R9 Fury
117 (min: 77, max: 186) fps ∼90% -2%
NVIDIA GeForce GTX 980
107.6 (min: 67) fps ∼83% -10%
AMD Radeon R9 390X
107.6 fps ∼83% -10%
AMD Radeon RX 460 (Desktop)
64.6 (min: 51, max: 81) fps ∼50% -46%
NVIDIA GeForce GTX 960
64.5 fps ∼50% -46%
AMD Radeon R7 370
49 (min: 34, max: 65) fps ∼38% -59%
Assassin's Creed Syndicate
3840x2160 High Preset AA:FX
AMD Radeon R9 Fury
31.5 (min: 29, max: 37) fps ∼100%
NVIDIA GeForce GTX 980 (Laptop)
28.2 fps ∼90%
NVIDIA GeForce GTX 1060 (Desktop)
27.8 fps ∼88%
NVIDIA GeForce GTX 980
27.6 (min: 26) fps ∼88%
AMD Radeon R9 390X
26.7 fps ∼85%
AMD Radeon R9 290X
26.2 (min: 23, max: 31) fps ∼83%
AMD Radeon RX 480 (Desktop)
25.6 (min: 23, max: 29) fps ∼81%
NVIDIA GeForce GTX 970
25.2 (min: 23, max: 28) fps ∼80%
AMD Radeon R9 280X
19.4 (min: 17, max: 23) fps ∼62%
NVIDIA GeForce GTX 960
16.5 fps ∼52%
AMD Radeon R9 380
16.3 fps ∼52%
AMD Radeon RX 460 (Desktop)
11.2 (min: 9, max: 13) fps ∼36%
1920x1080 Ultra High Preset AA:4x MSAA + FX
NVIDIA GeForce GTX 1060 (Desktop)
35.3 fps ∼100%
NVIDIA GeForce GTX 980
33.5 (min: 27) fps ∼95%
NVIDIA GeForce GTX 980 (Laptop)
32.3 fps ∼92%
NVIDIA GeForce GTX 970
32 (min: 26, max: 39) fps ∼91%
AMD Radeon RX 480 (Desktop)
29.1 (min: 23, max: 34) fps ∼82%
AMD Radeon R9 Fury
28.3 (min: 23, max: 34) fps ∼80%
AMD Radeon R9 390X
25.6 fps ∼73%
NVIDIA GeForce GTX 960
18.9 fps ∼54%
AMD Radeon R9 380
17.4 fps ∼49%
AMD Radeon RX 460 (Desktop)
14 (min: 11, max: 17) fps ∼40%
AMD Radeon R9 290X
5 (min: 3, max: 8) fps ∼14%
AMD Radeon R9 280X
4.3 (min: 2, max: 8) fps ∼12%
AMD Radeon R7 370
4.1 (min: 2, max: 7) fps ∼12%
Star Wars Battlefront
3840x2160 High Preset AA:FX
AMD Radeon R9 Fury
50 (min: 43, max: 60) fps ∼100%
AMD Radeon R9 290X
43.4 (min: 36, max: 51) fps ∼87%
AMD Radeon R9 390X
42.5 fps ∼85%
NVIDIA GeForce GTX 980
40.4 (min: 35) fps ∼81%
NVIDIA GeForce GTX 980 (Laptop)
39.6 fps ∼79%
AMD Radeon RX 480 (Desktop)
38.5 (min: 34, max: 46) fps ∼77%
NVIDIA GeForce GTX 1060 (Desktop)
37.9 fps ∼76%
NVIDIA GeForce GTX 970
34.7 (min: 30, max: 42) fps ∼69%
AMD Radeon R9 280X
32.4 (min: 28, max: 39) fps ∼65%
AMD Radeon R9 380
24.5 fps ∼49%
NVIDIA GeForce GTX 960
21.2 fps ∼42%
AMD Radeon R7 370
19.4 (min: 16, max: 24) fps ∼39%
AMD Radeon RX 460 (Desktop)
17.8 (min: 15, max: 21) fps ∼36%
1920x1080 Ultra Preset AA:FX
AMD Radeon R9 Fury
119 (min: 100, max: 137) fps ∼100%
NVIDIA GeForce GTX 980
104.1 (min: 89) fps ∼87%
AMD Radeon R9 290X
104 (min: 92, max: 123) fps ∼87%
AMD Radeon R9 390X
104 fps ∼87%
NVIDIA GeForce GTX 980 (Laptop)
102.1 fps ∼86%
NVIDIA GeForce GTX 1060 (Desktop)
102 fps ∼86%
AMD Radeon RX 480 (Desktop)
100 (min: 90, max: 119) fps ∼84%
NVIDIA GeForce GTX 970
94 (min: 78, max: 113) fps ∼79%
AMD Radeon R9 280X
76 (min: 66, max: 89) fps ∼64%
AMD Radeon R9 380
61.3 fps ∼52%
NVIDIA GeForce GTX 960
60.8 fps ∼51%
AMD Radeon R7 370
52 (min: 43, max: 62) fps ∼44%
AMD Radeon RX 460 (Desktop)
48.6 (min: 41, max: 57) fps ∼41%
Fallout 4
3840x2160 High Preset AA:T AF:16x
AMD Radeon R9 Fury
38.7 (min: 30, max: 49) fps ∼100% +44%
NVIDIA GeForce GTX 980 (Laptop)
33.7 fps ∼87% +26%
AMD Radeon R9 390X
33.3 fps ∼86% +24%
NVIDIA GeForce GTX 1060 (Desktop)
32.2 fps ∼83% +20%
AMD Radeon R9 290X
31.6 (min: 25, max: 37) fps ∼82% +18%
NVIDIA GeForce GTX 970
30 (min: 24, max: 37) fps ∼78% +12%
AMD Radeon RX 480 (Desktop)
28.4 (min: 21, max: 36) fps ∼73% +6%
AMD Radeon RX 470 (Desktop)
26.8 (min: 20, max: 33) fps ∼69%
AMD Radeon R9 380
21.3 fps ∼55% -21%
NVIDIA GeForce GTX 960
18.5 fps ∼48% -31%
AMD Radeon R9 280X
17 (min: 12, max: 23) fps ∼44% -37%
AMD Radeon RX 460 (Desktop)
13.3 (min: 9, max: 17) fps ∼34% -50%
AMD Radeon R7 370
12.3 (min: 9, max: 16) fps ∼32% -54%
1920x1080 Ultra Preset AA:T AF:16x
AMD Radeon R9 Fury
80 (min: 66, max: 98) fps ∼100% +23%
NVIDIA GeForce GTX 980 (Laptop)
78 fps ∼98% +20%
NVIDIA GeForce GTX 1060 (Desktop)
77.1 fps ∼96% +19%
NVIDIA GeForce GTX 970
73 (min: 59, max: 94) fps ∼91% +12%
AMD Radeon R9 390X
72.8 fps ∼91% +12%
AMD Radeon RX 480 (Desktop)
67.6 (min: 52, max: 86) fps ∼85% +4%
AMD Radeon RX 470 (Desktop)
65 (min: 52, max: 80) fps ∼81%
AMD Radeon R9 290X
64 (min: 51, max: 80) fps ∼80% -2%
AMD Radeon R9 380
46.7 fps ∼58% -28%
NVIDIA GeForce GTX 960
44.8 fps ∼56% -31%
AMD Radeon R9 280X
44.7 (min: 35, max: 55) fps ∼56% -31%
AMD Radeon R7 370
34 (min: 24, max: 43) fps ∼43% -48%
AMD Radeon RX 460 (Desktop)
32.3 (min: 26, max: 41) fps ∼40% -50%
Call of Duty: Black Ops 3
3840x2160 High / On AA:FX
AMD Radeon R9 390X
37 fps ∼100%
AMD Radeon R9 Fury
36.4 (min: 30, max: 44) fps ∼98%
AMD Radeon RX 480 (Desktop)
35.2 (min: 31, max: 41) fps ∼95%
NVIDIA GeForce GTX 980 (Laptop)
34.2 fps ∼92%
NVIDIA GeForce GTX 1060 (Desktop)
32.2 fps ∼87%
AMD Radeon R9 290X
31.1 (min: 25, max: 38) fps ∼84%
NVIDIA GeForce GTX 970
29.7 (min: 25, max: 34) fps ∼80%
AMD Radeon R9 280X
24.2 (min: 20, max: 30) fps ∼65%
AMD Radeon R9 380
21.4 fps ∼58%
NVIDIA GeForce GTX 960
20.4 fps ∼55%
1920x1080 Extra / On AA:T2x SM
AMD Radeon RX 480 (Desktop)
94 (min: 82, max: 111) fps ∼100%
NVIDIA GeForce GTX 980 (Laptop)
88.3 fps ∼94%
AMD Radeon R9 390X
86.7 fps ∼92%
NVIDIA GeForce GTX 1060 (Desktop)
85.9 fps ∼91%
AMD Radeon R9 Fury
76 (min: 66, max: 103) fps ∼81%
AMD Radeon R9 290X
67 (min: 64, max: 103) fps ∼71%
NVIDIA GeForce GTX 960
55.8 fps ∼59%
AMD Radeon R9 380
50.7 fps ∼54%
AMD Radeon R9 280X
45 (min: 35, max: 62) fps ∼48%
Anno 2205
3840x2160 High Preset AA:4x
NVIDIA GeForce GTX 1060 (Desktop)
38.2 fps ∼100%
AMD Radeon R9 Fury
34.3 (min: 32, max: 36) fps ∼90%
NVIDIA GeForce GTX 980 (Laptop)
34.1 fps ∼89%
NVIDIA GeForce GTX 970
34.1 (min: 32, max: 36) fps ∼89%
AMD Radeon R9 390X
29.3 fps ∼77%
AMD Radeon R9 290X
26.9 (min: 25, max: 29) fps ∼70%
AMD Radeon RX 480 (Desktop)
26.1 (min: 23, max: 28) fps ∼68%
AMD Radeon R9 280X
22.8 (min: 19, max: 25) fps ∼60%
NVIDIA GeForce GTX 960
20.9 fps ∼55%
AMD Radeon R9 380
17.8 fps ∼47%
AMD Radeon RX 460 (Desktop)
12 (min: 9, max: 13) fps ∼31%
1920x1080 Ultra High Preset AA:8x
AMD Radeon R9 Fury
33 (min: 31, max: 35) fps ∼100%
NVIDIA GeForce GTX 1060 (Desktop)
31.9 fps ∼97%
NVIDIA GeForce GTX 980 (Laptop)
30.7 fps ∼93%
AMD Radeon RX 480 (Desktop)
28.7 (min: 25, max: 31) fps ∼87%
AMD Radeon R9 390X
27.7 fps ∼84%
NVIDIA GeForce GTX 970
27.7 (min: 35, max: 30) fps ∼84%
AMD Radeon R9 290X
26 (min: 23, max: 29) fps ∼79%
AMD Radeon R9 280X
22.7 (min: 21, max: 25) fps ∼69%
NVIDIA GeForce GTX 960
20.6 fps ∼62%
AMD Radeon R9 380
17.6 fps ∼53%
AMD Radeon RX 460 (Desktop)
13.4 (min: 12, max: 15) fps ∼41%
World of Warships
3840 x 2160 Very High Preset AA:High FX AF:16x
AMD Radeon R9 Fury
64 (min: 50, max: 82) fps ∼100% +23%
NVIDIA GeForce GTX 970
58.6 (min: 43, max: 89) fps ∼92% +13%
AMD Radeon R9 290X
57.9 (min: 44, max: 75) fps ∼90% +12%
AMD Radeon R9 390X
56.1 fps ∼88% +8%
AMD Radeon RX 480 (Desktop)
52.2 (min: 40, max: 75) fps ∼82% +1%
AMD Radeon RX 470 (Desktop)
51.9 (min: 41, max: 73) fps ∼81%
AMD Radeon R9 280X
45 (min: 33, max: 64) fps ∼70% -13%
NVIDIA GeForce GTX 960
36.4 fps ∼57% -30%
AMD Radeon R9 380
36.4 fps ∼57% -30%
AMD Radeon RX 460 (Desktop)
25.5 (min: 19, max: 39) fps ∼40% -51%
1920x1080 Very High Preset AA:High FX AF:16x
NVIDIA GeForce GTX 970
153 (min: 95, max: 217) fps ∼100% +15%
AMD Radeon R9 290X
134 (min: 85, max: 168) fps ∼88% +1%
AMD Radeon RX 470 (Desktop)
133 (min: 91, max: 162) fps ∼87%
AMD Radeon R9 Fury
130 (min: 79, max: 179) fps ∼85% -2%
AMD Radeon R9 390X
124.1 fps ∼81% -7%
AMD Radeon R9 280X
124 (min: 85, max: 156) fps ∼81% -7%
NVIDIA GeForce GTX 960
110.8 fps ∼72% -17%
AMD Radeon R9 380
101.1 fps ∼66% -24%
AMD Radeon RX 460 (Desktop)
75 (min: 60, max: 105) fps ∼49% -44%
Mad Max
3840x2160 High Preset AF:6x
AMD Radeon R9 Fury
55 (min: 51, max: 61) fps ∼100%
NVIDIA GeForce GTX 980 (Laptop)
48.1 fps ∼87%
AMD Radeon R9 290X
47.3 (min: 44, max: 53) fps ∼86%
NVIDIA GeForce GTX 1060 (Desktop)
46.8 fps ∼85%
AMD Radeon R9 390X
46 fps ∼84%
NVIDIA GeForce GTX 970
44 fps ∼80%
AMD Radeon RX 480 (Desktop)
41.1 (min: 37, max: 47) fps ∼75%
AMD Radeon R9 280X
35.4 (min: 32, max: 40) fps ∼64%
AMD Radeon R9 380
30.3 fps ∼55%
NVIDIA GeForce GTX 960
27.6 fps ∼50%
1920x1080 Very High Preset AF:12x
AMD Radeon R9 Fury
144 (min: 127, max: 158) fps ∼100%
NVIDIA GeForce GTX 980 (Laptop)
136.6 fps ∼95%
NVIDIA GeForce GTX 1060 (Desktop)
132 fps ∼92%
NVIDIA GeForce GTX 970
125 fps ∼87%
AMD Radeon R9 290X
119 (min: 103, max: 131) fps ∼83%
AMD Radeon RX 480 (Desktop)
119 (min: 106, max: 130) fps ∼83%
AMD Radeon R9 390X
116.4 fps ∼81%
AMD Radeon R9 280X
91.4 (min: 80, max: 99) fps ∼63%
AMD Radeon R9 380
84 fps ∼58%
NVIDIA GeForce GTX 960
80.5 fps ∼56%
AMD Radeon RX 460 (Desktop)
57.8 (min: 51, max: 66) fps ∼40%
Metal Gear Solid V - 3840x2160 High / On
AMD Radeon R9 Fury
57 (min: 54, max: 61) fps ∼100%
NVIDIA GeForce GTX 980 (Laptop)
50.8 fps ∼89%
AMD Radeon R9 390X
48.8 fps ∼86%
AMD Radeon R9 290X
46.8 (min: 44, max: 50) fps ∼82%
NVIDIA GeForce GTX 970
46 (min: 44, max: 48) fps ∼81%
AMD Radeon RX 480 (Desktop)
43.1 (min: 41, max: 45) fps ∼76%
AMD Radeon R9 280X
35.3 (min: 33, max: 38) fps ∼62%
AMD Radeon R9 380
31.8 fps ∼56%
NVIDIA GeForce GTX 960
28.2 fps ∼49%
AMD Radeon RX 460 (Desktop)
20.2 (min: 19, max: 21) fps ∼35%
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
AMD Radeon R9 Fury
35.9 (min: 32, max: 39) fps ∼100%
NVIDIA GeForce GTX 980 (Laptop)
30.1 fps ∼84%
AMD Radeon R9 390X
29.1 fps ∼81%
NVIDIA GeForce GTX 970
29.1 (min: 24, max: 33) fps ∼81%
NVIDIA GeForce GTX 1060 (Desktop)
29 fps ∼81%
AMD Radeon R9 290X
28.4 (min: 22, max: 32) fps ∼79%
AMD Radeon RX 480 (Desktop)
27.2 (min: 25, max: 30) fps ∼76%
AMD Radeon R9 380
18.5 fps ∼52%
AMD Radeon RX 460 (Desktop)
12 fps ∼33%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon R9 Fury
45.5 (min: 39, max: 51) fps ∼100% +12%
NVIDIA GeForce GTX 1060 (Desktop)
44.4 fps ∼98% +9%
NVIDIA GeForce GTX 980 (Laptop)
44.3 fps ∼97% +9%
AMD Radeon RX 480 (Desktop)
43.9 (min: 40, max: 49) fps ∼96% +8%
NVIDIA GeForce GTX 970
42.2 (min: 36, max: 49) fps ∼93% +4%
AMD Radeon R9 390X
40.8 fps ∼90% 0%
AMD Radeon RX 470 (Desktop)
40.7 (min: 35, max: 45) fps ∼89%
AMD Radeon R9 380
29.9 fps ∼66% -27%
AMD Radeon R9 290X
29 (min: 25, max: 32) fps ∼64% -29%
NVIDIA GeForce GTX 960
27.7 (min: 21) fps ∼61% -32%
AMD Radeon RX 460 (Desktop)
23 fps ∼51% -43%
GTA V
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
NVIDIA GeForce GTX 980 (Laptop)
59.8 fps ∼100%
AMD Radeon R9 290X
51.8 (min: 22, max: 129) fps ∼87%
AMD Radeon R9 Fury
46.6 fps ∼78%
NVIDIA GeForce GTX 970
41.3 fps ∼69%
AMD Radeon RX 480 (Desktop)
34.9 fps ∼58%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
NVIDIA GeForce GTX 980 (Laptop)
51 fps ∼100%
NVIDIA GeForce GTX 970
47.7 fps ∼94%
AMD Radeon RX 480 (Desktop)
45.6 fps ∼89%
AMD Radeon R9 290X
41 (min: 20, max: 80) fps ∼80%
NVIDIA GeForce GTX 960
28.3 fps ∼55%
AMD Radeon RX 460 (Desktop)
20.7 fps ∼41%
Battlefield Hardline
1920x1080 Ultra Graphics Quality (DX11) AA:4x MS
NVIDIA GeForce GTX 980 (Laptop)
99 fps ∼100%
AMD Radeon R9 390X
92.2 fps ∼93%
AMD Radeon RX 480 (Desktop)
86 fps ∼87%
AMD Radeon R9 290X
84 (min: 74, max: 92) fps ∼85%
AMD Radeon R9 380
61.4 fps ∼62%
NVIDIA GeForce GTX 960
58.3 fps ∼59%
1920x1080 High Graphics Quality (DX11)
NVIDIA GeForce GTX 980 (Laptop)
154.9 fps ∼100%
AMD Radeon R9 390X
128.2 fps ∼83%
AMD Radeon R9 290X
122 (min: 112, max: 134) fps ∼79%
AMD Radeon RX 480 (Desktop)
115 fps ∼74%
NVIDIA GeForce GTX 960
95.8 fps ∼62%
AMD Radeon R9 380
92.6 fps ∼60%
Dragon Age: Inquisition - 1920x1080 Ultra Graphics Quality AA:2x MS
AMD Radeon R9 390X
67.9 fps ∼100%
NVIDIA GeForce GTX 970
67.4 (min: 51) fps ∼99%
NVIDIA GeForce GTX 1060 (Desktop)
66.9 fps ∼99%
NVIDIA GeForce GTX 980 (Laptop)
65.4 fps ∼96%
AMD Radeon RX 480 (Desktop)
64.1 (min: 48.5) fps ∼94%
AMD Radeon RX 480 (Desktop)
53.9 (min: 44.4) fps ∼79%
AMD Radeon R9 Fury
60 (min: 52) fps ∼88%
AMD Radeon R9 380
41.6 fps ∼61%
Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x
AMD Radeon R9 Fury
137 fps ∼100%
NVIDIA GeForce GTX 980 (Laptop)
134.4 fps ∼98%
NVIDIA GeForce GTX 1060 (Desktop)
133 fps ∼97%
AMD Radeon RX 480 (Desktop)
122 fps ∼89%
NVIDIA GeForce GTX 960
80.9 fps ∼59%
AMD Radeon RX 460 (Desktop)
60.9 fps ∼44%
Middle-earth: Shadow of Mordor - 1920x1080 Ultra Preset (HD Package)
AMD Radeon R9 Fury
103 (min: 65, max: 146) fps ∼100%
AMD Radeon R9 390X
94.5 fps ∼92%
NVIDIA GeForce GTX 980 (Laptop)
91.4 fps ∼89%
AMD Radeon RX 480 (Desktop)
84 (min: 57, max: 123) fps ∼82%
NVIDIA GeForce GTX 970
80 (min: 52, max: 125) fps ∼78%
AMD Radeon R9 380
61.6 fps ∼60%
AMD Radeon RX 460 (Desktop)
41.2 (min: 28, max: 58) fps ∼40%
Battlefield 4
3840x2160 High Preset
AMD Radeon R9 Fury
56 (min: 49, max: 65) fps ∼100% +46%
NVIDIA GeForce GTX 980 (Laptop)
52.5 fps ∼94% +37%
AMD Radeon R9 390X
49.9 fps ∼89% +30%
NVIDIA GeForce GTX 970
47.6 (min: 43, max: 57) fps ∼85% +24%
AMD Radeon R9 290X
46.6 (min: 41, max: 54) fps ∼83% +22%
AMD Radeon RX 480 (Desktop)
41.9 (min: 38, max: 50) fps ∼75% +9%
AMD Radeon RX 470 (Desktop)
38.3 (min: 34, max: 46) fps ∼68%
AMD Radeon R9 380
25.3 fps ∼45% -34%
AMD Radeon RX 460 (Desktop)
19.2 (min: 17, max: 23) fps ∼34% -50%
1920x1080 Ultra Preset AA:4x MS
AMD Radeon R9 Fury
101 (min: 92, max: 122) fps ∼100% +31%
NVIDIA GeForce GTX 980 (Laptop)
99.6 fps ∼99% +29%
NVIDIA GeForce GTX 970
94 (min: 86, max: 114) fps ∼93% +22%
AMD Radeon R9 390X
89.7 fps ∼89% +16%
AMD Radeon RX 480 (Desktop)
82 (min: 67, max: 101) fps ∼81% +6%
AMD Radeon RX 470 (Desktop)
77 (min: 62, max: 100) fps ∼76%
AMD Radeon R9 380
59.5 fps ∼59% -23%
NVIDIA GeForce GTX 960
58 fps ∼57% -25%
AMD Radeon RX 460 (Desktop)
38.6 (min: 31, max: 48) fps ∼38% -50%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
NVIDIA GeForce GTX 980 (Laptop)
92.3 fps ∼100%
NVIDIA GeForce GTX 970
90 fps ∼98%
AMD Radeon R9 Fury
89 fps ∼96%
AMD Radeon R9 390X
82.7 fps ∼90%
AMD Radeon RX 480 (Desktop)
80 (min: 43, max: 143) fps ∼87%
AMD Radeon R9 380
54.9 fps ∼59%
AMD Radeon RX 460 (Desktop)
37.2 (min: 24, max: 67) fps ∼40%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
NVIDIA GeForce GTX 980 (Laptop)
121.4 fps ∼100%
NVIDIA GeForce GTX 970
118 fps ∼97%
AMD Radeon R9 390X
112.4 fps ∼93%
AMD Radeon RX 480 (Desktop)
110 (min: 20, max: 177) fps ∼91%
AMD Radeon R9 380
80.8 fps ∼67%
AMD Radeon RX 460 (Desktop)
55.3 fps ∼46%
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x
AMD Radeon R9 Fury
64.5 (min: 51, max: 95) fps ∼100% +32%
NVIDIA GeForce GTX 980 (Laptop)
60.7 fps ∼94% +24%
AMD Radeon R9 390X
56.1 fps ∼87% +15%
NVIDIA GeForce GTX 970
55 fps ∼85% +12%
AMD Radeon RX 480 (Desktop)
52.6 (min: 45, max: 73) fps ∼82% +8%
AMD Radeon RX 470 (Desktop)
48.9 (min: 40, max: 71) fps ∼76%
AMD Radeon R9 380
39.4 fps ∼61% -19%
NVIDIA GeForce GTX 960
36.1 fps ∼56% -26%
AMD Radeon RX 460 (Desktop)
25.3 (min: 21, max: 36) fps ∼39% -48%

Legende

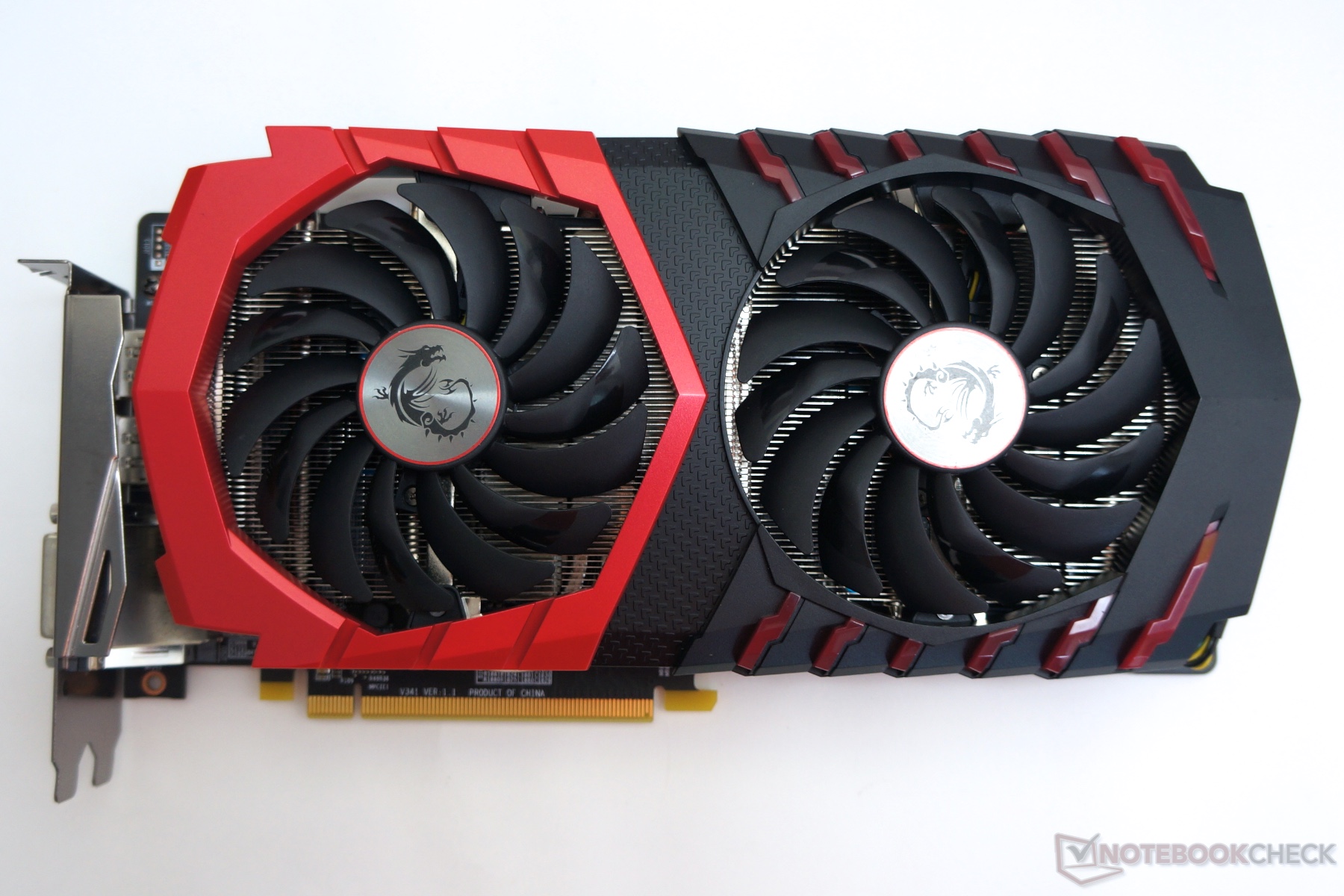

MSI RX 470 Gaming X 4GB Intel Core i7-4790K, AMD Radeon RX 470 (Desktop), Intel SSD 530 Series SSDSC2BW240A

XFX Radeon R9 390X DD Black Edition Intel Xeon E3-1230 v3, AMD Radeon R9 390X,

XFX Radeon R9 Fury Pro Intel Core i7-4790K, AMD Radeon R9 Fury, Intel SSD 530 Series SSDSC2BW240A

Sapphire Radeon R9 290X Tri-X OC Intel Core i7-4790K, AMD Radeon R9 290X, Intel SSD 530 Series SSDSC2BW240A

Desktop PC Intel Core i7-6700K, NVIDIA GeForce GTX 980,

Notebookcheck Desktop PC Intel Core i7-6700K, NVIDIA GeForce GTX 980, Crucial MX100 256 GB

Schenker XMG U716 Intel Core i7-6700, NVIDIA GeForce GTX 980 (Laptop), Samsung SM951 MZHPV512HDGL m.2 PCI-e

AMD Radeon RX 480 8 GB Reference Intel Core i7-4790K, AMD Radeon RX 480 (Desktop), Intel SSD 530 Series SSDSC2BW240A

MSI Gaming Z GeForce GTX 970 Desktop PC Intel Core i7-4790K, NVIDIA GeForce GTX 970, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Nvidia GeForce GTX 1060 Founders Edition 6 GB Intel Core i7-6700K, NVIDIA GeForce GTX 1060 (Desktop),

MSI Gaming R7 370 2GB Intel Core i7-4790K, AMD Radeon R7 370, Intel SSD 530 Series SSDSC2BW240A

MSI GeForce GTX 960 Gaming 4G Desktop-PC Intel Xeon E3-1230 v3, NVIDIA GeForce GTX 960,

Desktop-PC Intel Xeon E3-1230 v3, AMD Radeon R9 380,

Asus Z97 Deluxe Desktop i7-4790K, R9 280X Intel Core i7-4790K, AMD Radeon R9 280X, Intel SSD 530 Series SSDSC2BW240A

XFX RX-460P4DFG5 Double Dissipation 4 GB Intel Core i7-4790K, AMD Radeon RX 460 (Desktop), Intel SSD 530 Series SSDSC2BW240A
min. mittel hoch max.4K
Crysis 3 (2013) 48.9 fps
Battlefield 4 (2013) 77 38.3 fps
Dirt Rally (2015) 82 116 fps
The Witcher 3 (2015) 40.7 fps
Dota 2 Reborn (2015) 86 fps
World of Warships (2015) 133 51.9 fps
Fallout 4 (2015) 65 26.8 fps
Rainbow Six Siege (2015) 120 32.2 fps
Just Cause 3 (2015) 79 31.7 fps
Rise of the Tomb Raider (2016) 54.3 25.3 fps
XCOM 2 (2016) 53.5 24.5 14.7 fps
Far Cry Primal (2016) 54 26 fps
The Division (2016) 53.3 27.2 fps
Hitman 2016 (2016) 55.6 26.7 fps
Doom (2016) 80 29.7 fps
Overwatch (2016) 94 54.4 fps
Mirror's Edge Catalyst (2016) 65.2 23.7 fps
No Man's Sky (2016) 98 93 62.5 31.6 28.2 fps
Deus Ex Mankind Divided (2016) 113 102 57.6 28.4 17.8 fps
FIFA 17 (2016) 295 135 fps
Mafia 3 (2016) 52.8 29.8 fps
Battlefield 1 (2016) 92 83 35.2 fps
Civilization VI (2016) 63.5 54.5 fps
Farming Simulator 17 (2016) 72 67.8 fps
Titanfall 2 (2016) 110 97 32.3 fps
Call of Duty Infinite Warfare (2016) 90 45.3 fps
Dishonored 2 (2016) 49.1 46.4 24.8 fps
Watch Dogs 2 (2016) 61.2 37.4 22 fps
Resident Evil 7 (2017) 114 37.6 30.8 fps
For Honor (2017) 244 102 97 69.8 29.6 fps
Ghost Recon Wildlands (2017) 130 63.9 58.7 29.7 20.6 fps
Mass Effect Andromeda (2017) 57.8 50 22.6 fps
Warhammer 40.000: Dawn of War III (2017) 160 70 45.4 40 13.6 fps
Prey (2017) 143 91 27.8 fps
Rocket League (2017) 142 62.3 fps
Dirt 4 (2017) 98 59.4 fps
Playerunknown's Battlegrounds (PUBG) (2017) 71 49.6 40.2 fps
Assassin´s Creed Origins (2017) 66 57 52 44 14 fps
Need for Speed Payback (2017) 79 25 fps
Star Wars Battlefront 2 (2017) 79 61 9.7 fps
Fortnite (2018) 88 58.9 17.3 fps
Final Fantasy XV Benchmark (2018) 50.2 25.6 fps
X-Plane 11.11 (2018) 66.3 60.5 52.1 38.5 fps

Leistung unter Last / Throttling

3DMark Fire Strike Stress Test, kaum Leistungseinbußen über die Laufzeit
3DMark Fire Strike Stress Test, kaum Leistungseinbußen über die Laufzeit

Bei den modernen Boost und Turbo-Verfahren ist es natürlich sehr wichtig wie lange die Grafikkarte die Performance halten kann. Gerade bei Spielen sind lange Belastungen über Stunden keine Seltenheit. Bei der Radeon RX 470 von MSI sieht es jedoch diesbezüglich sehr gut aus. In unserem Test mit "The Witcher 3" in 1920x1080 und ultra Settings bleibt die Taktrate konstant bei 1242 MHz. Die GPU Temperatur pendelte sich bei unkritischen 66 Grad Celsius ein.

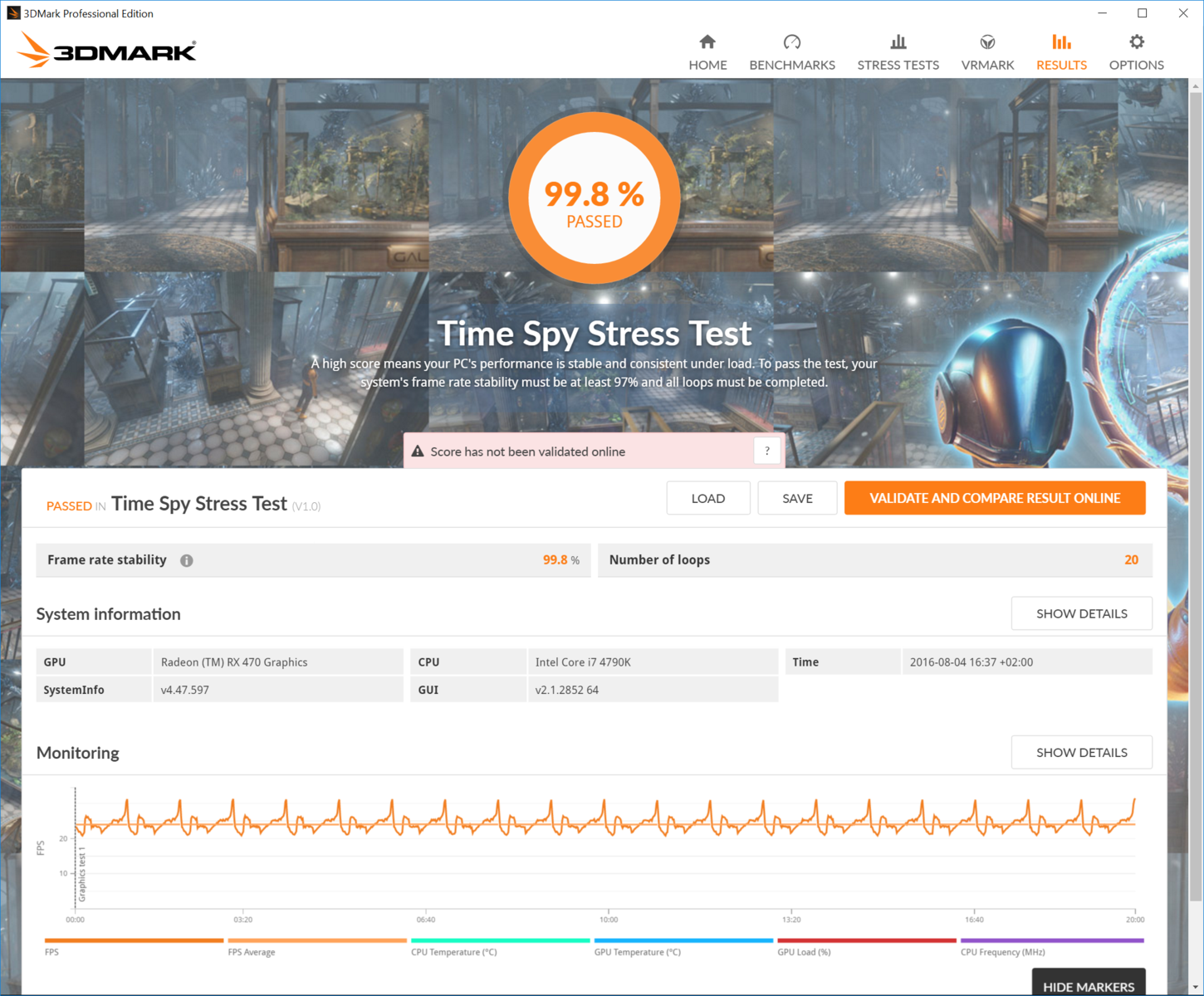

Auch im 3DMark Time Spy Stress Test (20 Durchläufe) verringerte sich die Leistung nur um 0,2 %. Auch im Furmark Stresstest bleibt die Taktrate bei konstant 1242 MHz (und 72°C Kerntemperatur).

Compute Performance

Die Radeon RX 480 verfügt über 32 Compute Units die für generelle Berechnungen eingesetzt werden können. Hierfür propagiert AMD das offene OpenCL Protokoll, aber auch DirectCompute wird unterstützt. Im Test mit LuxMark (OpenCL) und ComputeMark (DirectCompute) zeigt die Grafikkarte eine durchaus ansprechende Performance auf Augenhöhe der GTX 970 und GTX 1060. Die Referenz-RX-480 ist 9% schneller.

Performance Rating
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
98.3 pt ∼98%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
84.3 pt ∼84%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
79.7 pt ∼80%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
72.7 pt ∼73%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
62.6 pt ∼63%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
62.5 pt ∼63%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
59.3 pt ∼59%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
57.4 pt ∼57%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
57.2 pt ∼57%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
56.1 pt ∼56%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
36.1 pt ∼36%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
31.5 pt ∼32%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
29.4 pt ∼29%
LuxMark v2.0 64Bit
Room GPUs-only
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
2490 Samples/s ∼100% +73%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
2485 Samples/s ∼100% +73%
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
2327 Samples/s ∼93% +62%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1893 Samples/s ∼76% +31%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
1874 Samples/s ∼75% +30%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
1773 Samples/s ∼71% +23%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
1661 Samples/s ∼67% +15%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
1638 Samples/s ∼66% +14%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
1566 Samples/s ∼63% +9%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
1440 Samples/s ∼58%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1179 Samples/s ∼47% -18%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
790 Samples/s ∼32% -45%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
782 Samples/s ∼31% -46%
Sala GPUs-only
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
4708 Samples/s ∼100% +56%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
3919 Samples/s ∼83% +30%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
3877 Samples/s ∼82% +28%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
3468 Samples/s ∼74% +15%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
3179 Samples/s ∼68% +5%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
3125 Samples/s ∼66% +3%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
3038 Samples/s ∼65% +1%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
3020 Samples/s ∼64% 0%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
3020 Samples/s ∼64%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
2584 Samples/s ∼55% -14%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1836 Samples/s ∼39% -39%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1554 Samples/s ∼33% -49%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1486 Samples/s ∼32% -51%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
6191 Points ∼100% +150%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
5084 Points ∼82% +105%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
4270 Points ∼69% +73%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
3322 Points ∼54% +34%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
3238 Points ∼52% +31%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
3082 Points ∼50% +25%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
3027 Points ∼49% +22%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
2746 Points ∼44% +11%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
2666 Points ∼43% +8%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
2475 Points ∼40%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
2070 Points ∼33% -16%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1253 Points ∼20% -49%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1180 Points ∼19% -52%
1024x600 Normal, Mandel Scalar
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
3646 Points ∼100% +49%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
3233 Points ∼89% +32%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
3131 Points ∼86% +28%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
2710 Points ∼74% +11%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
2625 Points ∼72% +7%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
2539 Points ∼70% +4%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
2447 Points ∼67%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
2002 Points ∼55% -18%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1973 Points ∼54% -19%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
1829 Points ∼50% -25%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1236 Points ∼34% -49%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1121 Points ∼31% -54%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1095 Points ∼30% -55%
1024x600 Normal, Mandel Vector
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
3284 Points ∼100% +51%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
2863 Points ∼87% +32%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
2602 Points ∼79% +20%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
2479 Points ∼75% +14%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
2232 Points ∼68% +3%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
2172 Points ∼66%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
2162 Points ∼66% 0%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
1994 Points ∼61% -8%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1941 Points ∼59% -11%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
1840 Points ∼56% -15%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1372 Points ∼42% -37%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1224 Points ∼37% -44%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1206 Points ∼37% -44%
1024x600 Normal, Fluid 2DTexArr
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
1758 Points ∼100% +93%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
1382 Points ∼79% +52%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
1376 Points ∼78% +51%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
1114 Points ∼63% +22%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1010 Points ∼57% +11%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
991 Points ∼56% +9%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
978 Points ∼56% +7%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
963 Points ∼55% +6%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
917 Points ∼52% +1%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
911 Points ∼52%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
613 Points ∼35% -33%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
529 Points ∼30% -42%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
479 Points ∼27% -47%
1024x600 Normal, Fluid 3DTex
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
1860 Points ∼100% +79%
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
1730 Points ∼93% +67%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
1531 Points ∼82% +47%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
1402 Points ∼75% +35%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
1300 Points ∼70% +25%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
1220 Points ∼66% +17%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
1039 Points ∼56%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1038 Points ∼56% 0%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
985 Points ∼53% -5%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
936 Points ∼50% -10%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
694 Points ∼37% -33%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
536 Points ∼29% -48%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
536 Points ∼29% -48%
1024x600 Normal, Score
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
16610 Points ∼100% +84%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
13856 Points ∼83% +53%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
12373 Points ∼74% +37%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
11890 Points ∼72% +31%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
9800 Points ∼59% +8%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
9659 Points ∼58% +7%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
9266 Points ∼56% +2%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
9200 Points ∼55% +2%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
9044 Points ∼54%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
8549 Points ∼51% -5%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
5743 Points ∼35% -36%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
4861 Points ∼29% -46%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
4540 Points ∼27% -50%

Videoengine

DXVAChecker der MSI RX 470
DXVAChecker der MSI RX 470

Die RX 470 enthält die selbe Videoengine wie der RX 480, welche im Test problemlos ein H.264 4K Video mit 100 MBit mit 84 fps und 3 % CPU Last wiedergeben konnte. Auch H.265 war in 4K kein Problem (siehe RX 480 Test). Mit einer PlayReady 3.0 (SL3000) Zertifizierung wie die GTX 1080 bereits hat, kann die RX 480 noch nicht aufwarten. Laut AMD soll dies jedoch in Zukunft möglich sein.

Stromverbrauch

Wie auch die RX 480, kann die RX 470 beim Idle Stromverbrauch nicht sonderlich punkten. Die neuen GTX 10 Grafikkarten und auch die Polaris 10 basierende RX 460 sind deutlich sparsamer.

Unter Last ist die RX 470 etwas sparsamer als die GeForce GTX 970 von MSI. Die GTX 1070 braucht bei deutlich höherer Leistung jedoch ähnlich viel Strom.

Lautstärke

Wie schon die GTX 1070 Gaming Z überzeugt auch die Gaming X Version der RX 470 durch einen ausgesprochen leisen Betrieb. Selbst bei 72°C Kerntemperatur während dem Furmark Stresstest drehen die Lüfter nur mit 1120 RPM im Schnitt und bleiben in unserem Testsystem leiser als der be-quiet Prozessorlüfter. Transistorpfeifen ist uns nur bei sehr hohen FPS Raten leicht aufgefallen (3DMark Cloud Gate z.B.) und war nicht störend.

Ohne Last schalten sich die beiden großen Lüfter zwar leider nicht ab, bleiben mit 876 RPM jedoch sehr leise und kühlen die GPU auf 46°C.

Hitzeentwicklung

Im Test erhitzt sich die RX 470 auf der Rückseite deutlich. Wir messen maximal 87°C und damit deutlich mehr als bei der Referenz RX 480 (72 °C). Die Vorderseite mit den großen Lüftern bleibt jedoch relativ kühl. Nur die beiden Heatpipes auf der Seite erhitzen sich auch klarerweise deutlich. Wir messen mit angebrachtem Klebeband (aufgrund der Reflektivität) 48°C.

Im Internen der Grafikkarte melden die Sensoren maximal 66 °C bei starker Last (The Witcher 3 z.B.) - absolut unkritisch. Im Furmark erreicht die MSI RX 470 das von uns gemessene Maximum von 72°C bei weiterhin 1242 MHz (kein Throttling).

Fazit

Die MSI RX 470 Gaming X 4G gefällt im Test durch eine ansprechende Performance die im Spieleschnitt nur etwa 6 % hinter der Referenz-RX-480 liegt. Durch die konstant anliegenden 1242 MHz ist sie dadurch etwa 4% schneller als eine Referenz RX 470 (3620 Time Spy Punkte laut AMD). Dadurch eignet sie sich am besten für Full HD Spiele in maximaler Auflösung. Nur bei XCOM 2 müsste man bei unseren Tests die Qualität etwas reduzieren. Wie von den MSI Gaming X Karten gewohnt, ist das Kühlsystem leise und effizient. Preise wurden bis jetzt leider noch keine Veröffentlicht, die genannten Listenpreise sind derzeit jedoch etwas zu nahe an der 4 GB Version der RX 480. Hier muss man die Straßenpreise abwarten.

Wie bei der Radeon RX 480, erhält man auch bei der RX 470 die selben Features wie HDMI 2.0b, DisplayPort 1.3/1.4 für 5K Displays, HDR Support und eine verbesserte Videoengine.

Noch gibt es von Nvidia keine direkte Konkurrenz, die GTX 1060 ist deutlich teurer und auch schneller. Wir sind gespannt wie das Duell mit einer kommenden GTX 1050 (Ti?) aussehen wird.

static version load dynamic
Die Kommentare zum Artikel werden geladen
Diesen Artikel kommentieren / Antworten
Teilen Sie diesen Artikel um uns zu unterstützen. Jeder Link hilft!
> Notebook Test, Laptop Test und News > Tests > Sonstige Tests > Test MSI Radeon RX 470 Gaming X 4 GB
Autor: Klaus Hinum,  4.08.2016 (Update: 22.05.2017)
