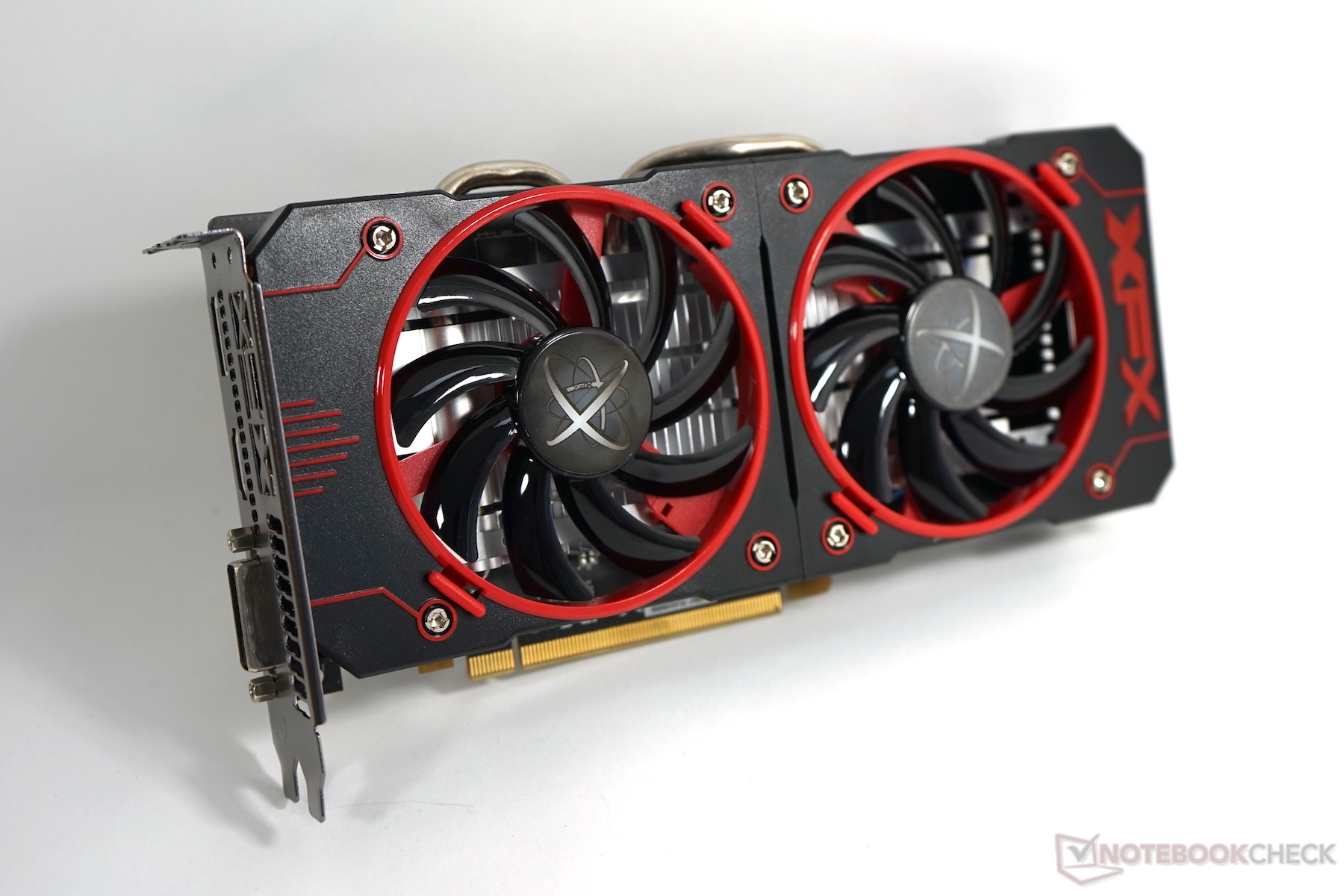

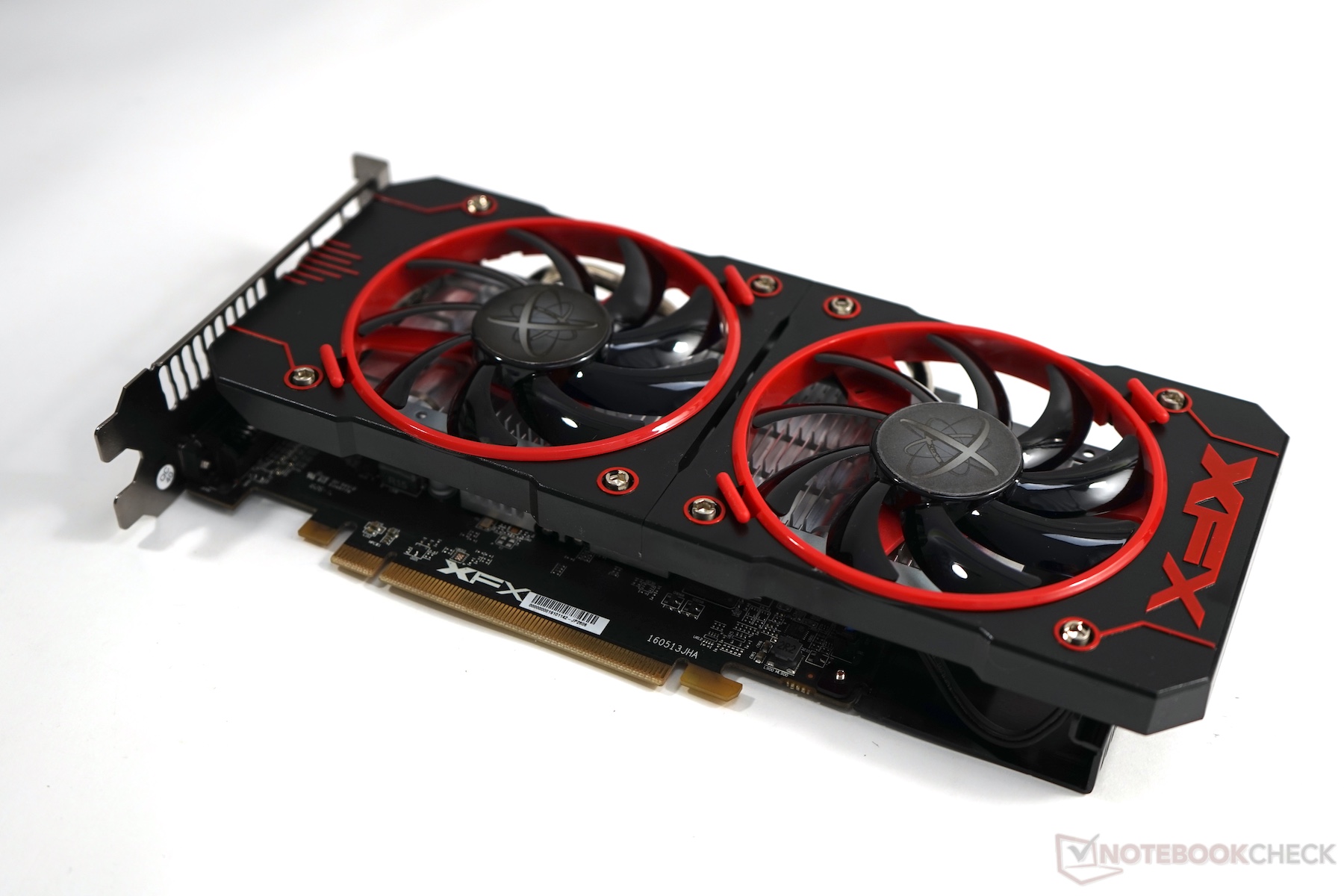

Test XFX Radeon RX 460 4 GB Double Dissipation (RX-460P4DFG5)

Klaus Hinum, 10.08.2016

Polaris 11. In der XFX Radeon RX 460 Desktop Grafikkarte debütiert bei uns der kleine Polaris-11-Chip von AMD im 14-nm-FinFet-Prozess. Unser Test zeigt mit zahlreichen Benchmarks und Hardware-Tests die Leistungsfähigkeit der Partnerkarte und des neuen Chips.

Als dritte Polaris basierende Desktop Grafikkarte präsentiert AMD nun die Radeon RX 460. Im Gegensatz zur RX 470 und Radeon RX 480, basiert die RX 460 jedoch auf den kleineren Polaris 11 Chip. Dieser bietet die selben Features wie der große Bruder und kann noch mit einem zusätzlichen Stromsparfeature aufwarten. Sie unterstützt das Power-Gating zwischen den einzelnen Compute Units.

Mit seinen 123 mm² ist der Polaris-11-Chip fast halb so klein wie der Polaris-10-Chip (232 mm²). Daher bietet er auch nur die Hälfte der Shader Engines mit 1.024 Shader, wobei bei der RX 460 nur 896 aktiviert sind.

Spezifikationen Radeon RX 480 Radeon RX 470 Radeon RX 460
Chip Polaris 10 XT Polaris 10 Pro Polaris 11 Pro
Shader/Compute Units 2304/36 2048/32 896/14
Texture Units 144 128 64
GPU Base Clock 1.120 MHz 926 MHz 1.090 MHz
GPU Boost Clock 1.266 MHz 1.206 MHz (1.242 MHz MSI) 1.200 MHz
L2 Cache 2 MB 2 MB 1 MB
TFLOPS >5 >4 >2
Memory Bus 256 Bit 256 Bit 128 Bit
Memory Bandwidth 256 GB/s 211 GB/s 112 GB/s
Memory Size 8 GB 4 GB/8 GB 2 GB/4 GB

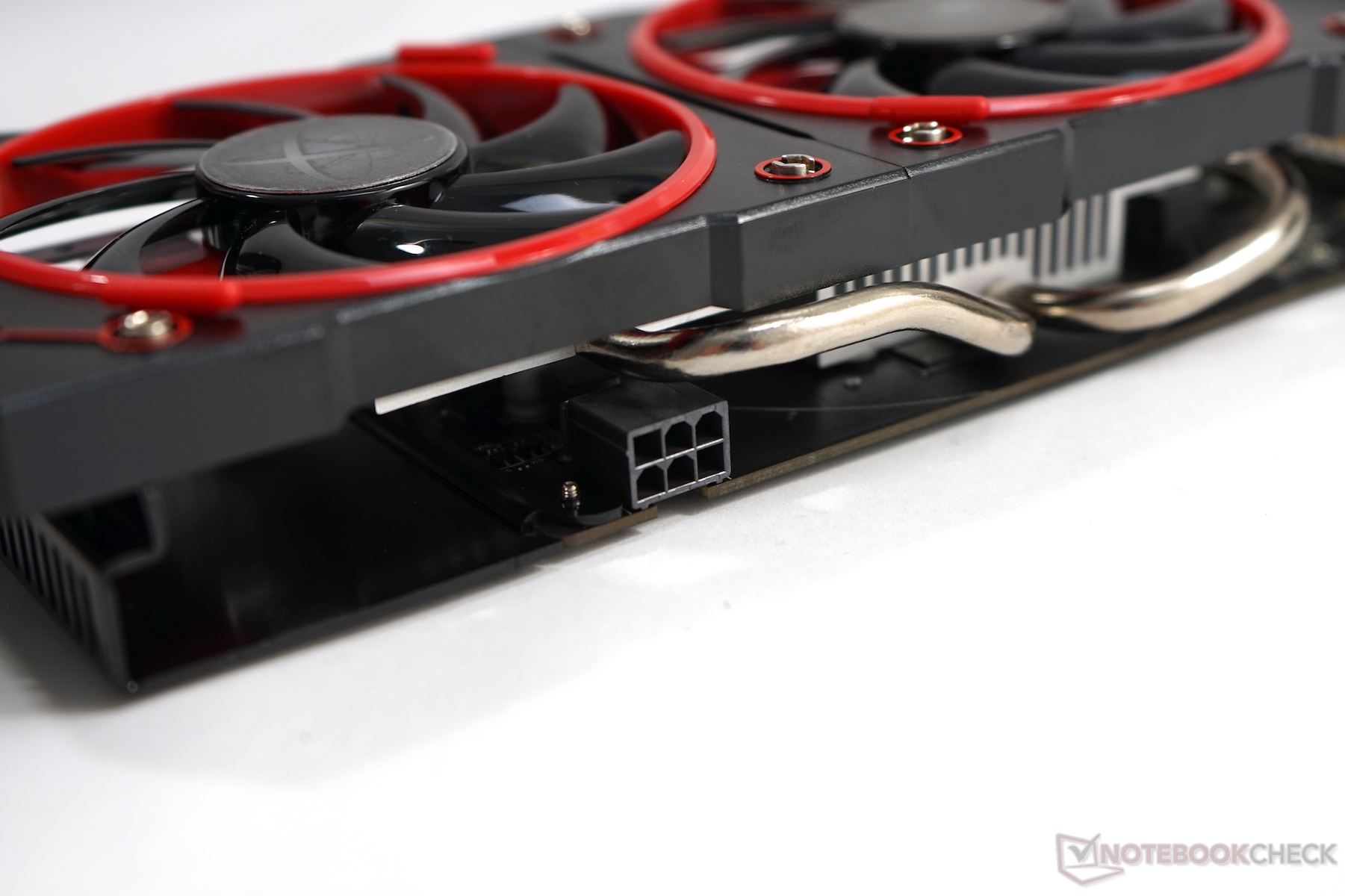

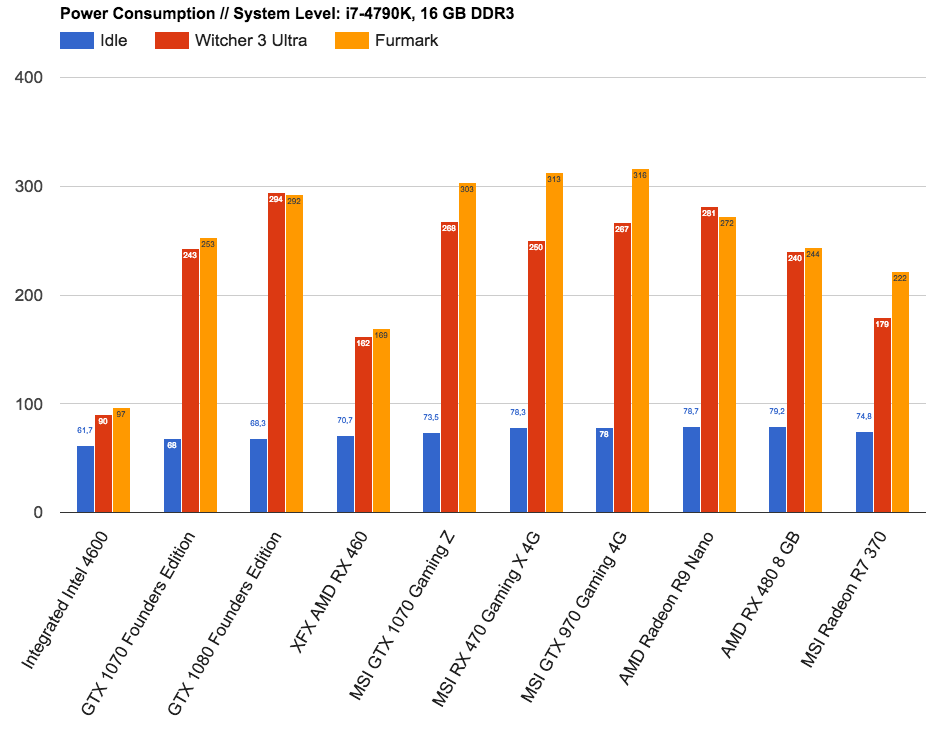

Power (Watt) 150 (1x 6-Pin) 120 (1x 6-Pin) <75 (keinen)

Polaris

Polaris ist AMDs erste Architektur, die im 14-nm-FinFET-Verfahren gefertigt wird. Es ist die 4. Generation der GCN (Graphics Core Next) Architektur und bietet folgende Verbesserungen laut AMD:

  • verbesserte Geometrieverarbeitung
  • verbesserte Shader-Effizienz (bis zu 15 % pro CU bei RX 480 vs. R9 290)
  • LiquidVR-API-Unterstützung mit "Variable Resolution Rendering"
  • verbesserter Speicherkontroller und Delta Color Compression (DCC) mit voller 2/4/8:1-Unterstützung
  • verdoppelter Level 2 Cache
  • Shader Instruction Pre-Fetch und verbessertes Buffering
  • verbessertes Async Compute
  • AMD TrueAudio Next (per Shader berechnet)

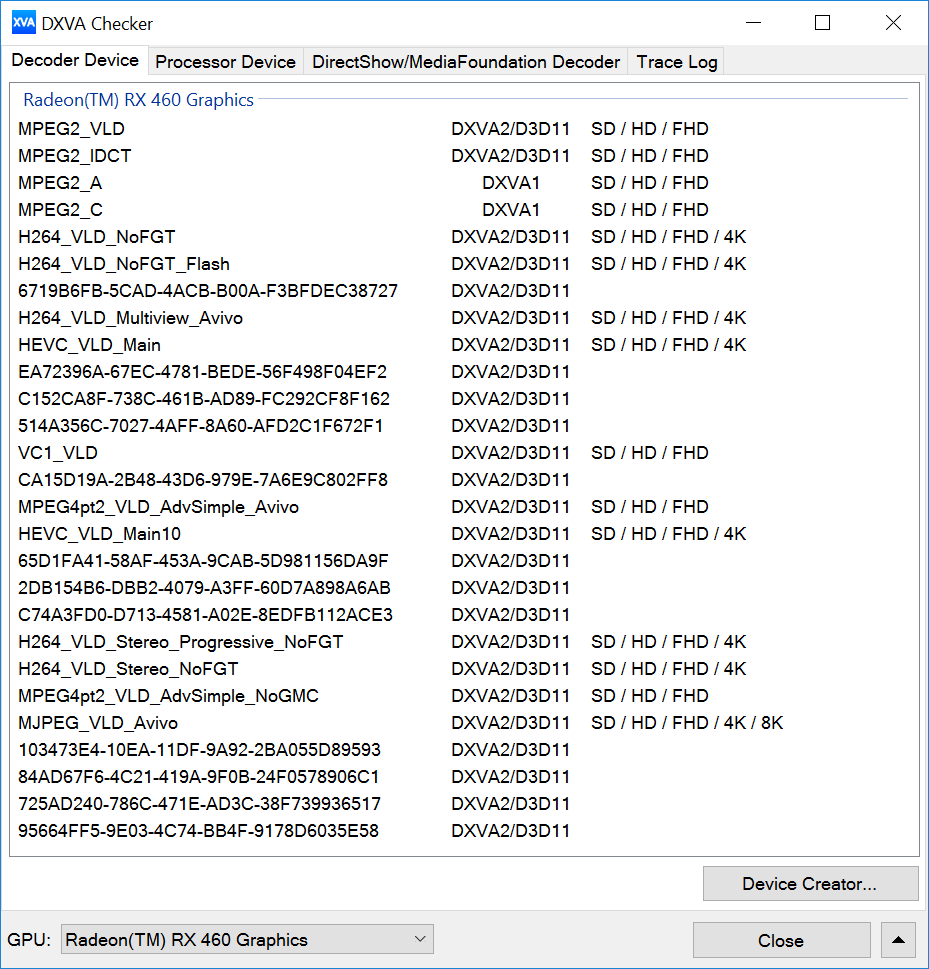

  • H.265 Main 10 Decode und 4K60 HEVC Encode

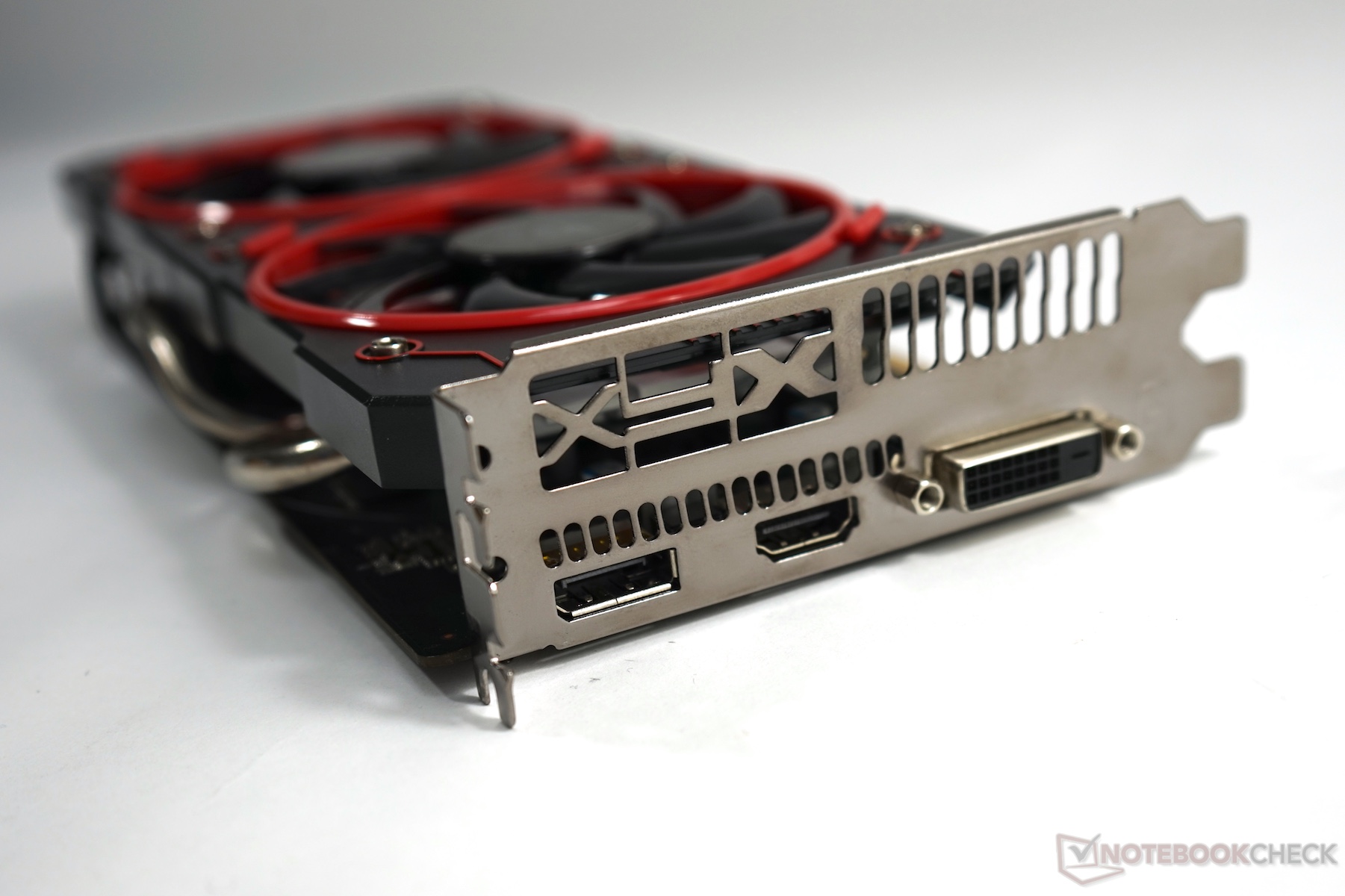

  • HDMI 2.0b, DisplayPort 1.3 HBR (5K60 mit einem einzelnen Kabel)/1.4 HDR mit HDCP 2,2
  • HDR-Display-Unterstützung

Diese Verbesserungen sollen zu einer bis zu 2,8x verbesserten Performance pro Watt führen (RX 470 vs R9 270X).

Qualitäts-Journalismus wird durch Werbung bezahlt. Wir zeigen Lesern die geringst-mögliche Menge an Ads. Adblock-Nutzer sehen mehr Werbung. Bitte schalten Sie Ad-Blocker ab.

Unser Testsystem für die folgenden Benchmarks setzt sich aus diesen Komponenten zusammen:

Intel Core i7-4790K (unübertaktet), 16 GB DDR3, Asus ZU97-Deluxe, Asus PB287Q 4K Monitor, Intel SSD 530 (240 GB, System), OCZ Trion 100 SSD (480 GB, Benchmarks), Windows 10 64 Bit mit allen Updates Mitte Juni. Als Treiber verwendeten wir den Vorabtreiber 16.8.1, der für die Presse vor Launch zur Verfügung gestellt wurde.

Synthetische Benchmarks

Beginnen wir unsere Performance-Betrachtung zunächst mit einem Blick auf die synthetischen Benchmarks von Futuremark und Unigine. Hier kann die RX 460 nicht sonderlich glänzen und liegt 7 % hinter der GTX 965M (2016 Refresh im MSI GE72). Die alte Radeon R7 370 ist satte 15 % schneller.

Performance Rating
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
98.1 pt ∼98%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
96.5 pt ∼97%
NVIDIA GeForce GTX 980
Notebookcheck Desktop PC, Intel Core i7-6700K
95.7 pt ∼96%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
92.4 pt ∼92%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
91.1 pt ∼91%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
86.9 pt ∼87%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
85 pt ∼85%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
84.7 pt ∼85%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, Intel Core i7-4790K
80.1 pt ∼80%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
60.6 pt ∼61%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
56.7 pt ∼57%
AMD Radeon R7 370
no name, Intel Core i7-3960X
46.3 pt ∼46%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
43.8 pt ∼44%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
43 pt ∼43%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
40.1 pt ∼40%
3DMark
1920x1080 Fire Strike Graphics
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
14580 Points ∼100% +156%
NVIDIA GeForce GTX 980
Notebookcheck Desktop PC, Intel Core i7-6700K
13286 Points ∼91% +133%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
12984 Points ∼89% +128%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
12691 Points ∼87% +123%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
12389 Points ∼85% +117%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
12186 Points ∼84% +114%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
11998 Points ∼82% +110%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
11954 Points ∼82% +110%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, Intel Core i7-4790K
11869 Points ∼81% +108%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
8218 Points ∼56% +44%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
7912 Points ∼54% +39%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
6160 Points ∼42% +8%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
5979 Points ∼41% +5%
AMD Radeon R7 370
no name, Intel Core i7-3960X
5943 Points ∼41% +4%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
5701 Points ∼39%
1280x720 Cloud Gate Standard Graphics
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
80879 Points ∼100% +132%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
80439 Points ∼99% +131%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
75213 Points ∼93% +116%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
74351 Points ∼92% +113%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
72213 Points ∼89% +107%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
71472 Points ∼88% +105%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, Intel Core i7-4790K
66398 Points ∼82% +90%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
50723 Points ∼63% +45%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
49088 Points ∼61% +41%
AMD Radeon R7 370
no name, Intel Core i7-3960X
41435 Points ∼51% +19%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
38935 Points ∼48% +12%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
38182 Points ∼47% +9%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
34892 Points ∼43%
3DMark 11 - 1280x720 Performance GPU
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
17944 Points ∼100% +109%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
17919 Points ∼100% +108%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, Intel Core i7-4790K
17738 Points ∼99% +106%
NVIDIA GeForce GTX 980
Notebookcheck Desktop PC, Intel Core i7-6700K
17697 Points ∼99% +106%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
17543 Points ∼98% +104%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
17401 Points ∼97% +102%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
17050 Points ∼95% +98%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
16355 Points ∼91% +90%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
16033 Points ∼89% +86%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
12191 Points ∼68% +42%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
10683 Points ∼60% +24%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
8607 Points ∼48% 0%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
8597 Points ∼48%
AMD Radeon R7 370
no name, Intel Core i7-3960X
8430 Points ∼47% -2%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
8391 Points ∼47% -2%
Unigine Heaven 4.0 - Extreme Preset DX11
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
82.7 fps ∼100% +165%
NVIDIA GeForce GTX 980
Notebookcheck Desktop PC, Intel Core i7-6700K
80.5 fps ∼97% +158%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
78.1 fps ∼94% +150%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
77.1 fps ∼93% +147%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
72.2 fps ∼87% +131%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
66 fps ∼80% +112%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, Intel Core i7-4790K
61.1 fps ∼74% +96%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
45.9 fps ∼56% +47%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
43.2 fps ∼52% +38%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
33.9 fps ∼41% +9%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
33.5 fps ∼41% +7%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
31.2 fps ∼38%
Unigine Valley 1.0 - 1920x1080 Extreme HD DirectX AA:x8
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
73.5 fps ∼100% +208%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
64.2 fps ∼87% +169%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
59.1 fps ∼80% +147%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
52.3 fps ∼71% +119%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, Intel Core i7-4790K
47.2 fps ∼64% +97%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
31 fps ∼42% +30%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
27.1 fps ∼37% +13%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
23.9 (min: 13.1, max: 44.3) fps ∼33%

Spiele-Benchmarks

In den eindeutig wichtigeren Spiele-Benchmarks kann sich die RX 460 von XFX gegen die 965M (Refresh) und Radeon R7 370 durchsetzen. Die GTX 960 hat jedoch deutliche 35 % Vorsprung.

Sieht man sich die Ergebnisse im Detail an, erkennt man, dass es bei maximaler Detailstufe mit 1.920 x 1.080 sehr oft knapp wird. Anspruchsvolle Spiele wie The Witcher 3 oder Assassin's Creed Syndicate fallen schon bei hohen Details auf unter 40 fps. In 4K sind nur wenige Spiele spielbar, in unseren Tests nur World of Warships, Dirt Rally und Overwatch. Selbst hier sind die Frame-Raten nur rund um 30 fps.

Weitere Spiele-Benchmarks finden Sie auf der Radeon-RX-460-Seite, welche ständig erweitert und gepflegt wird.

Performance Rating
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
95.7 pt ∼96%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
95.4 pt ∼95%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
93.5 pt ∼94%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
92.9 pt ∼93%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
89.1 pt ∼89%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
87.6 pt ∼88%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
85.6 pt ∼86%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
75.8 pt ∼76%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
59.4 pt ∼59%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
59.1 pt ∼59%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
57.5 pt ∼58%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
42.7 pt ∼43%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
40 pt ∼40%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
38.7 pt ∼39%
Mirror's Edge Catalyst - 1920x1080 Ultra Preset AF:16x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
81.3 (min: 74, max: 86) fps ∼100% +138%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
78.3 fps ∼96% +129%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
76.4 (min: 69) fps ∼94% +123%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
72 fps ∼89% +111%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
70.3 (min: 66, max: 75) fps ∼86% +106%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
65.9 (min: 53, max: 73) fps ∼81% +93%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
50 fps ∼62% +46%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
34.2 (min: 29, max: 38) fps ∼42%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
33.5 (min: 30, max: 38) fps ∼41% -2%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
33.4 (min: 31, max: 37) fps ∼41% -2%
Overwatch - 1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
139 fps ∼100% +200%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
121 (min: 94, max: 147) fps ∼87% +161%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
117 (min: 97) fps ∼84% +153%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
116 fps ∼83% +151%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
107 fps ∼77% +131%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
97 (min: 78, max: 117) fps ∼70% +110%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
73 (min: 59, max: 88) fps ∼53% +58%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
66.9 fps ∼48% +44%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
51.2 (min: 44, max: 62) fps ∼37% +11%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
47.6 (min: 40, max: 56) fps ∼34% +3%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
46.3 (min: 39, max: 53) fps ∼33%
Doom - 1920x1080 Ultra Preset AA:SM
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
99.7 fps ∼100% +130%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
97.5 (min: 82) fps ∼98% +125%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
96 (min: 81, max: 122) fps ∼96% +121%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
83 (min: 67, max: 125) fps ∼83% +91%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
80 (min: 68, max: 109) fps ∼80% +84%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
68 fps ∼68% +57%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
43.4 (min: 37, max: 58) fps ∼44%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
40.4 (min: 33, max: 54) fps ∼41% -7%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
27.5 (min: 20, max: 43) fps ∼28% -37%
Need for Speed 2016 - 1920x1080 Ultra / On AA:T
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
77.4 fps ∼100% +103%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
74.6 (min: 55) fps ∼96% +95%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
70 (min: 53, max: 81) fps ∼90% +83%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
68.4 (min: 48, max: 84) fps ∼88% +79%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
68.3 (min: 42, max: 87) fps ∼88% +79%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
61 (min: 43, max: 81) fps ∼79% +60%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
51.6 fps ∼67% +35%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
51 (min: 39, max: 59) fps ∼66% +34%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
38.2 (min: 30, max: 46) fps ∼49%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
37.7 (min: 29, max: 46) fps ∼49% -1%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
31.1 (min: 24, max: 40) fps ∼40% -19%
Hitman 2016 - 1920x1080 Ultra / On AA:SM AF:16x
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
61.5 (min: 35, max: 77) fps ∼100% +108%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
58.7 (min: 44, max: 72) fps ∼95% +98%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
61 (min: 45, max: 86) fps ∼99% +106%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
59.2 (min: 48, max: 62) fps ∼96% +100%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
58 (min: 43, max: 71) fps ∼94% +96%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
57.8 (min: 41) fps ∼94% +95%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
55.3 fps ∼90% +87%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
54.4 fps ∼88% +84%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
52 fps ∼85% +76%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
41 (min: 27, max: 54) fps ∼67% +39%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
36 fps ∼59% +22%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
29.6 (min: 22, max: 36) fps ∼48%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
26 (min: 18, max: 34) fps ∼42% -12%
The Division - 1920x1080 Ultra Preset AF:16x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
61 (min: 37, max: 93) fps ∼100% +119%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
59.6 fps ∼98% +114%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
57.7 (min: 32) fps ∼95% +107%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
57.5 (min: 39, max: 77) fps ∼94% +106%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
55 fps ∼90% +97%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
50.7 (min: 32, max: 73) fps ∼83% +82%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
39.7 (min: 27, max: 65) fps ∼65% +42%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
33.9 fps ∼56% +22%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
28.3 (min: 18, max: 43) fps ∼46% +1%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
27.9 (min: 16, max: 39) fps ∼46%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
26.9 (min: 17, max: 37) fps ∼44% -4%
Far Cry Primal - 1920x1080 Ultra Preset AA:SM
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
68 (min: 52, max: 83) fps ∼100% +134%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
67 fps ∼99% +131%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
63 (min: 49) fps ∼93% +117%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
59 (min: 47, max: 76) fps ∼87% +103%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
57 (min: 46, max: 73) fps ∼84% +97%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
37 fps ∼54% +28%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
33 (min: 23, max: 40) fps ∼49% +14%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
29 (min: 22, max: 34) fps ∼43% 0%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
29 (min: 24, max: 38) fps ∼43%
XCOM 2 - 1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
34.3 (min: 29, max: 38) fps ∼100%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
31.3 (min: 28) fps ∼91%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
30.9 fps ∼90%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
27.3 (min: 24, max: 30) fps ∼80%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
26.9 (min: 25, max: 29) fps ∼78%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
16.7 fps ∼49%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
11.9 (min: 10, max: 14) fps ∼35%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
8.4 (min: 7, max: 10) fps ∼24%
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
71.3 (min: 64) fps ∼100% +156%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
66.9 fps ∼94% +140%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
66.5 fps ∼93% +138%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
60.2 (min: 54, max: 67) fps ∼84% +116%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
57 (min: 46, max: 66) fps ∼80% +104%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
57 (min: 49, max: 65) fps ∼80% +104%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
50.5 (min: 47, max: 55) fps ∼71% +81%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
39.4 (min: 36, max: 43) fps ∼55% +41%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
36.1 fps ∼51% +29%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
30.4 (min: 26, max: 33) fps ∼43% +9%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
27.9 (min: 24, max: 31) fps ∼39%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
27.3 (min: 24, max: 30) fps ∼38% -2%
Just Cause 3 - 1920x1080 Very High / On AA:SM AF:16x
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
85.6 fps ∼100%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
84.2 (min: 75) fps ∼98%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
82 (min: 72, max: 96) fps ∼96%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
80 (min: 72, max: 90) fps ∼93%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
59 (min: 47, max: 73) fps ∼69%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
52.6 fps ∼61%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
48.6 fps ∼57%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
41.3 (min: 36, max: 48) fps ∼48%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
39 (min: 30, max: 45) fps ∼46%
Rainbow Six Siege - 1920x1080 Ultra Preset AA:T AF:16x
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
130 fps ∼100% +101%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
127 (min: 86, max: 188) fps ∼98% +97%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
120 fps ∼92% +86%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
117 (min: 77, max: 186) fps ∼90% +81%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
107.6 (min: 67) fps ∼83% +67%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
107.6 fps ∼83% +67%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
64.6 (min: 51, max: 81) fps ∼50%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
64.5 fps ∼50% 0%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
49 (min: 34, max: 65) fps ∼38% -24%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
40.8 (min: 10, max: 109) fps ∼31% -37%
Assassin's Creed Syndicate - 1920x1080 Ultra High Preset AA:4x MSAA + FX
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
35.3 fps ∼100% +152%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
33.5 (min: 27) fps ∼95% +139%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
32.3 fps ∼92% +131%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
32 (min: 26, max: 39) fps ∼91% +129%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
29.1 (min: 23, max: 34) fps ∼82% +108%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
28.3 (min: 23, max: 34) fps ∼80% +102%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
25.6 fps ∼73% +83%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
18.9 fps ∼54% +35%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
17.4 fps ∼49% +24%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
14 (min: 11, max: 17) fps ∼40%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
5 (min: 3, max: 8) fps ∼14% -64%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
4.3 (min: 2, max: 8) fps ∼12% -69%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
4.1 (min: 2, max: 7) fps ∼12% -71%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
3.4 (min: 2, max: 5) fps ∼10% -76%
Star Wars Battlefront - 1920x1080 Ultra Preset AA:FX
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
119 (min: 100, max: 137) fps ∼100% +145%
NVIDIA GeForce GTX 980
Desktop PC, Intel Core i7-6700K
104.1 (min: 89) fps ∼87% +114%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
104 (min: 92, max: 123) fps ∼87% +114%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
104 fps ∼87% +114%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
102.1 fps ∼86% +110%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
102 fps ∼86% +110%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
100 (min: 90, max: 119) fps ∼84% +106%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
94 (min: 78, max: 113) fps ∼79% +93%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
76 (min: 66, max: 89) fps ∼64% +56%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
61.3 fps ∼52% +26%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
60.8 fps ∼51% +25%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
52 (min: 43, max: 62) fps ∼44% +7%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
48.6 (min: 41, max: 57) fps ∼41%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
45.8 (min: 39, max: 55) fps ∼38% -6%
Fallout 4 - 1920x1080 Ultra Preset AA:T AF:16x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
80 (min: 66, max: 98) fps ∼100% +148%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
78 fps ∼98% +141%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
77.1 fps ∼96% +139%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
73 (min: 59, max: 94) fps ∼91% +126%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
72.8 fps ∼91% +125%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
67.6 (min: 52, max: 86) fps ∼85% +109%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
64 (min: 51, max: 80) fps ∼80% +98%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
46.7 fps ∼58% +45%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
44.8 fps ∼56% +39%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
44.7 (min: 35, max: 55) fps ∼56% +38%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
35.2 (min: 28, max: 45) fps ∼44% +9%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, Intel Core i7-4790K
34 (min: 24, max: 43) fps ∼43% +5%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
32.3 (min: 26, max: 41) fps ∼40%
Anno 2205 - 1920x1080 Ultra High Preset AA:8x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
33 (min: 31, max: 35) fps ∼100% +146%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
31.9 fps ∼97% +138%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
30.7 fps ∼93% +129%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
28.7 (min: 25, max: 31) fps ∼87% +114%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
27.7 fps ∼84% +107%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
27.7 (min: 35, max: 30) fps ∼84% +107%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
26 (min: 23, max: 29) fps ∼79% +94%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
22.7 (min: 21, max: 25) fps ∼69% +69%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
20.6 fps ∼62% +54%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
17.6 fps ∼53% +31%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
13.4 (min: 12, max: 15) fps ∼41%
World of Warships - 1920x1080 Very High Preset AA:High FX AF:16x
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
153 (min: 95, max: 217) fps ∼100% +104%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
134 (min: 85, max: 168) fps ∼88% +79%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
130 (min: 79, max: 179) fps ∼85% +73%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
124.1 fps ∼81% +65%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
124 (min: 85, max: 156) fps ∼81% +65%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
110.8 fps ∼72% +48%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
101.1 fps ∼66% +35%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
77 (min: 45, max: 106) fps ∼50% +3%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
75 (min: 60, max: 105) fps ∼49%
Mad Max - 1920x1080 Very High Preset AF:12x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
144 (min: 127, max: 158) fps ∼100% +149%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
136.6 fps ∼95% +136%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
132 fps ∼92% +128%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
125 fps ∼87% +116%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
119 (min: 103, max: 131) fps ∼83% +106%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
119 (min: 106, max: 130) fps ∼83% +106%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
116.4 fps ∼81% +101%
AMD Radeon R9 280X
Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K
91.4 (min: 80, max: 99) fps ∼63% +58%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
84 fps ∼58% +45%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
80.5 fps ∼56% +39%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
61.5 (min: 55, max: 67) fps ∼43% +6%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
57.8 (min: 51, max: 66) fps ∼40%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
45.5 (min: 39, max: 51) fps ∼100% +98%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
44.4 fps ∼98% +93%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
44.3 fps ∼97% +93%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
43.9 (min: 40, max: 49) fps ∼96% +91%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
42.2 (min: 36, max: 49) fps ∼93% +83%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
40.8 fps ∼90% +77%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
29.9 fps ∼66% +30%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
29 (min: 25, max: 32) fps ∼64% +26%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
27.7 (min: 21) fps ∼61% +20%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
23 fps ∼51%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
20.2 (min: 16, max: 25) fps ∼44% -12%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
51 fps ∼100% +146%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
47.7 fps ∼94% +130%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
45.6 fps ∼89% +120%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
41 (min: 20, max: 80) fps ∼80% +98%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
28.3 fps ∼55% +37%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
20.7 fps ∼41%
Battlefield Hardline - 1920x1080 Ultra Graphics Quality (DX11) AA:4x MS
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
99 fps ∼100%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
92.2 fps ∼93%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
86 fps ∼87%
AMD Radeon R9 290X
Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K
84 (min: 74, max: 92) fps ∼85%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
61.4 fps ∼62%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
58.3 fps ∼59%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
44.2 (min: 39, max: 51) fps ∼45%
Dragon Age: Inquisition - 1920x1080 Ultra Graphics Quality AA:2x MS
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
67.9 fps ∼100%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
67.4 (min: 51) fps ∼99%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
66.9 fps ∼99%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
65.4 fps ∼96%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
64.1 (min: 48.5) fps ∼94%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
53.9 (min: 44.4) fps ∼79%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
60 (min: 52) fps ∼88%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
41.6 fps ∼61%
Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
137 fps ∼100% +125%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
134.4 fps ∼98% +121%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K
133 fps ∼97% +118%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
122 fps ∼89% +100%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
80.9 fps ∼59% +33%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
61.3 fps ∼45% +1%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
60.9 fps ∼44%
Middle-earth: Shadow of Mordor - 1920x1080 Ultra Preset (HD Package)
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
103 (min: 65, max: 146) fps ∼100% +150%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
94.5 fps ∼92% +129%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
91.4 fps ∼89% +122%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
84 (min: 57, max: 123) fps ∼82% +104%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
80 (min: 52, max: 125) fps ∼78% +94%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
61.6 fps ∼60% +50%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
41.2 (min: 28, max: 58) fps ∼40%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
35.4 fps ∼34% -14%
Battlefield 4 - 1920x1080 Ultra Preset AA:4x MS
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
101 (min: 92, max: 122) fps ∼100% +162%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
99.6 fps ∼99% +158%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
94 (min: 86, max: 114) fps ∼93% +144%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
89.7 fps ∼89% +132%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
82 (min: 67, max: 101) fps ∼81% +112%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
59.5 fps ∼59% +54%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
58 fps ∼57% +50%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
43.1 (min: 39, max: 54) fps ∼43% +12%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
38.6 (min: 31, max: 48) fps ∼38%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
92.3 fps ∼100% +148%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
90 fps ∼98% +142%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
89 fps ∼96% +139%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
82.7 fps ∼90% +122%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
80 (min: 43, max: 143) fps ∼87% +115%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
54.9 fps ∼59% +48%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
42 (min: 7, max: 95) fps ∼46% +13%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
37.2 (min: 24, max: 67) fps ∼40%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
121.4 fps ∼100% +120%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
118 fps ∼97% +113%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
112.4 fps ∼93% +103%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
110 (min: 20, max: 177) fps ∼91% +99%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
80.8 fps ∼67% +46%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
55.3 fps ∼46%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
55 (min: 9, max: 95) fps ∼45% -1%
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, Intel Core i7-4790K
64.5 (min: 51, max: 95) fps ∼100% +155%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, Intel Core i7-6700
60.7 fps ∼94% +140%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3
56.1 fps ∼87% +122%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K
55 fps ∼85% +117%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K
52.6 (min: 45, max: 73) fps ∼82% +108%
AMD Radeon R9 380
Desktop-PC, Intel Xeon E3-1230 v3
39.4 fps ∼61% +56%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3
36.1 fps ∼56% +43%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, Intel Core i7-6700HQ
26.2 (min: 21, max: 40) fps ∼41% +4%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K
25.3 (min: 21, max: 36) fps ∼39%
min. mittel hoch max.4K
Crysis 3 (2013) 25.3fps
BioShock Infinite (2013) 55.3fps
Metro: Last Light (2013) 7837.2fps
Battlefield 4 (2013) 38.619.2fps
Middle-earth: Shadow of Mordor (2014) 41.2fps
Alien: Isolation (2014) 60.9fps
GTA V (2015) 50.220.7fps
Dirt Rally (2015) 42.433fps
The Witcher 3 (2015) 372312fps
Metal Gear Solid V (2015) 606059.944.820.2fps
Mad Max (2015) 57.8fps
World of Warships (2015) 7525.5fps
Anno 2205 (2015) 33.313.412fps
Fallout 4 (2015) 32.313.3fps
Star Wars Battlefront (2015) 57.848.617.8fps
Assassin's Creed Syndicate (2015) 37.91411.2fps
Rainbow Six Siege (2015) 2361517964.622.9fps
Rise of the Tomb Raider (2016) 6936.627.912.9fps
XCOM 2 (2016) 10439.126.4fps
Far Cry Primal (2016) 10648432913fps
The Division (2016) 7836.527.912.8fps
Hitman 2016 (2016) 30.929.613.4fps
Need for Speed 2016 (2016) 51.738.215.3fps
Ashes of the Singularity (2016) 54.532.828.7fps
Doom (2016) 4743.414.7fps
Overwatch (2016) 9446.326.5fps
Mirror's Edge Catalyst (2016) 39.734.212.1fps
No Man's Sky (2016) 70.157.33315.4fps
Deus Ex Mankind Divided (2016) 8058.930.314.49.1fps
FIFA 17 (2016) 16963.4fps
Mafia 3 (2016) 48.430.416.2fps
Battlefield 1 (2016) 1611075146.618.8fps
Civilization VI (2016) 48.236.1fps
Farming Simulator 17 (2016) 10637.633.2fps
Titanfall 2 (2016) 47.314.6fps
Call of Duty Infinite Warfare (2016) 50.822.3fps
Dishonored 2 (2016) 50.532.531.413.8fps
Watch Dogs 2 (2016) 71.433.119.210.6fps
Resident Evil 7 (2017) 2229256.525.914.6fps
For Honor (2017) 14252.850.635fps
Ghost Recon Wildlands (2017) 8237.53417.5fps
Mass Effect Andromeda (2017) 10847.929.326.311fps
Warhammer 40.000: Dawn of War III (2017) 13336.522.7fps
Prey (2017) 14157.752.249.513.2fps
Rocket League (2017) 10232.2fps
Dirt 4 (2017) 51.728.2fps
Playerunknown's Battlegrounds (PUBG) (2017) 10635.827.519.6fps
Assassin´s Creed Origins (2017) 623732278fps
Call of Duty WWII (2017) 44.2fps
Need for Speed Payback (2017) 41.3fps
Star Wars Battlefront 2 (2017) 4233.33.9fps
Fortnite (2018) 31311639.131fps
Final Fantasy XV Benchmark (2018) 52.326.412.9fps
X-Plane 11.11 (2018) 61.849.643.822.1fps

Leistung unter Last / Throttling

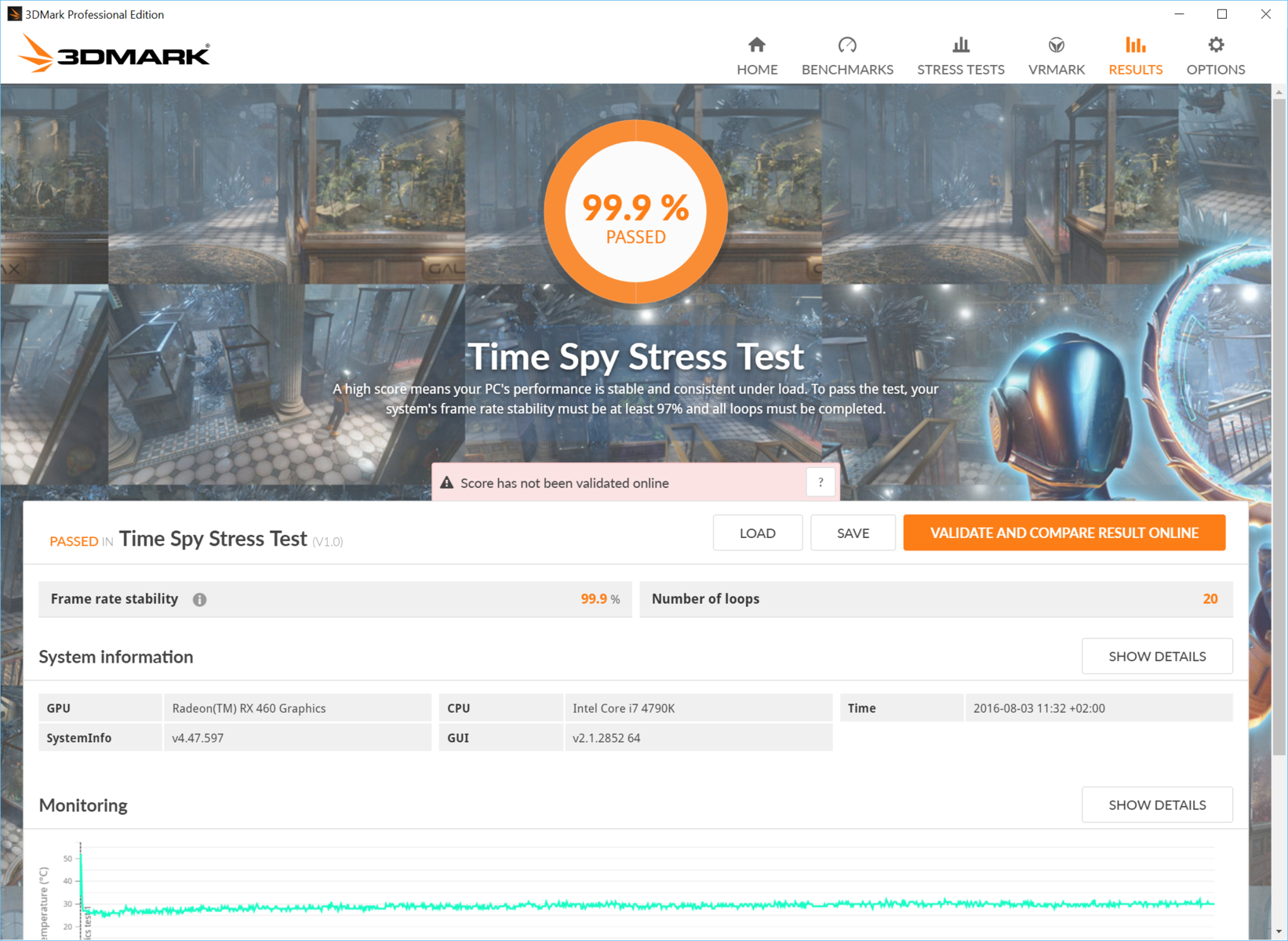

99,9 % Stabilität im Time Spy DirectX 12 Stresstest mit der RX 460 - ein hervorragendes Ergebnis
99,9 % Stabilität im Time Spy DirectX 12 Stresstest mit der RX 460 - ein hervorragendes Ergebnis

Throttling war bei der XFX Karte kein Thema. Nach 20 Durchläufen im 3DMark Time Spy (Stress Test) blieben die Punkte stabil, und auch in unseren Tests bemerkten wir keine nachlassende Performance. Die Taktraten sind je nach Last unterschiedlich. Im GPU-Z Render Test blieb sie konstant bei 1.220 MHz. In The Witcher 3 pendelte sich die Taktrate bei 1.200-1.211 MHz ein. Der Speichertakt blieb immer konstant bei 1.750 = 7.000 MHz.

Jobs

Wir erweitern unser Team und suchen engagierte Redakteure mit besonderen Kenntnissen im Bereich mobiler Technologien.

Compute Performance

Die Radeon RX 460 verfügt über 14 der 16 Compute Units des Polaris-11-Chips, die für generelle Berechnungen eingesetzt werden können. Hierfür propagiert AMD das offene OpenCL Protokoll, aber auch DirectCompute wird unterstützt. Im Test mit LuxMark (OpenCL) und ComputeMark (DirectCompute) zeigt die Grafikkarte eine etwas geringere Performance als die GeForce GTX 965M (Refresh), die in Spielen geschlagen werden konnte.

Performance Rating
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
98.3 pt ∼98%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
84.3 pt ∼84%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
79.7 pt ∼80%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
72.7 pt ∼73%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
62.6 pt ∼63%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
62.5 pt ∼63%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
59.3 pt ∼59%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
57.4 pt ∼57%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
57.2 pt ∼57%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
56.1 pt ∼56%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
36.1 pt ∼36%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
31.5 pt ∼32%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
30.3 pt ∼30%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
29.4 pt ∼29%
LuxMark v2.0 64Bit
Room GPUs-only
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
2490 Samples/s ∼100% +218%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
2485 Samples/s ∼100% +218%
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
2327 Samples/s ∼93% +198%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1893 Samples/s ∼76% +142%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
1874 Samples/s ∼75% +140%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
1773 Samples/s ∼71% +127%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
1661 Samples/s ∼67% +112%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
1638 Samples/s ∼66% +109%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
1566 Samples/s ∼63% +100%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
1440 Samples/s ∼58% +84%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1179 Samples/s ∼47% +51%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
957 Samples/s ∼38% +22%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
790 Samples/s ∼32% +1%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
782 Samples/s ∼31%
Sala GPUs-only
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
4708 Samples/s ∼100% +203%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
3919 Samples/s ∼83% +152%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
3877 Samples/s ∼82% +149%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
3468 Samples/s ∼74% +123%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
3179 Samples/s ∼68% +105%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
3125 Samples/s ∼66% +101%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
3038 Samples/s ∼65% +95%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
3020 Samples/s ∼64% +94%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
3020 Samples/s ∼64% +94%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
2584 Samples/s ∼55% +66%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
1908 Samples/s ∼41% +23%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1836 Samples/s ∼39% +18%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1554 Samples/s ∼33%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1486 Samples/s ∼32% -4%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
6191 Points ∼100% +425%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
5084 Points ∼82% +331%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
4270 Points ∼69% +262%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
3322 Points ∼54% +182%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
3238 Points ∼52% +174%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
3082 Points ∼50% +161%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
3027 Points ∼49% +157%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
2746 Points ∼44% +133%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
2666 Points ∼43% +126%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
2475 Points ∼40% +110%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
2070 Points ∼33% +75%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
1686 Points ∼27% +43%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1253 Points ∼20% +6%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1180 Points ∼19%
1024x600 Normal, Mandel Scalar
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
3646 Points ∼100% +225%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
3233 Points ∼89% +188%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
3131 Points ∼86% +179%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
2710 Points ∼74% +142%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
2625 Points ∼72% +134%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
2539 Points ∼70% +126%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
2447 Points ∼67% +118%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
2002 Points ∼55% +79%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1973 Points ∼54% +76%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
1829 Points ∼50% +63%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1236 Points ∼34% +10%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1121 Points ∼31%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1095 Points ∼30% -2%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
1024 Points ∼28% -9%
1024x600 Normal, Mandel Vector
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
3284 Points ∼100% +168%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
2863 Points ∼87% +134%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
2602 Points ∼79% +113%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
2479 Points ∼75% +103%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
2232 Points ∼68% +82%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
2172 Points ∼66% +77%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
2162 Points ∼66% +77%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
1994 Points ∼61% +63%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1941 Points ∼59% +59%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
1840 Points ∼56% +50%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
1372 Points ∼42% +12%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
1224 Points ∼37%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
1206 Points ∼37% -1%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
1172 Points ∼36% -4%
1024x600 Normal, Fluid 2DTexArr
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
1758 Points ∼100% +267%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
1382 Points ∼79% +189%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
1376 Points ∼78% +187%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
1114 Points ∼63% +133%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1010 Points ∼57% +111%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
991 Points ∼56% +107%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
978 Points ∼56% +104%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
963 Points ∼55% +101%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
917 Points ∼52% +91%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
911 Points ∼52% +90%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
613 Points ∼35% +28%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
529 Points ∼30% +10%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
479 Points ∼27%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
388 Points ∼22% -19%
1024x600 Normal, Fluid 3DTex
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
1860 Points ∼100% +247%
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
1730 Points ∼93% +223%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
1531 Points ∼82% +186%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
1402 Points ∼75% +162%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
1300 Points ∼70% +143%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
1220 Points ∼66% +128%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
1039 Points ∼56% +94%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
1038 Points ∼56% +94%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
985 Points ∼53% +84%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
936 Points ∼50% +75%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
694 Points ∼37% +29%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
536 Points ∼29% 0%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
536 Points ∼29%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
409 Points ∼22% -24%
1024x600 Normal, Score
NVIDIA GeForce GTX 1080 (Desktop)
Nvidia GeForce GTX 1080 Founders Edition, 4790K
16610 Points ∼100% +266%
NVIDIA GeForce GTX 1070 (Desktop)
MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K
13856 Points ∼83% +205%
NVIDIA GeForce GTX 980 Ti
Asus Strix GTX 980 Ti Desktop PC, 4790K
12373 Points ∼74% +173%
AMD Radeon R9 Fury
XFX Radeon R9 Fury Pro, 4790K
11890 Points ∼72% +162%
AMD Radeon R9 390X
XFX Radeon R9 390X DD Black Edition, E3-1230 v3
9800 Points ∼59% +116%
AMD Radeon RX 480 (Desktop)
AMD Radeon RX 480 8 GB Reference, 4790K
9659 Points ∼58% +113%
NVIDIA GeForce GTX 1060 (Desktop)
Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
9266 Points ∼56% +104%
NVIDIA GeForce GTX 980 (Laptop)
Schenker XMG U716, 6700
9200 Points ∼55% +103%
AMD Radeon RX 470 (Desktop)
MSI RX 470 Gaming X 4GB, 4790K
9044 Points ∼54% +99%
NVIDIA GeForce GTX 970
MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K
8549 Points ∼51% +88%
NVIDIA GeForce GTX 960
MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3
5743 Points ∼35% +26%
AMD Radeon R7 370
MSI Gaming R7 370 2GB, 4790K
4861 Points ∼29% +7%
NVIDIA GeForce GTX 965M
MSI GE72 965M Ti, 6700HQ
4680 Points ∼28% +3%
AMD Radeon RX 460 (Desktop)
XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K
4540 Points ∼27%

Probleme

Während unserer Spieletests gab es keinen Grund zur Klage. Auffallende Grafikfehler oder Abstürze mussten wir nicht beklagen. Einige Male hängte sich das System jedoch nach Beenden der 3D-Last auf. Wahrscheinlich ist hier der Review-Treiber schuld, da die Probleme auch mit der rX 470 auftraten.

Videoengine

Die RX 460 enthält eine überarbeitete Videoengine wie die RX 470 und 480, die im Test problemlos H.264 und H.265 4K/UHD Content abspielen konnte.

Lautstärke

Die zwei großen Kühler der XFX Version überzeugten im Test mit einem unauffälligen Geräuschniveau, das sich kaum über die leisen CPU- und Netzteillüfter raushören lies. Auch Transistorpfeifen ist uns nicht störend aufgefallen.

Hitzeentwicklung

Im Test erhitzt sich die RX 460 auf der Rückseite deutlich und positioniert sich mit den gemessenen 80 °C (Hotspot, gemessen per Fluke 62 Mini) zwischen der Referenz RX 480 (72 °C) und der MSI RX 470 (87 °C).

Im Inneren der Grafikkarte melden die Sensoren maximal 65 °C bei extremer Last (Furmark bei 1.172 MHz und 1.936 RPM) - absolut unkritisch. Auch bei The Witcher 3 erreichte die GPU 65 °C, die Lüfter blieben mit 1.888 RPM jedoch minimal leiser.

Stromverbrauch

Ohne Last kann die RX 460 von XFX gut mit den High-End-Pascal-Grafikkarten mithalten. Die gemessenen 70,7 Watt des gesamten Systems sind nur 2,4 bis 2,7 Watt über den hoch optimierten Founders Editions der GTX 1070 und 1080. Die MSI GTX 1070 Gaming Z braucht sogar fast 3 Watt mehr. Die alte Maxwell Generation, vertreten durch die MSI GTX 970 Gaming 4 G, braucht mit 78 Watt schon deutlich mehr, und auch die R9 Nano und RX 470 und 480 sind in diesem Bereich angesiedelt. Der direkte Leistungskonkurrent R7 370 aus der Vorgängergeneration braucht in unserem Test 74,8 Watt und damit 4,1 Watt mehr. Ohne dedizierte Grafikkarte (integrierte HD Graphics 4600 im i7-4790) benötigt unser Testsystem übrigens 61 bis 62 Watt. Insgesamt also eine sehr gute Vorstellung der Partnerkarte von XFX und des Polaris-11-Chips.

Unter Last (Witcher 3, Ultra Settings im Fenster) benötigt unser Testmodell 162 Watt und damit deutlich weniger als die RX 470 von MSI zum Beispiel (250 Watt). Auch die alte MSI Radeon R7 370 zieht mehr Leistung aus der Steckdose (17 gemessene). Der Unterschied ist jedoch nicht gigantisch. Unter Furmark erhöht sich der Stromverbrauch nur noch um 7 Watt, hier ist die Grafikkarte also anscheinend schon am TDP-Limit. Die MSI Radeon R7 370 steigert sich im Vergleich von 179 auf 222 Watt - rendert dabei mit 81 versus 58 Bilder pro Sekunde auch deutlich schneller.

Fazit

Mit der XFX RX 460 4 GB erhält man eine günstige Grafikkarte für anspruchslose Spieler. Die Leistung reicht bei den meisten Spielen für hohe, aber nicht maximale Details in Full-HD. Stromverbrauch und Lautstärke wissen zu gefallen. Der Aufpreis von etwa 20 Euro für die 4-GB-Version ist empfehlenswert, da der 2-GB-Variante in aktuellen Spielen schnell der Speicher ausgeht.

Polaris 11 gefällt in unserem ersten Test und scheint sich durch das Power Gating der CUs auch besser für Notebooks zu eignen. Die im Reviewers Guide angekündigte mobile Version könnte also eine spannende Konkurrenz zur aktuellen GeForce 965M werden.

Alle 2 Beträge lesen / Antworten
static version load dynamic
Die Kommentare zum Artikel werden geladen
Diesen Artikel kommentieren / Antworten
Teilen Sie diesen Artikel um uns zu unterstützen. Jeder Link hilft, ob im privaten Blog, Foren oder per social Media!
> Notebook Test, Laptop Test und News > Tests > Sonstige Tests > Test XFX Radeon RX 460 4 GB Double Dissipation (RX-460P4DFG5)
Autor: Klaus Hinum, 10.08.2016 (Update: 24.08.2016)
