Intel Core i5-540M

Intel 540M

Der Intel Core i5-540M ist ein zwei-Kern Prozessor für Notebooks und taktet dank Turbo mit 2.53 - 3.06 GHz. Die zwei Kerne basiert auf die Nehalem (Westmere) Mikro-Architektur und können dank Hyperthreading 4 Threads gleichzeitig abarbeiten.

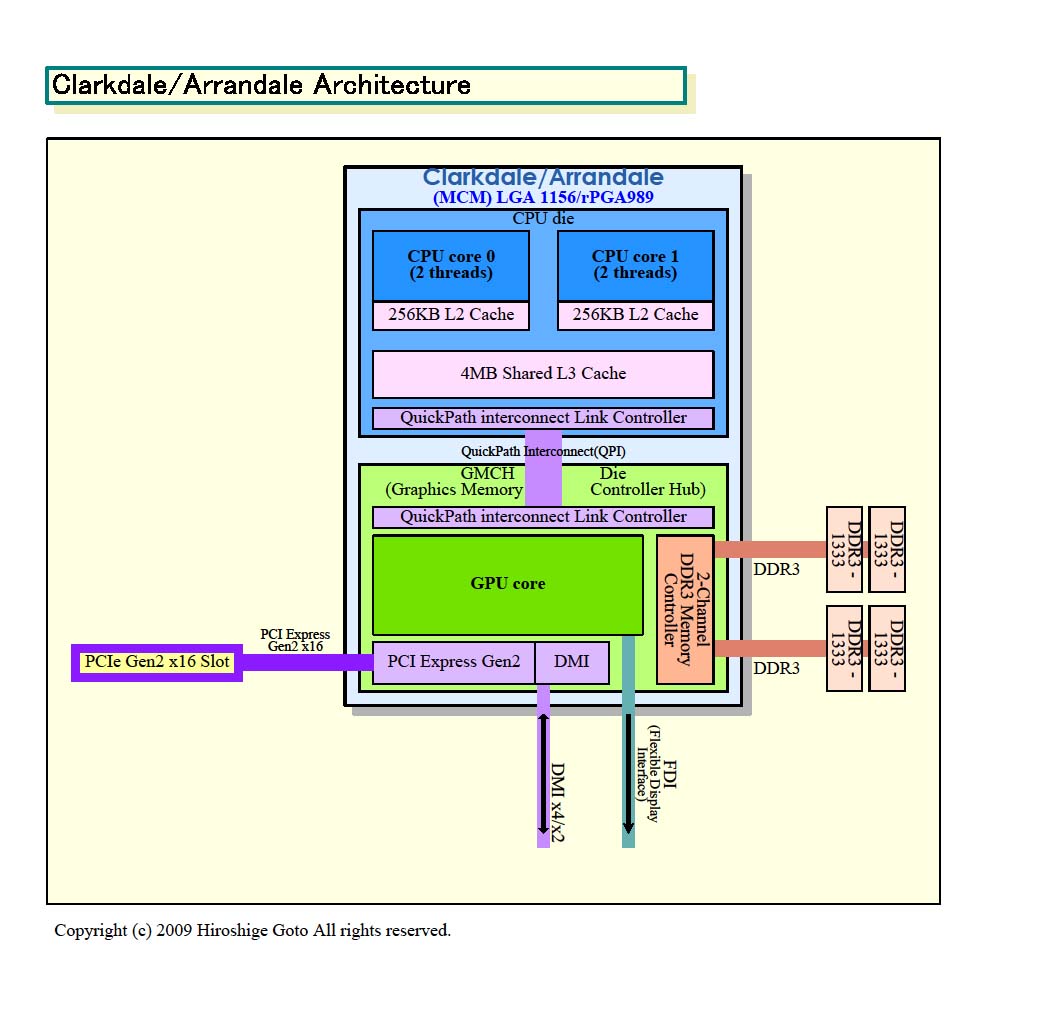

Eine Besonderheit der neuen Dual-Core CPUs von Intel ist die Integration des Speichercontrollers und einer integrierten Grafikkarte (GMA HD) in das Package. Die CPU wird bereits in 32nm hergestellt, der Die für den Speichercontroller und die Grafikkarte jedoch noch in 45nm.

Die Performance des i5-540M liegt dank Turbo Boost im Schnitt oberhalb eines 2.8 GHz getakteten Core 2 Duo (z.B. P9700) und daher zählt der Core-i5 zu den schnellsten Dual-Core CPUs in 2010. Dank HyperThreading kann der 540M sogar langsam getaktete Quad Core CPUs in Multi-Threaded Anwendungen schlagen. Daher sollte der Prozessor für fast alle aktuellen Spiele und Anwendungen genügend Rechenleistung bieten (Anfang 2010).

Die 32-nm-Prozessorkerne der Westmere-Generation verarbeiten auch einige neue Befehle, die AES-Verschlüsselung beschleunigen sollen.

Die integrierte Intel Graphics Media Accelerator HD (GMA HD) Grafikkarte soll nach ersten Berichten mit bis zu 500-766 MHz getaktet werden (ev. auch mit Turbo Boost) und deutlich schneller werden als die alte GMA 4500MHD. Eine GeForce 9400M (ION) wird jedoch noch minimal schneller bleiben (mit besserem Treibersupport für Spiele).

Der Stromverbrauch ist mit einem TDP von 35 Watt zwar genauso hoch wie bei den T-Modellen der Core 2 Duo Serie, jedoch beinhaltet der TDP beim Core i5 auch die Grafikkarte und den Speichercontroller (beim Core 2 Duo waren diese noch im Chipsatz). Dadurch ist der Stromverbrauch des ganzen Systems wohl geringer. Unter Last wird der TDP durch den Turbo jedoch eher ausgereizt, wordurch der Stromverbrauch über vergleichbaren Core 2 Duo P-Modellen ausfallen kann (Idle deutlich darunter).



SerieIntel Core i5
CodenameArrandale

Serie: Core i5 Arrandale

Intel Core i5-580M compare2.67 - 3.33 GHz2 / 4 cores3 MB L3
Intel Core i5-560M compare2.67 - 3.2 GHz2 / 4 cores3 MB L3
Intel Core i5-480M compare2.67 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-540M « 2.53 - 3.07 GHz2 / 4 cores3 MB L3
Intel Core i5-460M compare2.53 - 2.8 GHz2 / 4 cores3 MB L3
Intel Core i5-520M compare2.4 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-450M compare2.4 - 2.66 GHz2 / 4 cores3 MB L3
Intel Core i5-430M compare2.26 - 2.53 GHz2 / 4 cores3 MB L3
Intel Core i5-560UM compare1.33 - 2.13 GHz2 / 4 cores3 MB L3
Intel Core i5-470UM compare1.33 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-540UM compare1.2 - 2 GHz2 / 4 cores3 MB L3
Intel Core i5-520UM compare1.06 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-430UM compare1.2 - 1.73 GHz2 / 4 cores3 MB L3
Taktung2530 - 3066 MHz
Front Side Bus2500
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3 MB
Anzahl von Kernen / Threads2 / 4
Stromverbrauch (TDP = Thermal Design Power)35 Watt
Transistoren382+177 Millionen
Herstellungstechnologie32 nm
Die Größe81+114 mm2
Max. Temperatur105 °C
SocketBGA1288, PGA988
FeaturesTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 733MHz,
64 Bit64 Bit wird unterstützt
Architecturex86
Anfangspreis$257 U.S.
Vorgestellt am04.01.2010
Produktinformationen beim Herstellerark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 2.16     avg: 2.2     median: 2.2 (3%)     max: 2.29 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 3061     avg: 3141     median: 3132.5 (19%)     max: 3214 Punkte
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 6545     avg: 6950     median: 7030.5 (5%)     max: 7211 Punkte
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 7844     avg: 8349     median: 8408 (6%)     max: 8600 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 3237     avg: 3785     median: 3938 (5%)     max: 3991 Points
3DMark 06 - CPU - 3DMark 06 - CPU
min: 2643     avg: 2814     median: 2826 (6%)     max: 2905 Points
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 32820     avg: 34953     median: 33495 (16%)     max: 40000 MIPS
PCMark 05 - PCMark 05 - Standard
min: 6030     avg: 6499     median: 6498.5 (13%)     max: 6967 Points
- Bereich der Benchmarkergebnisse für diese Grafikkarte
- Durchschnittliche Benchmarkergebnisse für diese Grafikkarte
* Smaller numbers mean a higher performance
