AMD Ryzen 9 7945HX

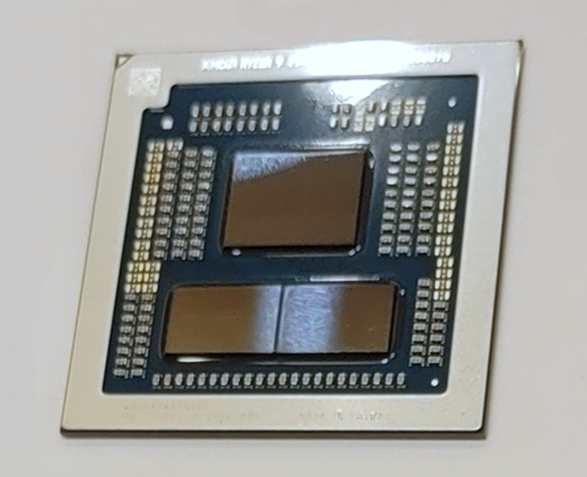

Der AMD Ryzen 9 7945HX ist ein High-End- Notebook-Prozessor der Dragon Range Serie mit 16-Kernen und Hyperthreading (SMT), womit dieser in Summe bis zu 32 Threads gleichzeitig verarbeiten kann. Die CPU nutzt die neue Zen 4 Architektur für die 16 Kerne und taktet diese von 2,5 GHz (Basistakt) bis zu 5,4 GHz (Einzelkern-Boost). Die CPU bietet 16 MB L2-Cache und 64MB L3-Cache (gesamt also 80MB Cache). Der 7945HX besteht aus drei Chiplets, zwei CCD-Cluster mit je 8 CPU-Kernen in 5nm (71mm²) und einen IO-Die in 6nm (122mm²) welche alle bei TSMC hergestellt werden.
Die Leistung des Ryzen 9 sollte vergleichbar mit einem Core i9-13900HX (24 Hybrid-Kerne, max 5.4 GHz) im Spitzenfeld der mobilen Prozessoren von 2022 sein. AMD selbst bewirbt einen deutlichen Vorsprung zum alten Ryzen 9 6900HX (8 Zen 3 Kerne, 4,9 GHz), der durch die zusätzlichen Kerne, verbesserte Architektur und höhere Frequenzen erklärbar ist.
Weiters integriert der Chip 4x USB 3.2 Gen2 (10 Gbps) ports (kein USB 4), 28 PCIe 5.0 Lanes (für GPUs und SSDs), einen Dual-Channel DDR5-5200 Speicherkontroller und eine kleine AMD Radeon 610M Grafikkarte (2CUs, 400 - 2200 MHz).
Der R9 7945HX ist mit 55 Watt TDP spezifiziert und kann bis 75 Watt konfiguriert werden (cTDP).
Serie AMD Dragon Range (Zen 4, Ryzen 7045) Codename Dragon Range-HX (Zen 4) Serie: Dragon Range (Zen 4, Ryzen 7045) Dragon Range-HX (Zen 4) AMD Ryzen 9 7945HX « 2.5 - 5.4 GHz 16 / 32 64 MB L3 AMD Ryzen 9 7845HX 3 - 5.2 GHz 12 / 24 64 MB L3
Taktung 2500 - 5400 MHz Level 1 Cache 1 MB Level 2 Cache 16 MB Level 3 Cache 64 MB Anzahl von Kernen / Threads 16 / 32 Stromverbrauch (TDP = Thermal Design Power) 55 Watt Transistoren 9900 Millionen Herstellungstechnologie CCD = 5 nm, I/O = 6 nm Max. Temperatur 100 °C Socket FL1 GPU AMD Radeon 610M (400 - 2200 MHz)64 Bit 64 Bit wird unterstützt Architecture x86 Vorgestellt am 05.01.2023 Produktinformationen beim Hersteller AMD Dragon Range (Zen 4, Ryzen 7045) R9 7945HX
Benchmarks Performance Rating - CB R15 + R20 + 7-Zip + X265 + Blender + 3DM11 CPU
79.6 pt (89%)
...
Cinebench R23 - Cinebench R23 Multi Core
min: 32379 avg: 33797 median: 34144.5 (56%) max: 34521 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 99% 94% 100% 99%
...
Cinebench R23 - Cinebench R23 Single Core
min: 1863 avg: 1903 median: 1904.5 (84%) max: 1940 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 100% 96% 100% 97%
...
Cinebench R20 - Cinebench R20 CPU (Single Core)
min: 712 avg: 735 median: 736.5 (85%) max: 756 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 100% 94% 100% 95%
...
Cinebench R20 - Cinebench R20 CPU (Multi Core)
min: 10025 avg: 12615 median: 13332.5 (57%) max: 13769 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 100% 73% 98% 96%
...
...
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 5205 avg: 5486 median: 5537.5 (57%) max: 5663 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 125 W TDP 128 W 100% 92% 98% 96% 97%
...
0 280 560 840 1120 1400 1680 1960 2240 2520 2800 3080 3360 3640 3920 4200 4480 4760 5040 5320 Tooltip Asus ROG Strix G17 G713PI: Ø4920 (4749.47-5204.94)
Asus ROG Strix G17 G713PI Turbo-Mode: Ø5356 (5289.61-5457.77)
Asus ROG Strix Scar 17 G733PY-XS96: Ø5466 (5355.47-5521.05)
Asus Zephyrus Duo 16 GX650PY-NM006W: Ø5385 (5255.55-5554.01)
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 294 avg: 302.5 median: 304 (93%) max: 308 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 125 W TDP 128 W 98% 95% 100% 98% 100%
...
Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
64.3 Points (91%)
...
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
3.7 Points (12%)
...
...
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
8481 Punkte (51%)
...
...
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
71582 Punkte (52%)
...
wPrime 2.10 - wPrime 2.0 1024m *
158.7 s (2%)
...
...
VIA C3-M C3-M-1200
wPrime 2.10 - wPrime 2.0 32m *
4.9 s (1%)
...
...
7-Zip 18.03 - 7-Zip 18.03 Multli Thread 4 runs
min: 123364 avg: 135174 median: 138199 (85%) max: 140932 MIPS
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 100% 88% 96% 100%
...
7-Zip 18.03 - 7-Zip 18.03 Single Thread 4 runs
min: 7319 avg: 7403 median: 7355.5 (88%) max: 7581 MIPS
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 97% 97% 97% 100%
...
HWBOT x265 Benchmark v2.2 - HWBOT x265 4k Preset
min: 33.8 avg: 35.4 median: 34.8 (75%) max: 37.6 fps
CPU TDP 90 W TDP 120 W TDP 128 W 90% 93% 100%
...
0 5 10 15 20 25 30 35 Tooltip Asus ROG Strix G17 G713PI: Ø31.8 (0.66-33.7)
Asus Zephyrus Duo 16 GX650PY-NM006W: Ø33.8 (0.74-36)
Asus ROG Strix Scar 17 G733PY-XS96: Ø35.1 (0.78-37.1)
TrueCrypt - TrueCrypt Serpent
2.7 GB/s (90%)
...
TrueCrypt - TrueCrypt Twofish
4 GB/s (74%)
...
TrueCrypt - TrueCrypt AES
25.3 GB/s (78%)
...
Blender - Blender 3.3 Classroom CPU *
min: 144 avg: 149.7 median: 147 (2%) max: 158 Seconds
CPU TDP 90 W TDP 120 W TDP 128 W 100% 100% 100%
...
Blender - Blender 2.79 BMW27 CPU *
min: 91 avg: 94.8 median: 94 (1%) max: 100 Seconds
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 100% 100% 100% 100%
...
R Benchmark 2.5 - R Benchmark 2.5 *
min: 0.3982 avg: 0.4 median: 0.4 (9%) max: 0.4159 sec
CPU TDP 90 W TDP 120 W TDP 128 W 100% 100% 100%
...
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
6.4 s (1%)
...
VIA C3-M C3-M-1200
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
13.9 s (1%)
...
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
337 s (1%)
...
VIA C3-M C3-M-1200
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
101153 Points (94%)
...
3DMark 11 - 3DM11 Performance Physics
min: 25699 avg: 26961 median: 27143 (73%) max: 27859 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 92% 100% 99% 96%
...
3DMark - 3DMark Ice Storm Physics
84416 Points (70%)
...
...
3DMark - 3DMark Cloud Gate Physics
min: 22457 avg: 23170 median: 23169.5 (59%) max: 23882 Points
CPU TDP ? TDP 90 W 100% 94%
...
3DMark - 3DMark Fire Strike Standard Physics
min: 35353 avg: 38629 median: 38411 (71%) max: 42342 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 100% 83% 86% 95%
...
3DMark - 3DMark Time Spy CPU
min: 6283 avg: 11367 median: 12970 (64%) max: 13244 Points
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 47% 97% 100% 99%
...
...
Geekbench 5.4 - Geekbench 5.1 - 5.4 64 Bit Single-Core
min: 2047 avg: 2084 median: 2078 (90%) max: 2132 Punkte
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 99% 96% 100% 96%
...
...
Geekbench 5.4 - Geekbench 5.1 - 5.4 64 Bit Multi-Core
min: 18372 avg: 19309 median: 19454 (68%) max: 19954 Punkte
CPU TDP ? TDP 90 W TDP 120 W TDP 128 W 100% 92% 98% 97%
...
Geekbench 5.0 - Geekbench 5.0 64 Bit Single-Core
1984 Punkte (9%)
...
Geekbench 5.0 - Geekbench 5.0 64 Bit Multi-Core
19315 Punkte (61%)
...
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 449 avg: 461 median: 455 (1%) max: 479 ms
CPU TDP 90 W TDP 120 W TDP 128 W 100% 100% 100%
...
Octane V2 - Octane V2 Total Score
min: 92275 avg: 95873 median: 95872.5 (91%) max: 99470 Points
CPU TDP 90 W TDP 120 W 93% 100%
...
WebXPRT 4 - WebXPRT 4 Score
min: 283 avg: 287 median: 288 (86%) max: 290 Points
CPU TDP 90 W TDP 120 W TDP 128 W 98% 99% 100%
...
WebXPRT 3 - WebXPRT 3 Score
min: 314 avg: 338.7 median: 349 (81%) max: 353 Points
CPU TDP 90 W TDP 120 W TDP 128 W 89% 100% 99%
...
CrossMark - CrossMark Overall
min: 1993 avg: 2036 median: 2037 (79%) max: 2078 Points
CPU TDP 90 W TDP 120 W TDP 128 W 98% 100% 96%
...
Power Consumption - Prime95 Power Consumption - external Monitor *
min: 136.4 avg: 170.7 median: 172.7 (30%) max: 203 Watt
CPU TDP 90 W TDP 120 W TDP 128 W 118% 108% 100%
...
...
0 15 30 45 60 75 90 105 120 135 150 165 180 195 Tooltip Asus ROG Strix G17 G713PI: Ø136.4 (120.5-141.1)
Asus Zephyrus Duo 16 GX650PY-NM006W: Ø172.7 (170.1-207)
Asus ROG Strix Scar 17 G733PY-XS96: Ø203 (190.6-207)
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
min: 164.4 avg: 184.2 median: 186.3 (39%) max: 202 Watt
CPU TDP 90 W TDP 120 W TDP 128 W 114% 106% 100%
...
...
0 15 30 45 60 75 90 105 120 135 150 165 180 195 Tooltip Asus ROG Strix G17 G713PI: Ø164.4 (141.8-177.7)
Asus Zephyrus Duo 16 GX650PY-NM006W: Ø186.3 (185.9-186.7)
Asus ROG Strix Scar 17 G733PY-XS96: Ø202 (201-203)
Power Consumption - Idle Power Consumption - external Monitor *
min: 13.9 avg: 29.2 median: 23.3 (20%) max: 50.5 Watt
CPU TDP 90 W TDP 120 W TDP 128 W 140% 100% 154%
...
0 5 10 15 20 25 30 35 40 45 50 55 Tooltip Asus ROG Strix Scar 17 G733PY-XS96: Ø13.9 (11.1-20.7)
Asus ROG Strix G17 G713PI: Ø23.3 (17.3-40.5)
Asus Zephyrus Duo 16 GX650PY-NM006W: Ø50.5 (37.5-59.8)
Power Consumption - Idle Power Consumption 150cd 1min *
min: 17.1 avg: 21.5 median: 23.4 (28%) max: 24.1 Watt
CPU TDP 90 W TDP 120 W TDP 128 W 101% 100% 112%
...
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 Tooltip Asus ROG Strix Scar 17 G733PY-XS96: Ø17.1 (12-31.9)
Asus ROG Strix G17 G713PI: Ø23.4 (16.3-70.4)
Asus Zephyrus Duo 16 GX650PY-NM006W: Ø24.1 (19.8-32.8)
Power Consumption - Cinebench R15 Multi Power Efficiency - external Monitor
min: 27.3 avg: 28.6 median: 28.6 (33%) max: 29.8 Points per Watt
CPU TDP 120 W TDP 128 W 100% 92%
...
...
- Bereich der Benchmarkergebnisse für diese Grafikkarte
- Durchschnittliche Benchmarkergebnisse für diese Grafikkarte
* Smaller numbers mean a higher performance
