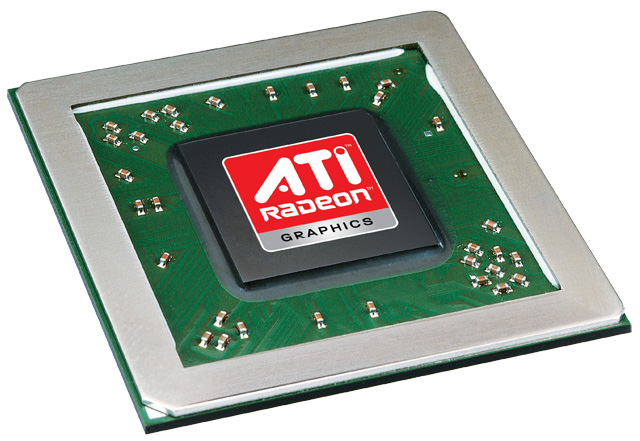

ATI Mobility Radeon X2300

ATI Mobility Radeon X2300

Die ATI Mobility Radeon X2300 ist die Nachfolgekarte der ATI Mobility Radeon X1350 für Notebooks, jedoch unterstützt sie keine DirectX 10 Effekte. Leistungsmäßig platziert sich die Grafikkarte in der Region der ATI Mobility Radeon X600 bzw NVIDIA GeForce Go 7300.

Diese Benchmarkwerte und die von ATI veröffentlichten technischen Daten unterstützen auch die Gerüchten, denen zufolge die X2300 nur eine umgelabelte X1300 / X1350 ist (um Namenskomplikationen mit der erscheinenden und deutlich langsameren Chipsatzgrafik X1250 zu verhindern).

Im Vergleich zur X1300 ist die X2300 etwas höher getaktet und ist dadurch auch minimal schneller. durch die geringe Anzahl an Pixel- und Vertexshader, reicht die Karte jedoch nur für anspruchslose Spiele (bzw zum Spielen in niedriger Qualität).

Derzeit gibt es 4 Chipsatzversionen der 2300er Serie verschiedene Versionen geben:

Mobility Radeon X2300 (M64-S 7188)
Mobility Radeon X2300 (M64-M 718A)
Mobility Radeon X2300 HD (M71-M 7210)
Mobility Radeon X2300 HD (M71-S 7211)

Nur die HD Versionen unterstützen ATIs UVD Technologie (Hardware Beschleunigung von HD-DVD, Blu-Ray (VC-1, H.264, MPEG-2)

Der X2300 Grafikprozesor ist zertifiziert für Windows Vista und unterstützt das Windows Aero Glass Interface.

HerstellerATI
Mobility Radeon X2000 Serie
Mobility Radeon X2500 compare 12/5 cores @ 0.46 GHz64 / 128 Bit @ 400 MHz
Mobility Radeon X2300 4/2 cores @ 0.48 GHz128 Bit @ 400 MHz
CodenameM64
Pipelines4 / 2 Pixel- / Vertexshader
Kerntakt480 MHz
Speichertakt400 MHz
Speicherbandbreite128 Bit
SpeichertypDDR1/DDR2/GDDR3
Max. Speichergröße256 MB
Shared Memorynein
DirectXDirectX 9c, Shader 3.0
Transistoren105 Millionen
Herstellungsprozess80 / 90 nm
Features90nm Herstellungsprozess, PCI Express X16 Interrace, PoxerPlay 6.0, Avivo Video Architektur (MPEG-2, MPEG-4, DivX, WMV9, VC-1 Beschleunigung), 64-bit Floating Point HDR, Ultra-Threaded Shader Engine
Erscheinungsdatum01.03.2007
Herstellerseitehttp://ati.amd.com/products/MobilityRade...

Benchmarks

3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06 - Standard 1280x800 +
Cinebench R10 Cinebench R10 Shading (32bit) +
- Bereich der Benchmarkergebnisse für diese Grafikkarte
- Durchschnittliche Benchmarkergebnisse für diese Grafikkarte
* Smaller numbers mean a higher performance

Spiele-Benchmarks

Die folgenden Benchmarks basieren auf unseren Spieletests mit Testnotebooks. Die Performance dieser Grafikkarte bei den gelisteten Spielen ist abhängig von der verwendeten CPU, Speicherausstattung, Treiber und auch Betriebssystem. Dadurch müssen die untenstehenden Werte nicht repräsentativ sein. Detaillierte Informationen über das verwendete System sehen Sie nach einem Klick auf den fps-Wert.

F.E.A.R.

F.E.A.R.

2005
min. 640x480
120  fps    + Vergleich
mittel 800x600
35  fps    + Vergleich
» In Detailstufe min. mit allen getesteten Notebooks spielbar
Doom 3

Doom 3

2004
min. 640x480
82  fps    + Vergleich
mittel 640x480
57.2  fps    + Vergleich
hoch 800x600
50.2  fps    + Vergleich
max. 1024x768
29  fps    + Vergleich
» In Detailstufe hoch mit allen getesteten Notebooks spielbar

Eine Liste mit weiteren Spielen und allen Grafikkarten finden Sie auf unserer Seite: Welches Spiel ist mit welcher Grafikkarte spielbar?
