NVIDIA GeForce MX250

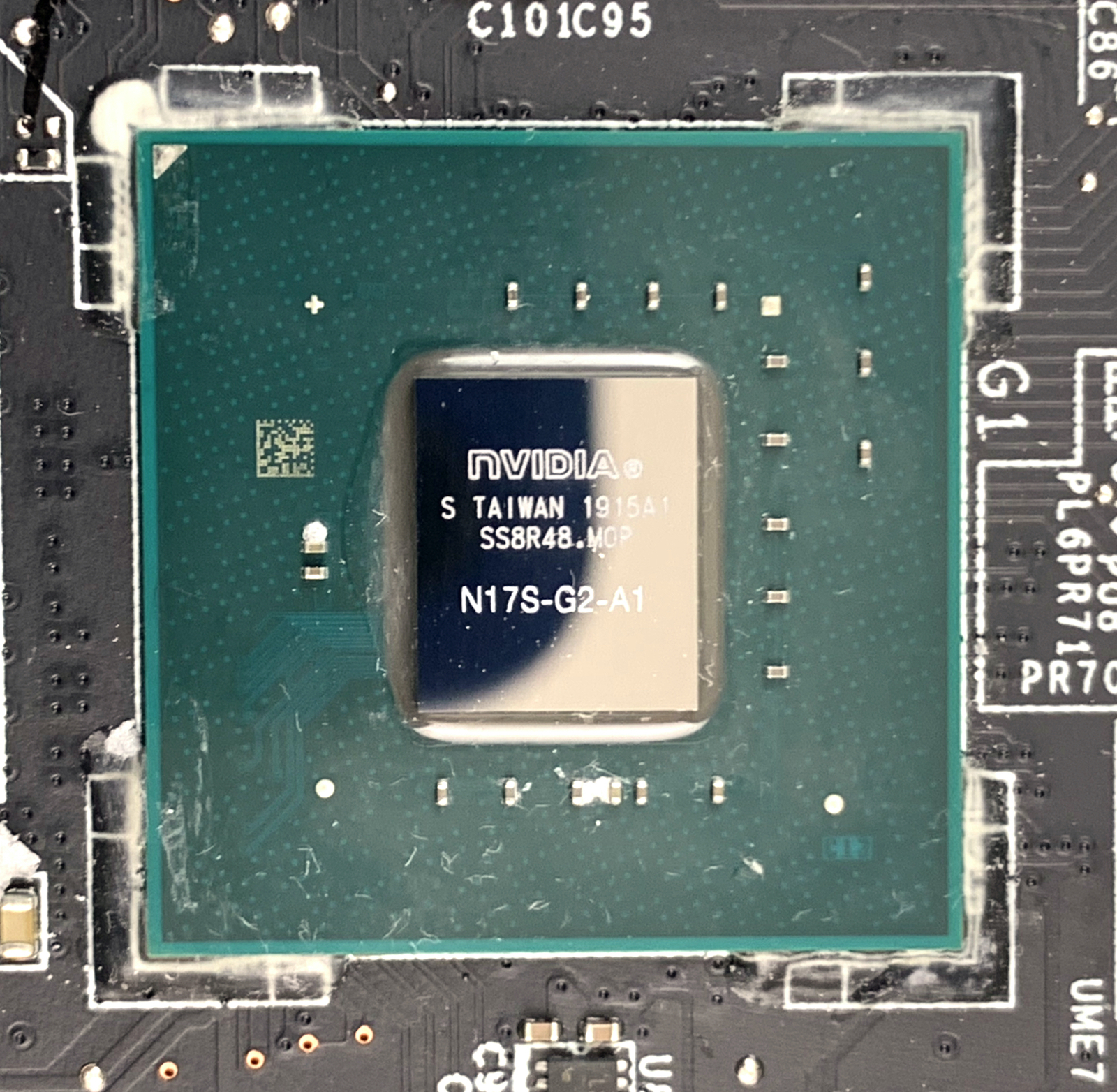

Die Nvidia GeForce MX250 ist eine mobile Grafikkarte für Notebooks und Nachfolger der GeForce MX150 mit leicht höheren Taktraten. Sie basiert auf den selben GP108 Chip (Pascal, N17S-G2-A1) wie die MX150 / Desktop GT 1030 mit 384 Shader und einem 64 Bit GDDR5 Speicherinterface, jedoch wurden die Taktraten erhöht.
Weiterhin gibt es zwei Varianten der MX250, eine schnellere 25 Watt Version (default, 1D13 Device ID) und eine Stromsparversion mit langsameren Taktraten (-32% bei der MX150) und 10 Watt TDP (1D52 Device ID). Die schnelle 1D13 mit 25 Watt hat einen 3% höheren Boost-Takt als die alte MX150. Neben dem höheren Kerntakt kann auch der Speichertakt nun mit 3,5 GHz betrieben werden (versus 3 GHz der MX150).
Features
Der GP108-Chip wird in einem 14-nm-FinFET-Prozess (LPP) bei Samsung gefertigt und bietet eine Reihe neuer Features, unter anderem Support für DisplayPort 1.4 (ready), HDMI 2.0b und HDR. G-Sync und Simultane Multi-Projection (für VR) werden im Unterschied zu den größeren Pascal Chips jedoch nicht unterstützt. H.265 Video De- und Encoding wird vom Chip unterstützt, jedoch benötigt z.b. 4K-HDR bei Netflix zumindest 3 GB Videospeicher. Eine genaue Auflistung der Verbesserungen und Features der neuen Pascal Desktop-GPUs finden Sie in unserem Pascal-Architektur-Artikel .
Leistung
Durch die erhöhten Taktraten (+3% Boost bei der 25 Watt Version, Speicher kann schneller betrieben werden) ist auch die Spieleleistung je nach Benchmark minimal höher als bei der alten GeForce MX150. Erste Benchmarks weisen z.b. auf eine 5% höhere Performance. Dadurch reicht die Leistung jedoch weiterhin nur für niedrige Detailstufe in aktuellen Spielen reichen. Mehr Details gibt es auf der MX150 Seite .
Hersteller NVIDIA GeForce MX200 Serie GeForce MX250 384 @ 1.52 - 1.58 GHz 64 Bit @ 7000 MHz GeForce MX230 256 @ 1.52 - 1.53 GHz 64 Bit @ 7000 MHz
Codename N17S-G2 Architektur Pascal Pipelines 384 - unified Kerntakt 1518 - 1582 (Boost) MHz Speichertakt 7000 MHz Speicherbandbreite 64 Bit Speichertyp GDDR5 Max. Speichergröße 4096 MB Shared Memory nein DirectX DirectX 12_1 Herstellungsprozess 14 nm Features Vulkan 1.1, OpenGL 4.6, OpenCL 1.2, GPU Boost 3.0, Multi Monitor Erscheinungsdatum 20.02.2019 Herstellerseite https://www.geforce.com/hardware/noteboo...
Benchmarks Performance Rating - 3DMark 11 + Fire Strike + Time Spy
11.1 pt (12%)
...
...
3DMark - 3DMark Time Spy Score
min: 980 avg: 1186 median: 1220.5 (7%) max: 1308 Points
...
...
3DMark - 3DMark Time Spy Graphics
min: 881 avg: 1070 median: 1103 (6%) max: 1169 Points
...
...
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 100071 avg: 213047 median: 235421 (36%) max: 252549 Points
...
...
3DMark - 3DMark Ice Storm Extreme Graphics
min: 22385 avg: 68911 median: 78819 (11%) max: 81895 Points
...
...
3DMark - 3DMark Cloud Gate Score
min: 8009 avg: 13380 median: 13121 (17%) max: 17955 Points
...
...
3DMark - 3DMark Cloud Gate Graphics
min: 13805 avg: 21491 median: 21545 (11%) max: 23863 Points
...
...
3DMark - 3DMark Fire Strike Standard Score
min: 2726 avg: 3201 median: 3244.5 (8%) max: 3567 Points
...
...
3DMark - 3DMark Fire Strike Standard Graphics
min: 2939 avg: 3531 median: 3660 (7%) max: 3885 Points
...
...
3DMark - 3DMark Ice Storm Graphics
min: 42088 avg: 80269 median: 86686 (12%) max: 101192 Points
...
...
3DMark 11 - 3DM11 Performance Score
min: 3930 avg: 4666 median: 4850 (11%) max: 5302 Points
...
NVIDIA GeForce GTX 570 6%
...
3DMark 11 - 3DM11 Performance GPU
min: 3585 avg: 4404 median: 4633 (8%) max: 4942 Points
...
...
3DMark Vantage + 3DMark Vantage - 3DM Vant. Perf. total
min: 16135 avg: 16488 median: 16487.5 (16%) max: 16840 Points
...
NVIDIA GeForce GTX 560 Ti -6%
NVIDIA GeForce GTX 570 7%
...
3DM Vant. Perf. GPU no PhysX + 3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
min: 15626 avg: 15925 median: 15924.5 (15%) max: 16223 Points
...
NVIDIA GeForce GTX 560 Ti 11%
...
3DMark 03 - 3DMark 03 - Standard
56769 Points (30%)
...
ATI Radeon HD 5770 -12%
AMD Radeon HD 6790 3%
...
3DMark 06 3DMark 06 - Standard 1280x1024 +
min: 22246 avg: 25429 median: 25428.5 (47%) max: 28611 Points
...
...
Unigine Valley 1.0 - Unigine Valley 1.0 DX
17 fps (8%)
...
...
Unigine Heaven 3.0 - Unigine Heaven 3.0 DX 11
43.6 fps (14%)
...
...
Unigine Heaven 3.0 - Unigine Heaven 3.0 OpenGL
43.7 fps (19%)
...
...
Unigine Heaven 2.1 - Heaven 2.1 high
58.9 fps (11%)
...
...
SPECviewperf 12 + SPECviewperf 12 - specvp12 sw-03
16.7 fps (7%)
...
...
specvp12 snx-02 + SPECviewperf 12 - specvp12 snx-02
2.1 fps (1%)
...
...
specvp12 showcase-01 + SPECviewperf 12 - specvp12 showcase-01
16.7 fps (7%)
...
...
specvp12 mediacal-01 + SPECviewperf 12 - specvp12 mediacal-01
18.1 fps (17%)
...
...
specvp12 maya-04 + SPECviewperf 12 - specvp12 maya-04
3 fps (1%)
...
specvp12 energy-01 + SPECviewperf 12 - specvp12 energy-01
1.1 fps (4%)
...
...
specvp12 creo-01 + SPECviewperf 12 - specvp12 creo-01
10.6 fps (6%)
...
...
specvp12 catia-04 + SPECviewperf 12 - specvp12 catia-04
9.2 fps (3%)
...
specvp12 3dsmax-05 + SPECviewperf 12 - specvp12 3dsmax-05
27.9 fps (8%)
...
...
SPECviewperf 13 specvp13 sw-04 + SPECviewperf 13 - specvp13 sw-04
34.8 fps (16%)
...
specvp13 snx-03 + SPECviewperf 13 - specvp13 snx-03
6.1 fps (1%)
...
specvp13 showcase-02 + SPECviewperf 13 - specvp13 showcase-02
16.7 fps (7%)
...
specvp13 medical-02 + SPECviewperf 13 - specvp13 medical-02
10.9 fps (7%)
...
...
specvp13 maya-05 + SPECviewperf 13 - specvp13 maya-05
49.5 fps (11%)
...
...
specvp13 energy-02 + SPECviewperf 13 - specvp13 energy-02
0.5 fps (1%)
...
specvp13 creo-02 + SPECviewperf 13 - specvp13 creo-02
26.7 fps (7%)
...
specvp13 catia-05 + SPECviewperf 13 - specvp13 catia-05
26.3 fps (6%)
...
...
specvp13 3dsmax-06 + SPECviewperf 13 - specvp13 3dsmax-06
27.7 fps (8%)
...
...
Cinebench R10 Cinebench R10 Shading (32bit) + Cinebench R10 - Cinebench R10 Shading (32bit)
min: 3683 avg: 5523 median: 6469 (31%) max: 6839 Punkte
...
...
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit + Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 65.6 avg: 73.5 median: 69.6 (30%) max: 85.22 fps
...
ATI Radeon HD 5770 1%
AMD Radeon HD 6790 3%
...
Cinebench R15 + Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 48.5 avg: 96.5 median: 99.3 (28%) max: 114.81 fps
...
...
Cinebench R15 OpenGL Ref. Match 64 Bit + Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
min: 99.6 avg: 99.6 median: 99.6 (100%) max: 100 %
...
...
GFXBench (DX / GLBenchmark) 2.7 + GFXBench (DX / GLBenchmark) 2.7 - GLBench 2.7 T-Rex HD Offscreen C24Z16
min: 265 avg: 269 median: 268.6 (2%) max: 272.2 fps
...
...
GLBench 2.7 T-Rex HD Onscreen C24Z16 + GFXBench (DX / GLBenchmark) 2.7 - GLBench 2.7 T-Rex HD Onscreen C24Z16
min: 60 avg: 104 median: 103.5 (3%) max: 147 fps
...
...
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 136 avg: 141 median: 141.2 (15%) max: 146.4 fps
...
...
GFXBench 3.0 - GFXBench 3.0 Manhattan
min: 60 avg: 79.9 median: 79.9 (22%) max: 99.7 fps
...
...
GFXBench - GFXBench 5.0 Aztec Ruins High Tier Onscreen
40.2 fps (26%)
...
...
GFXBench - GFXBench 5.0 Aztec Ruins High Tier Offscreen
33.3 fps (14%)
...
...
GFXBench - GFXBench 5.0 Aztec Ruins Normal Tier Onscreen
66.7 fps (32%)
...
GFXBench - GFXBench 5.0 Aztec Ruins Normal Tier Offscreen
79 fps (14%)
...
...
GFXBench - GFXBench Car Chase Offscreen
min: 66 avg: 69.5 median: 69.5 (0%) max: 73 fps
...
...
GFXBench - GFXBench Car Chase Onscreen
min: 57 avg: 63.5 median: 63.5 (2%) max: 69.9 fps
...
...
LuxMark v2.0 64Bit - LuxMark v2.0 Room GPU
min: 505 avg: 629 median: 629 (6%) max: 753 Samples/s
...
...
LuxMark v2.0 64Bit - LuxMark v2.0 Sala GPU
min: 895 avg: 1173 median: 1172.5 (4%) max: 1450 Samples/s
...
...
ComputeMark v2.1 - ComputeMark v2.1 Result
min: 2804 avg: 2806 median: 2806 (6%) max: 2808 Punkte
...
...
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
min: 37.4 avg: 43.3 median: 41.3 (7%) max: 49 Watt
...
...
0 5 10 15 20 25 30 35 40 45 37.8 37.6 36.5 37.6 38.3 37.1 39.3 38 37.5 37.7 36.6 39.5 36.1 37.2 36.6 36.1 39.6 37.4 38.5 37.1 36.9 36.2 36.7 38.3 36.8 37.6 36.2 36.6 38.7 36.6 36.8 36.8 37.1 37.8 37.2 39.5 36.9 36.9 36.8 36.4 38.2 36.4 37.6 36.7 37.1 37.2 37.1 38.4 36.2 36.4 36.9 37.2 38.2 36.4 36.1 36 36.5 38.7 38.5 37.2 36.9 36.6 36.7 39.2 36.7 36.7 36.3 36.9 38.1 37.1 36.8 36.9 36.9 39 38 36.2 36.8 36.5 37.8 36.8 38.5 36.6 38.1 36.5 36.8 39.7 38.1 38.4 37.1 36.7 36.8 37.9 38.4 36.8 36.6 36.5 36.3 38.2 37 37.7 37 37.1 36.5 37.7 36.7 36.6 37.9 37 40.3 36.3 35.9 36.9 37 38.3 36.7 36.7 36.7 37.2 38.6 36.6 38.3 36.6 36.4 38.1 36.9 39.1 37.7 36.3 37.2 36.2 39.6 36.6 36.7 36.7 36.4 36.5 36.1 37.2 36.7 36.6 37.1 37 38.3 36.5 36.9 37 36.8 38.2 48.5 39.3 42.5 38.1 38.4 39.5 36.5 37.1 36.8 36.6 36.8 39.4 38.9 35.9 36.7 36.4 37.5 38.2 39.3 36.9 37 37.7 37.9 36.6 39 36.7 36.6 38.1 36.5 38.8 36.8 36.7 37 36.5 39.1 36.4 40.1 36.7 36.4 36.6 36.1 38.2 36.5 36.2 37.7 37.1 38.9 36.6 37.3 36.5 36.8 38.2 37 39.4 42.3 39.2 40 40 38.8 43.5 39.6 40.3 39.7 40 41.4 40.1 39.7 40 39.6 40.5 39.5 43.4 40.4 41 40.5 40 44.2 41.1 41.8 41 40.1 40.8 40.2 42 40.7 40.4 40.2 40.7 43 41 41 40 40.4 41.7 40.4 42.9 40.6 41.6 41 42.9 40.7 40.1 40.6 41 43.3 40.8 40.9 41.2 40.1 43.2 42.6 40.4 40.6 40.5 43 40.4 42.3 40.7 40.1 40.4 40.5 40.6 40.1 40.5 40.6 40.7 39.9 39.9 39.9 40.2 40.6 40.6 42.5 41.8 40.7 40.7 40.4 41.4 42.8 40.8 40.6 40.8 40.4 42.5 40.5 43.2 40.5 41 41.6 41.4 42 40.4 40.2 41.1 41.3 42.6 40.7 40.6 40.8 42.1 42.9 40.7 40.9 40.5 42.5 41.5 41 43.8 40.6 41.5 40.9 42.1 41.5 42.4 40.5 40.4 40.7 40.9 41.6 40.4 40.6 43.4 40.4 44.1 40.7 40.9 40.7 41.1 43.1 40.9 40.9 41.7 41.4 41.3 41.2 41.2 40.6 40.9 45.5 40.6 40.7 40.3 41.2 43.2 40.7 41.6 40.8 40.5 43.1 41.3 41.7 40.7 41.4 41.2 41.1 40.9 41.3 42 42.5 44.2 40.7 41.7 40.8 42.3 43.1 41.4 41.6 41.4 43.1 41.5 42.3 42 40.5 41 43.2 41.3 41.9 40.9 43.3 41.4 41.6 41.7 41.3 41 41 41.9 42.1 44.3 41 41.2 41.7 Tooltip
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
min: 36 avg: 42.5 median: 43 (7%) max: 48 Watt
...
...
0 5 10 15 20 25 30 35 40 45 50 48.2 45.9 46.1 44.2 46.8 44.8 46.3 45.5 46.2 44.8 45 45.8 46.1 45.8 44.8 48.8 45.5 45.5 47.6 47.2 47.4 45.3 46.8 46.4 46.6 47.7 46.3 49.1 44.5 45.3 46.4 43.6 43.5 45.8 45 45 43.5 45.2 43.5 43.7 43.5 43.6 45.1 44.4 44.4 43.4 43.4 43.9 42.9 43.8 43.7 43.9 43.6 44.1 44.9 43.8 43.8 43.7 45.1 43.3 43.6 46.1 45.4 44.3 45 45.3 39.7 38.4 39.4 39.1 41.5 39.9 39.5 38.7 38.9 40.2 38.9 38.9 38.9 38.2 40.7 40.3 41.9 39.2 39.2 39.1 41.8 40.1 39.1 39 39.5 40.9 44.4 39.2 38.6 39.4 40.1 39.3 39.5 38.1 38.5 40.3 39 40.8 39 39.7 40 38.4 40.8 38.8 39 39.2 38.9 39.6 40 39 39.1 38.3 38.3 39 41.4 39.1 40.1 50.1 38.6 40 38.5 40.5 38.4 39.6 38.6 39.5 42.7 39.6 39.2 40.1 39.2 41.6 39.8 38.7 38.5 38.4 37.9 38.6 40.4 39.1 39.5 39.4 39.6 40.2 41.8 39.3 41.9 40.1 39.1 40.9 39.7 39.4 39.6 39.5 41 40.5 39.1 38.6 39.7 38.3 40.9 40.1 38.1 39.2 39.3 38.5 40 39.7 38 39.5 39.5 40.3 39.1 40.6 38.8 39.3 38.8 39.3 41.6 39.3 39.3 38.4 38.6 39.2 37.9 40.2 37.9 39.7 38.1 39.5 41.3 38.2 39.3 37.7 39.3 40.4 37.8 41 37.9 38.5 38.2 39.1 41.8 39.1 41.4 39.4 39 40.6 38.9 38.8 38 40 38.5 37.6 39 37.9 40.6 40.3 38.2 38.5 38.2 42.3 40.1 39 40 39 38.9 38.8 40.2 38.5 40.2 38.3 42.3 39.1 39.7 38.9 38.9 40.3 39.1 54 39.6 41.3 41.4 37.7 40.1 39.6 41.5 41.2 37.8 41.3 38.9 41.2 38.2 39.1 37.9 38.7 38.9 38.2 40.3 38.6 38 41.5 40.5 39.7 38.1 38.3 39.8 38.3 39.7 39.1 41.2 40.4 38.6 39.7 38.7 41.2 39.1 39.1
